Dehner Elektronik ATS 050T-A090 Bench PSU (fixed voltage) 9 V DC 4 A 36 W Regulated

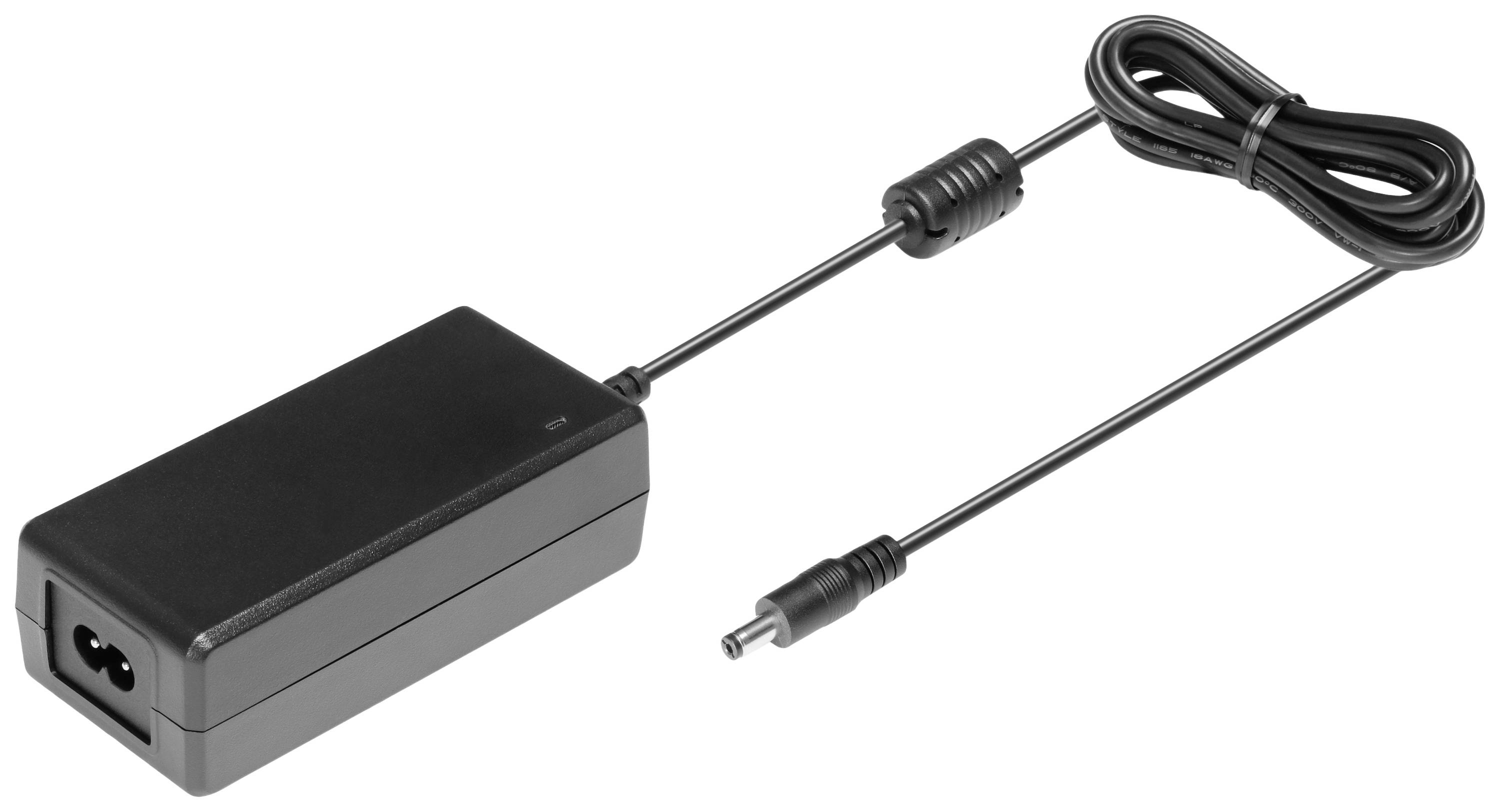

A black power supply with a two-pin plug. The cable outlet shows a round direct current connector.
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 28.99 / piece)
€ 28.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Dehner Elektronik ATS 050T-A090 Bench PSU (fixed voltage) 9 V DC 4 A 36 W Regulated

  • Energy efficiency according to DoE Level VI.Interference emission in accordance with EN 55032 - Class B.Overvoltage protectionOverload protectionShort-circuit protectionIEC/EN 62368-1; IEC 60950-1

Technical specifications

Product type

Bench PSU (fixed voltage)

Used at

Indoors

Max. output current

4 A

Output current (max.) - rounded

4 A

Output

5.5/2.1 coaxial connector

Output voltage

9 V DC

Input voltage

240 V AC

No. of outputs

1 x

EuP Status

Step 2

Weight

280 g

36 W

PSU features

Regulated

Type

Switched PSU

Width

53 mm

Height

38 mm

Length

115 mm

Type

ATS 050T-A090

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 2584536 Dehner Elektronik ATS 050T-A090 Bench PSU (fixed voltage) 9 V DC 4 A 36 W Regulated

User & Safety Instructions

User & Safety Instructions 2584536 Dehner Elektronik ATS 050T-A090 Bench PSU (fixed voltage) 9 V DC 4 A 36 W Regulated

Warranty Terms

Warranty Terms 2584536 Dehner Elektronik ATS 050T-A090 Bench PSU (fixed voltage) 9 V DC 4 A 36 W Regulated

Description

Powerful, efficient power supply. Versatile use in information technology and for audio/video applicationsThe power supply is suitable for worldwide use due to the wide-range input. The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and thus a low heat generation.

This text is machine translated.

Scope of delivery

  • Connection cable, operating instructions
