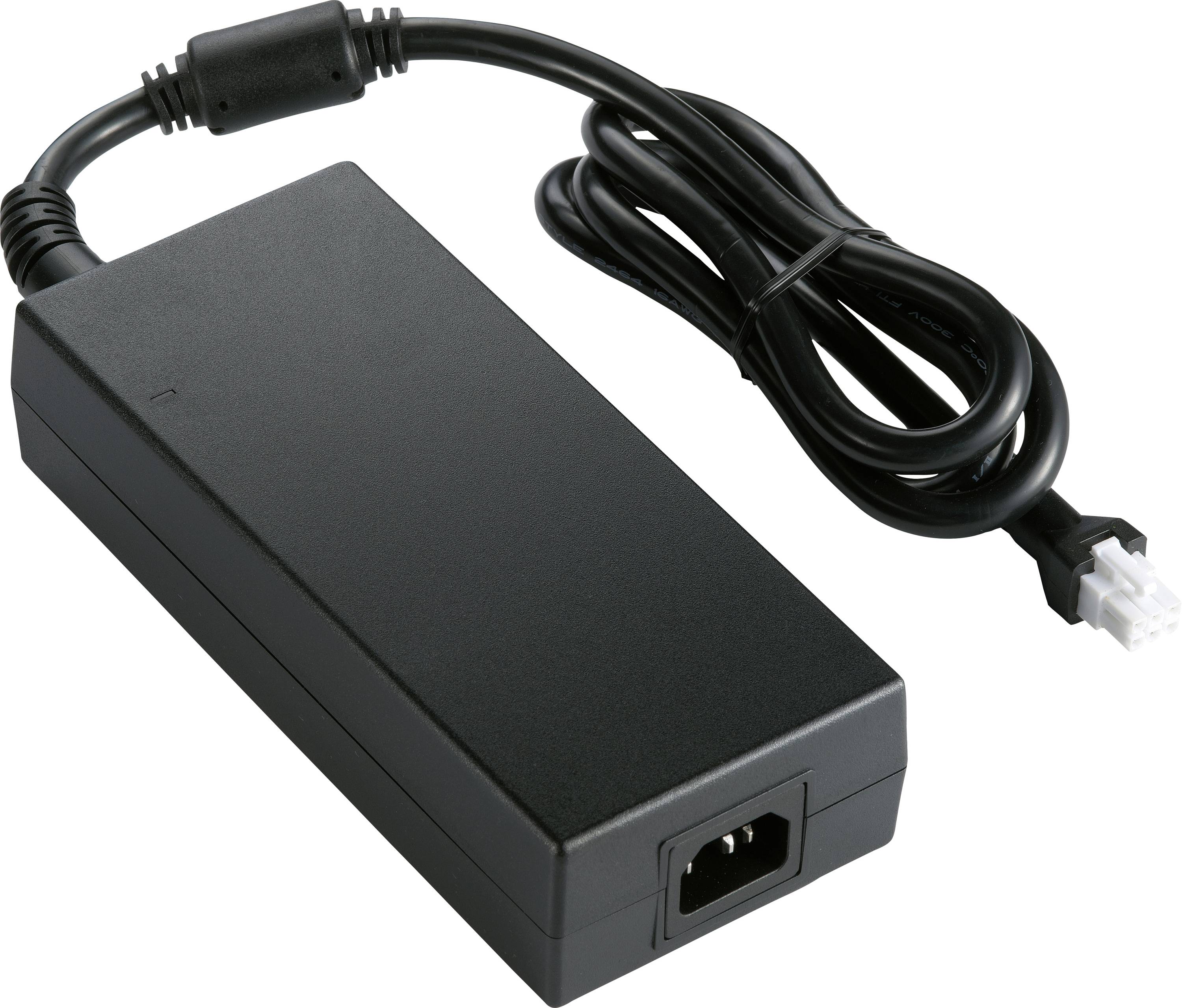

Dehner Elektronik ATS 240A1-P240 AC/DC bench/mains PSU 24 V DC 10 A 240 W Surge protection, Regulated
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 105.03 / piece)
€ 105.03
plus VAT.
Only 3 Piece(s) available
Highlights & Details
Desktop power supply ATS 240A1-P240 Dehner Elektronik GmbH
- IEC/EN/UL 62368-1 3rd Edition
- 100-240VAC universal input
- Regulated output with low ripple
- ErP level 2, DoE level VI
- Power consumption without load less than 0.1 W.
- Regulated output with low ripple
Technical specifications
- Product type
AC/DC bench/mains PSU
- Used at
Mains socket
Indoors
- Max. output current
10 A
- Output current (max.) - rounded
10 A
- Output
Plug
- Output voltage
24 V DC
- Input voltage
240 V AC
- EuP Status
Step 2
- Weight
860 g
240 W
- PSU features
Surge protection
Regulated
- Type
Switched PSU
- Width
81 mm
- Height
42 mm
- Length
183 mm
- Type
ATS 240A1-P240
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3397139 Dehner Elektronik ATS 240A1-P240 AC/DC bench/mains PSU 24 V DC 10 A 240 W Surge protection, Regulated
User & Safety Instructions
User & Safety Instructions 3397139 Dehner Elektronik ATS 240A1-P240 AC/DC bench/mains PSU 24 V DC 10 A 240 W Surge protection, Regulated
Conformity certificate
Conformity certificate 3397139 Dehner Elektronik ATS 240A1-P240 AC/DC bench/mains PSU 24 V DC 10 A 240 W Surge protection, Regulated
Conformity certificate 3397139 Dehner Elektronik ATS 240A1-P240 AC/DC bench/mains PSU 24 V DC 10 A 240 W Surge protection, Regulated
Description
High-performance, efficient power supply. Versatile use in information technology and for audio/video applications
The adapter is suitable for worldwide use through the wide-range input. The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.
This text is machine translated.
The adapter is suitable for worldwide use through the wide-range input. The output voltage is stabilised. The switched-mode power supply has a high degree of efficiency and therefore low heat generation.
This text is machine translated.
Scope of delivery
- User manual
