Dehner Elektronik SL 30-24VF LED driver Constant voltage 30 W 1.25 mA 24 V DC Surge protection, Overvoltage, Approved fo
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 14.99 / piece)
€ 14.99
incl. VAT
Only 2 Piece(s) available
Highlights & Details

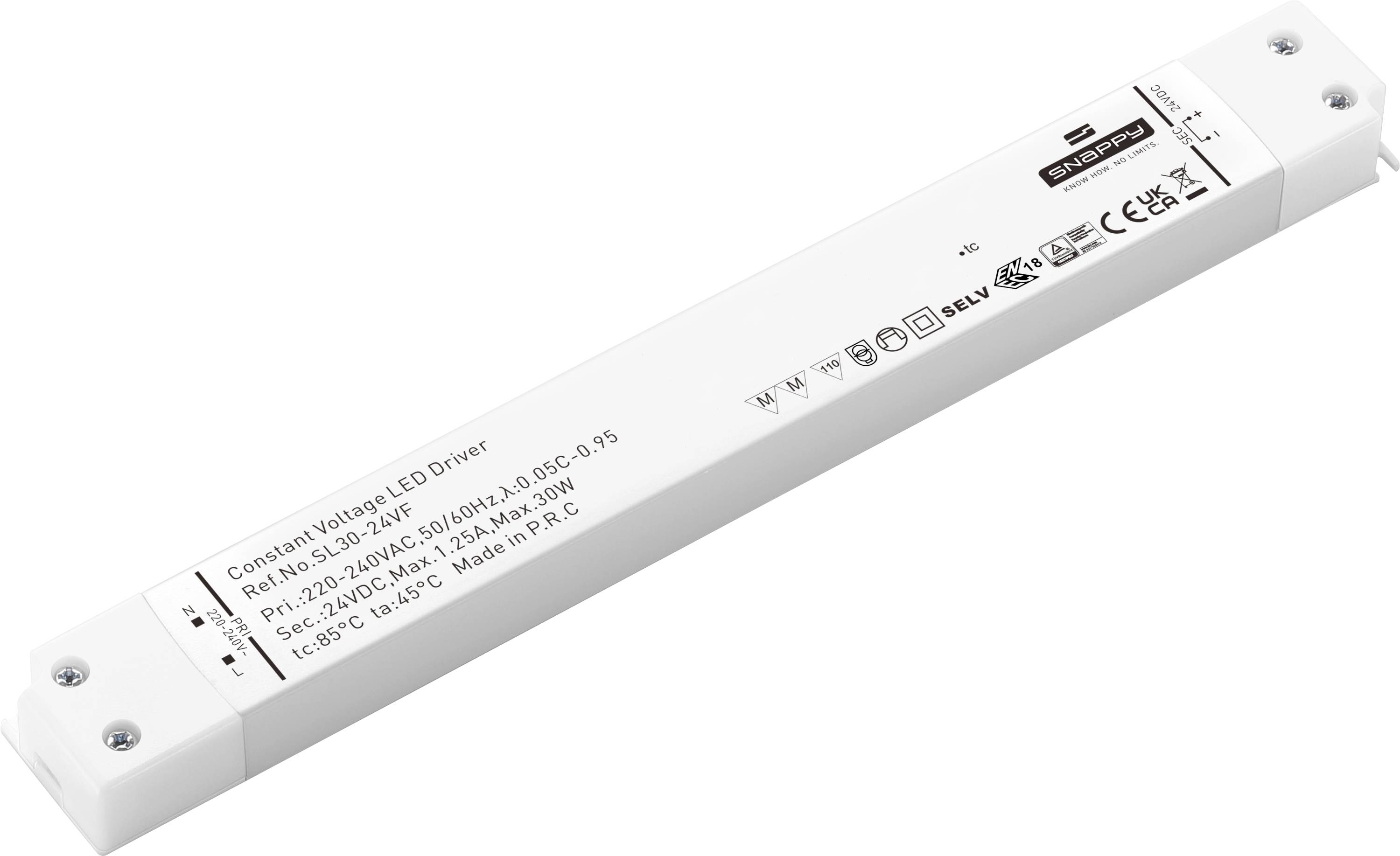

LED power supply driver SL 30-24VF Dehner Elektronik GmbH
- Constant voltage
- 24 V DC
- 1.25 mA
Technical specifications
- Product type
LED driver
- Type
Constant voltage
- Dim
(L x W x H) 244 x 30 x 16 mm
- Factory colour
White orange
- Output voltage (max.)
24 V DC
- Output voltage (min.)
24 V DC
- Test mark
MM; SELV; UKCA; TÜV; CE;
- Max. output current
1.25 A
- Output current (max.) - rounded
1.25 A
- Protection class
IP20
- LED driver features
Surge protection
Overvoltage
Approved for use on furniture
- Connection
Screw terminal
- Max. power
30 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
1.25 mA
- Input voltage (max.)
240 V AC
- Min. input voltage
220 V AC
- Weight
120 g
- Power range
30 W (max)
- Type
Switched PSU
- Width
30 mm
- Height
16 mm
- Length
244 mm
- Max. temperature
45 °C
- Min. temperature
-20 °C
Documents & Downloads
Datasheet
Datasheet 3771390 Dehner Elektronik SL 30-24VF LED driver Constant voltage 30 W 1.25 mA 24 V DC Surge protection, Overvoltage, Approved fo
User & Safety Instructions
User & Safety Instructions 3771390 Dehner Elektronik SL 30-24VF LED driver Constant voltage 30 W 1.25 mA 24 V DC Surge protection, Overvoltage, Approved fo
Conformity certificate
Conformity certificate 3771390 Dehner Elektronik SL 30-24VF LED driver Constant voltage 30 W 1.25 mA 24 V DC Surge protection, Overvoltage, Approved fo
Warranty Terms
Warranty Terms 3771390 Dehner Elektronik SL 30-24VF LED driver Constant voltage 30 W 1.25 mA 24 V DC Surge protection, Overvoltage, Approved fo
Description
Energy efficiency that convinces
The SL30-12/24/48VF is a constant voltage power supply unit of the extra class, specifically designed for high-quality LED lighting indoors. With up to 87% efficiency and active PFC (Power factor correction), it saves energy and protects the environment - without fans for absolute durability and noise immunity.
Maximum safety:
The SL30 series offers comprehensive protection against:
Short circuit
Overvoltage
Overload
Overtemperature
With Hiccup mode and automatic restart after troubleshooting, your system will always run stable without manual intervention.
Flexible, compact, certified
No matter whether 12V, 24V or 48V – with the three variants of the SL30 series you will find the suitable power supply for each LED-application. The compact dimensions (251 × 30 × 16 mm) and the light plastic housing (only 115 g) make the integration in each installation easy.
EN61347-1, EN61347-2-13, EN61547, EN55015, EN61000-3-2, EN62493
Class 2 insulation (double insulated)
Protection type IP20 (Ideal for dry indoor areas)
Longevity that pays off
With a service life of 50,000 hours and a 5-year guarantee the SL30-power supply is an investment in reliability. Operate it in a temperature range from -20°C to +45°C – perfect for offices, living rooms, shops and more.
Simple. Efficient. Professional.
The SL30-12/24/48VF is:
Plug & Play – Ready to use immediately
Energy efficient – reduces your electricity costs
Safe - Protects your LED installation from damage
Future safe – meets all European safety standards
This text is machine translated.
The SL30-12/24/48VF is a constant voltage power supply unit of the extra class, specifically designed for high-quality LED lighting indoors. With up to 87% efficiency and active PFC (Power factor correction), it saves energy and protects the environment - without fans for absolute durability and noise immunity.
Maximum safety:
The SL30 series offers comprehensive protection against:
Short circuit
Overvoltage
Overload
Overtemperature
With Hiccup mode and automatic restart after troubleshooting, your system will always run stable without manual intervention.
Flexible, compact, certified
No matter whether 12V, 24V or 48V – with the three variants of the SL30 series you will find the suitable power supply for each LED-application. The compact dimensions (251 × 30 × 16 mm) and the light plastic housing (only 115 g) make the integration in each installation easy.
EN61347-1, EN61347-2-13, EN61547, EN55015, EN61000-3-2, EN62493
Class 2 insulation (double insulated)
Protection type IP20 (Ideal for dry indoor areas)
Longevity that pays off
With a service life of 50,000 hours and a 5-year guarantee the SL30-power supply is an investment in reliability. Operate it in a temperature range from -20°C to +45°C – perfect for offices, living rooms, shops and more.
Simple. Efficient. Professional.
The SL30-12/24/48VF is:
Plug & Play – Ready to use immediately
Energy efficient – reduces your electricity costs
Safe - Protects your LED installation from damage
Future safe – meets all European safety standards
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
