Name: Dehner Elektronik SS 150-24VL LED driver 50 W 6.25 mA 24 V DC Surge protection, Overvoltage 1 pc(s)
Brand: Dehner Elektronik
SKU: 3771391
Availability: InStock

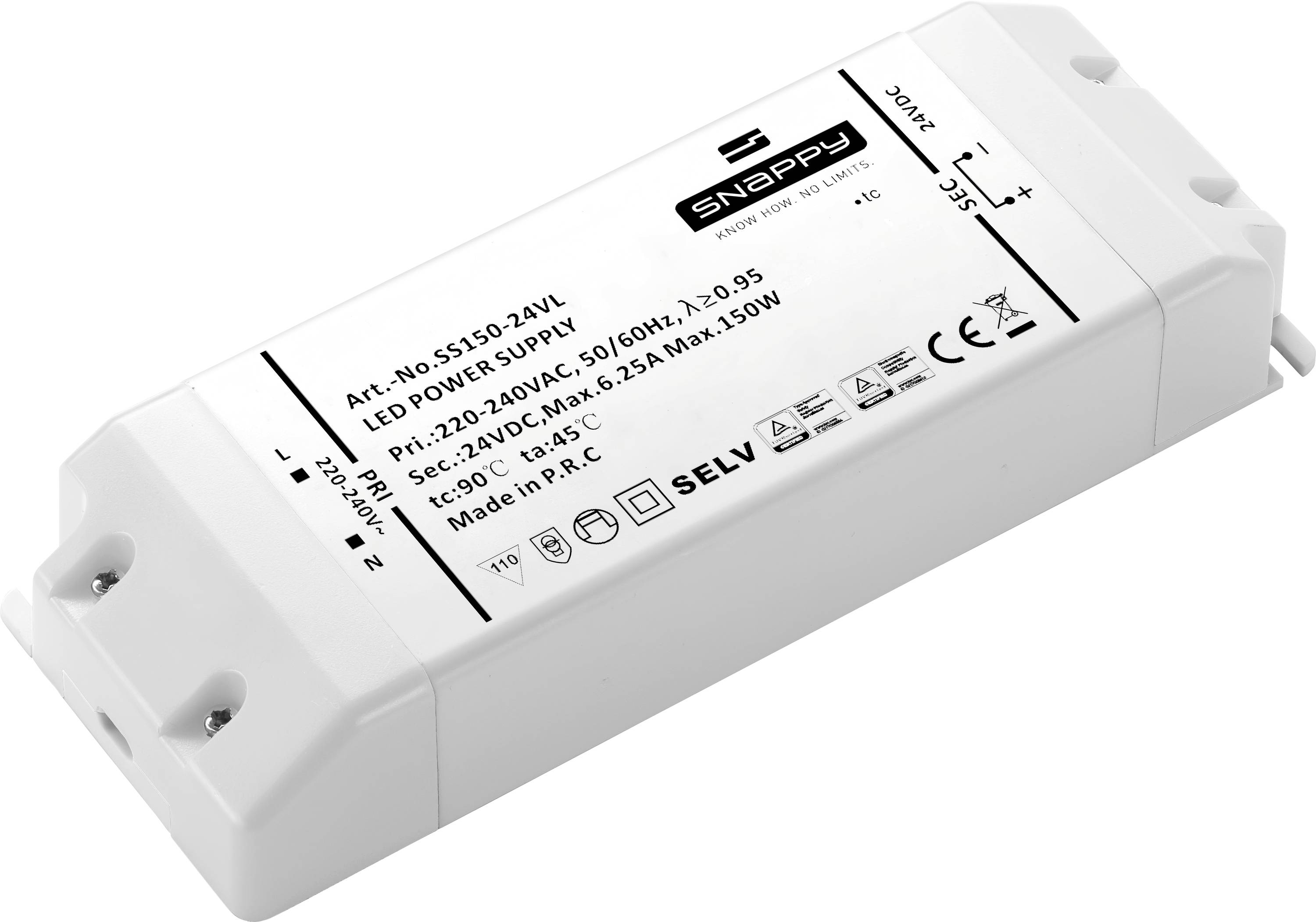

White LED power supply unit labeled 'SNAPPY', shown in a rectangular plastic case with input/output terminals and technical specs printed on top.

Datasheet (PDF)

Fast track dispatch on Thu 15 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 31.99 / piece)

€ 31.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

SS 150-24VL

24 V DC
6.25 mA

Technical specifications

Product type: LED driver

Operating current: 6.25 mA

Dim: (L x W x H) 179 x 62 x 30 mm

Factory colour: White

Output voltage (max.): 24 V DC

Output voltage (min.): 24 V DC

Test mark: MM; SELV; TÜV; CE; UKCA

Max. output current: 6.25 A

Output current (max.) - rounded: 6.25 A

Operating voltage: 24 V DC

Protection class: IP20

LED driver features: Surge protection
Overvoltage

: IP20

Connection: Screw terminal

Max. power: 50 W

No. of outputs: 1 x

No. of inputs: 1 x

Type: Switched PSU

Output current (min.): 6.25 mA

Input voltage (max.): 240 V AC

Min. input voltage: 200 V AC

Weight: 340

Power range: 50 W (max)

Width: 62 mm

Height: 30 mm

Length: 179 mm

Max. temperature: 45 °C

Min. temperature: -20 °C

Documents & Downloads

Datasheet

Datasheet 3771391 Dehner Elektronik SS 150-24VL LED driver 50 W 6.25 mA 24 V DC Surge protection, Overvoltage 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3771391 Dehner Elektronik SS 150-24VL LED driver 50 W 6.25 mA 24 V DC Surge protection, Overvoltage 1 pc(s)

Conformity certificate

Conformity certificate 3771391 Dehner Elektronik SS 150-24VL LED driver 50 W 6.25 mA 24 V DC Surge protection, Overvoltage 1 pc(s)

Warranty Terms

Warranty Terms 3771391 Dehner Elektronik SS 150-24VL LED driver 50 W 6.25 mA 24 V DC Surge protection, Overvoltage 1 pc(s)

Description

The SS150-24VL is a high-quality constant voltage power supply with 150 W power and 24 V output voltage – Ideal for professional LED-lighting in the interior. With a maximum load of 6.25 A, it is perfectly suited for demanding applications where reliability and efficiency are in the foreground.

Energy efficiency that pays off
Thanks to an efficiency of over 89% and a power factor of 0.95 the SS150-24VL not only saves energy, but also lowers your operating costs. The low 3% ripple factor also provides stable and flicker-free LED lighting.

Security you can rely on
The SS150-24VL offers comprehensive protection:

Overload protection (Hiccup mode with automatic restart)
Short circuit protection (Hiccup mode with automatic restart)
Low input current peak (70 A)
Thus your LED installation is always optimally protected - without manual intervention.

Durable and reliable
With a service life of 50,000 hours and an operating temperature of -20°C to +45°C the SS150-24VL is designed for continuous operation. The robust plastic housing and the protection class II (double insulation) guarantee additional safety.

Simple to install

Certified and standards compliant
The SS150-24VL meets all the relevant safety and EMC standards, including:

EN61347-1, EN61347-2-13, EN62493
EN 55015 (EMI)
EN 61547 (EMS)
EN 61000-3-2 Class C (harmonics)

Why the SS150-24VL?

Powerful 150 W for demanding LED applications
Efficient 89%, power factor 0.95
Safe: Extensive protection functions
Long-lasting: 50,000 hours life
Quiet: Operating noise 35 dB
Certified: Corresponds to all international standards

Power your light – with the SS150-24VL

This text is machine translated.

Hints

Caution!

Make sure you pick an LED driver/transformer that comes with the appropriate power rating.

Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.

Keep in mind that the switch-on surge tend to be much higher.
