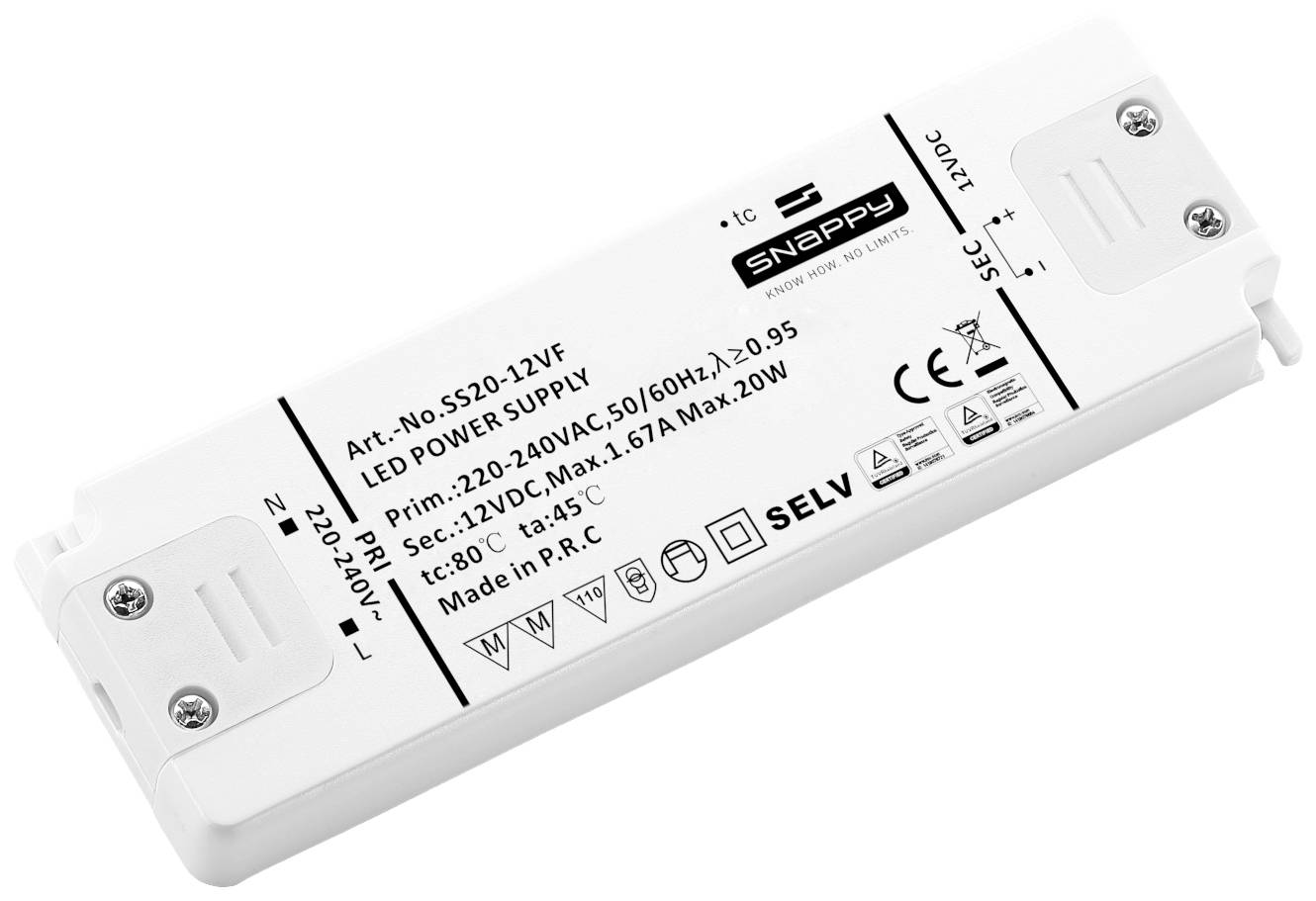

Dehner Elektronik SS 20-12VF LED transformer Constant voltage 20 W 1.67 A 12 V DC Approved for use on furniture, Surge p
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 13.44
3
6% = € 0.74
€ 12.70
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 13.44 / piece)
€
Highlights & Details
LED power supply SS 20-12VF Snappy Dehner Elektronik GmbH
- Constant voltage
- 12 V DC
- 1.67 A
Technical specifications
- Constant voltageShort-circuit, overheating and overload protectionPlastic housing according to IP20.EN 61347; EN 61000-3-2 CLASS C.Low height of only 14mm
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 155 x 50 x 15 mm
- Factory colour
White
- Output voltage (max.)
12 V DC
- Test mark
MM; SELV; ; GS
- Max. output current
1.67 A
- Output current (max.) - rounded
1.67 A
- Operating voltage
240 V AC
- Protection class
IP20
- LED driver features
Approved for use on furniture
Surge protection
Overvoltage
IP20
- Connection
Screw terminal
- Max. power
20 W
- No. of outputs
1 x
- No. of inputs
1 x
- Type
Switched PSU
- Input voltage (max.)
240 V AC
- Min. input voltage
220 V AC
- Weight
85 g
- Power range
20 W (max)
- Width
50 mm
- Height
15 mm
- Length
155 mm
- Max. temperature
45 °C
- Min. temperature
-20 °C
Variants(All information is without VAT, plus shipping costs)
Output current (max.) - rounded
Output voltage (max.)
Dehner Elektronik SS 20-12VF LED transformer Constant voltage 20 W 1.67 A 12 V DC Approved for use on furniture, Surge protection, Overvoltage 1 pc(s)
This article
1.67 A
12 V DC
Minimum order quantity: 1
Multiple: 1
€ 13.44*

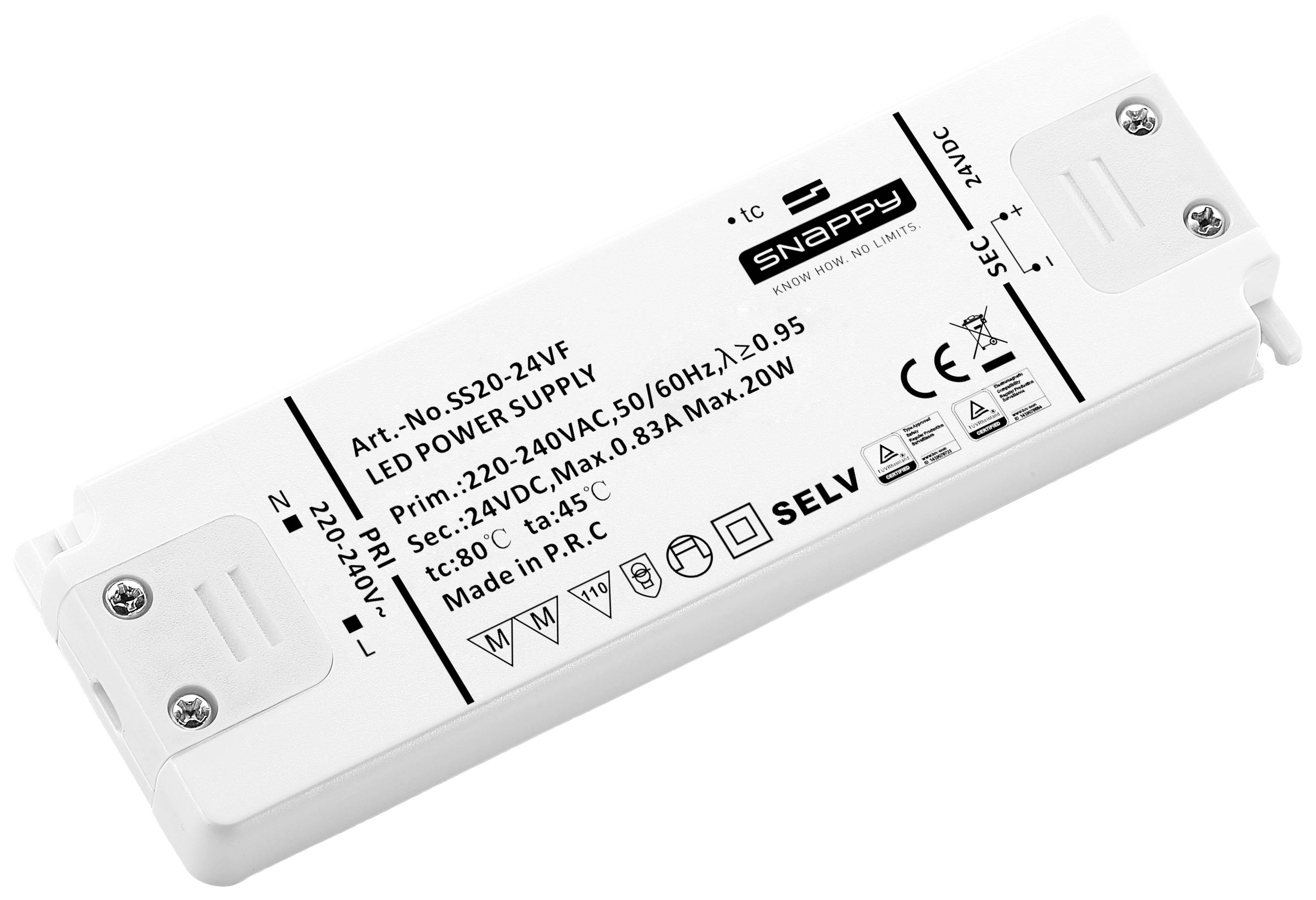

Dehner Elektronik SS 20-24VF LED transformer Constant voltage 20 W 0.83 A 24 V DC Approved for use on furniture, Surge protection, Overvoltage 1 pc(s)
830 mA
24 V DC
Minimum order quantity: 1
Multiple: 1
€ 13.44*
Documents & Downloads
Datasheet
Datasheet 2618040 Dehner Elektronik SS 20-12VF LED transformer Constant voltage 20 W 1.67 A 12 V DC Approved for use on furniture, Surge p
User & Safety Instructions
User & Safety Instructions 2618040 Dehner Elektronik SS 20-12VF LED transformer Constant voltage 20 W 1.67 A 12 V DC Approved for use on furniture, Surge p
Warranty Terms
Warranty Terms 2618040 Dehner Elektronik SS 20-12VF LED transformer Constant voltage 20 W 1.67 A 12 V DC Approved for use on furniture, Surge p
Description
Power supply specially designed for LED lighting, which stands out due to its compact design.Suitable for various indoor LED applications. (E.g. furniture installation, false ceilings)
This text is machine translated.
This text is machine translated.
Scope of delivery
- User manual
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
