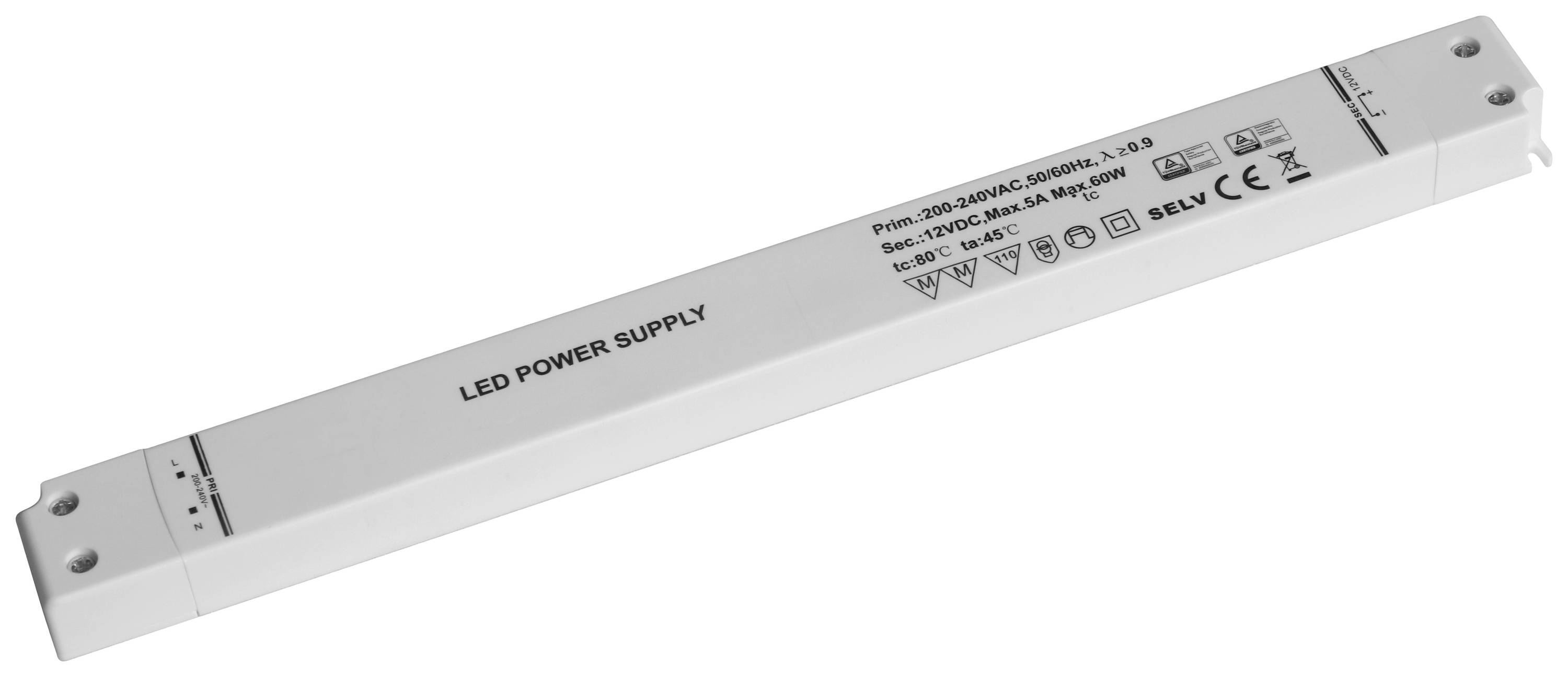

Dehner Elektronik SSL 60-12VF LED transformer, LED driver Constant voltage 60 W 5 A 12 V DC Approved for use on furnitur
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 39.99 / piece)
€ 39.99
incl. VAT
14-day return policy included
Highlights & Details
SSL 60-12VF
- Constant voltage
- 12 V DC
- 5 A
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim
(L x W x H) 305 x 30 x 17 mm
- Factory colour
White
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V DC
- Test mark
MM; SELV; UKCA
- Max. output current
5 A
- Output current (max.) - rounded
5 A
- Operating voltage
240 V AC
- Protection class
IP20
- LED driver features
Approved for use on furniture
Surge protection
Overvoltage
IP20
- Connection
Screw terminal
- Max. power
60 W
- No. of outputs
1 x
- No. of inputs
1 x
- Output current (min.)
5 A
- Input voltage (max.)
264 V AC
- Min. input voltage
180 V AC
- Weight
160 g
- Power (min.)
60 W
- Power range
60 up to 60 W
- Type
Switched PSU
- Width
30 mm
- Height
17 mm
- Length
305 mm
- Max. temperature
45 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2730527 Dehner Elektronik SSL 60-12VF LED transformer, LED driver Constant voltage 60 W 5 A 12 V DC Approved for use on furnitur
User & Safety Instructions
User & Safety Instructions 2730527 Dehner Elektronik SSL 60-12VF LED transformer, LED driver Constant voltage 60 W 5 A 12 V DC Approved for use on furnitur
Warranty Terms
Warranty Terms 2730527 Dehner Elektronik SSL 60-12VF LED transformer, LED driver Constant voltage 60 W 5 A 12 V DC Approved for use on furnitur
Description
Power supply specially designed for LED lighting, especially compact and flat design. Suitable for various LED-applications in the inner area. (E.g. Decoration, furniture installation, suspended ceilings)
This text is machine translated.
This text is machine translated.
Scope of delivery
- User manual
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
