DEWALT DCLE14201GB-XJ Multi-line laser Range (max.): 30 m
EAN:
Part number:
Item no:
Number
Total (€ 310.08 / piece)
€ 310.08
plus VAT.
Technical specifications
- Product type
Multi-line laser
- Range (max.)
30 m
- Accuracy (+/-)
3 mm/10m
- Auto-adjustment range (+/-)
4°
- Tripod thread mount
1/4"
- Length
100 mm
- Width
90 mm
- Height
50 mm
- Dim
(L x W x H) 100 x 90 x 50 mm
- Weight
500 g
Manufacturer's standards (no certificate)
- Type
DCLE14201GB-XJ
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3340464 DEWALT DCLE14201GB-XJ Multi-line laser Range (max.): 30 m
Description
Features
- Compact line laser with integrated Li-Ion battery and USB-C connection
- POWERSTACK™ battery technology
- Colour of laser line: Green
- Projection: Two lines
- Working range: 30m (50m with receiver)
- Levelling accuracy +/- 3mm/10m
- Self-leveling range ± 4°
- Levelling time ≤ 5s
- Pivoting magnetic holder for attaching to metal rails and steel structures
- Sets the beam brightness to adjust to the lighting conditions
- Battery display for quick detection of the charging status
- 3-position switch (manual tilt/self leveling/pendulum lock)
- Fine adjustment for precise alignment of laser line
- Up to 8 hours run time, charging in 30 minutes* to 80% charge, using the laser while charging
- Drop test 1m
- Dust and splash protection IP65
- Tripod socket 1/4" & 5/8" (integrated in bracket)
- Set content: Bag, holder with magnet, USB-C cable
- USB-C to C-PD charger with 45 W. Chargers and cables with lower wattage will result in longer charging times
- This text is machine translated.
Scope of delivery

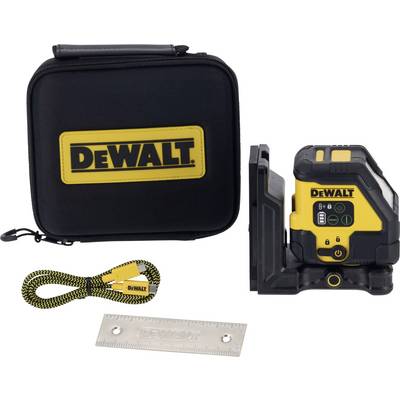

- Laser, case, holder with magnet, USB-C cable
