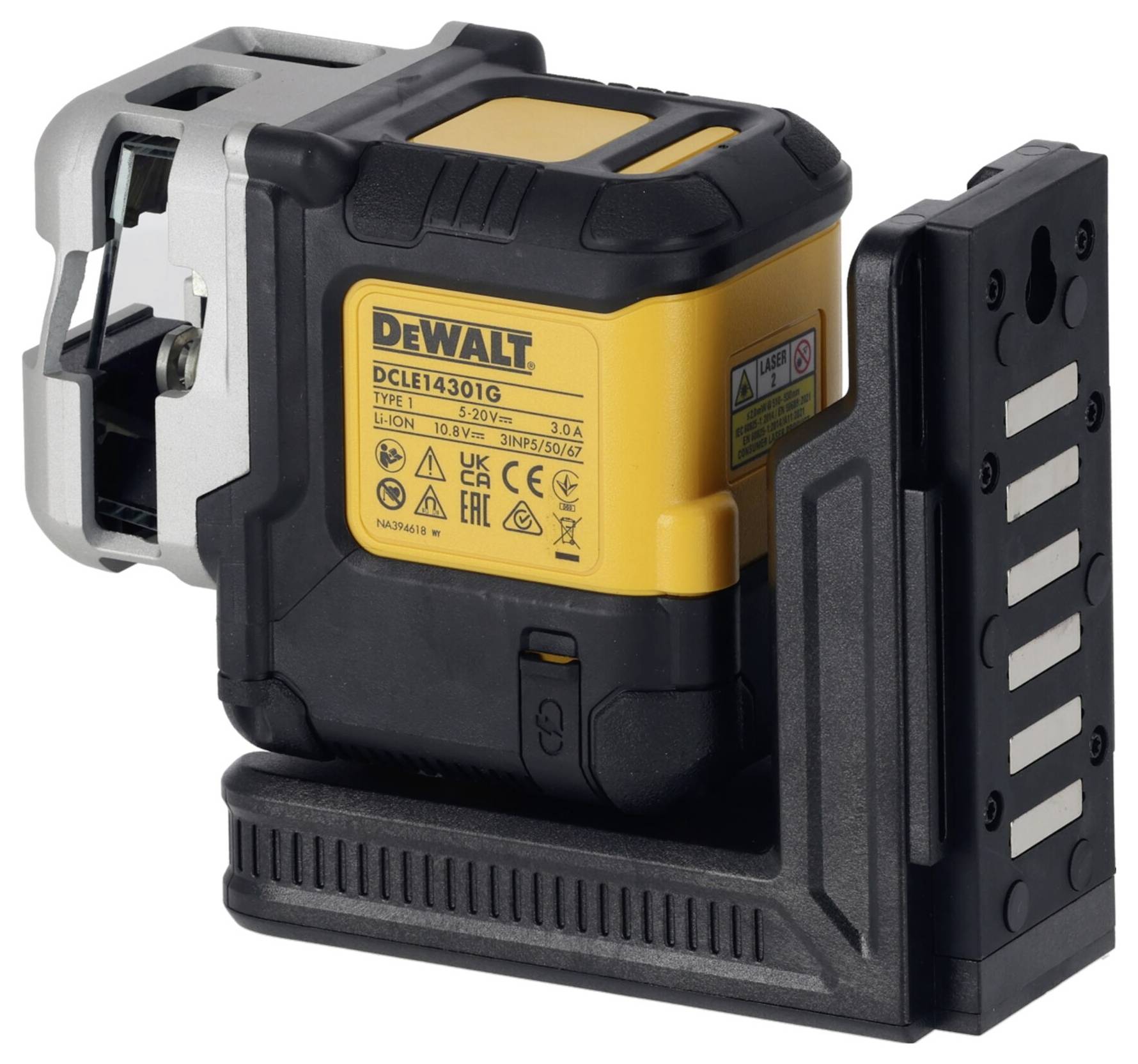

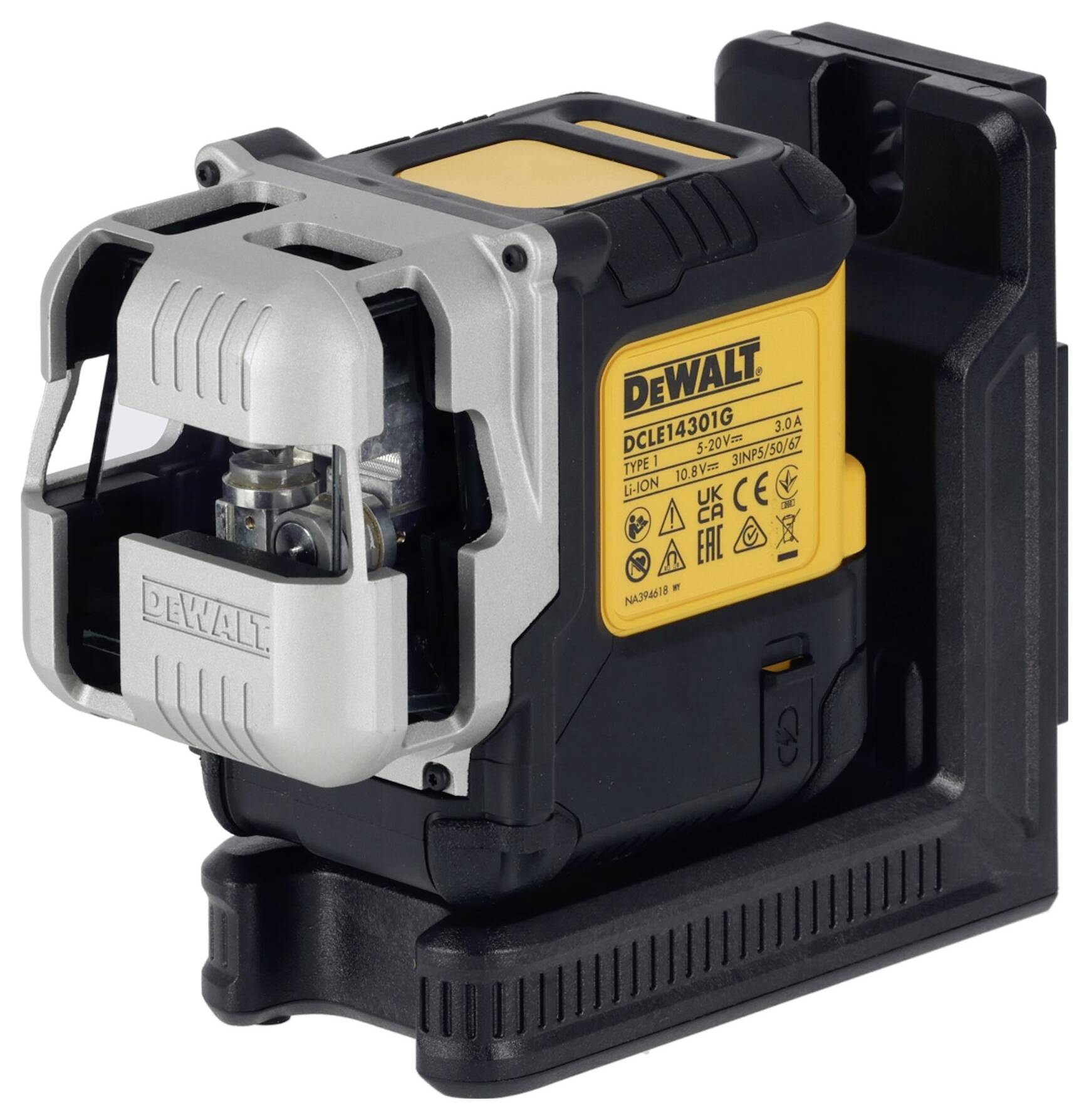

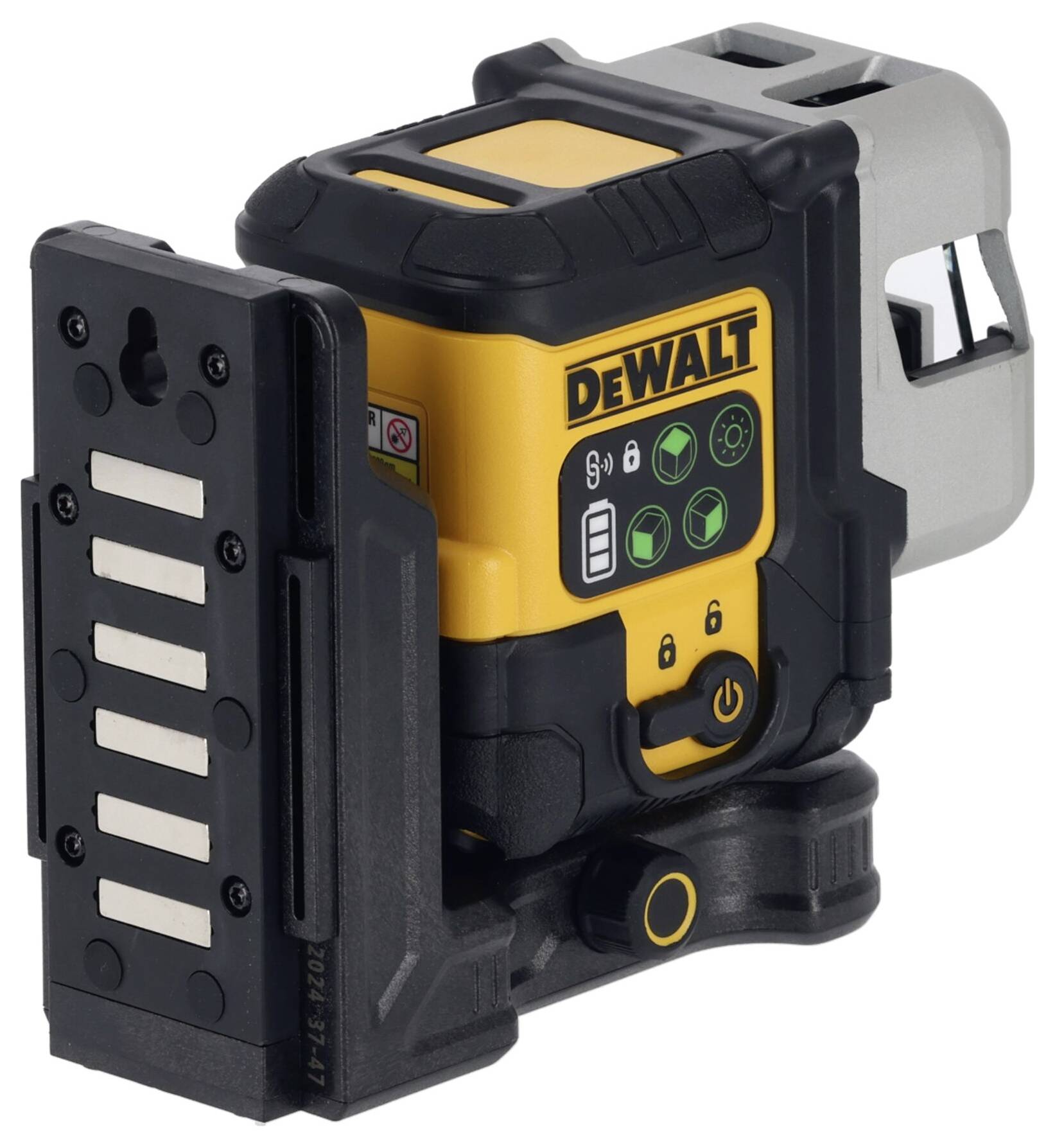

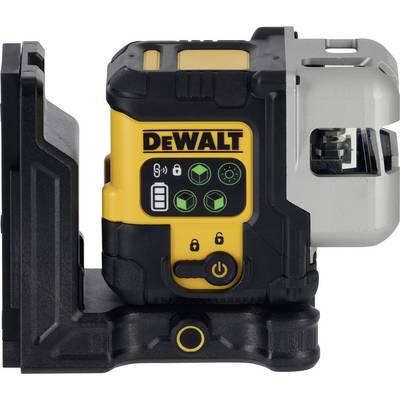

DEWALT DCLE14301GB-XJ Multi-line laser Range (max.): 30 m
EAN:
Part number:
Item no:
Number
Total (€ 505.00 / piece)
€ 505.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
Multi-line laser
- Range (max.)
30 m
- Accuracy (+/-)
3 mm/10m
- Auto-adjustment range (+/-)
4°
- Laser category
2
- Tripod thread mount
1/4"
5/8"
- Length
100 mm
- Width
90 mm
- Height
50 mm
- Dim
(L x W x H) 100 x 90 x 50 mm
- Weight
500 g
Manufacturer's standards (no certificate)
- Type
DCLE14301GB-XJ
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3401897 DEWALT DCLE14301GB-XJ Multi-line laser Range (max.): 30 m
Description
Compact multi-line laser 3x180° with integrated Li-Ion rechargeable battery and USB-C connection
POWERSTACK™ battery technology
Colour of laser line: Green
Projection: Three lines, two vertical lines, one horizontal line
Working range: 30m (100m with receiver)
Levelling accuracy +/- 3mm/10m
Self-leveling range ± 4°
Levelling time ≤ 5s
Pivoting magnetic holder for attaching to metal rails and steel structures
Sets the beam brightness to adjust to the lighting conditions
Battery display for quick detection of the charging status
3-position switch (manual tilt/self leveling/pendulum lock)
Fine adjustment for precise alignment of laser line
Up to 8 hours run time, charging in 30 minutes* to 80% charge, using the laser while charging
Drop test 1m
Dust and splash protection IP65
Tripod socket 1/4" & 5/8" (integrated in bracket)
Dimensions: 100mm x 90mm x 50mm (LxWxH)
Weight: 500g
Set content: Bag, holder with magnet, USB-C cable
*45 W USB-C to C-PD charger with lower wattage chargers and cables will result in longer charging time
This text is machine translated.
POWERSTACK™ battery technology
Colour of laser line: Green
Projection: Three lines, two vertical lines, one horizontal line
Working range: 30m (100m with receiver)
Levelling accuracy +/- 3mm/10m
Self-leveling range ± 4°
Levelling time ≤ 5s
Pivoting magnetic holder for attaching to metal rails and steel structures
Sets the beam brightness to adjust to the lighting conditions
Battery display for quick detection of the charging status
3-position switch (manual tilt/self leveling/pendulum lock)
Fine adjustment for precise alignment of laser line
Up to 8 hours run time, charging in 30 minutes* to 80% charge, using the laser while charging
Drop test 1m
Dust and splash protection IP65
Tripod socket 1/4" & 5/8" (integrated in bracket)
Dimensions: 100mm x 90mm x 50mm (LxWxH)
Weight: 500g
Set content: Bag, holder with magnet, USB-C cable
*45 W USB-C to C-PD charger with lower wattage chargers and cables will result in longer charging time
This text is machine translated.
