Name: Digitus DA-81006 2D barcode scanner Corded 1D, 2D Imager White, Petrol USB, USB type A
Brand: Digitus
SKU: 3815421
Availability: InStock

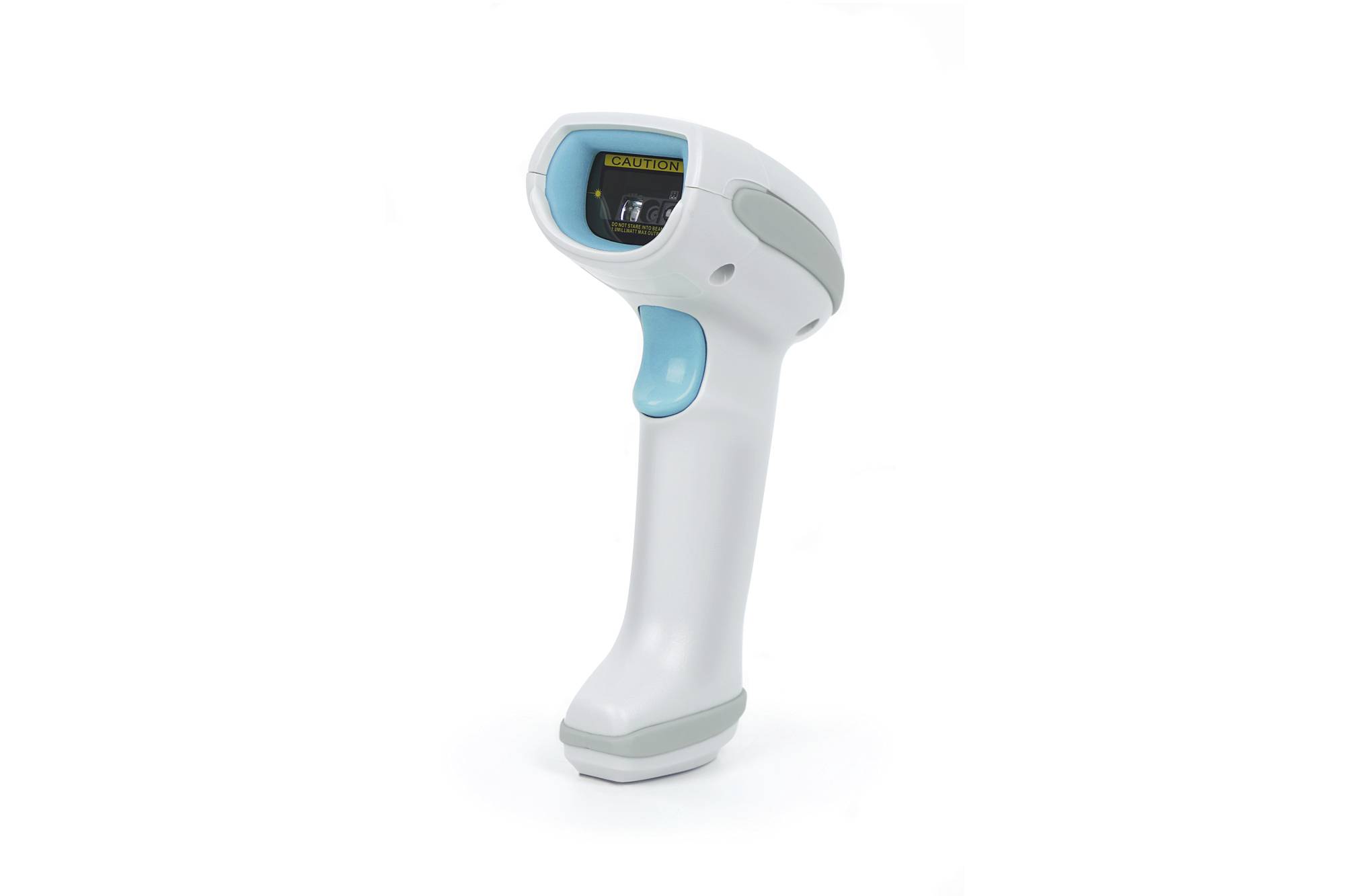

Handheld barcode scanner with a white and blue body, shown on a plain background.

Advert of a Digitus corded advanced barcode scanner with 1D and 2D code support, IP52 protection, antibacterial housing, and 2 m cable.

Digitus plug-and-play barcode scanner with no additional drivers required, shown connecting to a computer and laptop.

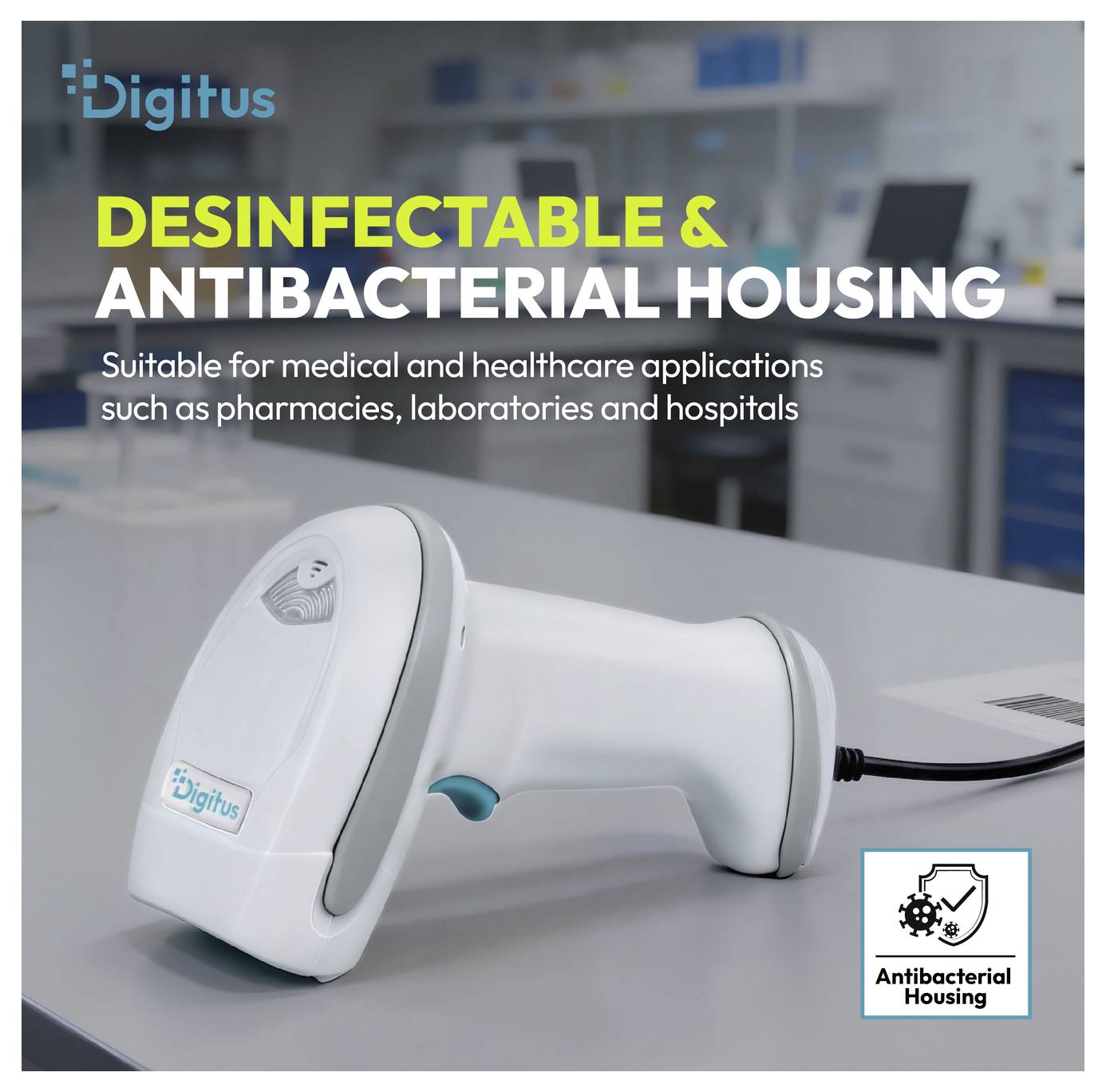

Digitus disinfectable, antibacterial handheld device on a table, labeled for medical and healthcare use in pharmacies, laboratories and hospitals.

Digitus handheld barcode scanner in a store aisle with the text 'Robust construction & high reliability' and 'Drop resistance up to 9.84 ft / 3 m'.

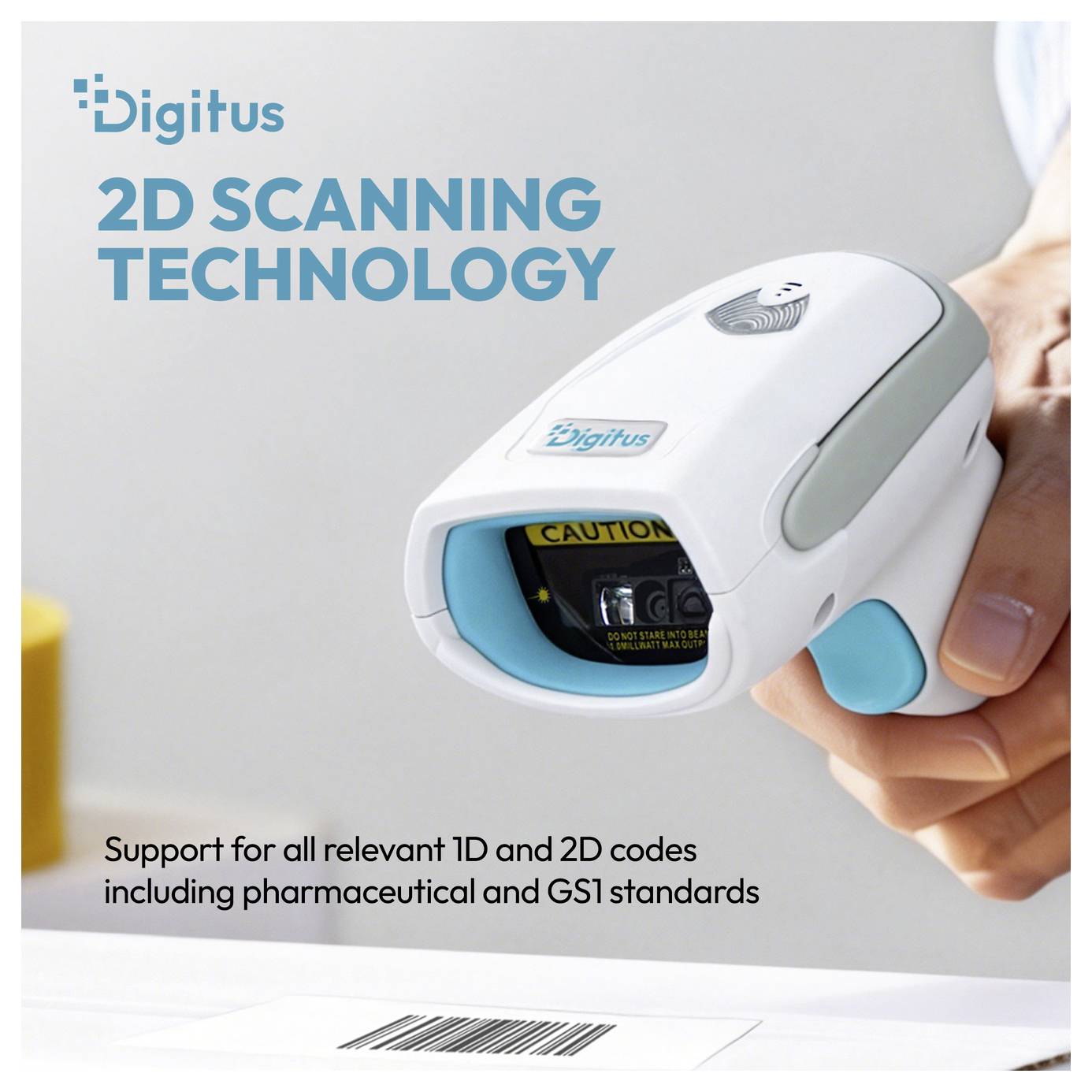

Digitus handheld 2D barcode scanner held over a barcode, with text advertising support for 1D and 2D codes including pharmaceutical and GS1 standards.

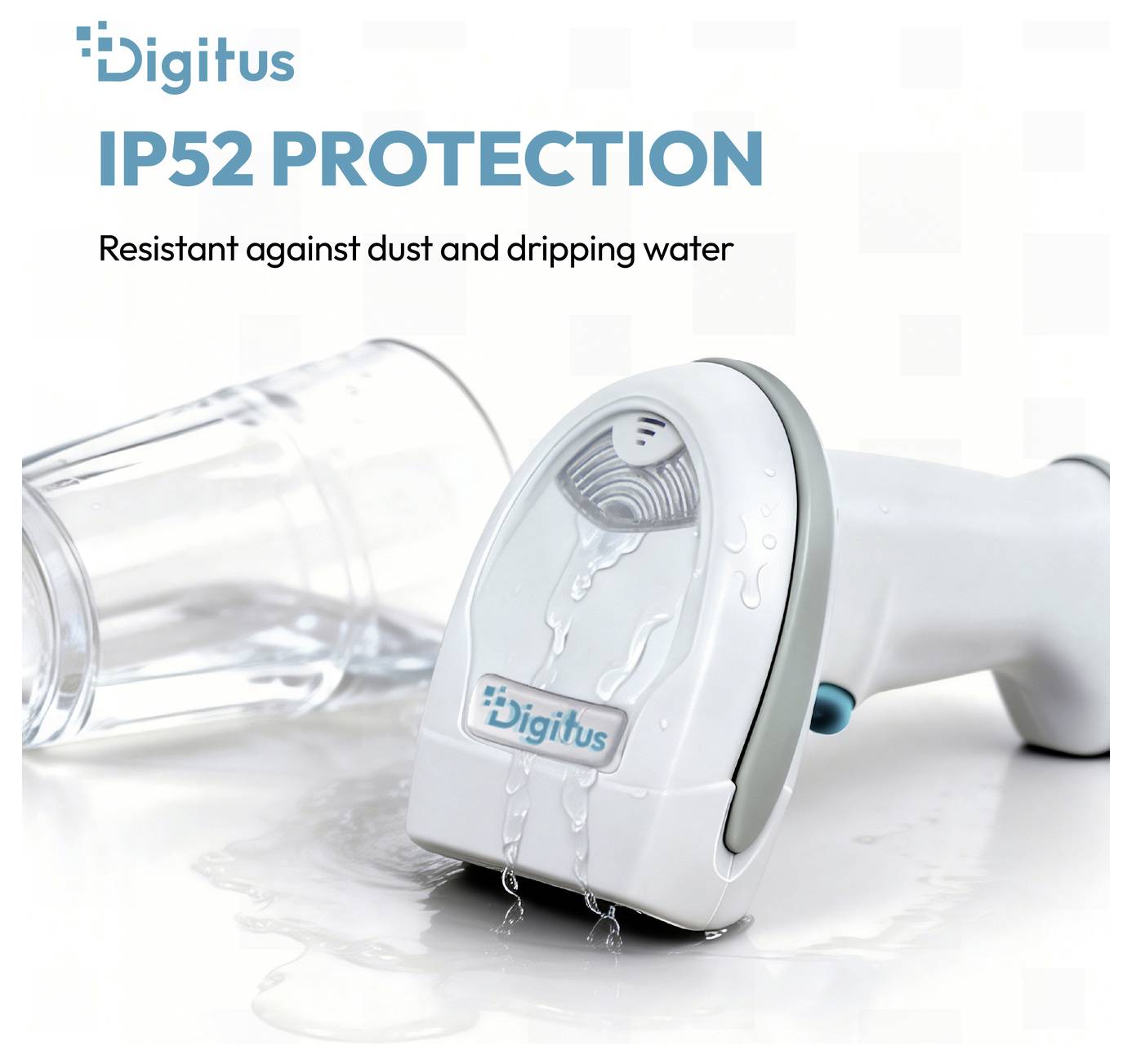

Digitus IP52 protection clipper or device shown resisting dripping water, with text 'Resistant against dust and dripping water'.

Digitus high-resolution CMOS sensor barcode scanner reading a faded barcode on a cardboard box.

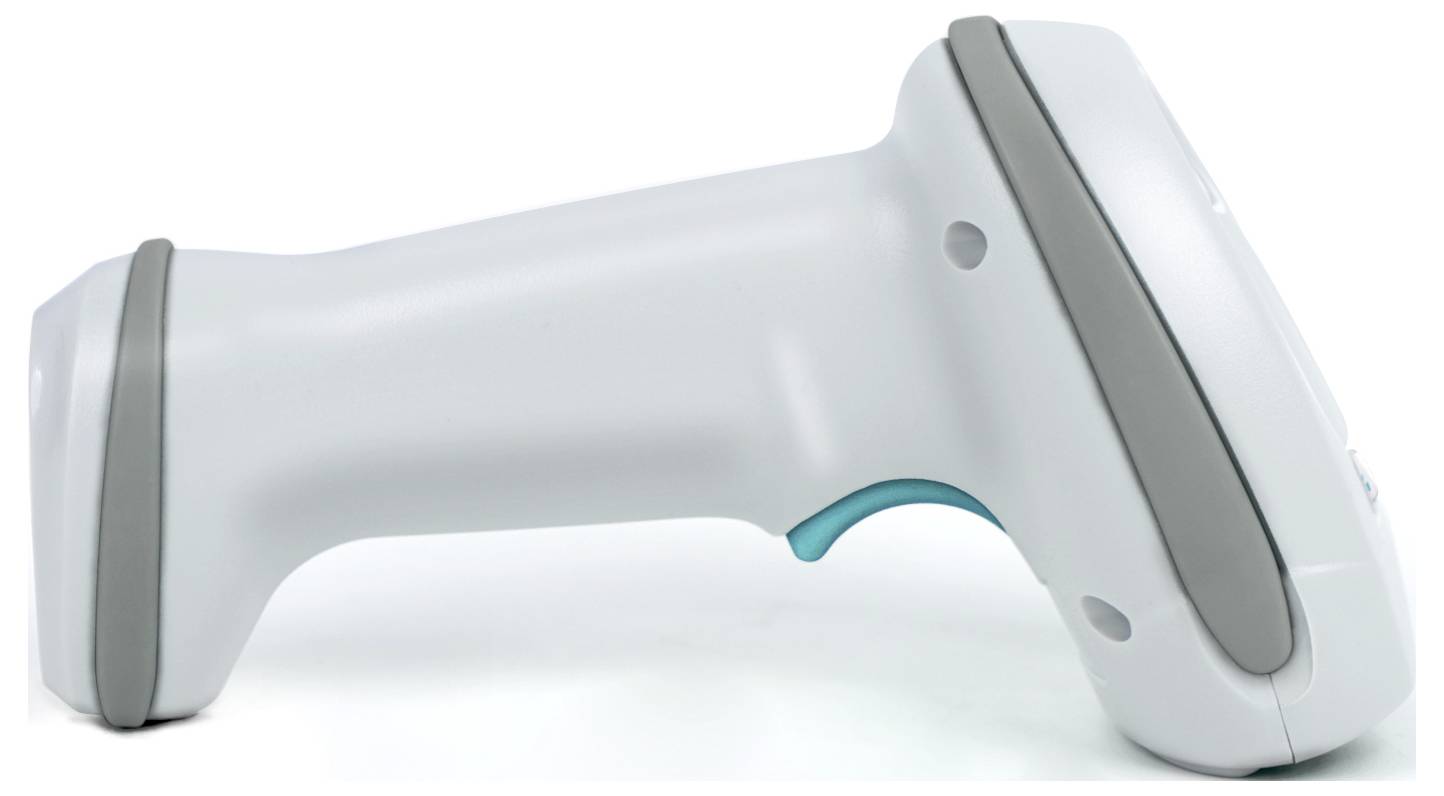

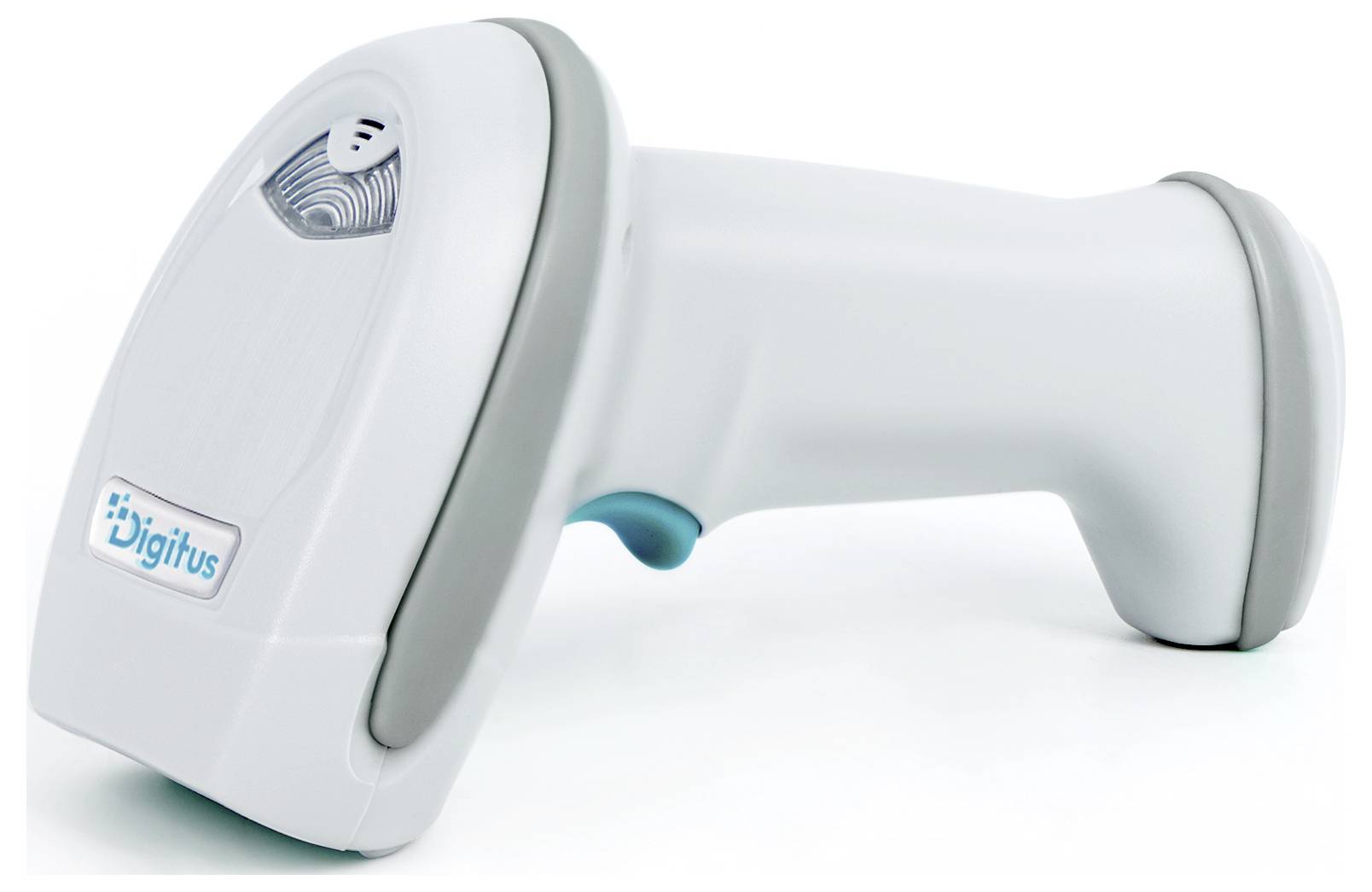

White handheld electronic device with gray grips and a teal trigger, shown in side view on a white background.

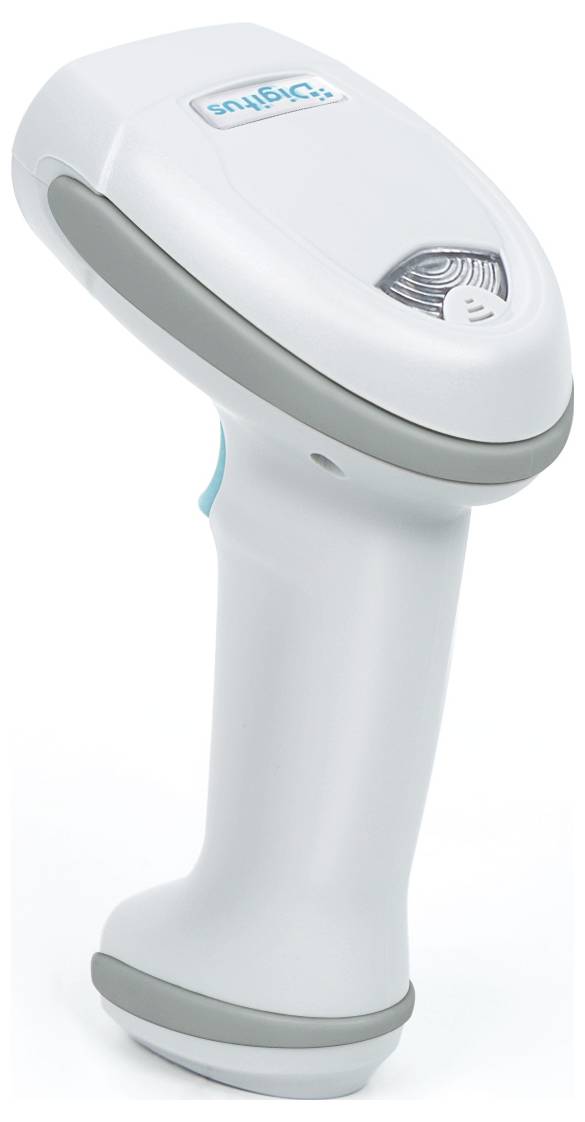

Handheld white medical scanner device with grey accents, shown on a plain background.

1/12

Fast track dispatch on Wed 14 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 109.99 / piece)

€ 109.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Barcode Scanner

Precise scanning of 1D & 2D barcodes (barcodes / QR codes)
High scan security: Very low error rate of 1 : 5,000,000 for secure identification in critical work processes.
Generous scan angle: ±360° rotation angle as well as ±65° tilt and declination angle for flexible scanning from almost any position.
High-resolution image sensor: CMOS sensor with 1280 × 1024 pixels provides for precise recognition of fine and dense barcodes.
Shock-resistant casing with drop-resistance up to 3 m - designed for daily use.
Wide code support: All relevant 1D and 2D codes incl. GS1 DataBar, Data Matrix and QR Code.
Flexible system integration: USB-HID, USB-COM and RS232 enable easy connectivity to modern and existing systems.
Plug and Play - no additional drivers needed
Healthcare-appropriate, anti-bacterial casing
IP52 protection type: Dust and protected against dripping water
Ergonomic & light: Compact design with only 171.6 g weight for fatigue-free working with high scanning frequency.

Technical specifications

Scan technology: 2D Area Imager
Light source: White light, green target cross
Image sensor CMOS 1280 x 1024 pixels
Scan angle: Rotation angle ±360°,tilt angle ±65°, declination angle ±65°
Reading accuracy / error rate: 1 : 5,000,000
Number of scans per second: 300 scans
Antibacterial housing: Suitable for medical and healthcare applications
Suitable for medical and health-related applications: The housing and trigger material has been tested for antibacterial properties against Staphylococcus aureus and Escherichia coli in accordance with the GB 21551.2-2010 standard
Reading distance:
Code 39 (5 mil): 50 - 230 mm, EAN-13 (13 mil): 55 - 400 mm, QR Code (15 mil): 75 - 270 mm, Code 128 (5 mil): 65 - 220 mm
Supported codes:
1D: Codabar, Code39, Code 32 Pharmaceutical (PARAF), Interleaved 2 of 5, NEC 2 of 5, Code 2, Straight 2 of 5 Industrial, Straight 93 of 5 IATA, Matrix 2 of 5, Code 11, Code 128, GS1-128, UPC-A, UPC-e, EAN/JAN-8, EAN/JAN-13, MSI, GS1 DataBar Omnidirectia
2D: Code block A, code block F, PDF417, micro PDF417, GS1 composite codes, QR Code, Data Matrix, MaxiCode, Aztec, HANXIN
INTERFACE USB-HID, USB-COM, RS232
Scan modes: Manual mode, continuous mode, automatic detection mode
Plug & Play, no driver installation necessary (USB-HID)
Including scanner holder
Compatible operating systems include Windows, Android, iOS, Mac and Linux
Operating voltage DC 5 V ±5 %
Current consumption: Operation approx. 225 mA / standby approx. 124 mA
Operating temperature: -20 °C to +50 °C
Storage temperature –40 °C to +70 °C.
IP protection class IP52 – dust proof / protection against dripping water
Dimensions 102 x 71 x 177 mm
Weight 171.6 g
Material: plastic
Product color: White, petrol
Cable length 2 m (USB-A - RJ45)
Cable color black

Product type: 2D barcode scanner

Type: DA-81006

Scanning technology: Imager

Readable code types: 1D
2D

Reading distance (max.): 400 mm

Scanning confirmation: Acoustic

Scan rate: 300 Scans/s

Cordless scanning: Corded

Range of use: Logistics
Retail
Manufacturing
Healthcare
Pharmacies
Libraries

Factory colour: White
Petrol

Interfaces: USB
USB type A

Cable length: 2 m

Protection class: IP52

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3815421 Digitus DA-81006 2D barcode scanner Corded 1D, 2D Imager White, Petrol USB, USB type A

Description

The Advanced Barcode Scanner is the ideal solution for all working areas in which reliability, speed and easy handling are crucial. Equipped with modern 2D scanning technology, the device records both classical 1D barcodes and modern 2D codes quickly and precisely - regardless of whether these are labels, documents or digital codes on displays. Thanks to the high scanning power at up to 300 scans per second, even large scanning volumes can be handled efficiently. The clearly visible green target cross in combination with the white lighting light ensures intuitive alignment and reduces incorrect tests in daily use. The generous scan angle allows easy scanning from almost any position without interrupting the workflow. The advanced barcode scanner impresses through its versatility and fits flexibly to different working environments. Various scan modes - manual, continuous and automatic detection mode - allow optimum adaptation to individual processes. The broad support of common barcode standards makes the scanner a future-proof solution for a wide range of applications, from administration and logistics to medical applications. Several interfaces are available for easy integration in existing systems. In USB-HID mode, the scanner is ready to use immediately and works without additional driver installation. This makes it Ideal suitable for fast rollout at several workstations. The scanner holder included in delivery also supports the stationary operation, for example at checkouts, workstations or laboratory tables. Even in daily continuous use the Advanced barcode scanner impresses through its ergonomic design and the low weight. The robust housing can be disinfected and is designed for use in medical and hygienically sensitive environments. The smooth surface allows quick and easy cleaning in everyday life. With the IP52-protection class the scanner is additionally protected against dust and dripping water and is thus best equipped for the professional daily routine.
