Renkforce 2D barcode scanner Corded 2D Imager Black Desktop USB A (USB 1.1), USB A (USB 2.0)
EAN:
Part number:
Item no:
Number
Total (€ 168.06 / piece)
€ 168.06
plus VAT.
Highlights & Details
Renkforce Barcode Scanner 2D
- Quickly captures 1D/2D barcodes on paper or screen
- Supports all common 1D / 2D codes incl. EAN, UPC, Data Matrix, QR Code, and GS1 Databar
- Reads QR code both on paper or on phone screens
- Handheld use, includes stand
- Easy installation
Technical specifications
- Motion tolerance: 3.0/sec. So, it can read the barcodes quickly than others.
- Product type
2D barcode scanner
- Type
RF-4353432
- Type
Desktop
- Scanning technology
Imager
- Readable code types
2D
- Reading distance (max.)
260 mm
- Scanning confirmation
Acoustic
- Scan rate
60 Scans/s
- Cordless scanning
Corded
- Range of use
Retail
- Factory colour
Black
- Interfaces
USB A (USB 1.1)
USB A (USB 2.0)
- Cable length
242.00 cm
- Width
82 mm
- Height
156 mm
- Depth
88 mm
- Weight
246 g
- Weight, information
approx.
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2176716 Renkforce 2D barcode scanner Corded 2D Imager Black Desktop USB A (USB 1.1), USB A (USB 2.0)
Conformity certificate
Conformity certificate 2176716 Renkforce 2D barcode scanner Corded 2D Imager Black Desktop USB A (USB 1.1), USB A (USB 2.0)
Description
A high-resolution motion-tolerant CMOS sensor enables scanning static and moving barcodes quickly and accurately. Suitable for PoS areas in grocery stores, supermarkets and other types of retail outlets. Captures QR codes printed on paper or displayed on mobile devices (e.g. e-Wallet).
Plug & Play make the set-up straightforward as no time-consuming software installation required. Codes are scanned at a rate of 60 fps, scan completion is indicated by a LED and an acoustic signal.
Suitable for code formats listed below:
1D: EAN-8, EAN-13, ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 32, Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, GS1-128, GS1 Databar, GS1 DataBar Limited, GS1 DataBar Expanded
2D: PDF417, MicroPDF417, QR Code, Micro QR Code, Data Matrix, Aztec
Plug & Play make the set-up straightforward as no time-consuming software installation required. Codes are scanned at a rate of 60 fps, scan completion is indicated by a LED and an acoustic signal.
Suitable for code formats listed below:
1D: EAN-8, EAN-13, ISSN, ISBN, UPC-A, UPC-E, Code 11, Code 32, Code 39, Code 93, Code 128, Codabar, Industrial 2 of 5, Interleaved 2 of 5, Matrix 2 of 5, GS1-128, GS1 Databar, GS1 DataBar Limited, GS1 DataBar Expanded
2D: PDF417, MicroPDF417, QR Code, Micro QR Code, Data Matrix, Aztec
Features
- Sensor: 1280×1024p CMOS
- Detection angles: 360° tilt, ±60° pitch, ±70° pan
- LED (620 nm, red)
- Scan indicators: LED & Beep
Scope of delivery

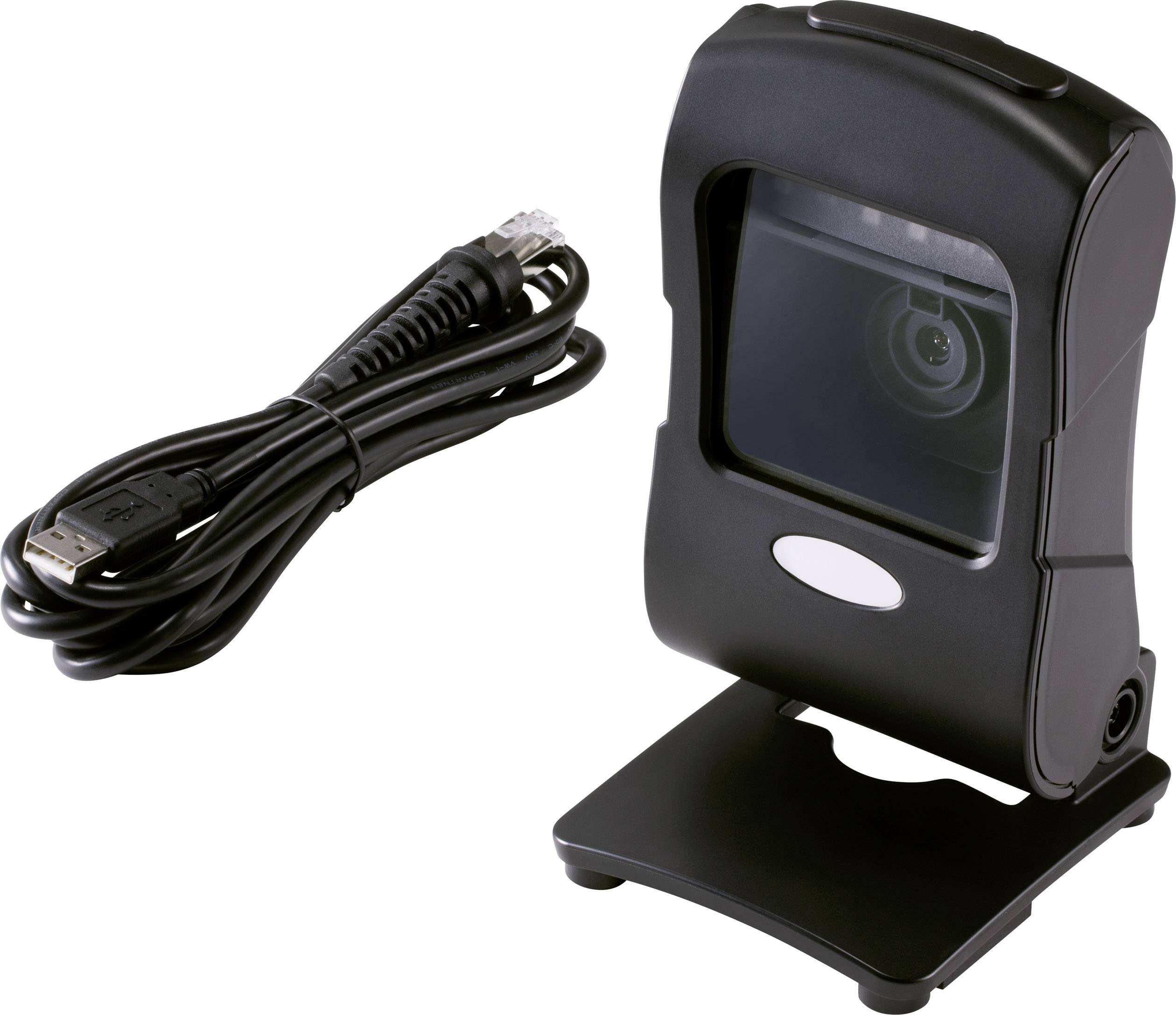

- Barcode scanner with USB HID cable
- Mount set (stand, screw, washer)
- Quick guide
- User manual
