Buy Digitus DN-19 FAN-2-HO 19 inch 2 x Server rack cabinet fan 1 U Grey-white (RAL 7035)

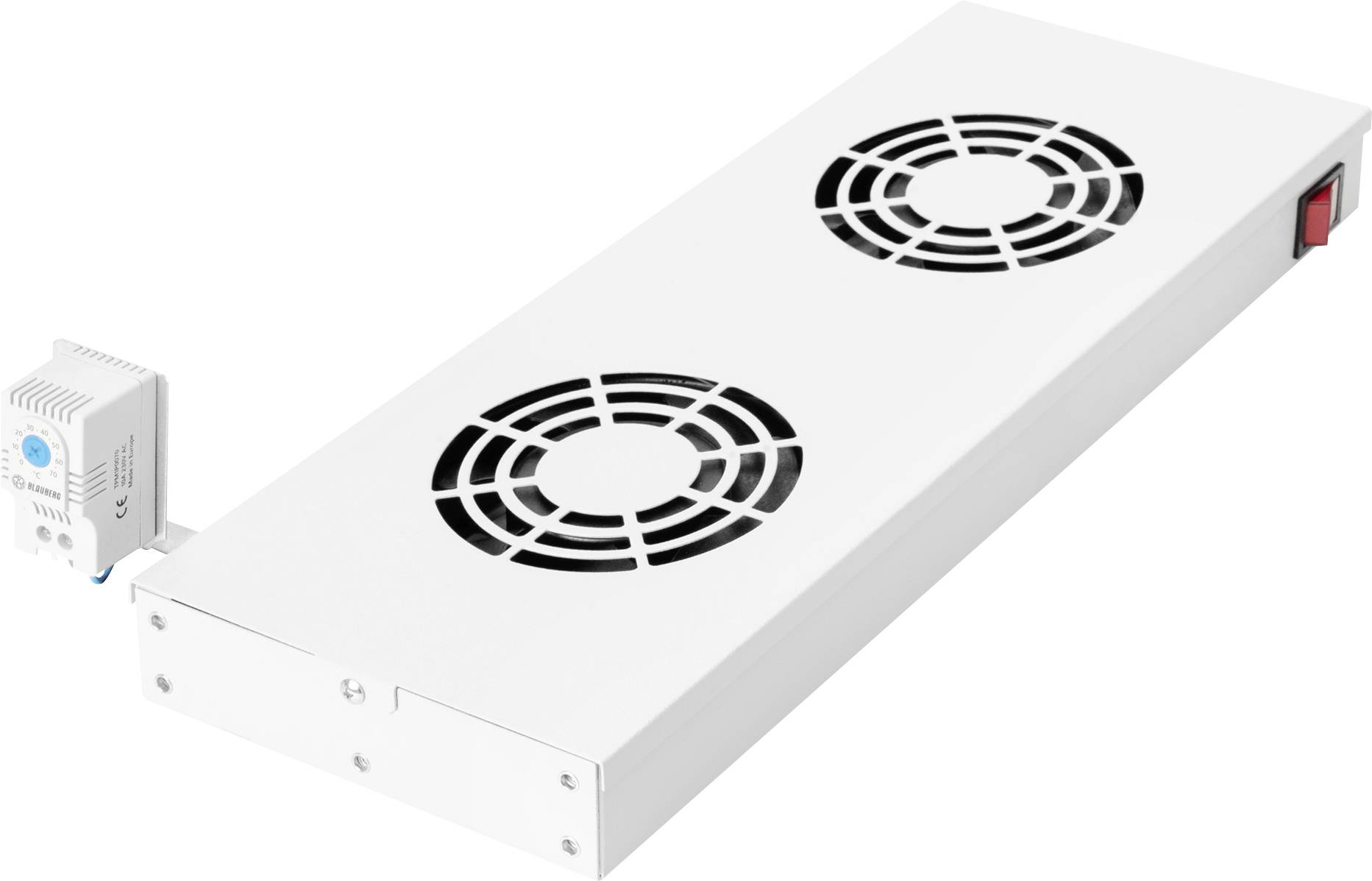

A rectangular white fan unit with two circular vents, a small attached control box on the side, and a red switch on the edge.

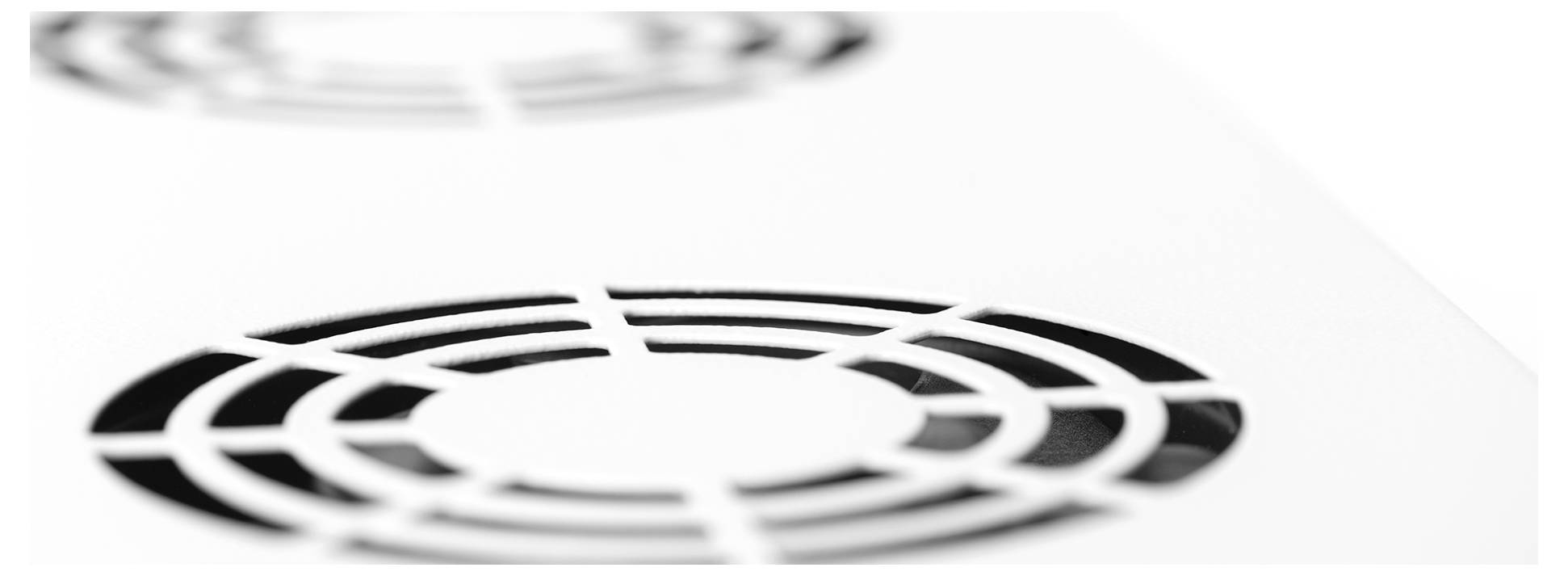

'Close-up of two circular ventilation grilles on a flat white surface, partially blurred, focusing on the foreground grille.'

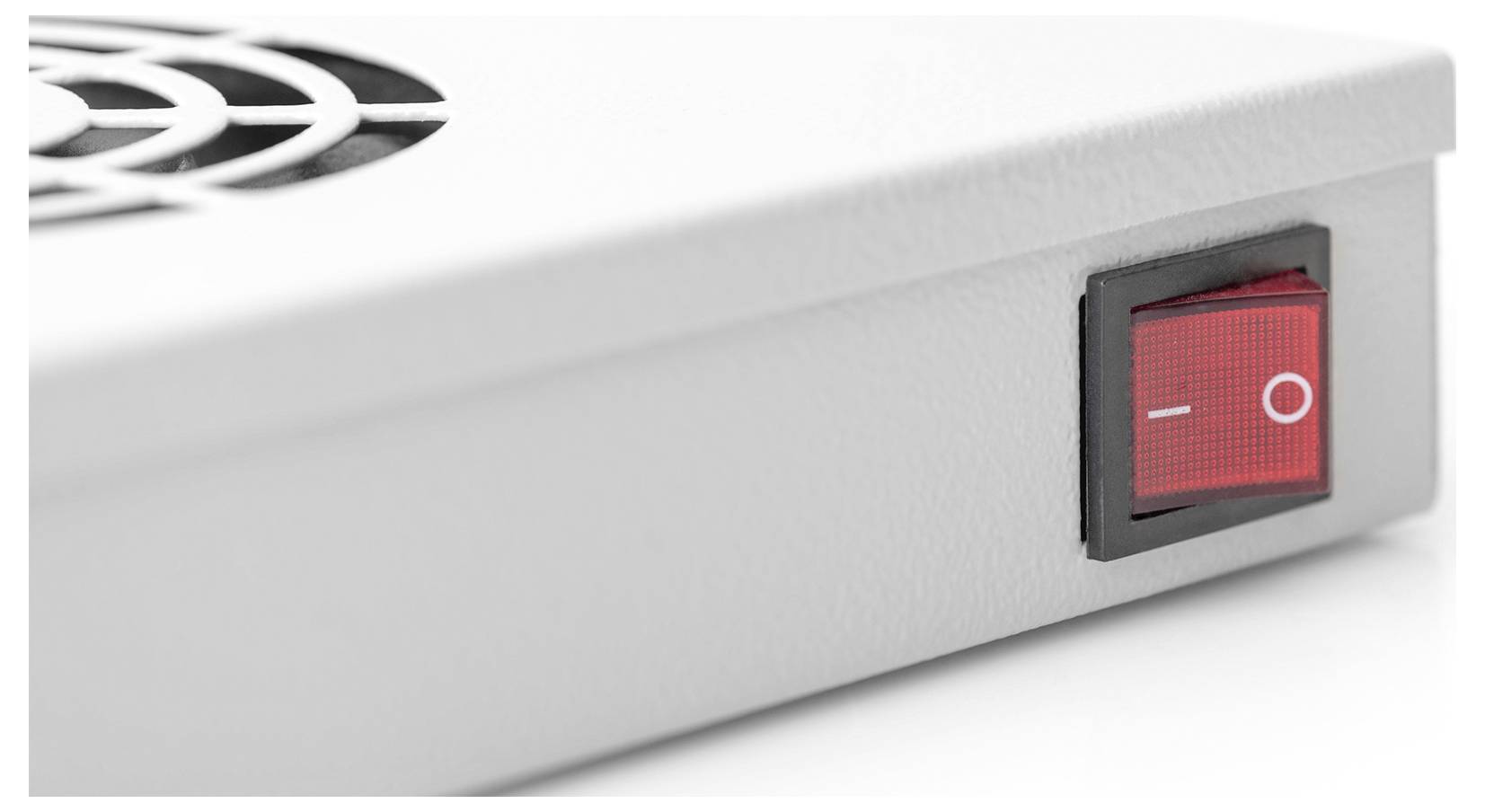

'A close-up of a red power switch on an electronic device, currently in the off position, next to a ventilation fan.'

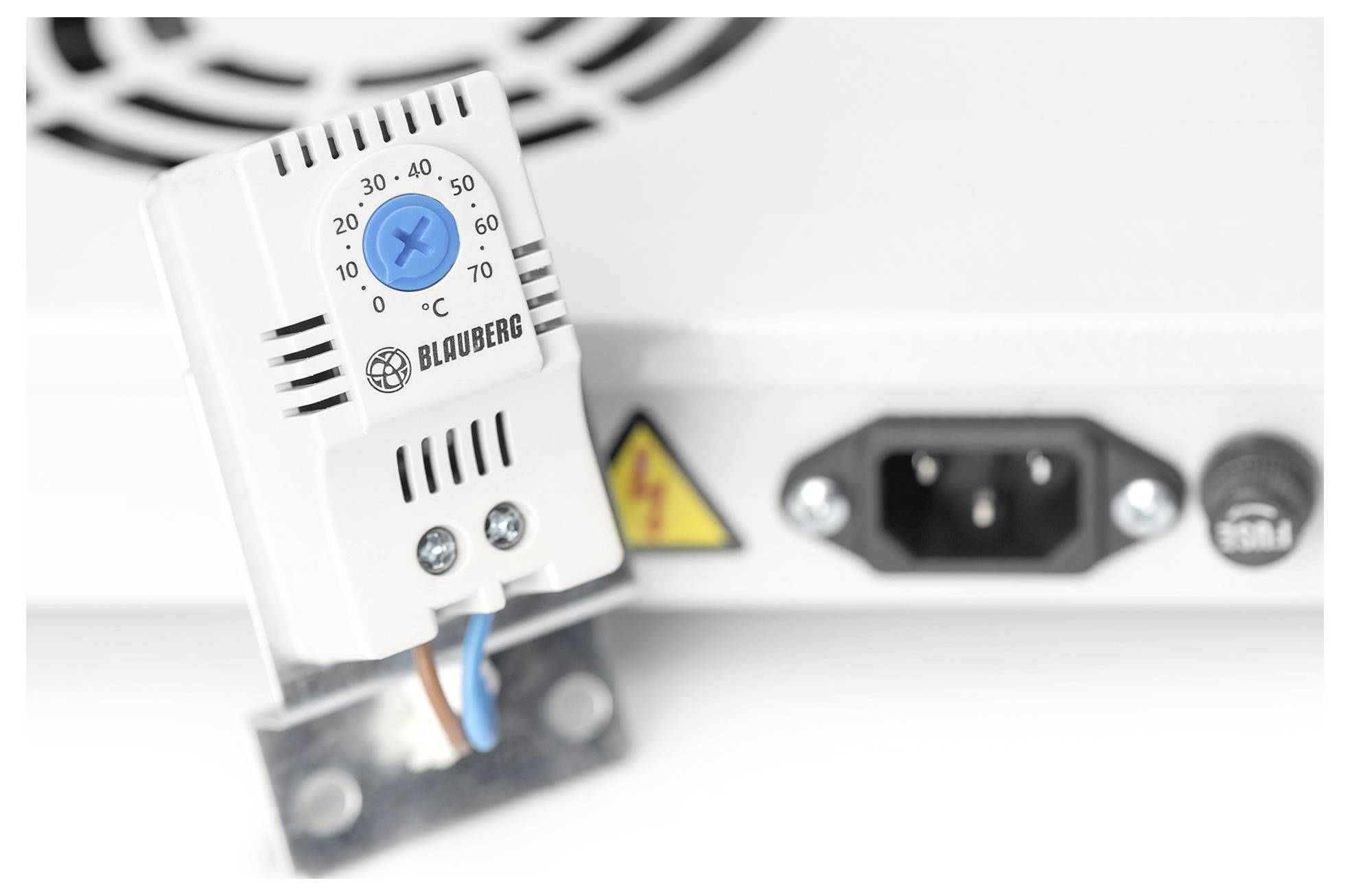

A white thermostat with a blue adjustment knob indicating temperature from 0 to 60°C, mounted near an electrical device with a plug socket.

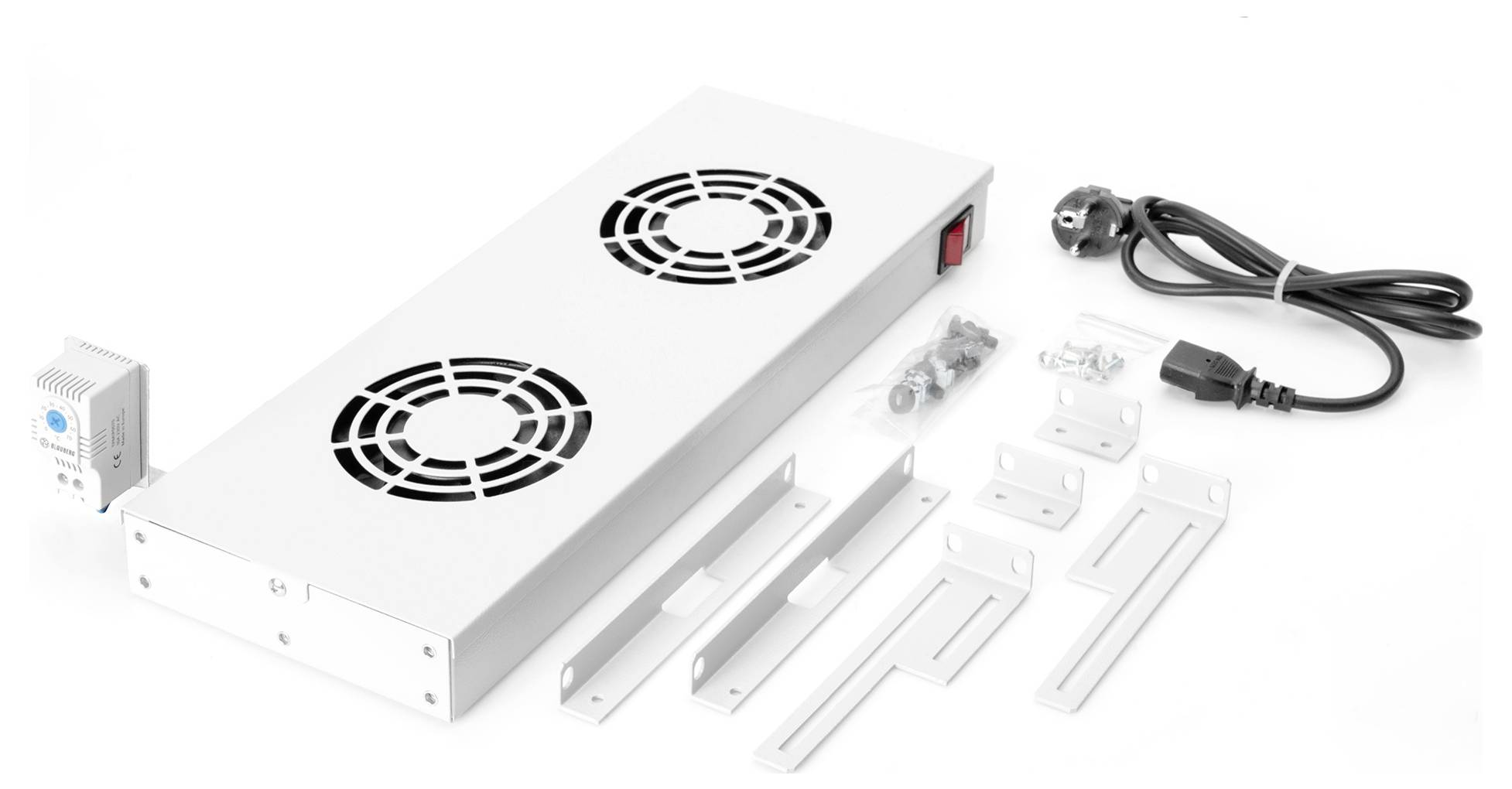

'White cabinet ventilation kit with fans' shown with brackets, screws, power cord, and thermostat. Designed for airflow and heat control.

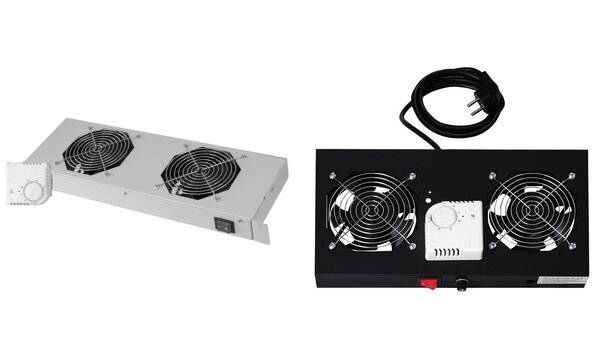

Digitus DN-19 FAN-2-HO 19 inch 2 x Server rack cabinet fan 1 U Grey-white (RAL 7035)-5

1/6

Datasheet (PDF)

Unavailable

Show alternatives

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 121.84 / piece)

€ 121.84

plus VAT.

Report legal concerns

Highlights & Details

Roof Cooling Unit for variable 483 mm (19") installation

2 fans
Thermostat for temperature regulation
For the active cooling of the cabinet.

Technical specifications

Product type: Server rack cabinet fan

Suitable for server rack cabinet (inch): 19 inch

Rack unit: 1 U

Dim: (W x H x D) 483 x 45 x 174 mm

No. of fans: 2 x

Noise level: 47 db/m

Material: Steel

Content: 1 pc(s)

Factory colour: Grey-white (RAL 7035)

Width: 483 mm

Height: 45 mm

Depth: 174 mm

Weight: 3.224

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 993918 Digitus DN-19 FAN-2-HO 19 inch 2 x Server rack cabinet fan 1 U Grey-white (RAL 7035)

User & Safety Instructions

User & Safety Instructions 993918 Digitus DN-19 FAN-2-HO 19 inch 2 x Server rack cabinet fan 1 U Grey-white (RAL 7035)

Description

The Roof Ventilation Units are variable mountable into 483 mm (19") cabinets. Each fan unit comes with two sets of mounting brackets. With the standard set you can install your fan unit into any height unit space of your network- or server cabinet. The second bracket set makes the fan unit possible to be mounted into the roof of 483 mm (19") network- or server cabinets of the varioFLEX series. A switch as well as an adjustable thermostat provide best options for customizations. The model is available in standard color grey (RAL 7035) and black (RAL 9005), equipped with either two or four fans.

· For installation into 483 mm (19") unit
· incl. mounting brackets for varioFLEX roof installation
· 2 fans
· Noise level: 47 dBm
· Thermostat adjustable from 0 ~ +35°C
· On/off switch
