Buy Digitus DN-19 FAN-2-HO-SW 19 inch 2 x Server rack cabinet fan 1 U Black

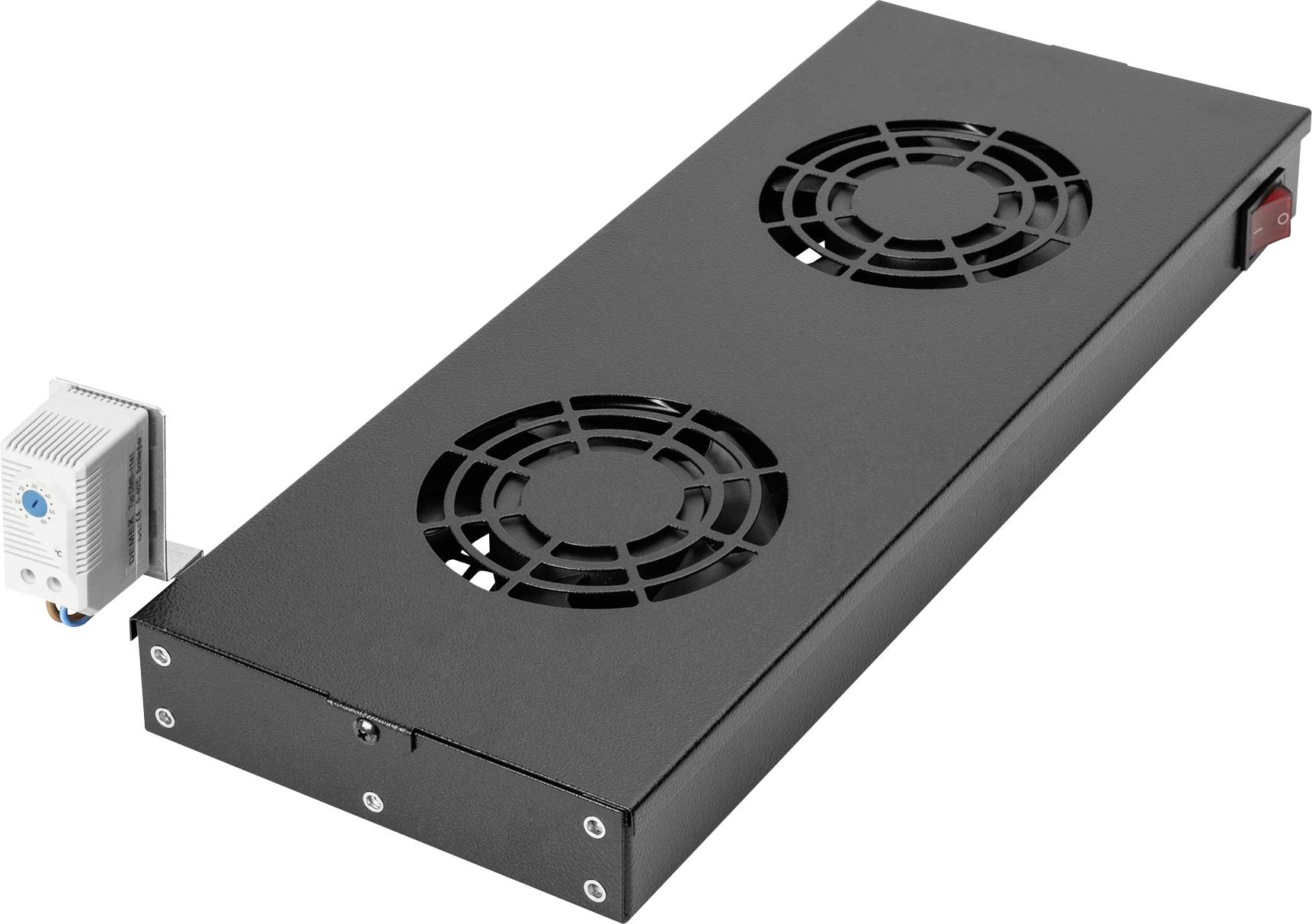

A black rectangular metal cooling unit with two fans and a white control box attached on the side.

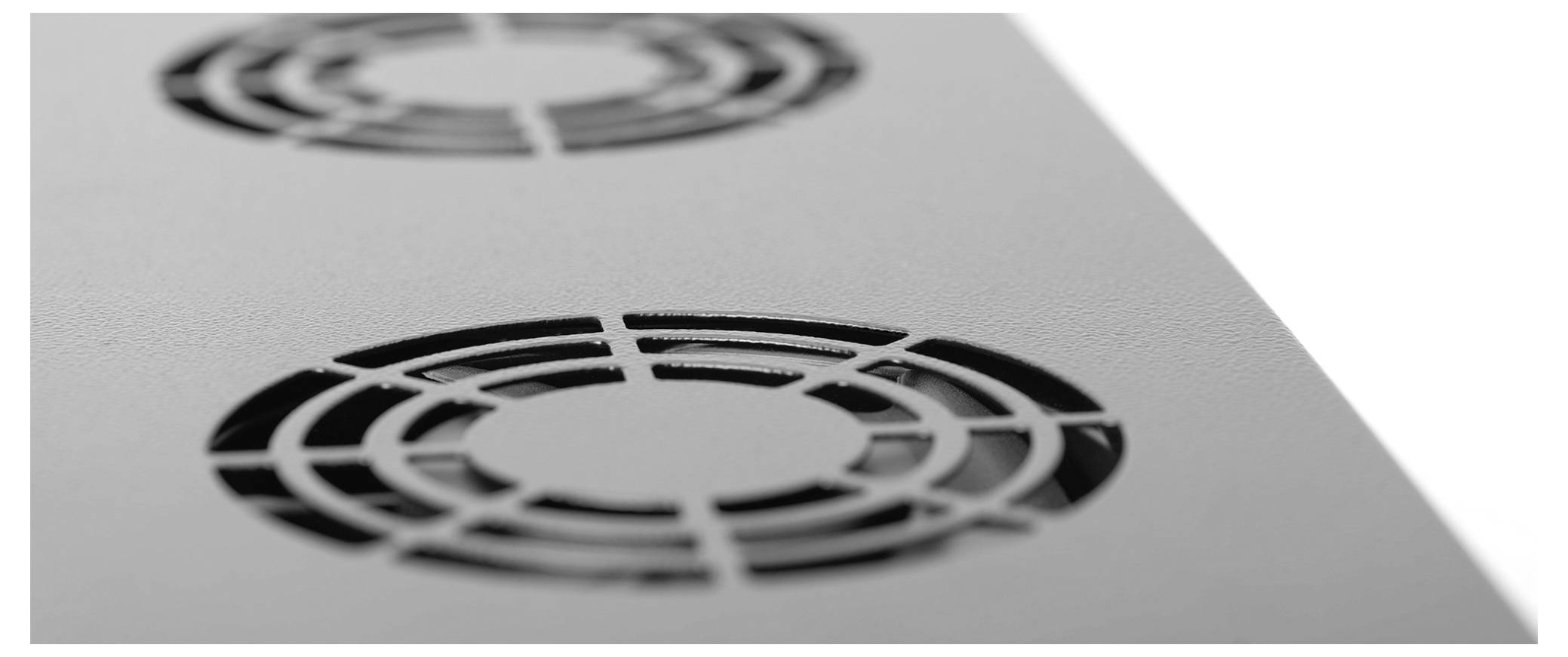

'Close-up of two circular air vents on a white surface, with a grid pattern, suggesting ventilation equipment or a cooling system.'

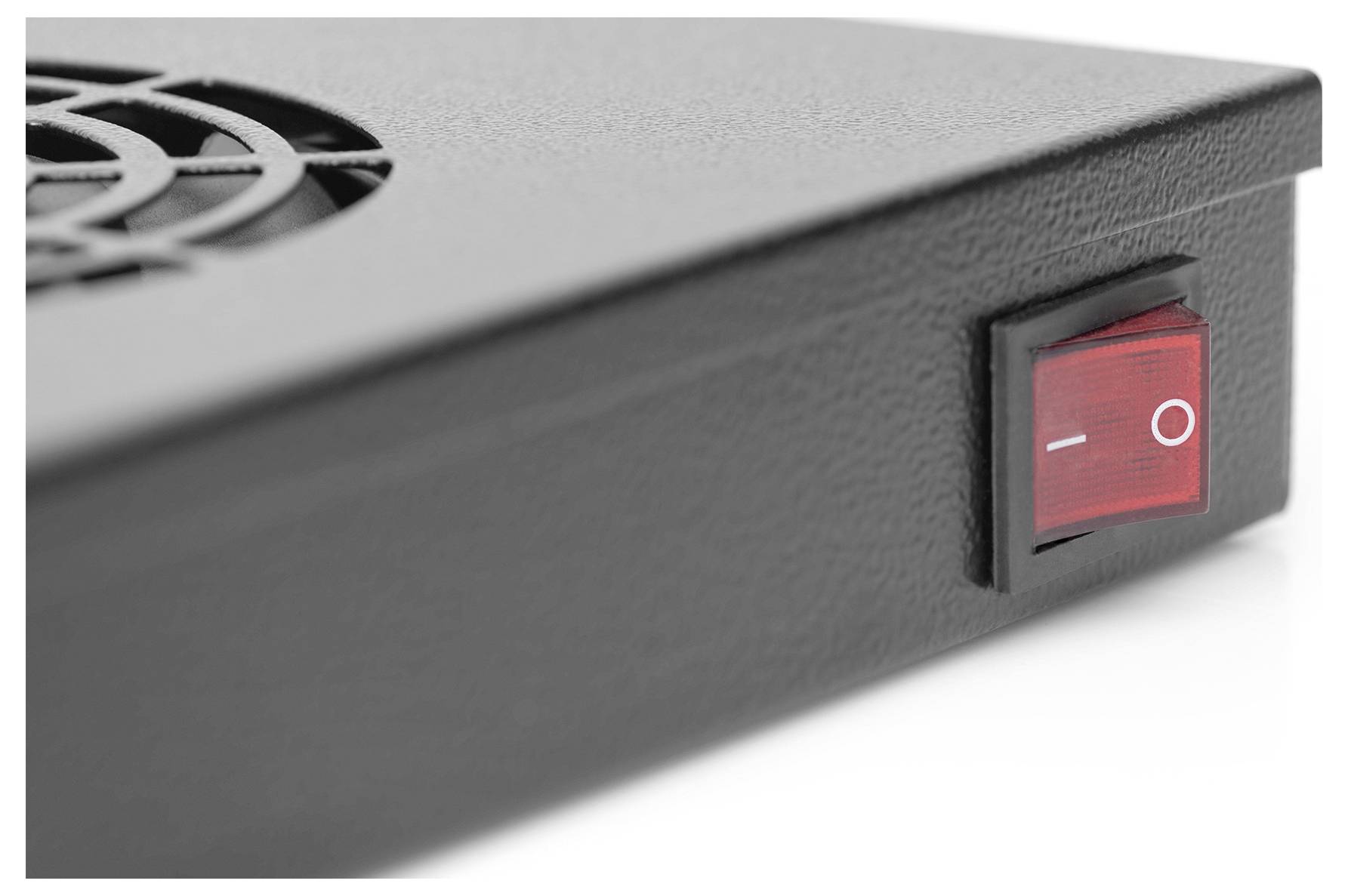

A close-up of a black electronic device with a red power switch in the 'off' position and a ventilation grille on the surface.

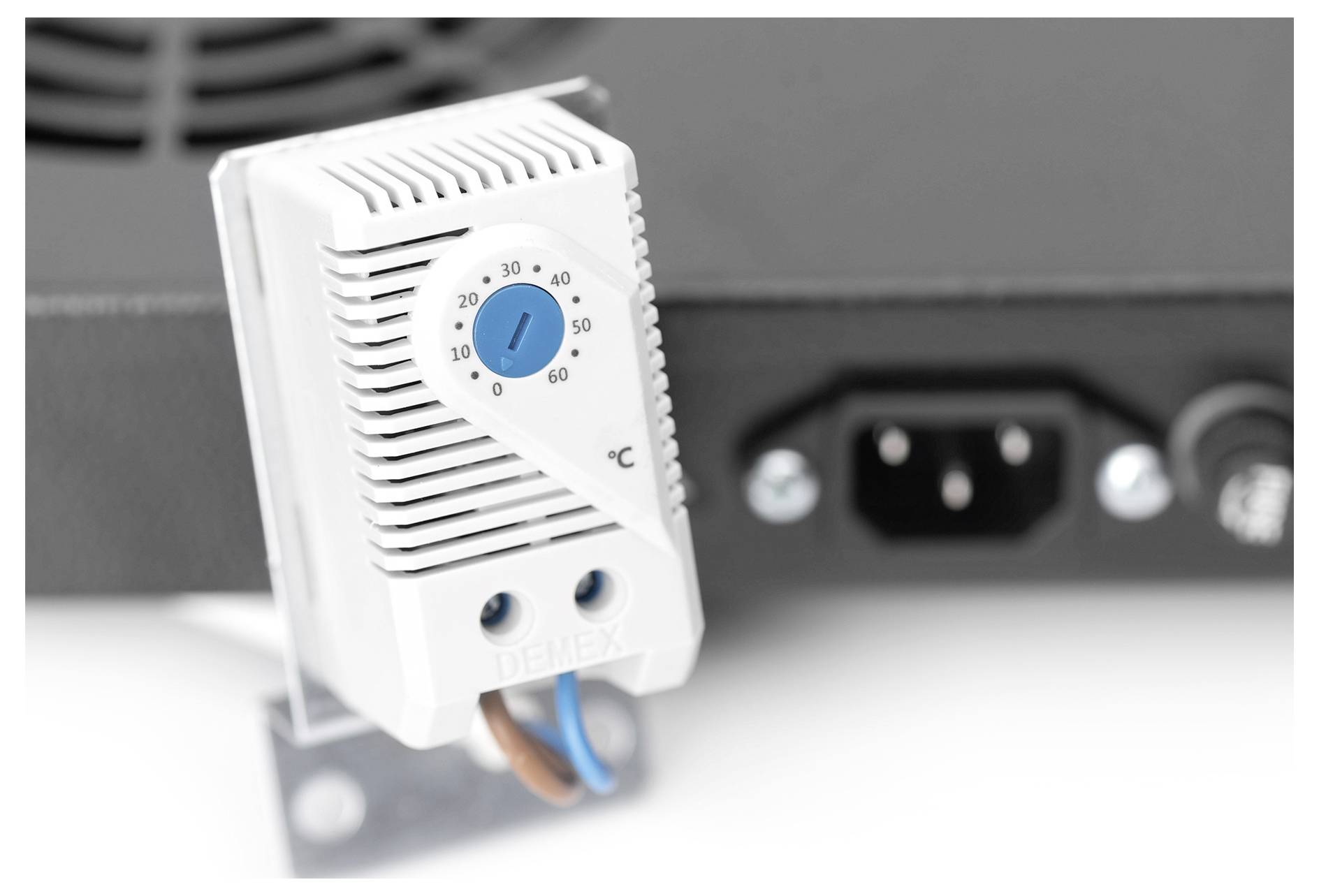

A thermostat mounted on a device, displaying a temperature setting dial with a blue knob indicating 40 degrees Celsius.

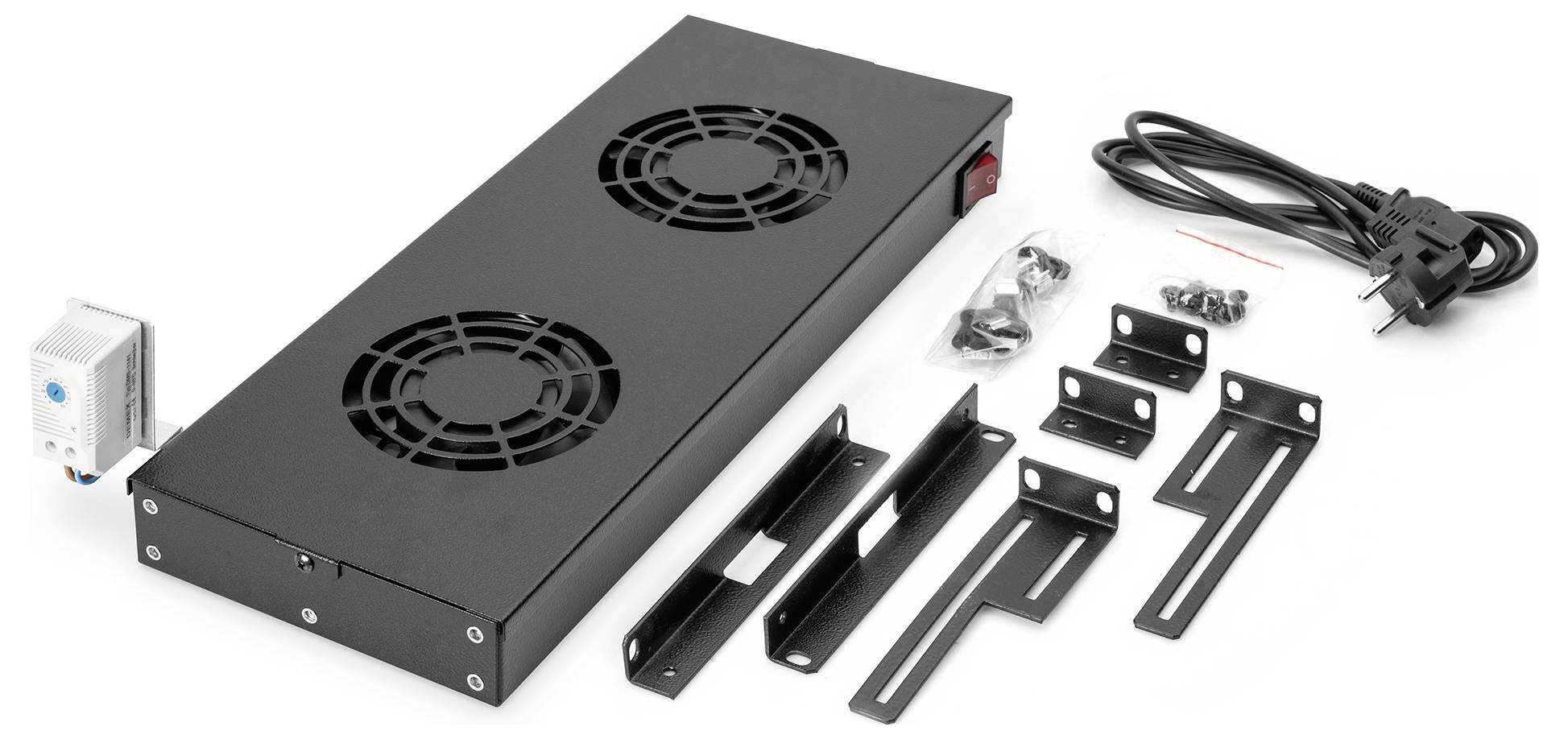

Black cooling fan assembly with two fans, cable, manual control box, screws, and mounting brackets for electronic equipment.

1/5

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad Electronic Terms & Conditions

Total (€ 113.44 / piece)

€ 113.44

plus VAT.

Report legal concerns

Highlights & Details

Roof Cooling Unit for variable 483 mm (19") installation

2 fans
Thermostat for temperature regulation

Technical specifications

Product type: Server rack cabinet fan

Suitable for server rack cabinet (inch): 19 inch

Rack unit: 1 U

Dim: (W x H x D) 490 x 50 x 280 mm

No. of fans: 2 x

Noise level: 47 dB

Material: Steel

Content: 1 pc(s)

Factory colour: Black

Width: 490 mm

Height: 50 mm

Depth: 280 mm

Weight: 3400.00

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 993956 Digitus DN-19 FAN-2-HO-SW 19 inch 2 x Server rack cabinet fan 1 U Black

User & Safety Instructions

User & Safety Instructions 993956 Digitus DN-19 FAN-2-HO-SW 19 inch 2 x Server rack cabinet fan 1 U Black

Description

The Roof Ventilation Units are variable mountable into 483 mm (19") cabinets. Each fan unit comes with two sets of mounting brackets. With the standard set you can install your fan unit into any height unit space of your network- or server cabinet. The second bracket set makes the fan unit possible to be mounted into the roof of 483 mm (19") network- or server cabinets of the varioFLEX series. A switch as well as an adjustable thermostat provide best options for customizations. The model is available in standard color grey (RAL 7035) and black (RAL 9005), equipped with either two or four fans.

· For installation into 483 mm (19") unit
· incl. mounting brackets for varioFLEX roof installation
· 2 fans
· Noise level: 47 dBm
· Thermostat adjustable from 0 ~ +35°C
· On/off switch
