Name: Digitus DN-PWR-STD-12024 Industrial PSU 24 V DC 5 A 120 W Content 1 pc(s)
Brand: Digitus
SKU: 3791053
Availability: InStock

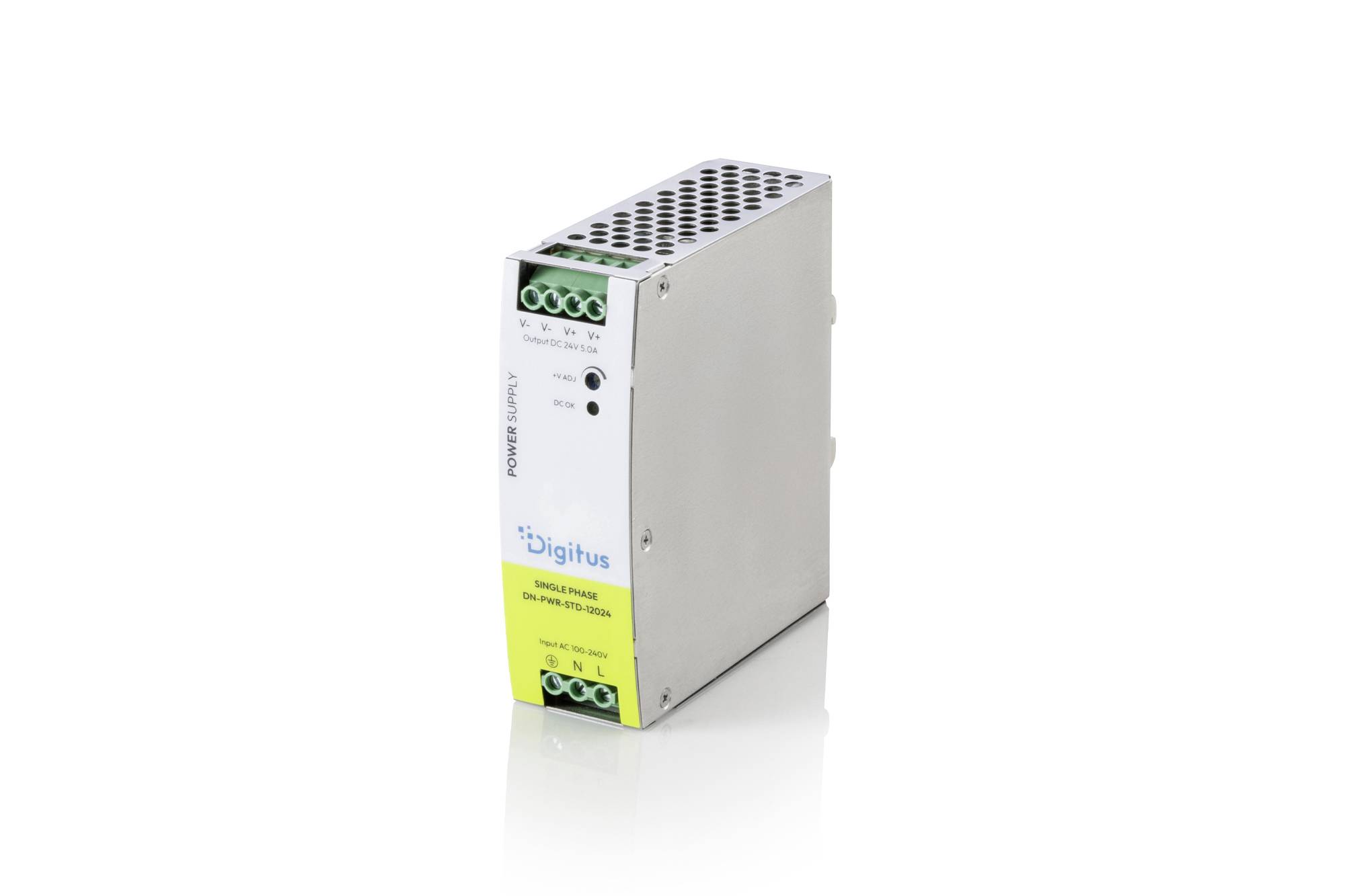

Digitus DIN-rail power supply unit shown upright with terminal connectors on the front and vented metal casing on a white background.

Digitus industrial power supply unit, 24 VDC, 5 A, 120 W, with wide input voltage range, short-circuit and overvoltage protection, and free-air convection cooling.

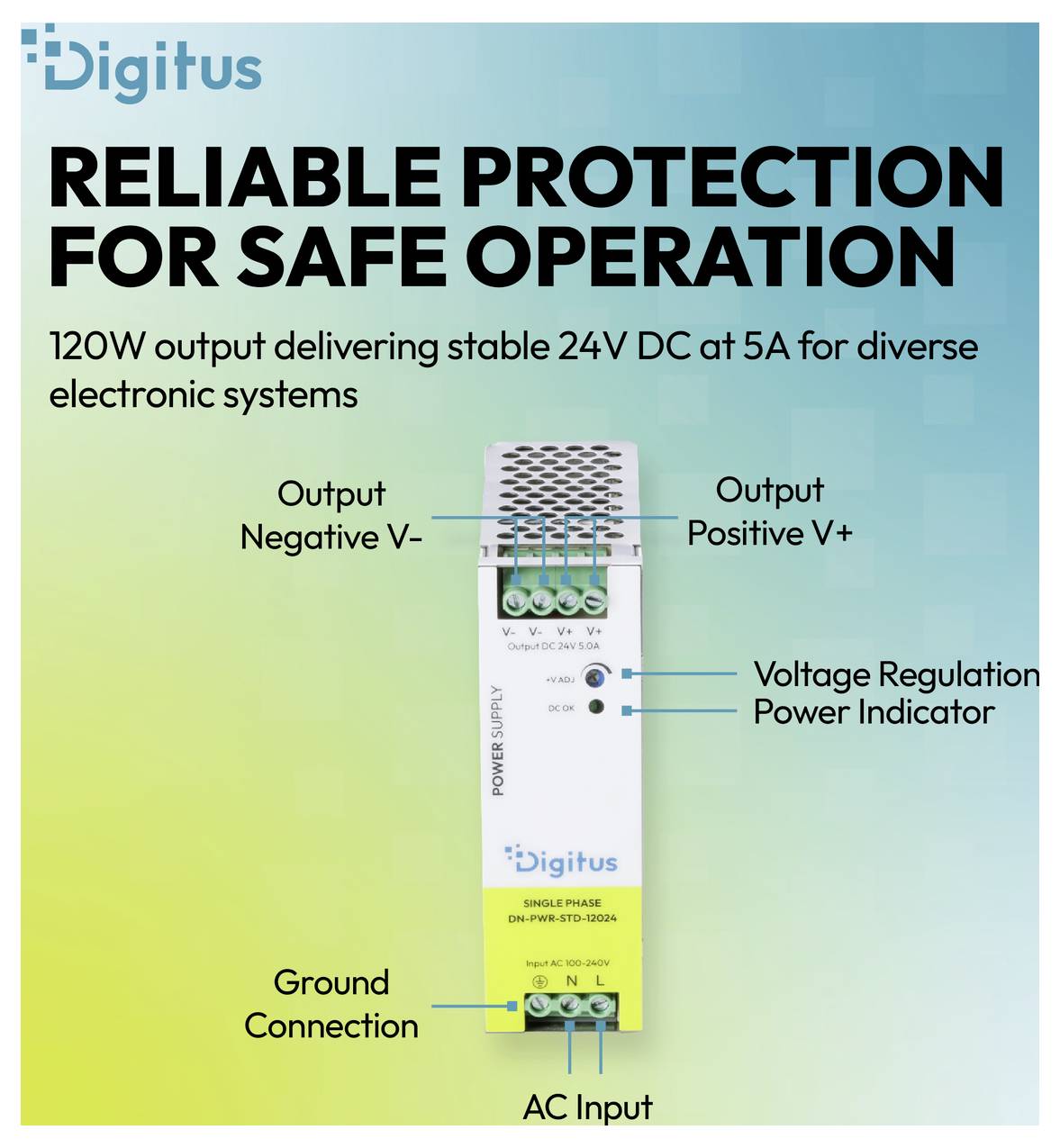

Digitus power supply ad highlights 'Reliable protection for safe operation' and 120W output, 24V DC at 5A, with labeled AC input, ground, and positive/negative outputs.

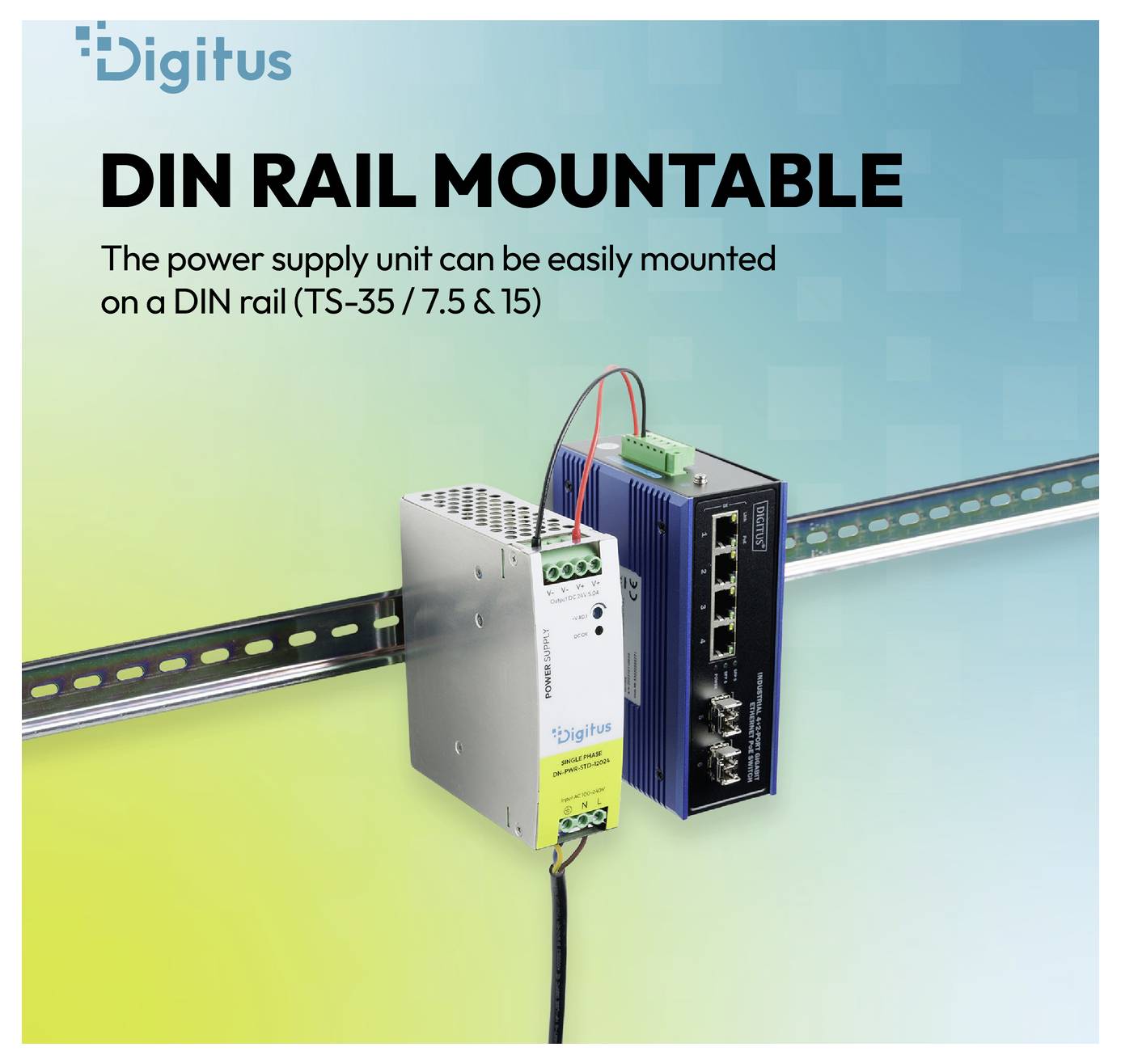

Digitus DIN rail mountable power supply unit on a DIN rail, labeled 'TS-35 / 7.5 & 15', shown with industrial networking equipment.

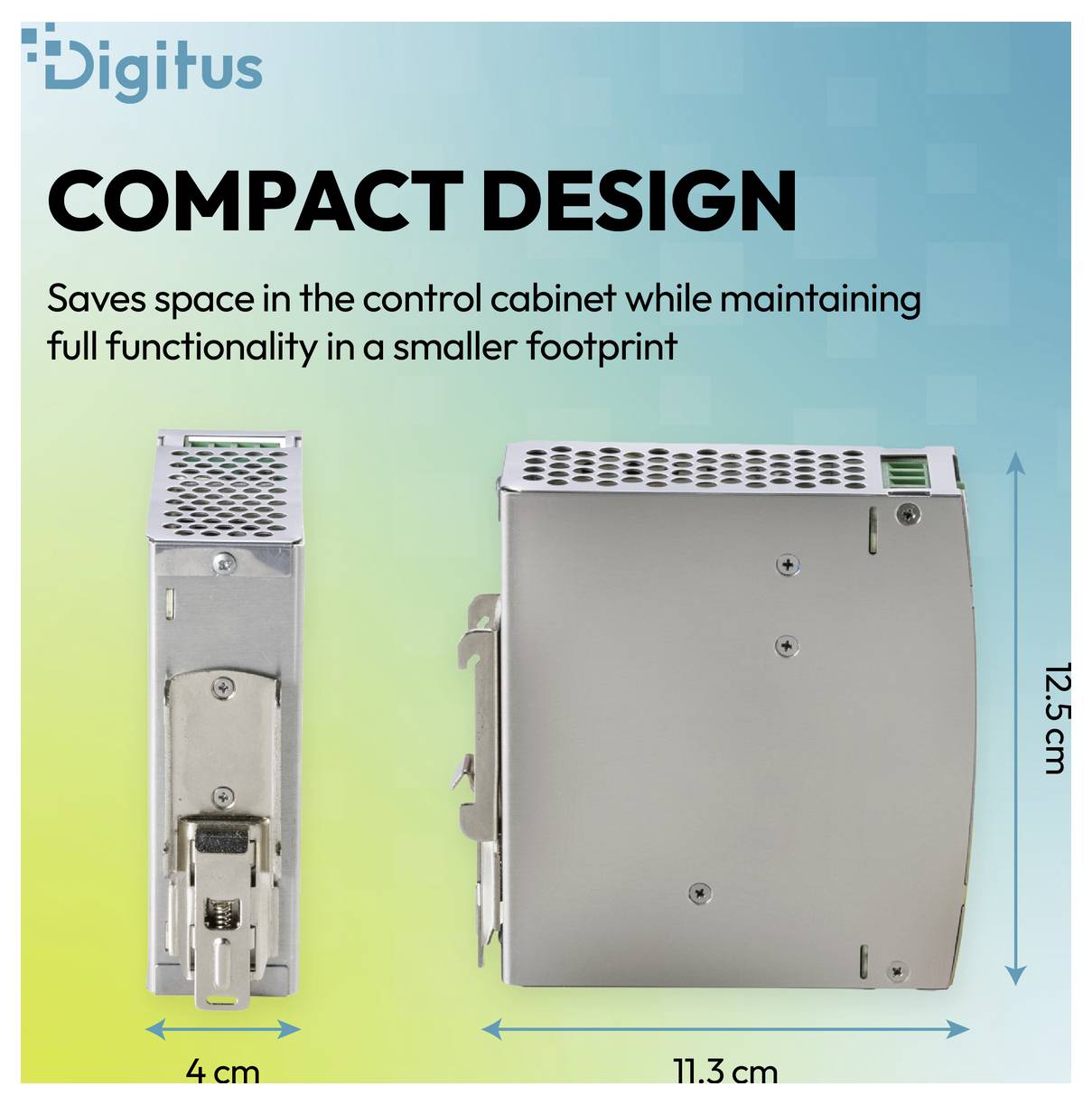

Digitus compact design product graphic showing a control cabinet module: 11.3 cm wide, 12.5 cm tall, and 4 cm deep, with space-saving full functionality.

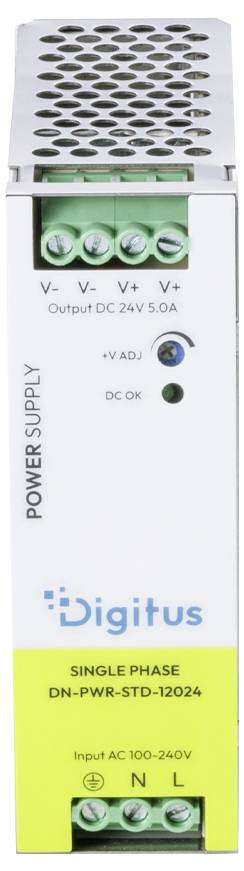

Digitus single-phase DIN-rail 24V 5A power supply module with four output terminals, adjustment knob, and AC input terminals.

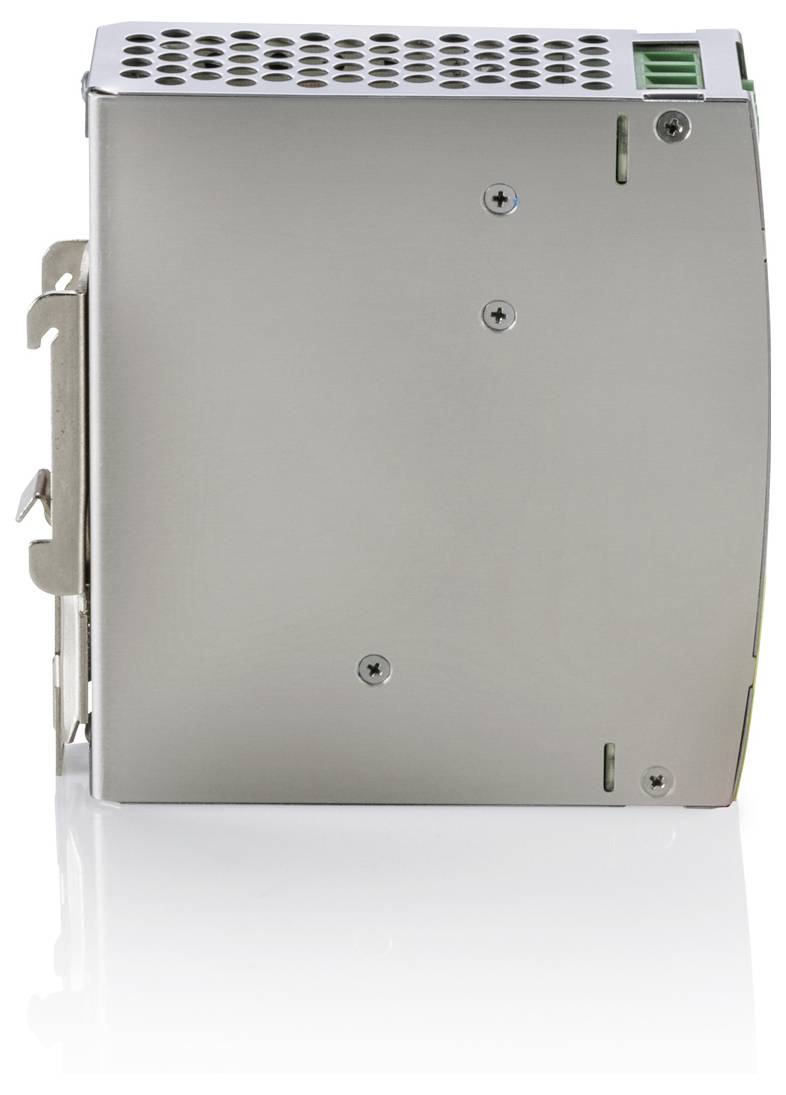

Metal electronic power supply unit with vent holes and mounting bracket, shown isolated on a white background.

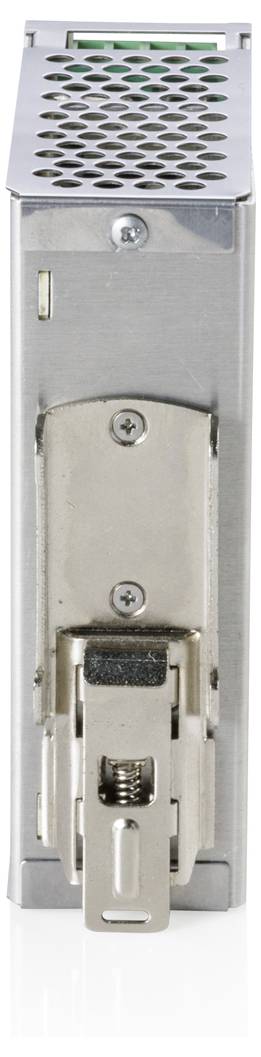

Front view of a metal electrical module with vented top, mounting screws, and a bottom spring clip latch.

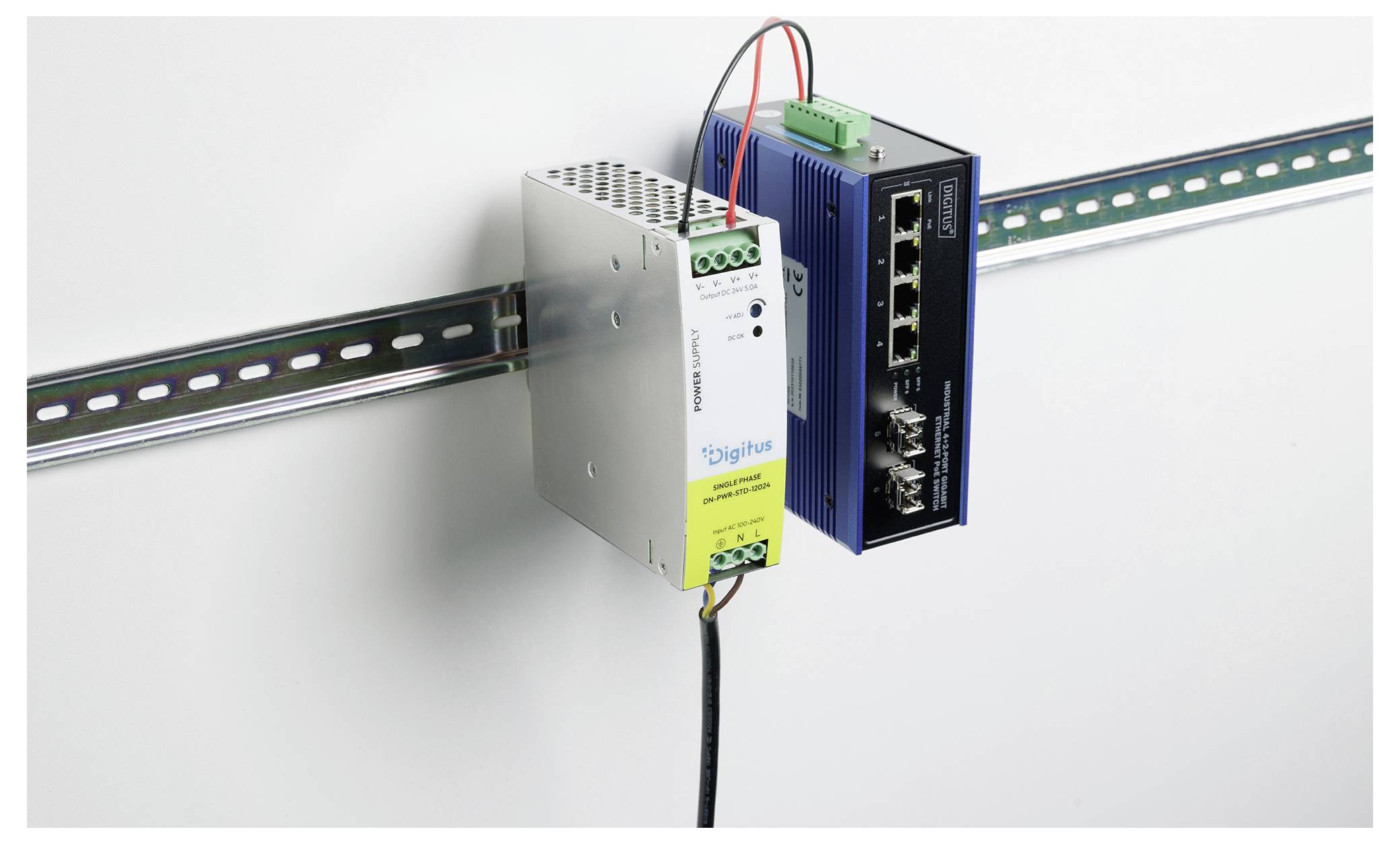

Industrial DIN-rail mounted controller and network device connected with cables on a metal rail against a white background.

1/9

Fast track dispatch on Wed 14 Oct

4 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 48.99 / piece)

€ 48.99

incl. VAT

Only 4 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Digitus industrial power supply, 24V DC, 5A, 120W, AC-DC, Metallic housing, for DIN-rail mounting

High efficiency up to 89% - minimizes power loss and heat generation
Wide-range input 90 - 264 V AC - suitable for the worldwide application
Stable 24 V DC voltage (adjustable from 24 to 28 V) - precise and reliable
Comprehensive protection - short circuit, overload, overvoltage and temperature cut-off
Robust metal casing – durable and resistant to external influences
Compact DIN rail mounting – easy integration in control and control cabinets
Fanless design – noiseless, maintenance-free continuous operation

Technical specifications

Output voltage 24 Vdc (adjustable from 24–28 V)
Output current: 5 A
120 W power output
Input voltage 90–264 VAC, 47–63 Hz
Efficiency: Up to 89 %
Protection: Short circuit, overload, overvoltage, overheating
Cooling: Free air convection
Mounting:DIN-rails TS-35 / 7.5 & 15
Case material: metal
Dimensions (H × W × D) 125 × 113 × 40 mm

Product type: Industrial PSU

Min. input voltage: 90 V AC

Output voltage: 24 -28 V/DC

Input voltage (max.): 264 V AC

Max. output current: 5 A

Output current (max.) - rounded: 5 A

: 120 W

Output type (power supply units): Adjustable

Output voltage (nominal): 24 V DC

Connection: Clamp

Dim: (L x W x H) 40 x 113 x 125 mm

Output voltage (max.): 28 V DC

Output voltage (min.): 24 V DC

Manufacturer part #: DN-PWR-STD-12024

Content: 1 pc(s)

PSU features: Adjustable voltage output

Width: 113 mm

Height: 125 mm

Length: 40 mm

Type: DN-PWR-STD-12024

Efficiency: 89 %

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3791053 Digitus DN-PWR-STD-12024 Industrial PSU 24 V DC 5 A 120 W Content 1 pc(s)

Description

The Digitus® power supply unit DN-PWR-STD-12024 is the ideal power supply for applications that require reliable, efficient and long-life power supplies. With an output power of 120 watts and a constant output current of 5 amps the device delivers a stabilized 24-V DC voltage for the most diverse industrial and electronic applications. The wide-range input voltage (90 - 264 V AC) enables universal use worldwide - whether in industrial controls, building installations, IT and IoT systems. The metal housing provides excellent heat dissipation and high mechanical strength. Thanks to its compact design, this power supply can easily be mounted on a DIN rail (TS-35 / 7.5 & 15) and saves valuable space in the control cabinet. The integrated protection concept constantly monitors the operating status and protects the connected consumers from short-circuit, overload, overvoltage and overheating. Automatic post-troubleshooting recovery enables continuous non-disruptive operation without manual intervention. The free air convection ensures efficient cooling without fans, WAS ensures a silent, maintenance-free operation - Ideal for environments in which reliability and quietness are required. With an efficiency of up to 89% and the adjustable output voltage (24–28 V), the DN-PWR-STD-12024 offers a highest degree of flexibility and energy efficiency.

This text is machine translated.
