Name: Digitus DS-72220-3CH KVM console VGA Mouse, Keyboard 1920 x 1080 Pixel
Brand: Digitus
SKU: 3207687
Availability: BackOrder

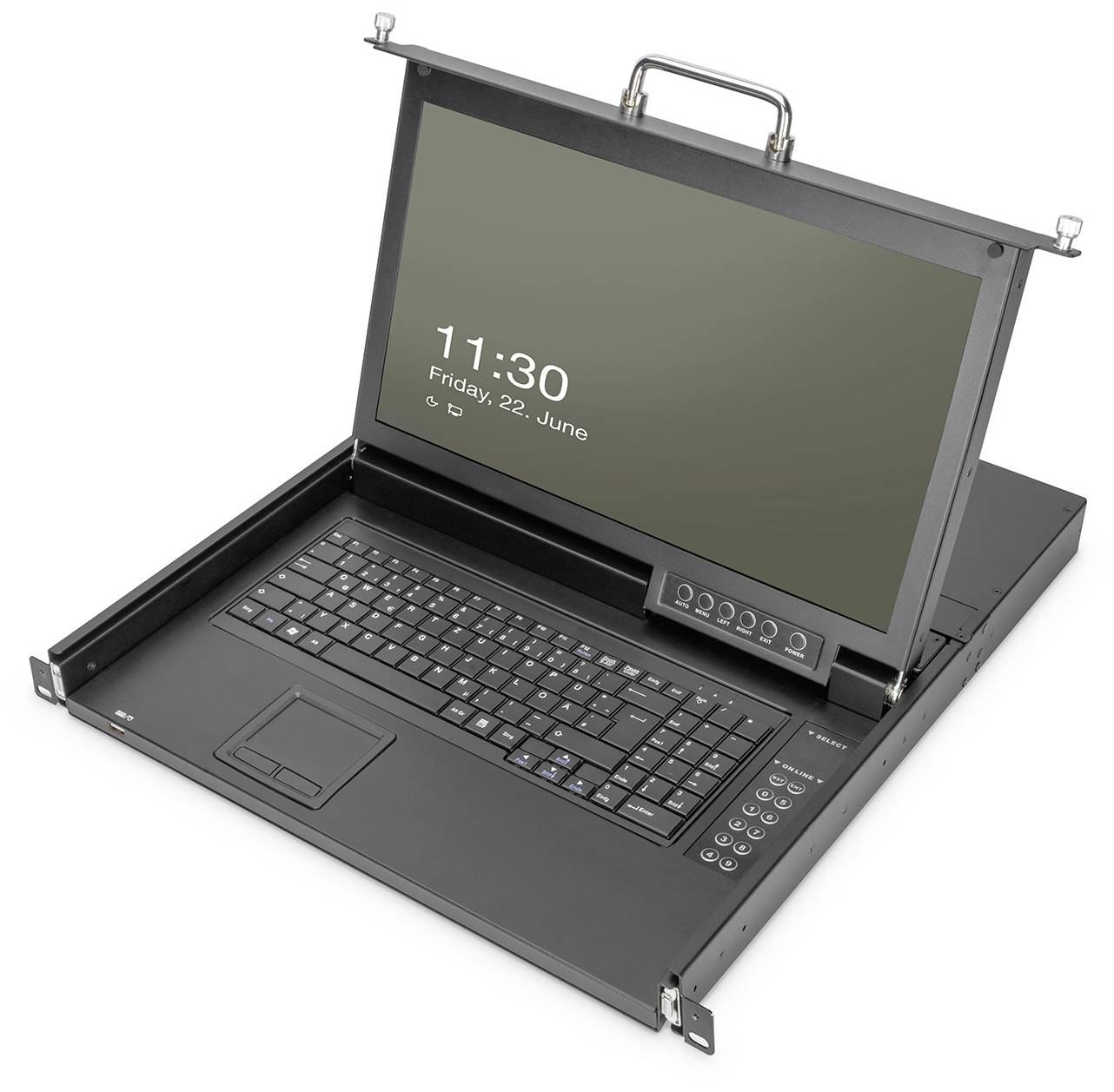

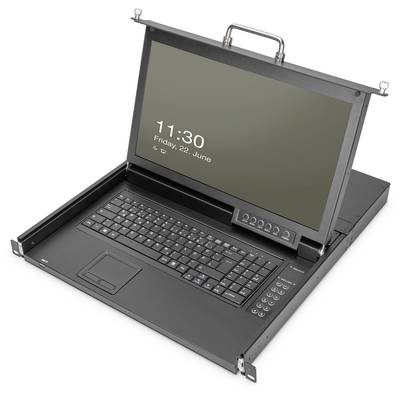

Black laptop-like device with screen, keyboard and number pad. Display shows time and date: '11:30, Friday, 22 June'.

A rackmount laptop with an open screen displays the date and time: '11:30 Friday, 22 June'. Keyboard and trackpad visible.

A retractable metal table in its folded state, shown from the side, ready to be extended.

A black metal sliding drawer with a flexible cable channel in the centre, suitable for use in IT or server racks.

Black metal drawer cabinet with handle, closed. Suitable for secure storage in commercial or industrial environments.

A pulled-out server screen in a rack displays Windows Server 2016 with the system management open and a warning message.

Hand opening a server drawer in a data centre. In the background, further server cabinets are visible.

An open server cabinet with a rack-mount server pulled out. Several network cables are visible in the background.

1/8

EAN:

Part number:

Item no:

Dispatches on Mon, 1 Mar 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,335.00 / piece)

€ 1,335.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Digitus DS-72220-3CH KVM console

Full HD resolution 1080P
1x USB peripheral port in console area
LED display for the connection status
TFT monitor 43.2 cm (17"), with anti-glare, shatterproof safety glass panel

Technical specifications

Product type: KVM console

No. of switchable PCs: 16

Video via: VGA

Video resolution: 1920 x 1080 Pixel

Controller: Mouse
Keyboard

Audio headphones: No

Audio microphone: No

Stackable: Yes

Rack mount option: Yes

Switch function: Manual
Key

Distributor/switch features: Steel casing
+ built-in converter
suitable for indoor and outdoor use
suitable for indoor use
PC-controlled

Power supply (LOV): via PSU
mains-powered

Factory colour: Black
Black (RAL 9005)

Weight: 14290 g

Length: 650 mm

Width: 480 mm

Height: 45 mm

Dim: (L x W x H) 650 x 480 x 45 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3207687 Digitus DS-72220-3CH KVM console VGA Mouse, Keyboard 1920 x 1080 Pixel

Description

The Digitus HD LCD KVM console – with a 17" TFT monitor with anti-glare and anti-breaking protective glass screen. The console can be completely pulled out of the server cabinet and the TFT screen can be tilted 120 degrees. This console supports various cabinets from 800mm to 1200mm depth and comes complete with all KVM cables. With Full HD 1080P resolution and connection status LED indicator, this console also has a USB peripheral port in the console area. Enjoy up to 85% more space with this console and a contrast ratio of 1000:1 as well as support for 16.7 million colors. The package includes a 16-port VGA adapter, a keyboard and a two-function keyboard mouse. With a modular and expandable design, this console can also be cascaded.

This text is machine translated.

Features

The console can be completely pulled out of the server cabinet and the TFT screen can be tilted 120 degrees
LED display for the connection status
Supports:16.7 m colors
Includes 16-port VGA switch
Mouse Touch-Board with two function keys
Console safety lock to prevent damage
Cascading possible: Yes
Keyboard layout CH
Interface VGA

Scope of delivery

16-port VGA KVM switch
Keyboard
Quick start guide
Power supply unit
Fitting Material
16 VGA + USB connection cable (1.8 m)

Description

Features

The console can be completely pulled out of the server cabinet and the TFT screen can be tilted 120 degrees
LED display for the connection status
Supports:16.7 m colors
Includes 16-port VGA switch
Mouse Touch-Board with two function keys
Console safety lock to prevent damage
Cascading possible: Yes
Keyboard layout CH
Interface VGA
