Buy Digitus DS-72220-3GE 16 ports KVM console VGA Mouse, Keyboard 1920 x 1080 Pixel

A black laptop with an open clamshell keyboard and a screen displaying the date and time '11:30, Friday, 22 June'.

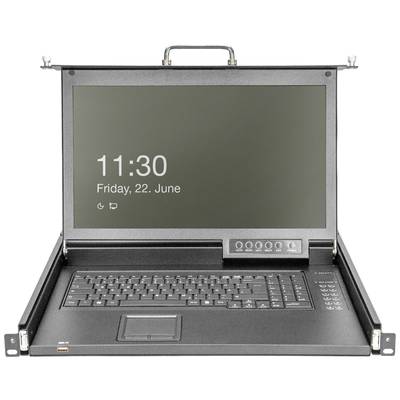

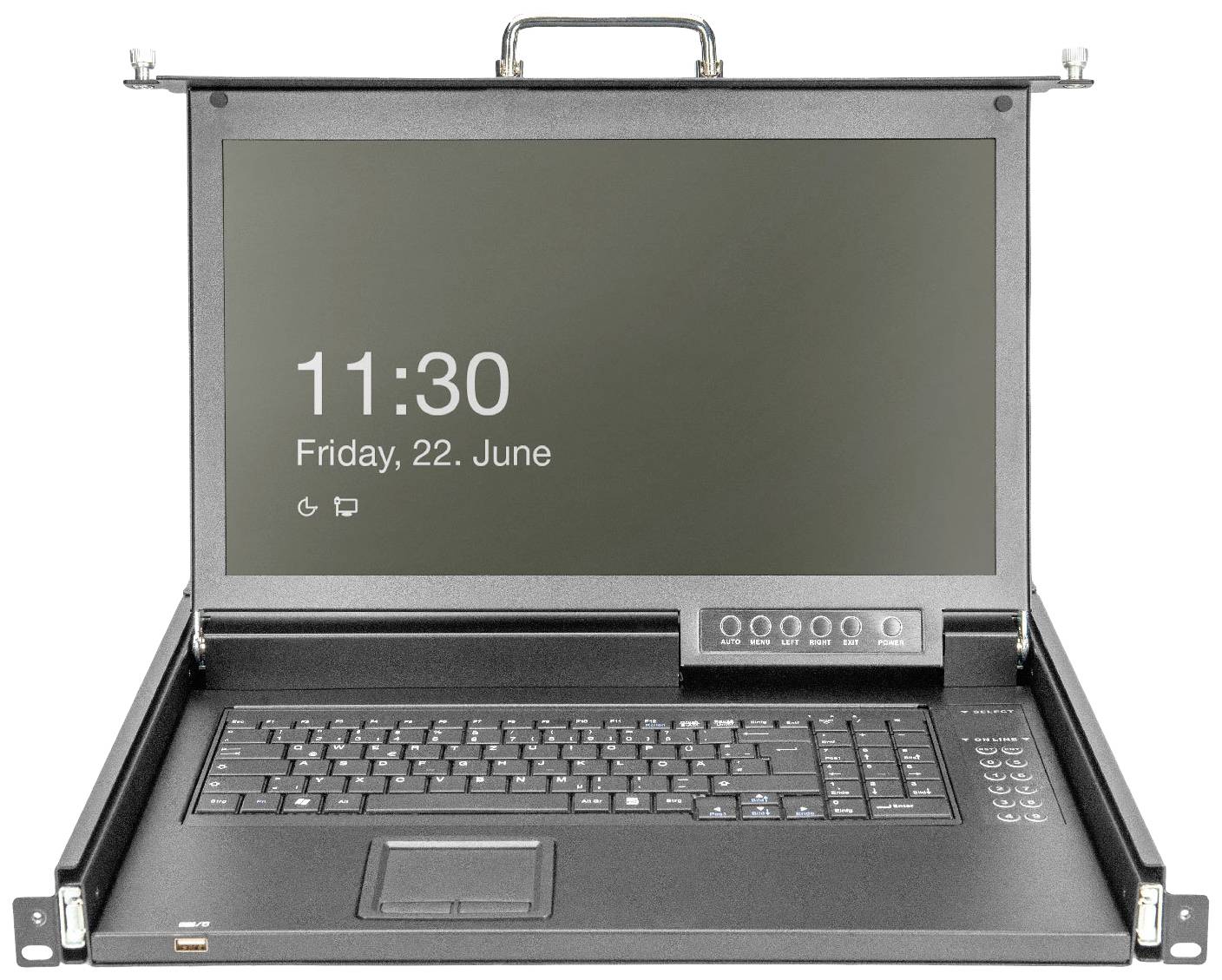

A rack-mounted KVM with monitor shows the time as 11:30 and the date as Friday, 22 June. The screen is connected to a keyboard.

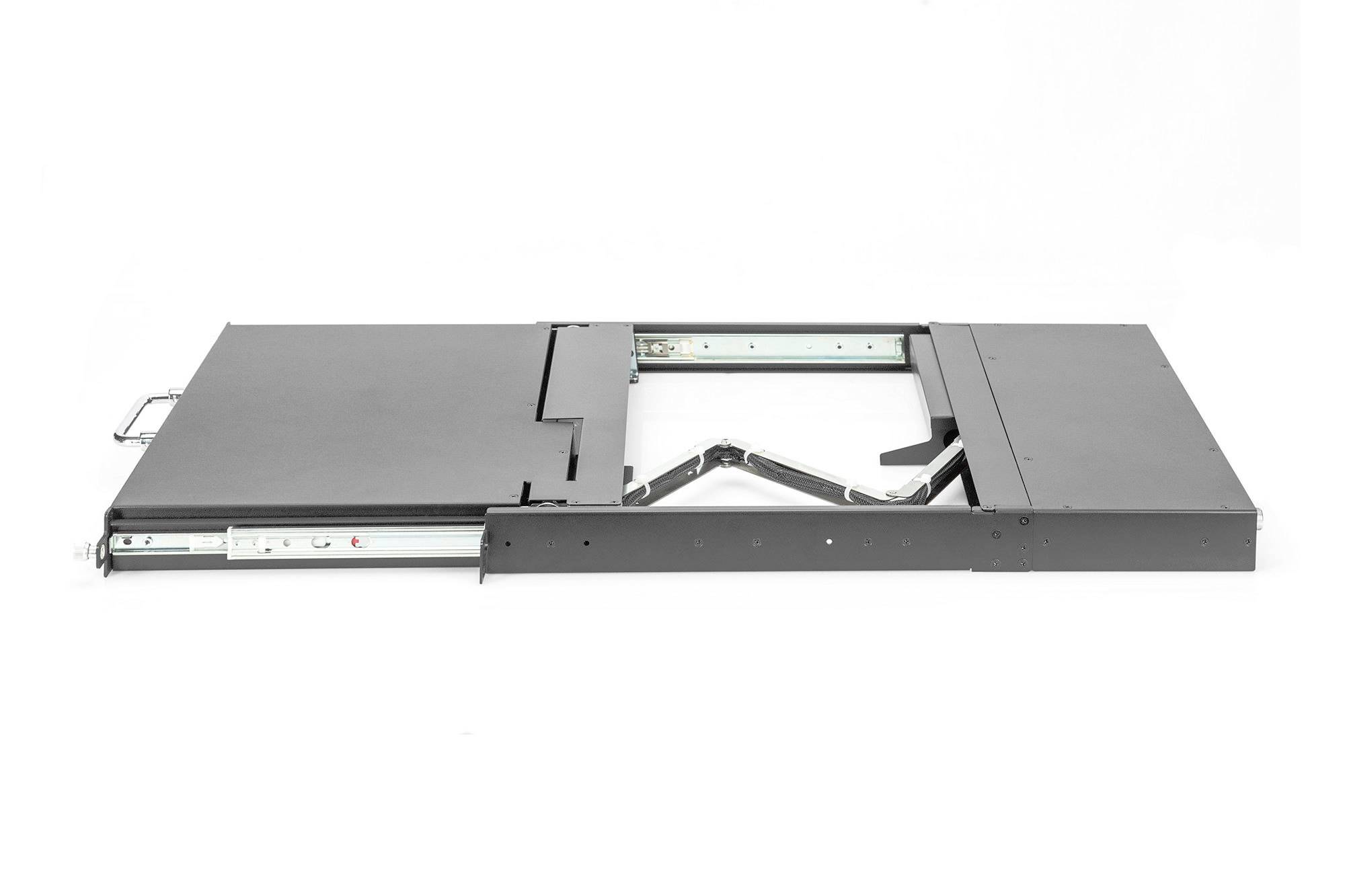

A black, flat metal sliding mechanism on a white background. The mechanism is partially extended, revealing its rails.

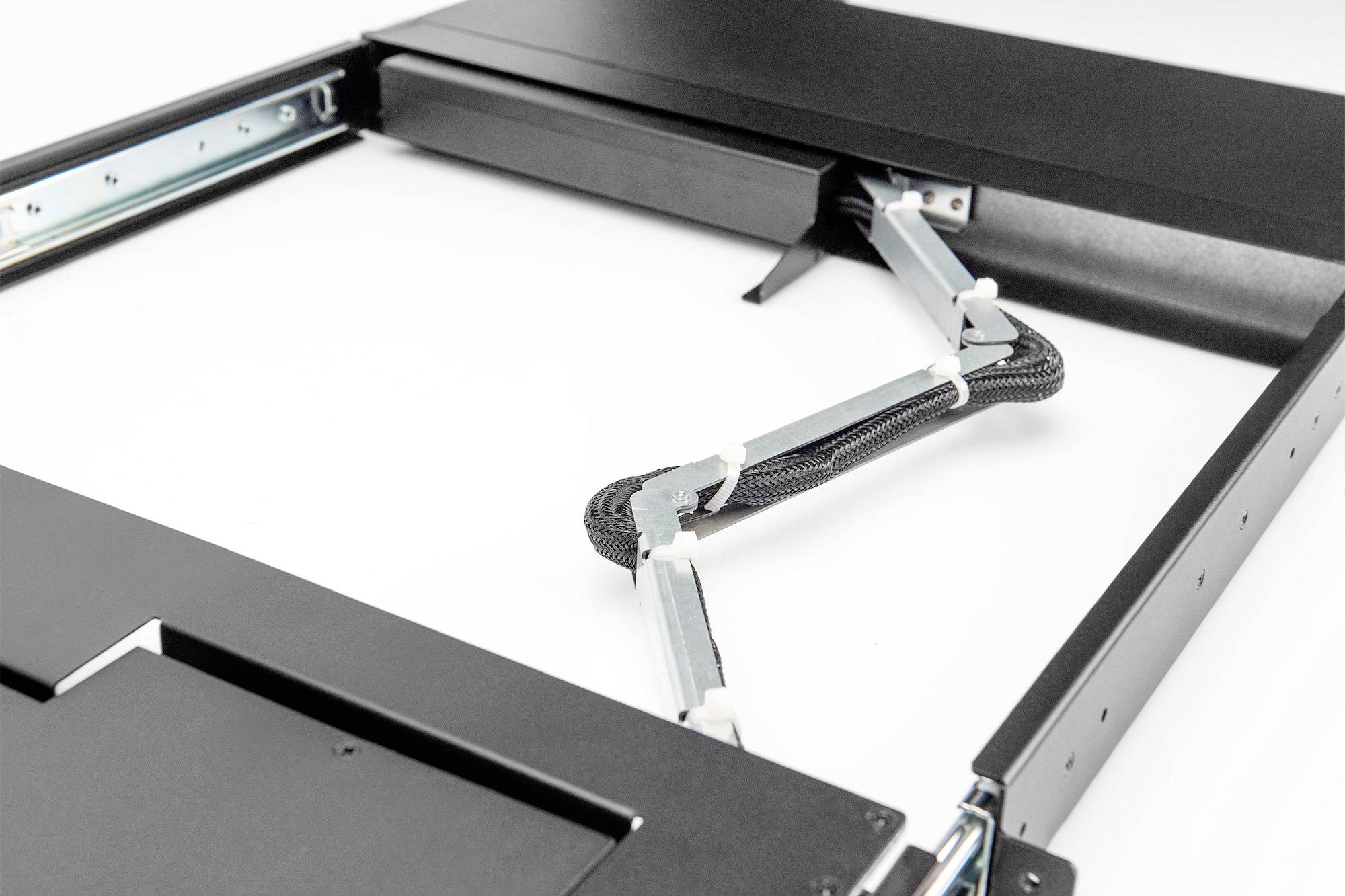

A black metal frame with rails and an attached cable wrapped in a protective sheath, set against a white background.

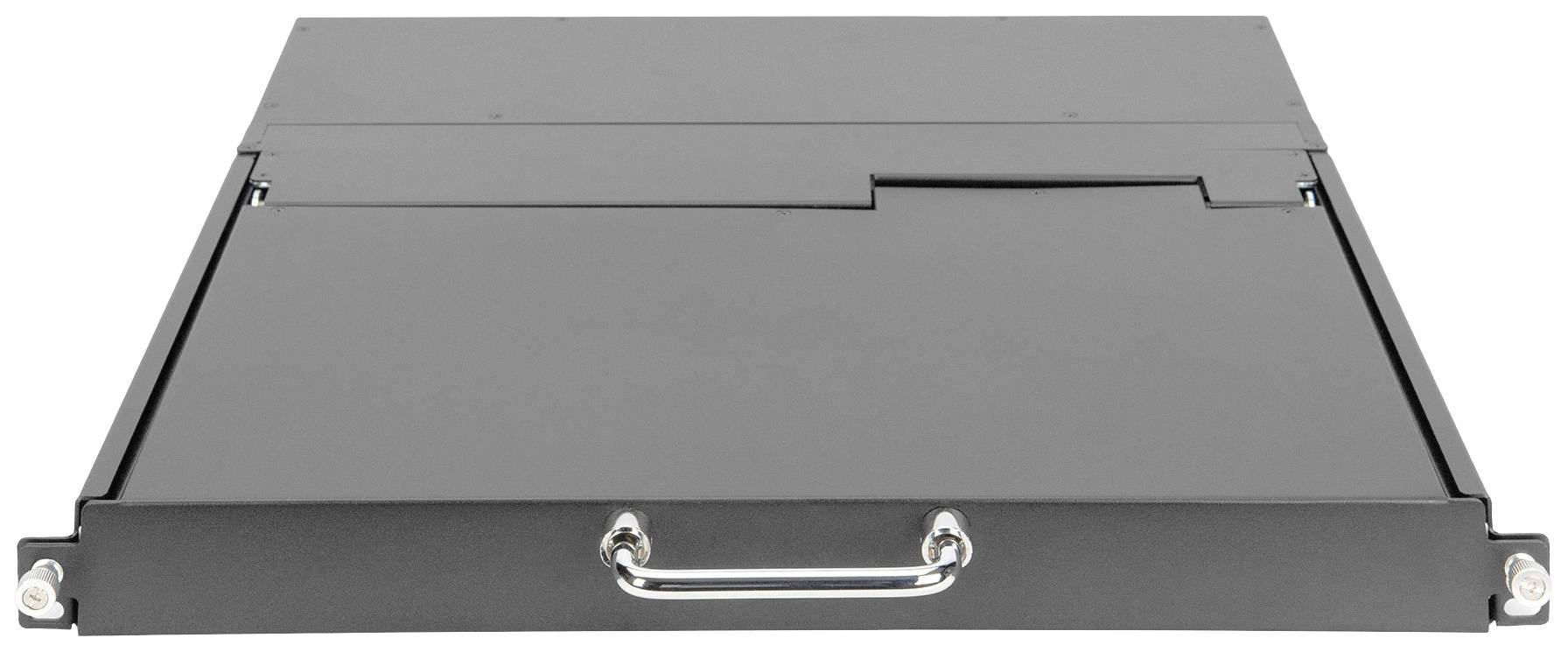

A black, rectangular metal device with a handle in the centre, possibly a rack-mounted server chassis or similar equipment.

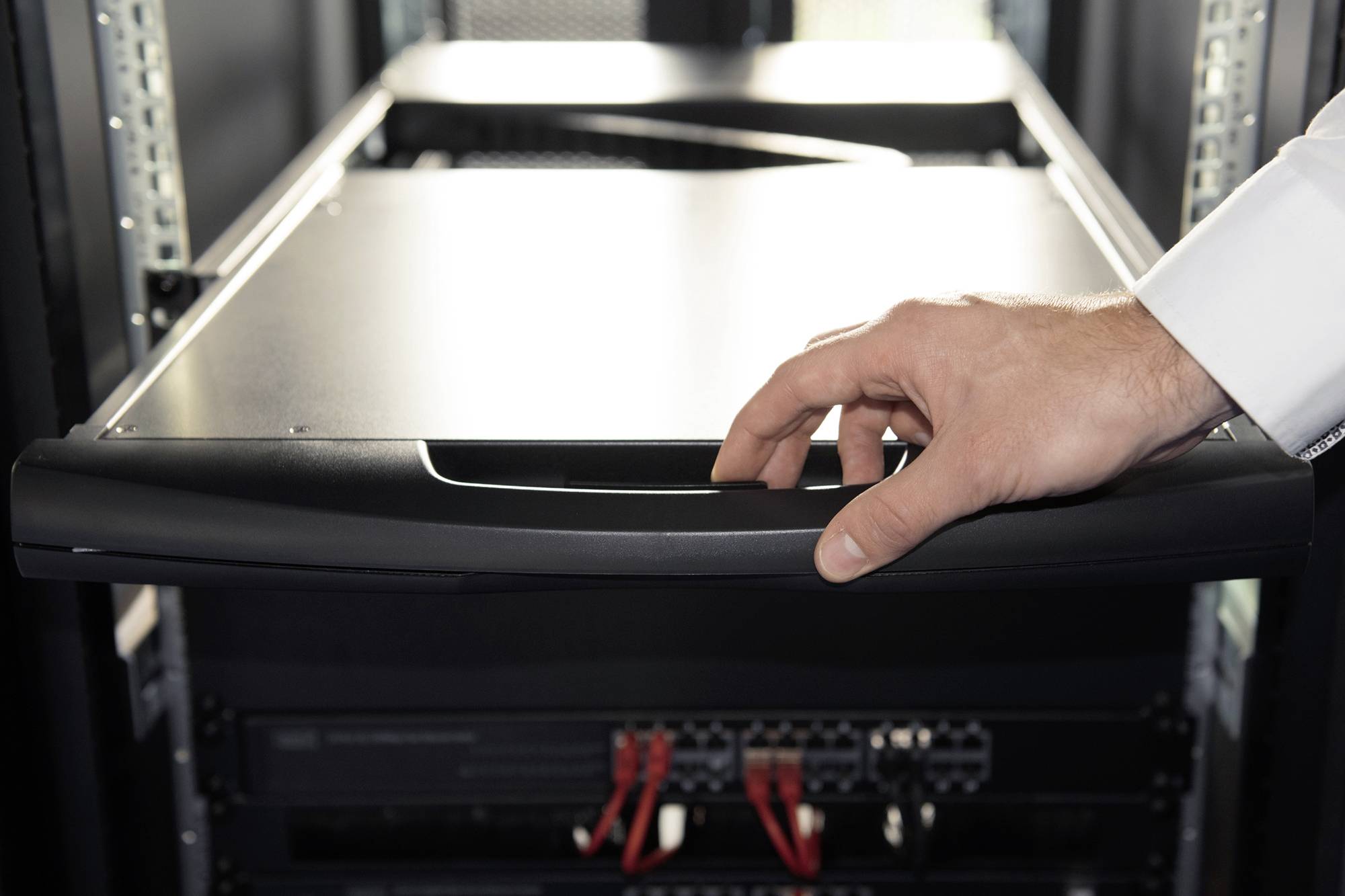

A person is sliding a server blade into a rack in a data centre. Focus on hand and equipment, illustrating IT infrastructure maintenance.

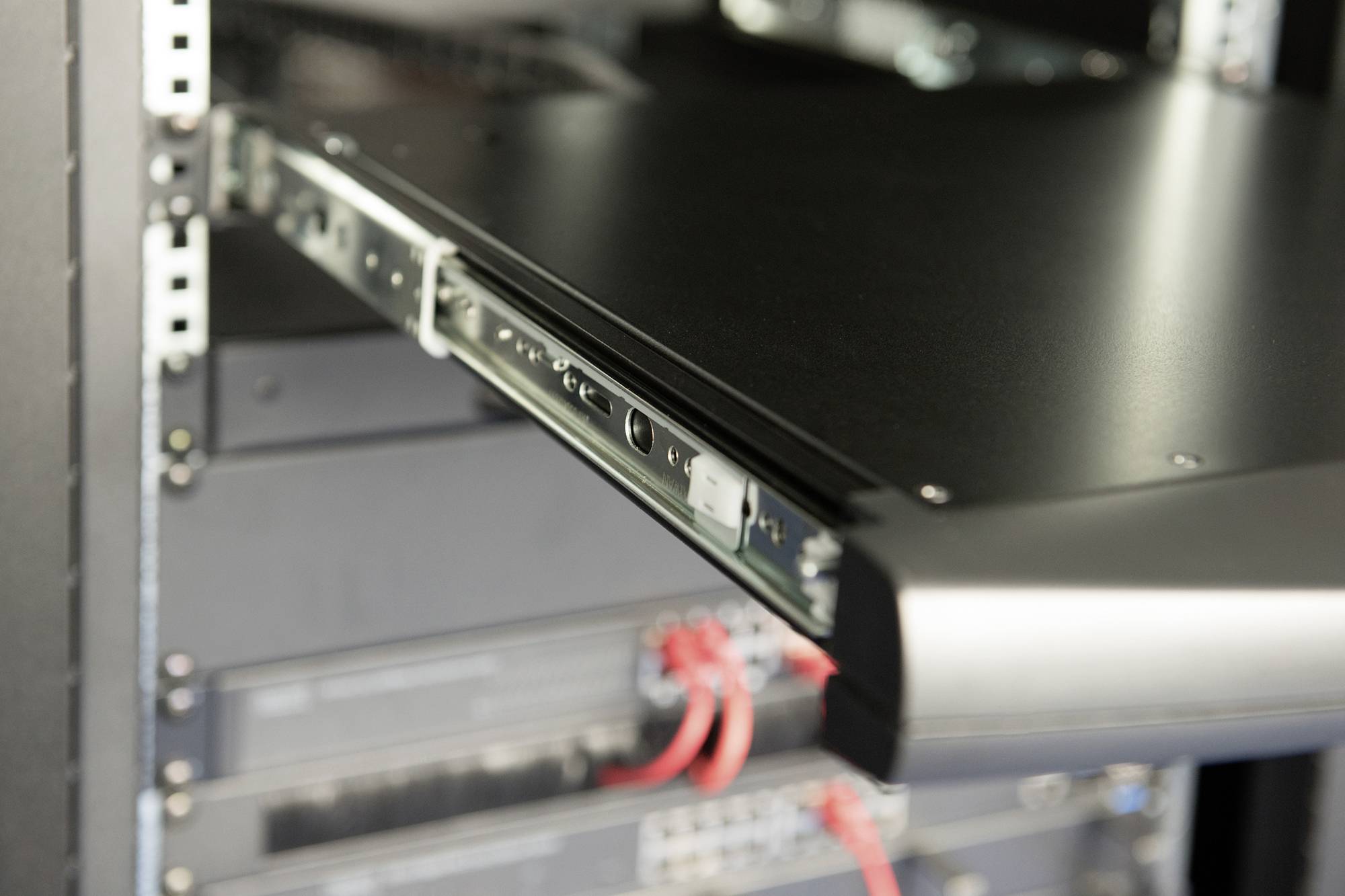

An open server with a visible console in a data centre rack. Other network devices are connected with cables underneath.

1/7

Dispatches on Wed, 21 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,226.05 / piece)

€ 1,226.05

plus VAT.

14-day return policy included

Report legal concerns

Digitus DS-72220-3GE KVM console

Highlights & Details

Full HD resolution 1080P
1x USB peripheral port in console area
LED display for the connection status
TFT monitor 43.2 cm (17"), with anti-glare, shatterproof safety glass panel

Technical specifications

Product type: KVM console

No. of switchable PCs: 16

Video via: VGA

Video resolution: 1920 x 1080 Pixel

Controller: Mouse
Keyboard

Audio headphones: No

Audio microphone: No

Stackable: Yes

Rack mount option: Yes

Switch function: Manual
Key

Distributor/switch features: Steel casing
+ built-in converter
suitable for indoor and outdoor use
suitable for indoor use
PC-controlled

Power supply (LOV): via PSU
mains-powered

Factory colour: Black
Black (RAL 9005)

Weight: 14290 g

Length: 650 mm

Width: 480 mm

Height: 45 mm

Port: 16 ports

Dim: (L x W x H) 650 x 480 x 45 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3207690 Digitus DS-72220-3GE 16 ports KVM console VGA Mouse, Keyboard 1920 x 1080 Pixel

Description

The Digitus HD LCD KVM console – with a 17" TFT monitor with anti-glare and anti-breaking protective glass screen. The console can be completely pulled out of the server cabinet and the TFT screen can be tilted 120 degrees. This console supports various cabinets from 800mm to 1200mm depth and comes complete with all KVM cables. With Full HD 1080P resolution and connection status LED indicator, this console also has a USB peripheral port in the console area. Enjoy up to 85% more space with this console and a contrast ratio of 1000:1 as well as support for 16.7 million colors. The package includes a 16-port VGA adapter, a keyboard and a two-function keyboard mouse. With a modular and expandable design, this console can also be cascaded.

This text is machine translated.

Features

The console can be completely pulled out of the server cabinet and the TFT screen can be tilted 120 degrees
LED display for the connection status
The console can be completely pulled out of the server cabinet and the TFT screen can be tilted 120 degrees
Supports:16.7 m colors
Includes 16-port VGA switch
Including German keyboard
Mouse Touch-Board with two function keys
The console can be completely pulled out of the server cabinet and the TFT screen can be tilted 120 degrees
Console safety lock to prevent damage
Interface VGA
Keyboard layout GE
Cascading possible: Yes
