Digitus DS-72221-5ES KVM console VGA Mouse, Keyboard 1920 x 1080 Pixel

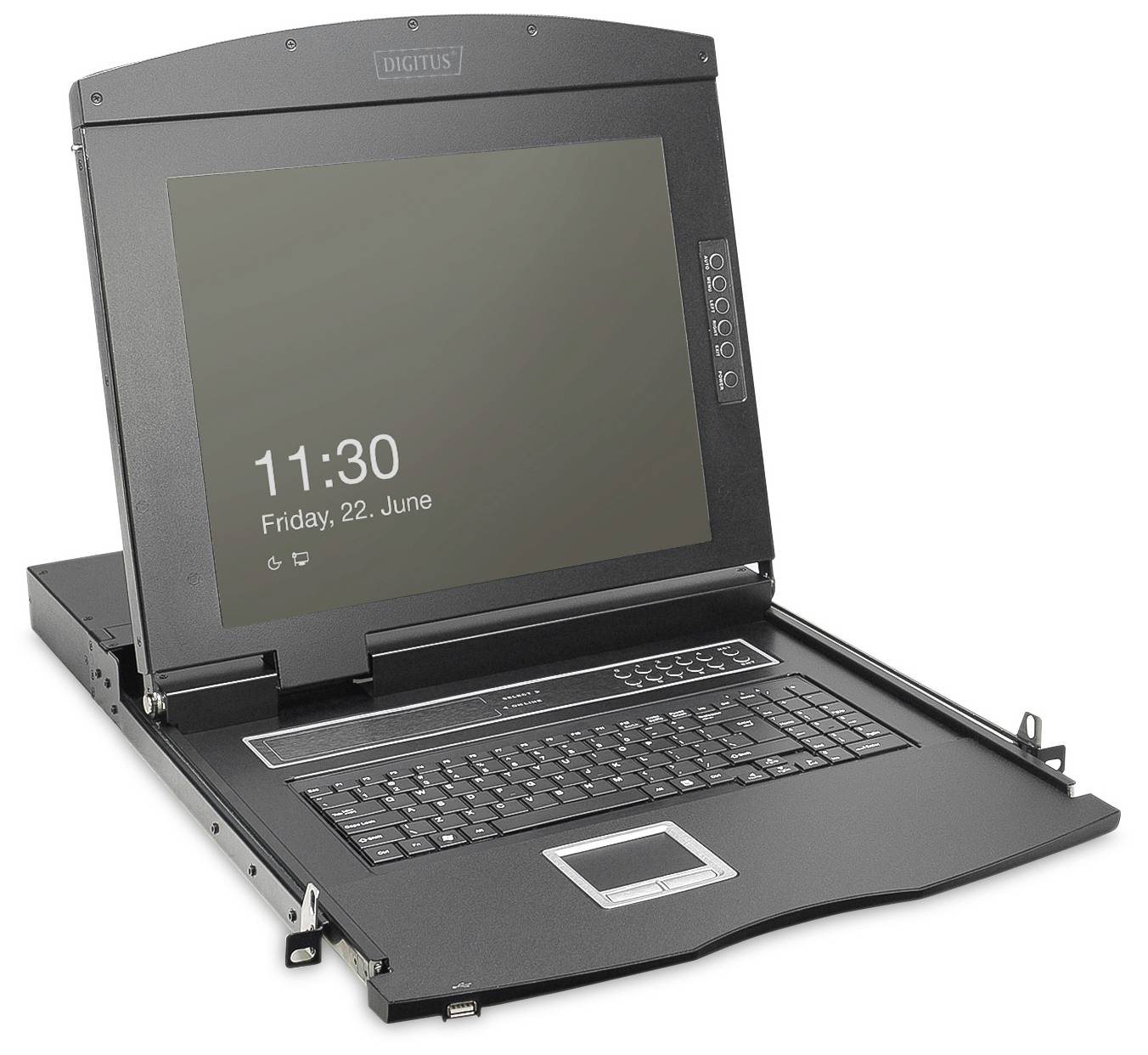

A black KVM console drawer with monitor, keyboard and touchpad. Displays screen time '11:30, Friday, 22 June'. Ideal for server rooms.

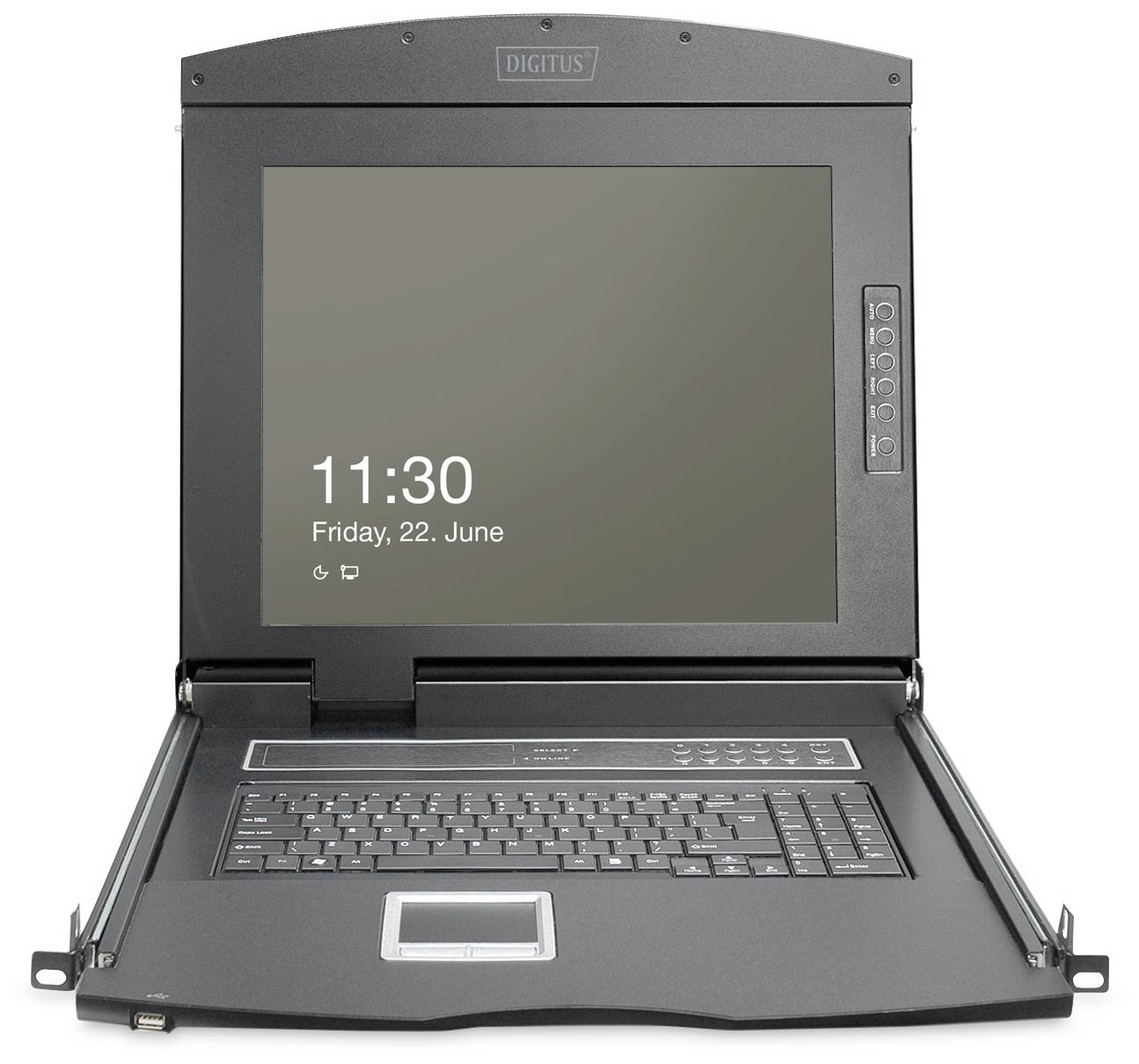

A console LCD panel with integrated keyboard and touchpad displays the time '11:30, Friday, 22 June' on the screen.

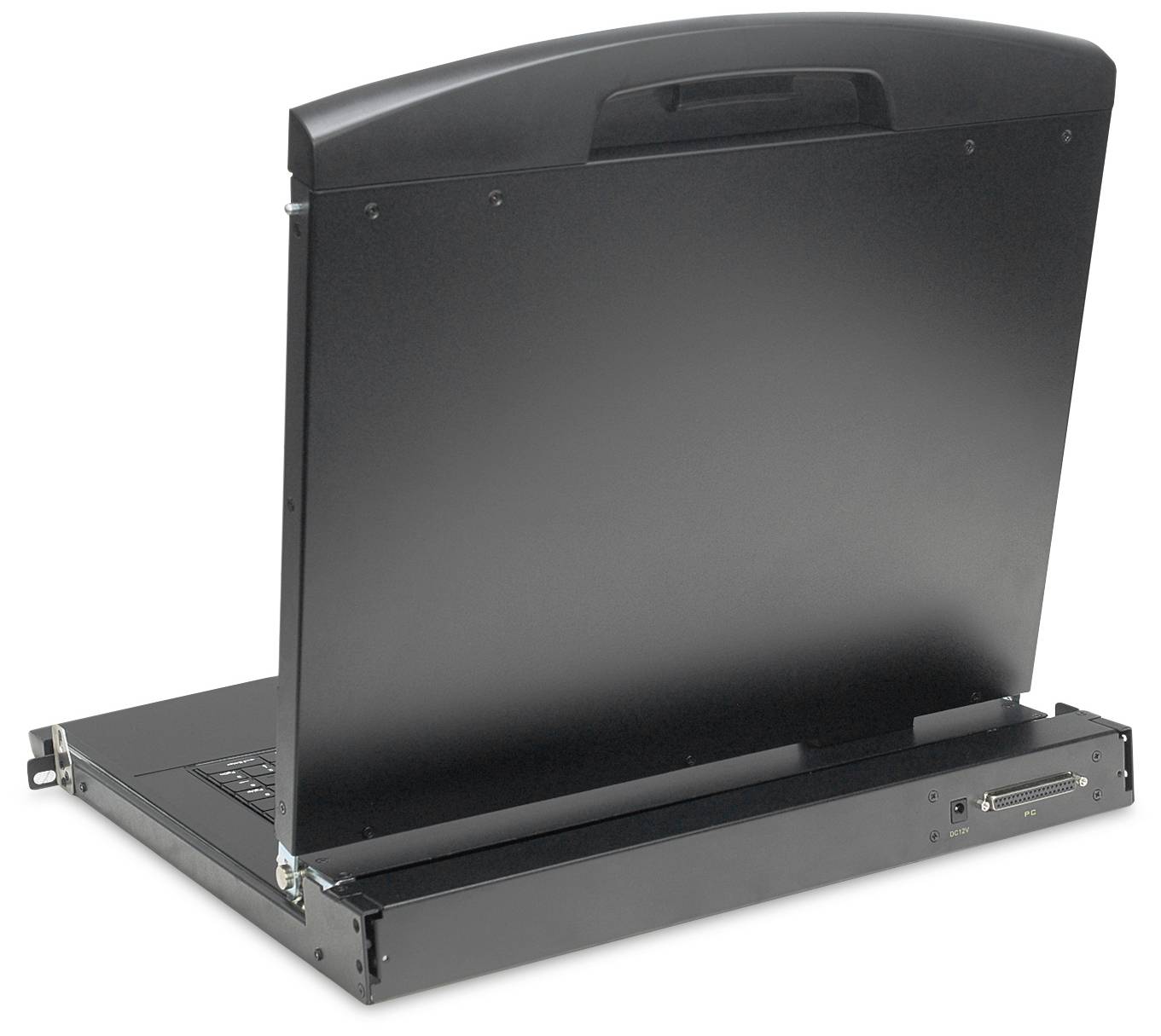

A black KVM switch with a partially open LCD display, rear view; suitable for server rack mounting.

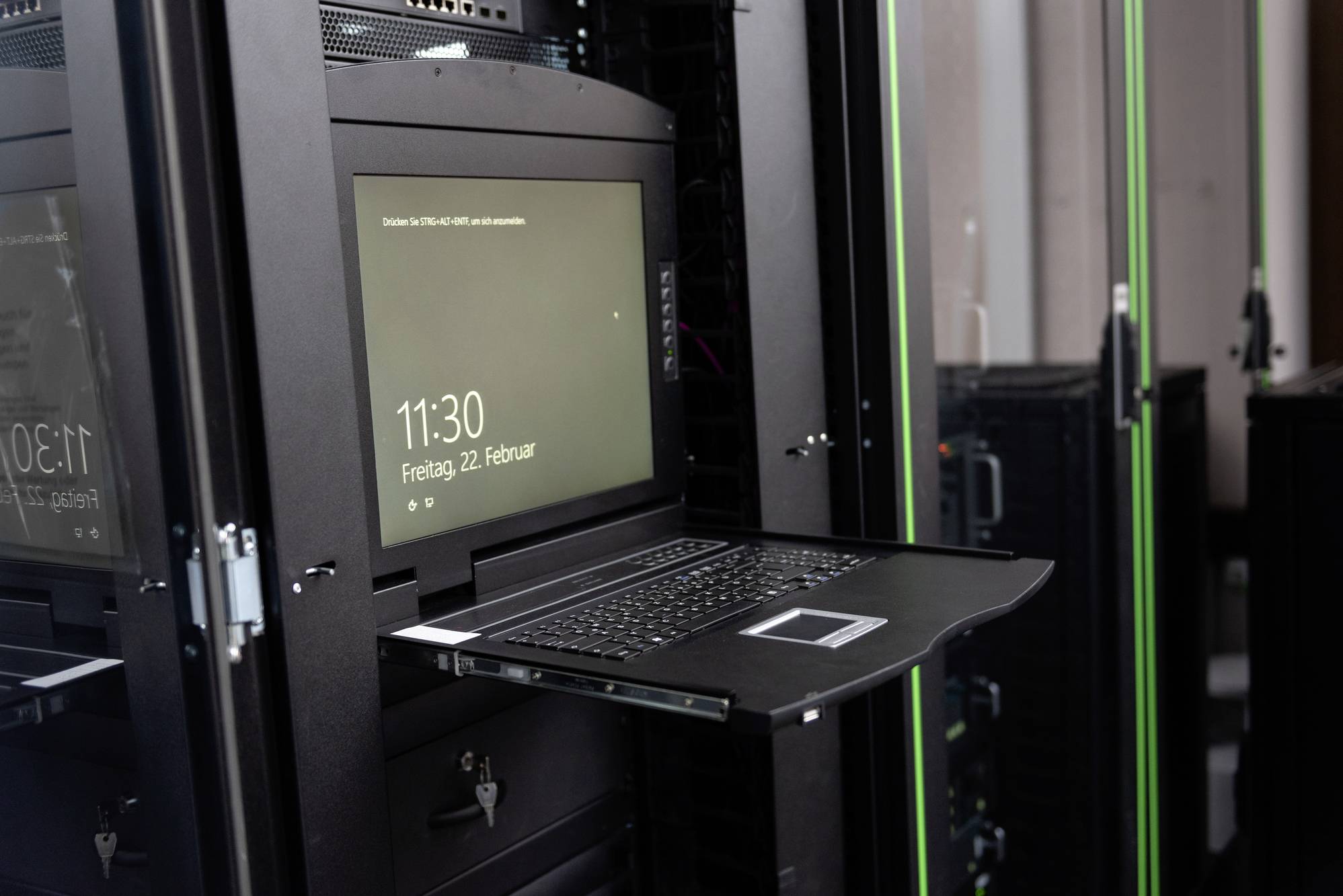

An open laptop is integrated into a server cabinet in a server room. The screen displays: '11:30 Friday, 22 February'.

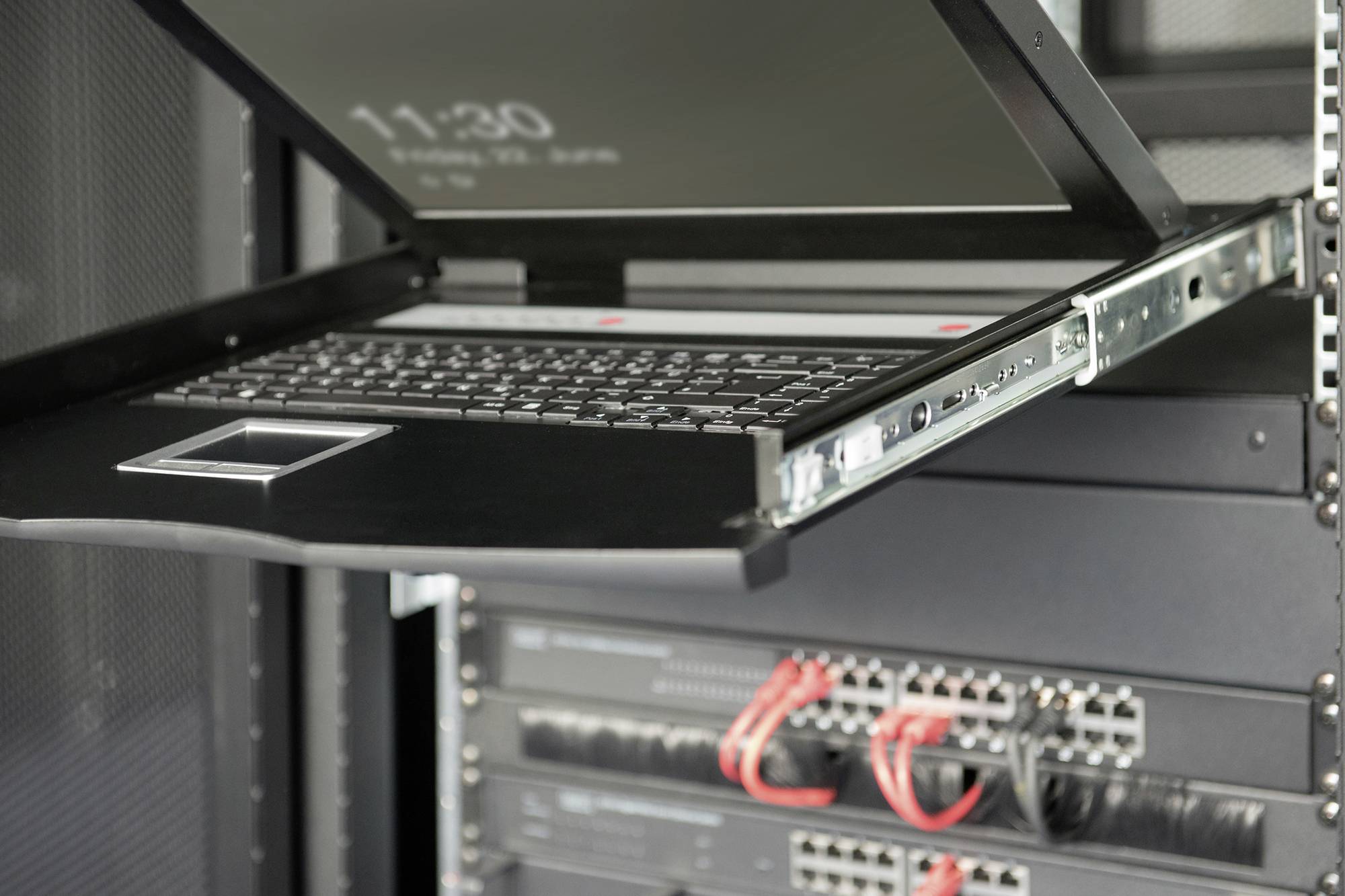

An open laptop mounted in a server rack, displaying the time, surrounded by network devices and cabled routers.

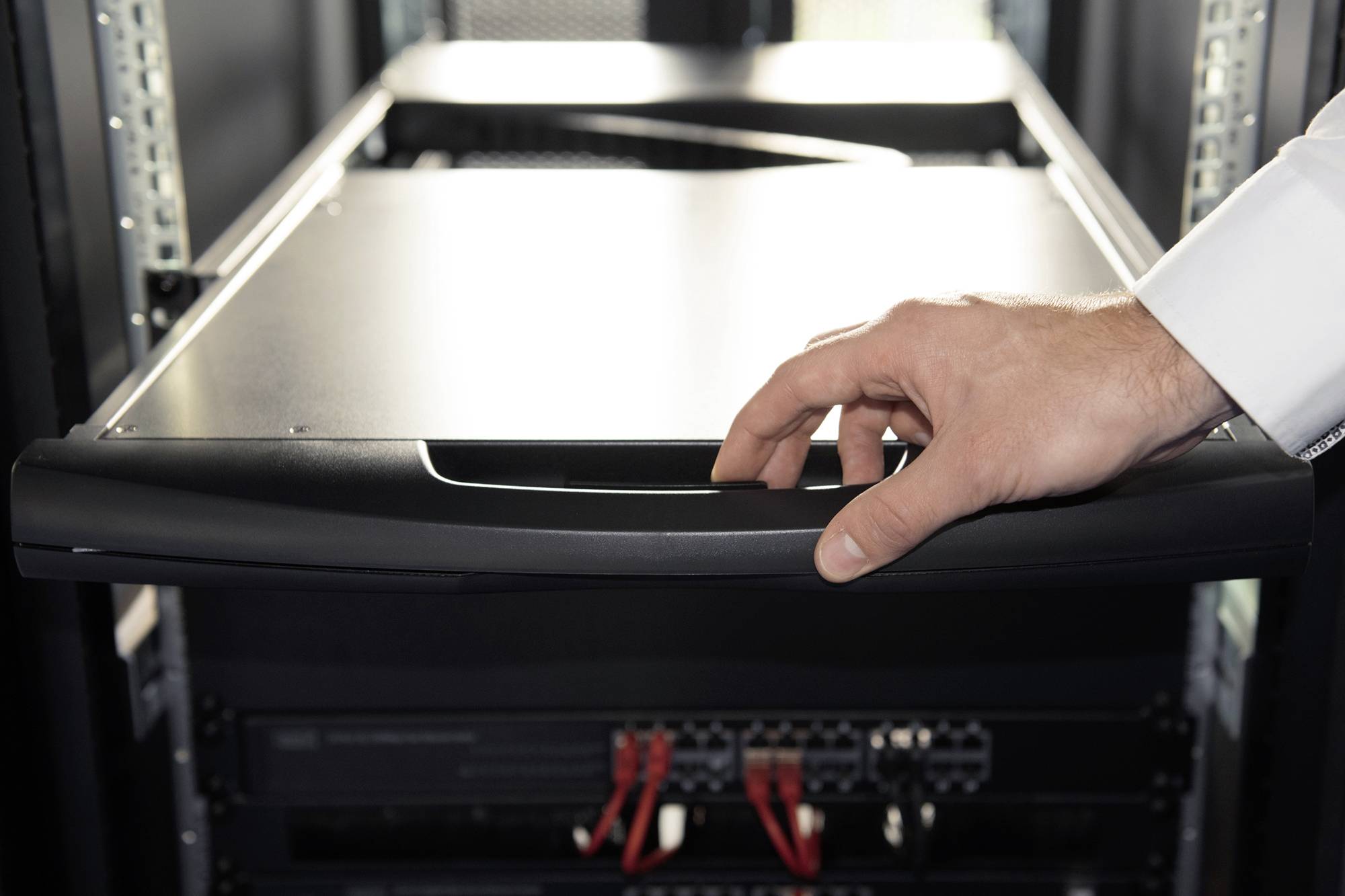

A hand pulls out a drawer in a server room, surrounded by IT equipment with visible cable connections.

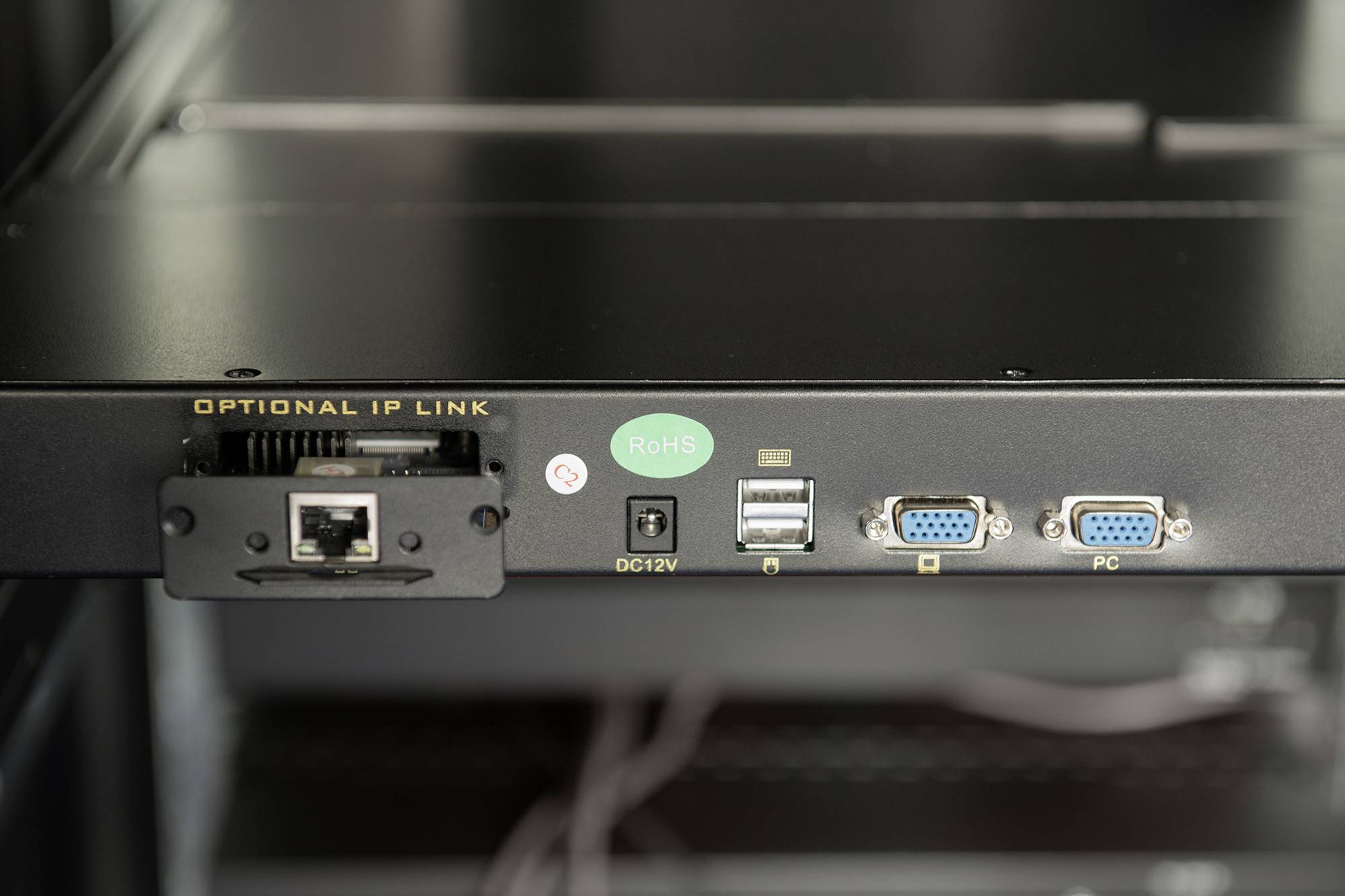

A black rack-mounted device with connections: Ethernet, Power, USB and VGA. Label reads: 'OPTIONAL IP LINK'.

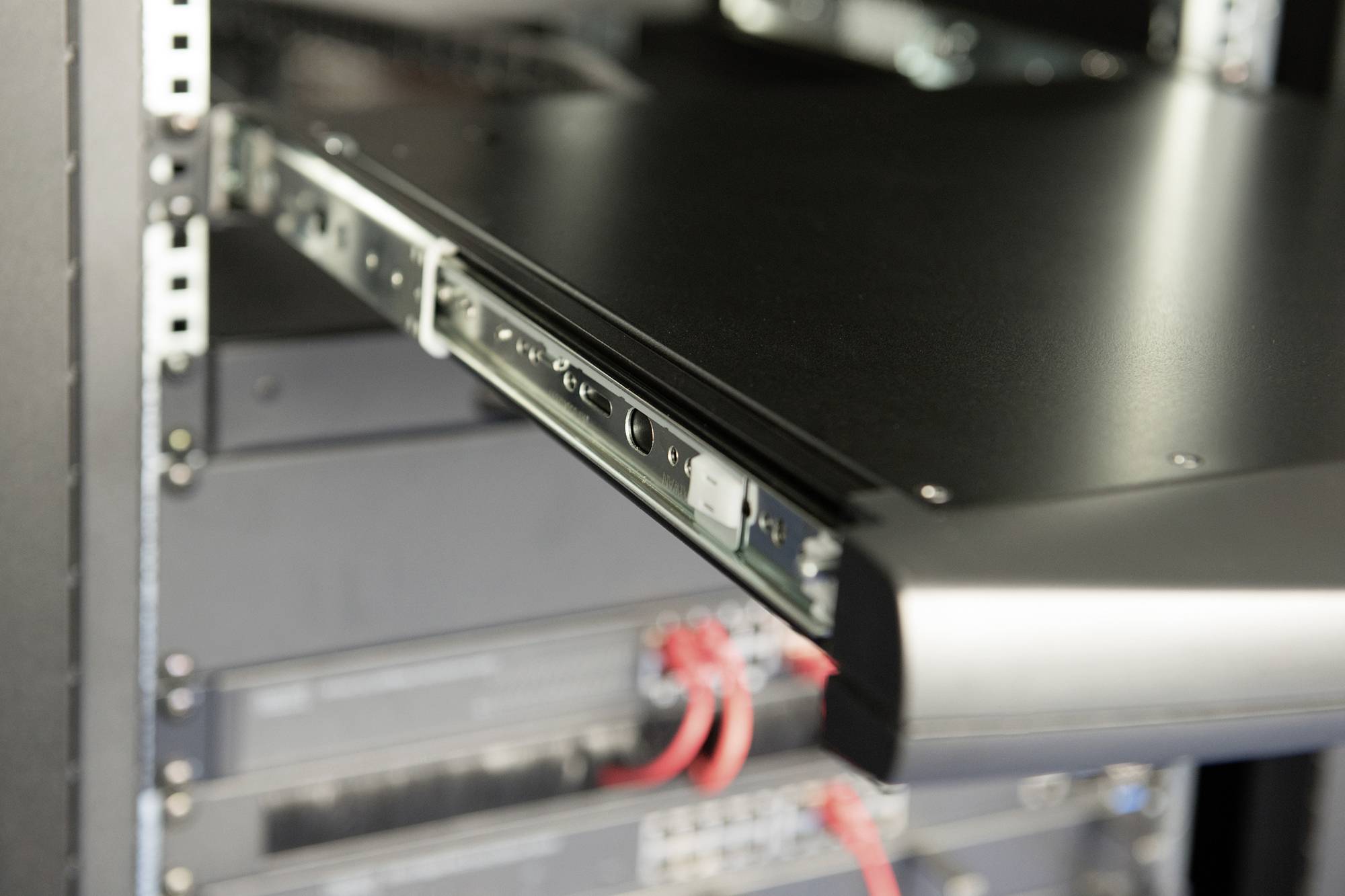

An open server drawer in a server rack with visible cables and hardware components.

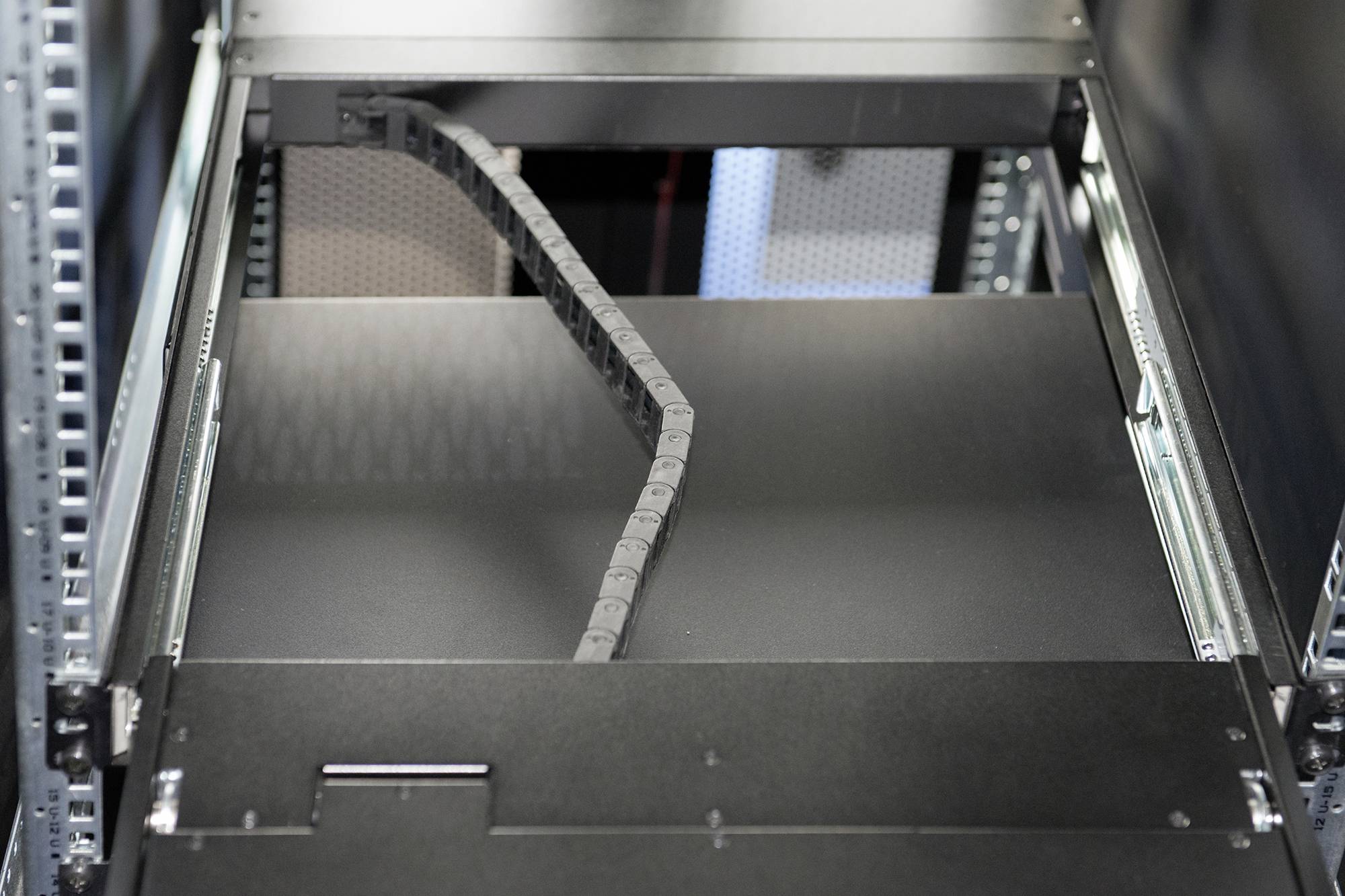

An open server cabinet shows an empty drawer with a cable running from back to front.
1/9
EAN:
Part number:
Item no:
Dispatches on Thu, 4 Mar 2027
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 1,985.00 / piece)
€ 1,985.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Modular 43.2cm (19") HD TFT console with 16 port CAT5, ES keyboard, RAL 9005 black

  • Supports:16.7 m colors
  • Including 16-port CAT 5 KVM switch
  • Mouse Touch-Board with two function keys
  • Space saving housing (1HE), black (RAL 9005)
  • CAT 5 interface

Technical specifications

Product type

KVM console

No. of switchable PCs

16

Video via

VGA

Video resolution

1920 x 1080 Pixel

Controller

Mouse

Keyboard

Audio headphones

No

Audio microphone

No

Stackable

Yes

Rack mount option

Yes

Switch function

Manual

Key

Distributor/switch features

Steel casing

+ built-in converter

suitable for indoor and outdoor use

suitable for indoor use

PC-controlled

Power supply (LOV)

via PSU

mains-powered

Factory colour

Black

Black (RAL 9005)

Weight

14630 g

Length

445 mm

Width

555.5 mm

Height

45 mm

Dim

(L x W x H) 445 x 555.5 x 45 mm

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3207757 Digitus DS-72221-5ES KVM console VGA Mouse, Keyboard 1920 x 1080 Pixel

Description

The Digitus® 19" HD TFT console offers a variety of individual configuration options through its modular design, so that an adaptation can be adapted to the application area of the console. Thus, the console is cost saving and can be set up or upgraded any time with further modules. The flexible configuration thus guarantees a high future-oriented security of the console. The modular console consists of a 19" monitor, a 16-port CAT 5 KVM switch and the touch-pad.


This text is machine translated.

Features

  • Supports:16.7 m colors
  • Including 16-port CAT 5 KVM switch
  • Mouse Touch-Board with two function keys
  • Console safety lock to prevent damage
  • CAT 5 interface
  • Cascading possible: Yes
  • Keyboard layout: ES

Scope of delivery

  • 16-port CAT 5 KVM switch
  • Keyboard with Spanish keyboard layout
  • User manual
  • Power supply unit
  • Fitting Material
  • VGA CAT-16 receiver module
