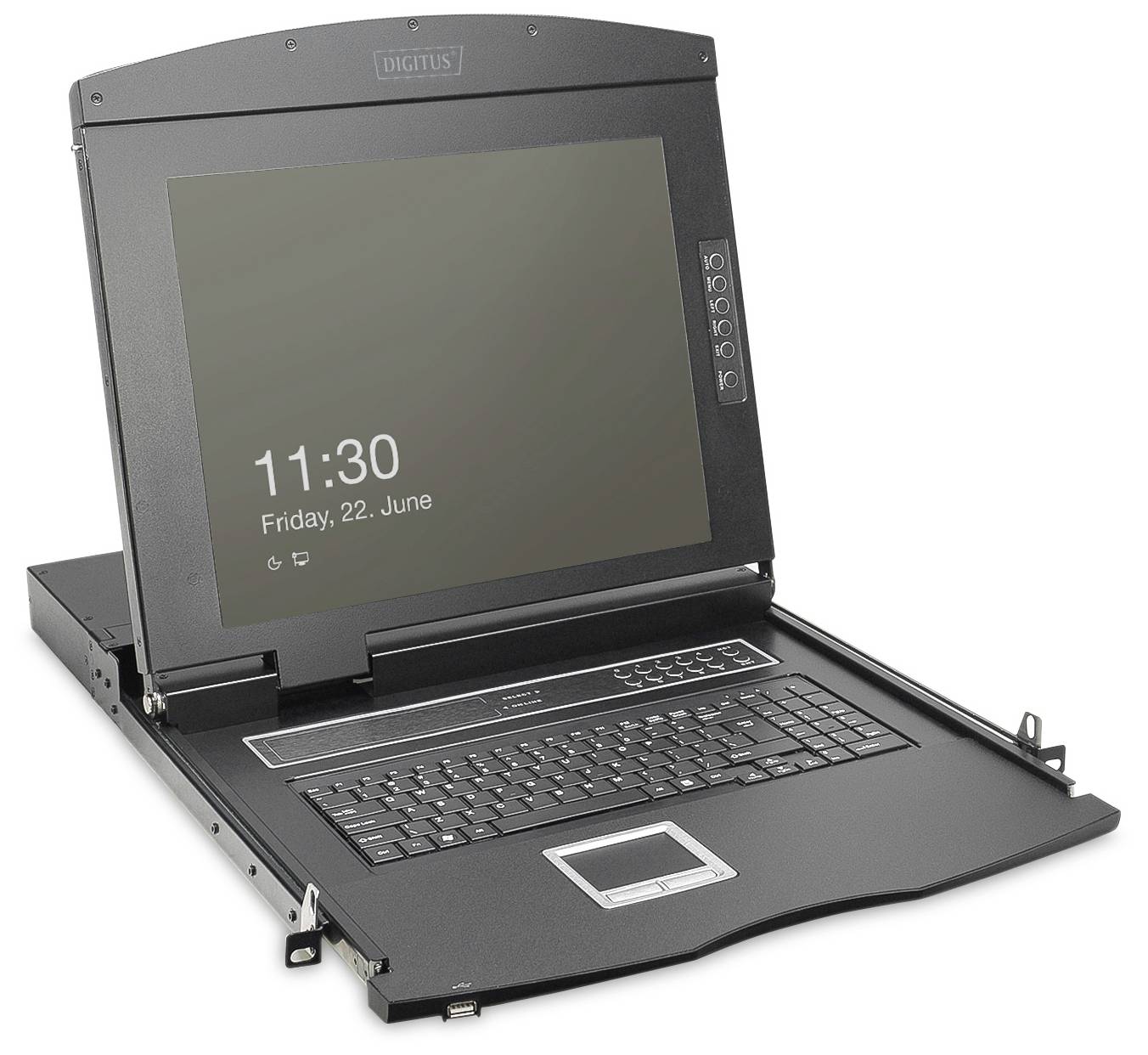

'KVM switch with integrated monitor and keyboard, displays date and time: Friday, 22 June, 11:30.'

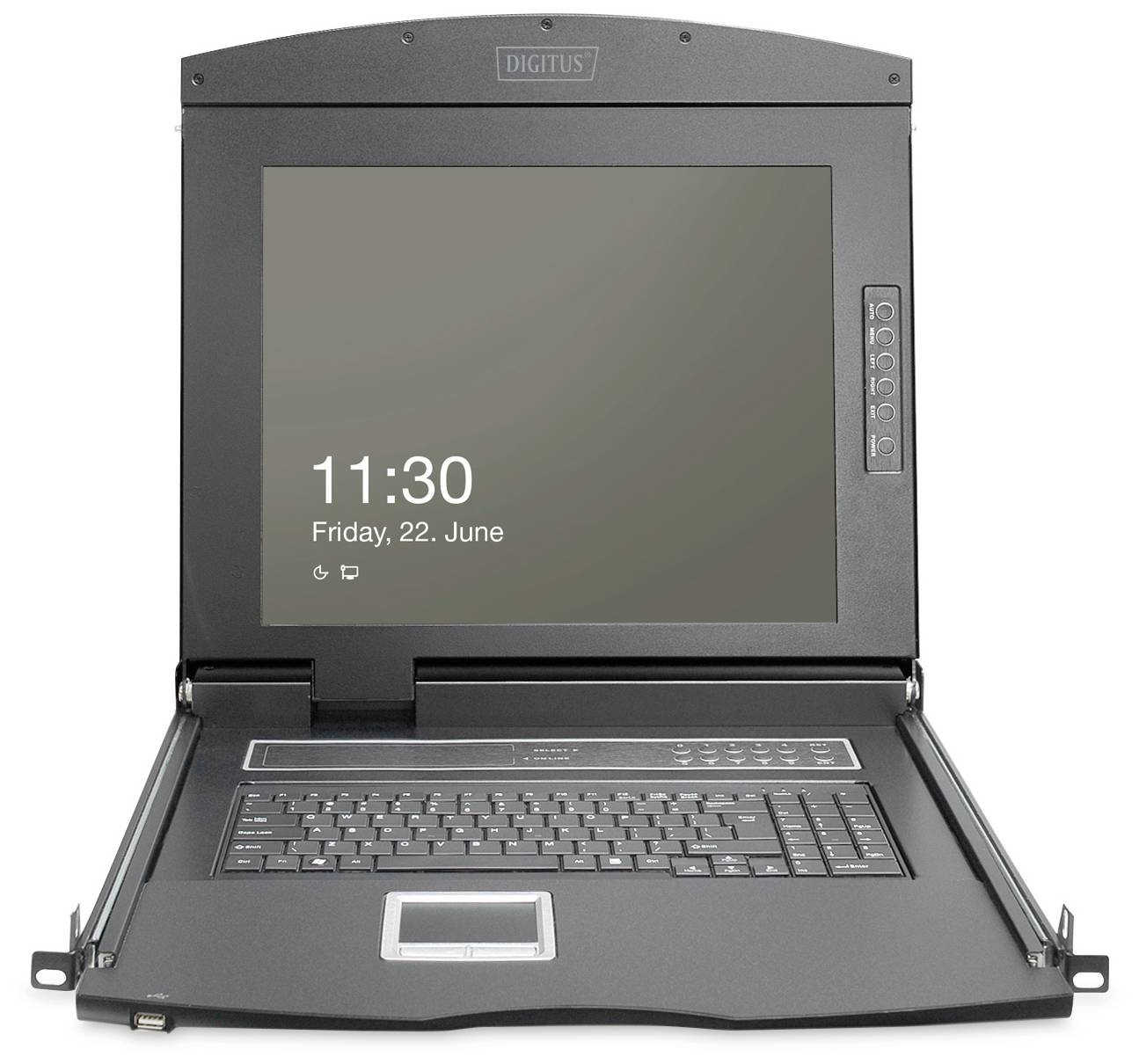

A black KVM switch with an integrated monitor and keyboard, displaying the date and time '11:30 Friday, 22 June' on the screen.

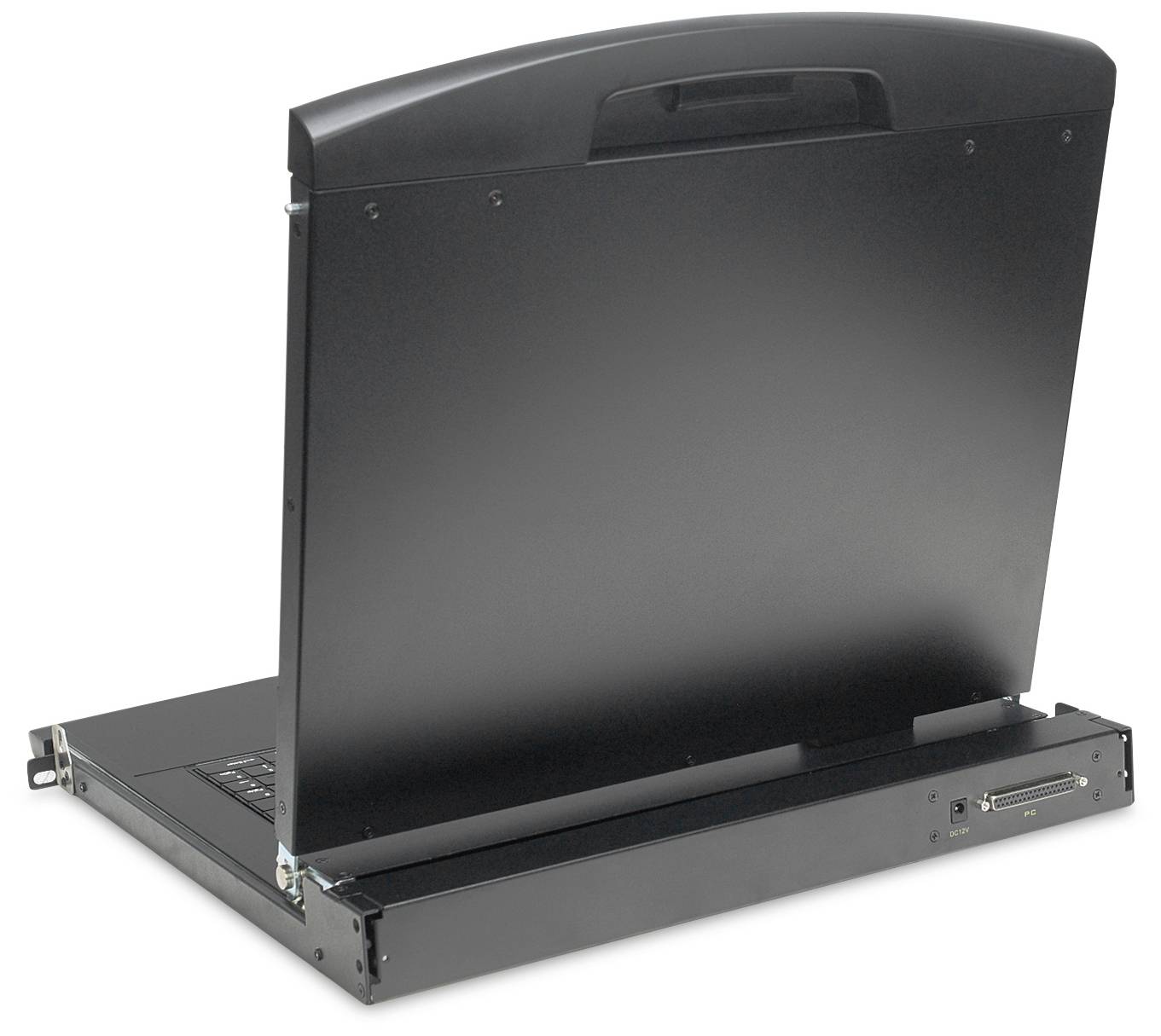

A black KVM switch with a monitor flipped open. The device has connections on the rear and is used to control multiple computers.

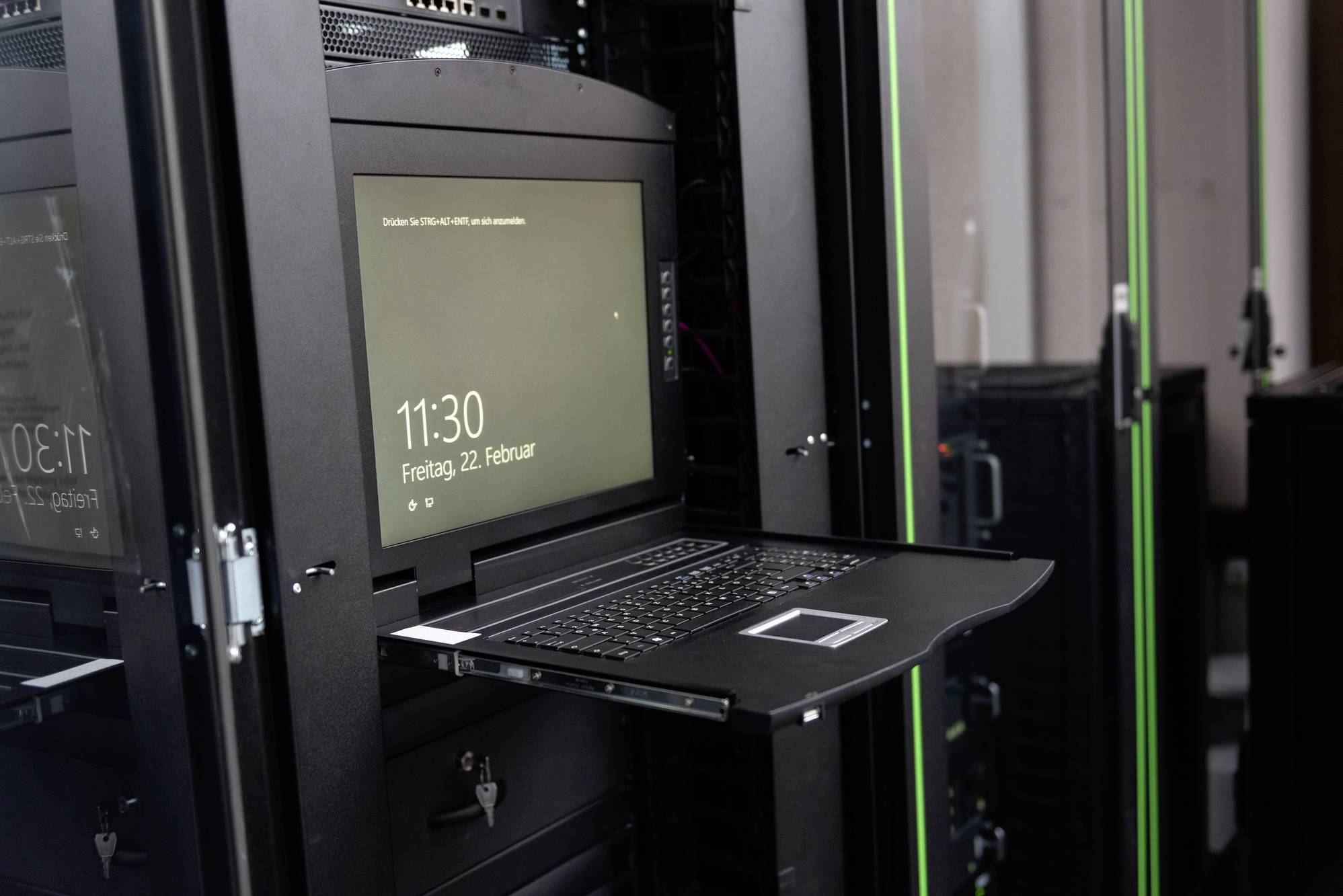

An open server cabinet with a pull-out laptop control panel. The screen displays the date and time: 'Friday, 22 February, 11:30'.

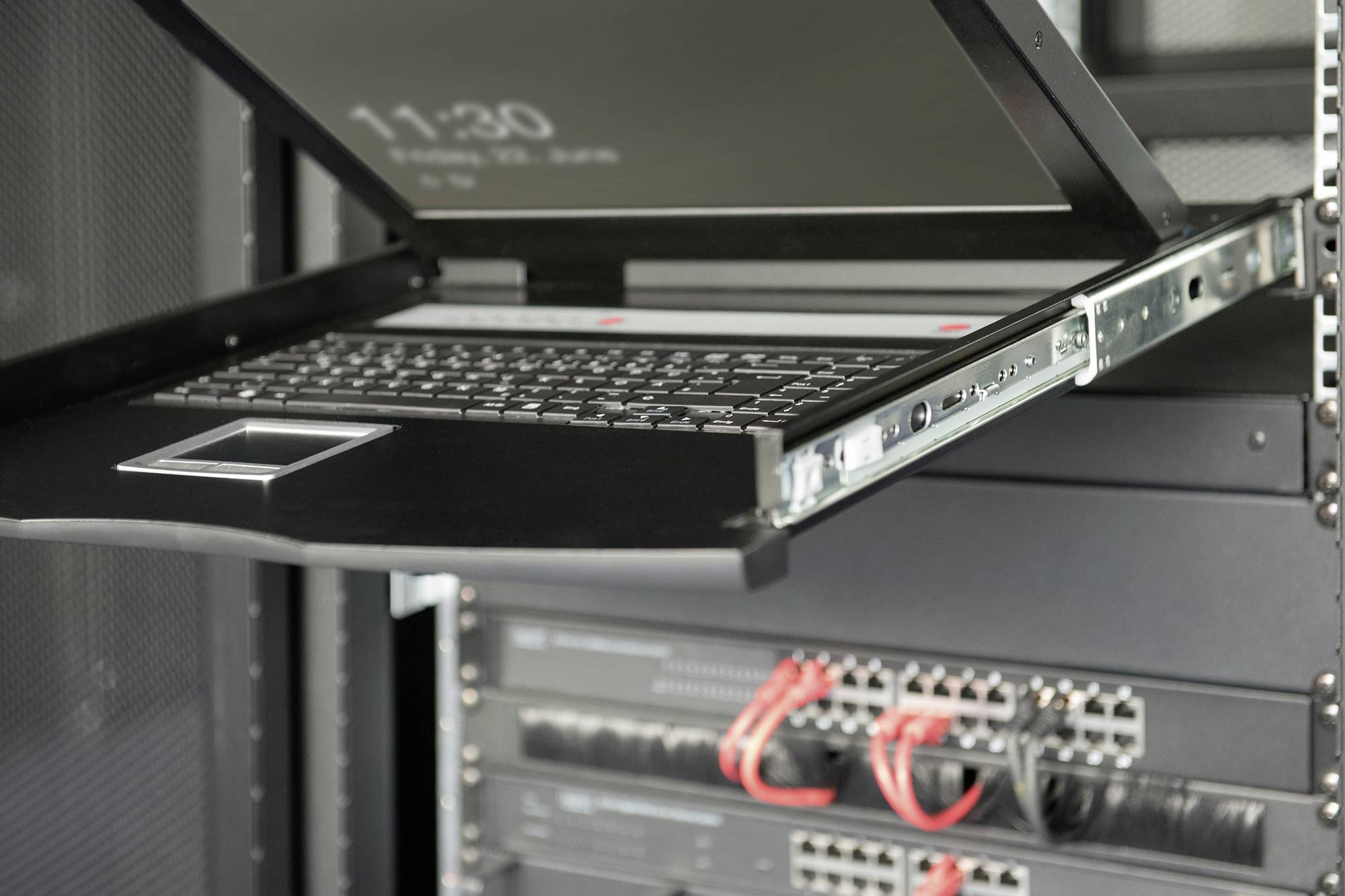

Server room with an open laptop on a rail in the rack, showing network devices and wired connections underneath.

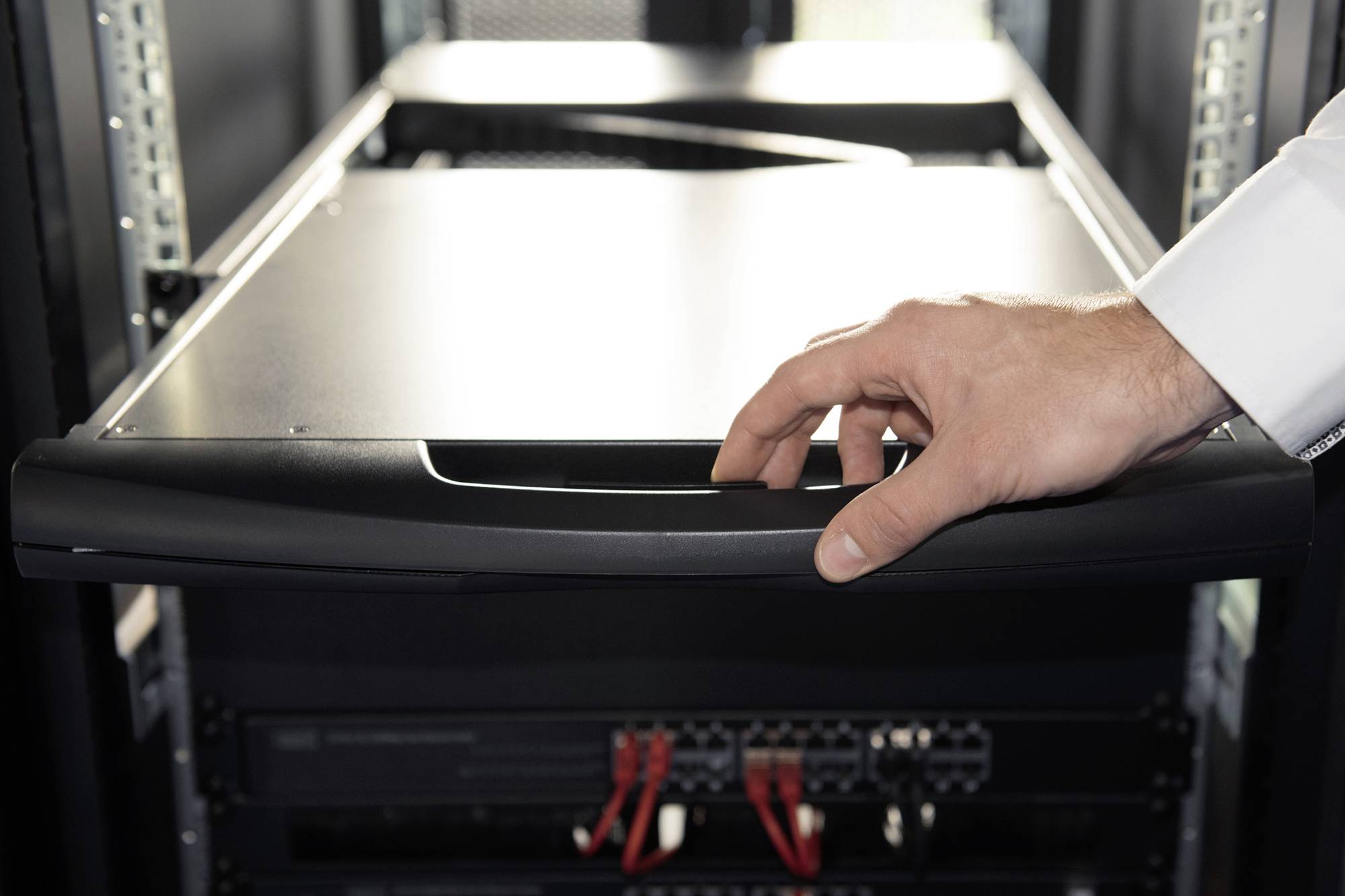

A hand pulls out a server rack in a data centre.

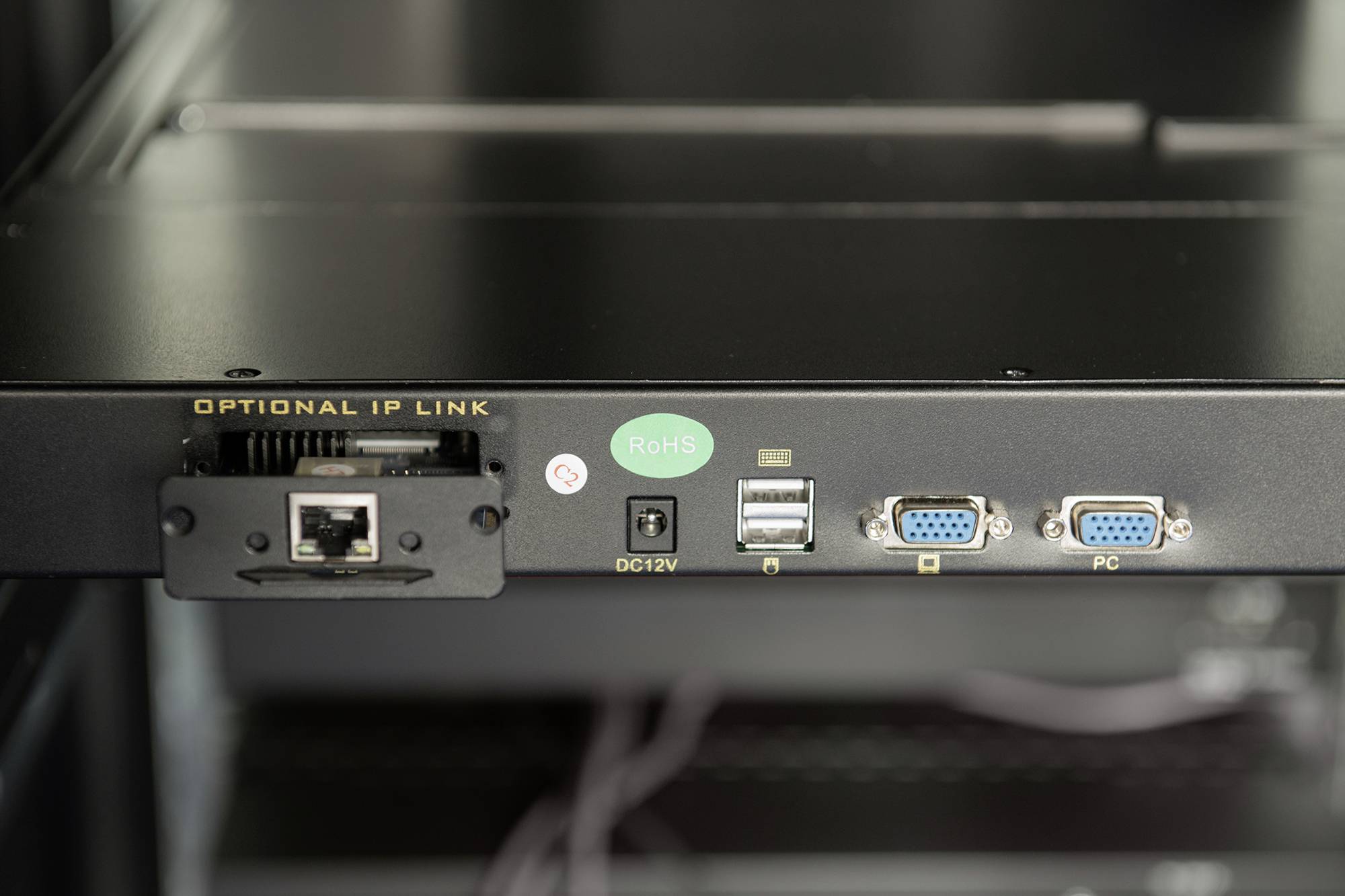

Network device rear with connections: Ethernet, power socket, two USB ports and two VGA ports.

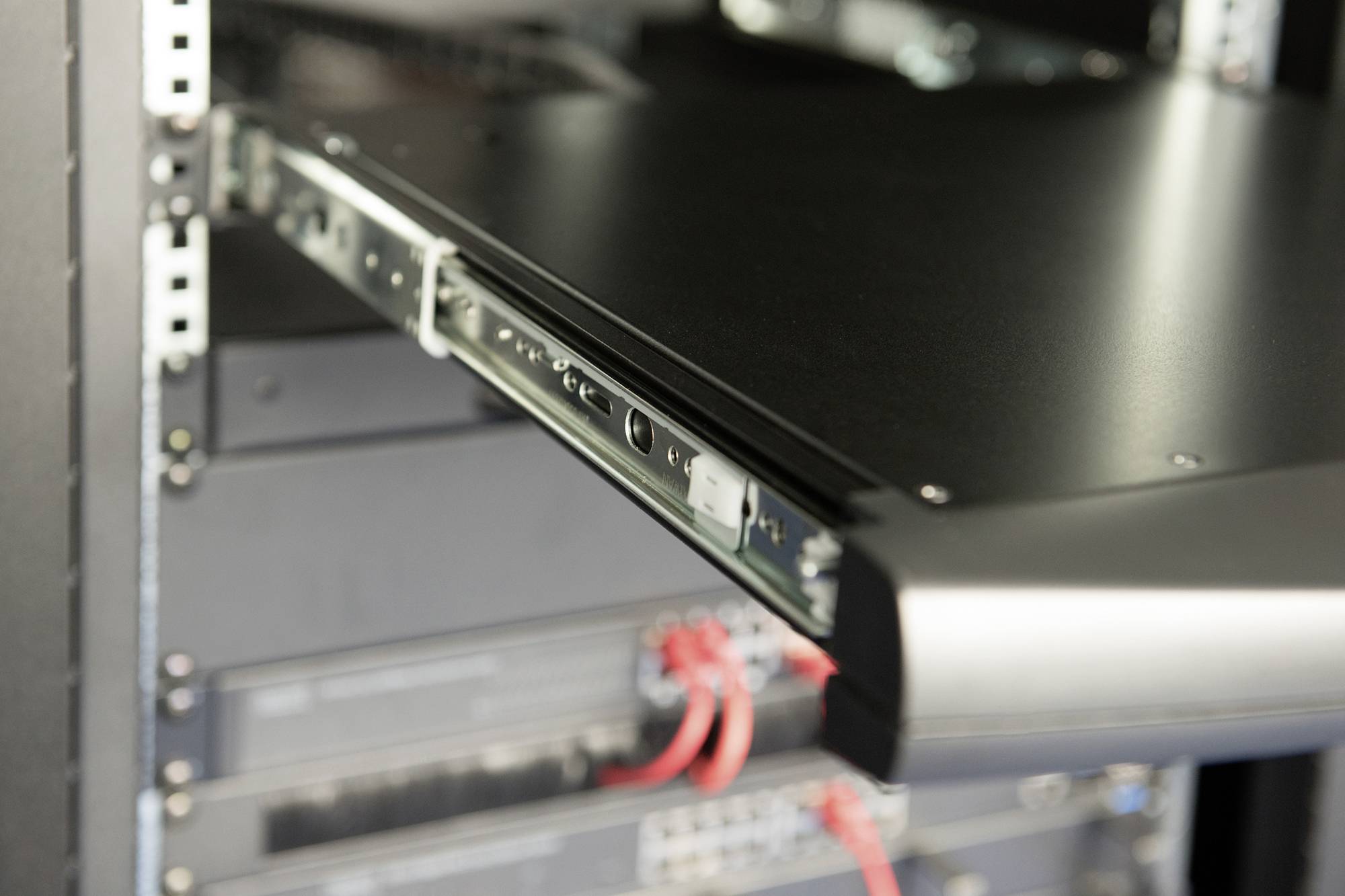

A server rack with an extended tray for a device. Below are several network devices with red cables visible.

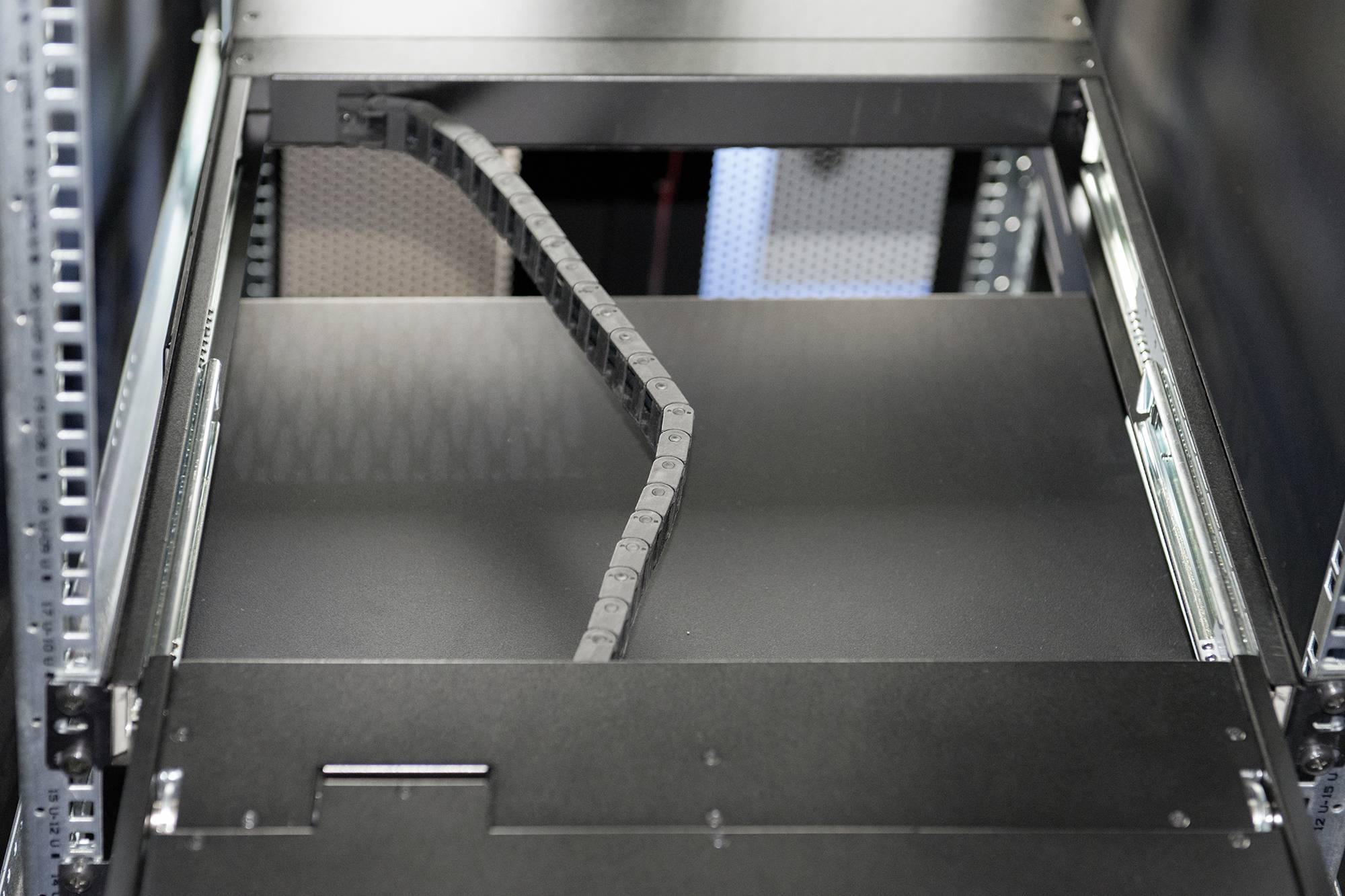

An empty, extendable server or device bay in a server rack, surrounded by metal structures. No device in the bay.

1/9

Dispatches on Wed, 7 Oct

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,768.91 / piece)

€ 1,768.91

plus VAT.

14-day return policy included

Report legal concerns

Modular 43.2cm (19") HD TFT console with 16 port HDMI, US keyboard, RAL 9005 black

Highlights & Details

Supports:16.7 m colors
Including 16-Port HDMI KVM Switch
Mouse Touch-Board with two function keys
Space saving housing (1HE), black (RAL 9005)
HDMI interface

Technical specifications

Product type: KVM console

No. of switchable PCs: 16

Video via: HDMI

Video resolution: 1920 x 1080 Pixel

Controller: Mouse
Keyboard

Audio headphones: No

Audio microphone: No

Stackable: No

Rack mount option: Yes

Switch function: Manual
Key

Distributor/switch features: Steel casing
+ built-in converter
suitable for indoor and outdoor use
suitable for indoor use
PC-controlled

Power supply (LOV): via PSU
mains-powered

Factory colour: Black
Black (RAL 9005)

Weight: 15200 g

Length: 445 mm

Width: 555.5 mm

Height: 45 mm

Port: 16 ports

Dim: (L x W x H) 445 x 555.5 x 45 mm

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3207778 Digitus DS-72221-7US 16 ports KVM console HDMI Mouse, Keyboard 1920 x 1080 Pixel

Description

The Digitus® 19" HD TFT console offers a variety of individual configuration options through its modular design, so that an adaptation can be adapted to the application area of the console. Thus, the console is cost saving and can be set up or upgraded any time with further modules. The flexible configuration thus guarantees a high future-oriented security of the console. The modular console consists of a 19" monitor, a 16-port HDMI KVM switch and the touch-pad.
