Name: Digitus USB 2.0, Series Adapter [1x USB 2.0 connector A - 1x D-SUB-plug 9-pin] DA-70167 0.80 m gold plated connectors
Brand: Digitus
SKU: 2143942
Availability: InStock

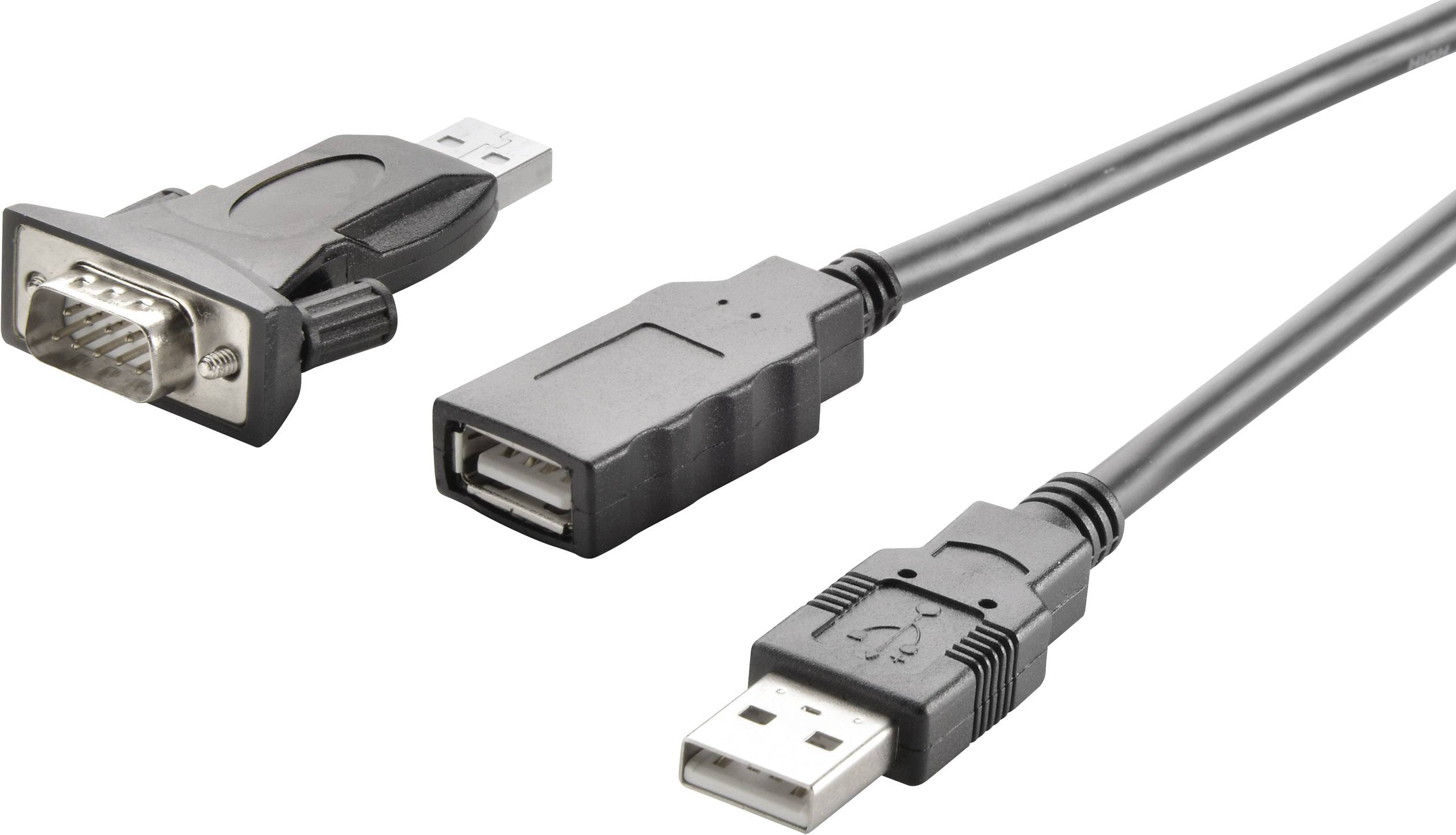

A USB-to-Serial adapter with the label 'DIGITUS 2.0'. It is used to connect devices with a serial port via USB.

Close-up of a USB stick with a plastic casing and a visible USB connector on the front.

USB memory stick with removed cover, text 'DIGITUS' displayed on it. Device shows connections and has a metallic finish.

Close-up of a nine-pin D-sub connector with a rectangular metal frame and visible pins, typically used for serial connections.

A brown, rectangular object made of plastic or metal with the label '20' and two side pins.

A laptop is connected via a USB cable to a network device that has multiple Ethernet ports.

A laptop is connected to a network switch via a VGA adapter, enabling a wired connection.

1/8

Fast track dispatch on Thu 15 Oct

1168 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 15.99 / piece)

€ 15.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Digitus USB 2.0 to serial converter, DSUB 9M including USB A cable 80cm

Provides a serial RS232 interface via USB2.0
Enables data exchange between PC with USB port and serial peripherals (machine controls, modems, sensors, etc.)
Corresponds to the USB 2.0 Standard
Incl. 80cm USB extension cable
PL2303GT chipset for individual configuration

Technical specifications

Interface : Full duplexChipset: PL2303GT

Product type: USB 2.0

Connection type: USB
Series

No. of A connectors: 1 x

Type A: USB 2.0 connector A

No. of B connections: 1 x

Type B: D-SUB-plug 9-pin

Cable length: 0.80 m

Factory colour: Black

Connector version: straight

Cable features: gold plated connectors

Cable use: USB 2.0
Series

Version: Adapter

Range of use: USB adapters

Cable design: Round

Weight: 0.09

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2143942 Digitus USB 2.0, Series Adapter [1x USB 2.0 connector A - 1x D-SUB-plug 9-pin] DA-70167 0.80 m gold plated connectors

Conformity certificate

Conformity certificate 2143942 Digitus USB 2.0, Series Adapter [1x USB 2.0 connector A - 1x D-SUB-plug 9-pin] DA-70167 0.80 m gold plated connectors

Description

Digitus DIGITAL® USB2.0 Serial Adapter provides a convenient solution for providing serial connectivity. A serial RS232 interface is no longer available on newer hardware, the Digitus DIGITAL® USB2.0 Serial Adapter enables data exchange between a USB2.0 port on the computer and peripheral devices with a serial interface (COM port, RS232), such as weather stations, sensors, mesh controls, Set-top boxes, game consoles, PDAs, scanners, modems, ISDN adapter and many other peripherals. The USB2.0 serial adapter is backward compatible with USB1.1 and enables adjustable baud rates between 75 bit and 128,000 bit per second. The individually configurable PL2303GT chipset offers compatibility of all common operating systems, power management as well as remote wake-up is also supported. The power is supplied via the USB connection, a separate power supply is not required.

This text is machine translated.

Features

Provides a serial RS232 interface via USB2.0Conforms to the USB 2.0 standardBackward compatibility with USB 1.1Adjustable data transfer rates between 75 bit and 128,000 bit per secondSupports remote wake-up and power managementChipset: PL2303GTIndividual configuration via the PL2303GT chipset1× RS232 plug (9-pin Sub D) / 1× USB A plugInterface: Full duplexGold-plated contactsIncl. USB extension cable, approx. 80 cmTrue 3.3V CMOS output and TTL inputSupports Windows 10, 8.1, 8, 7, Vista, XP, Mac OS X and Linux

Scope of delivery

USB - Serial adapter
USB extension cable
Driver CD

Description

Features

Provides a serial RS232 interface via USB2.0Conforms to the USB 2.0 standardBackward compatibility with USB 1.1Adjustable data transfer rates between 75 bit and 128,000 bit per secondSupports remote wake-up and power managementChipset: PL2303GTIndividual configuration via the PL2303GT chipset1× RS232 plug (9-pin Sub D) / 1× USB A plugInterface: Full duplexGold-plated contactsIncl. USB extension cable, approx. 80 cmTrue 3.3V CMOS output and TTL inputSupports Windows 10, 8.1, 8, 7, Vista, XP, Mac OS X and Linux
