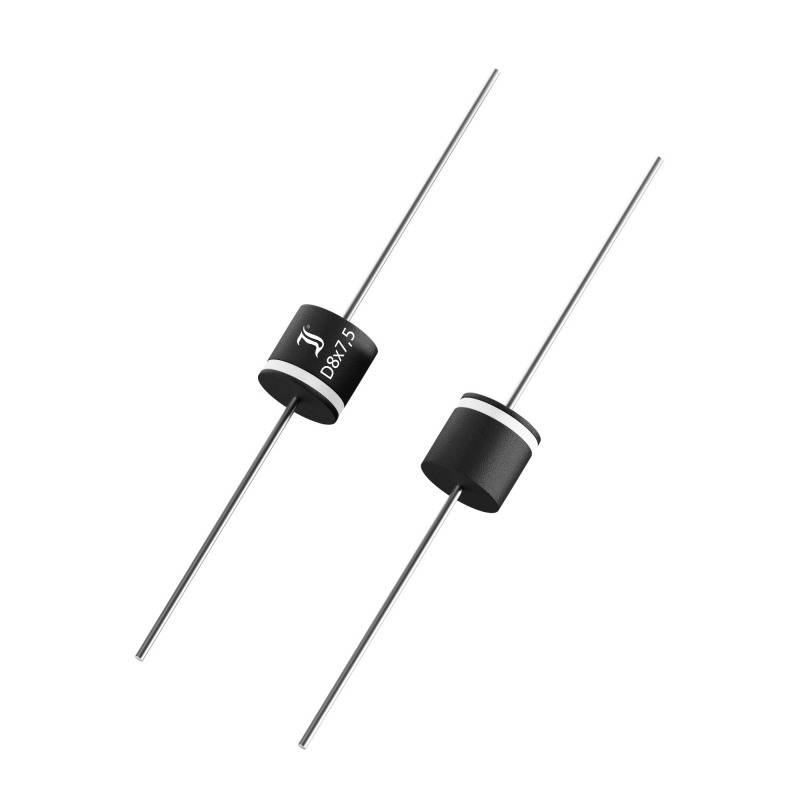

Diotec Rectifier F1200A D8x7.5 50 V 5 A
Product type
Rectifier
Enclosure
D8x7.5
Forward current I(F)
5 A
Reverse voltage U(R)
50 V
Forward voltage U(F)
0.82 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 40
Total (€ 0.60191 / piece)
€ 0.60
incl. VAT
14-day return policy included
Technical specifications
- Type
F1200A
- Product type
Rectifier
- Enclosure
D8x7.5
- Manufacturer
Diotec
- Forward current I(F)
5 A
- Reverse voltage U(R)
50 V
- Forward voltage U(F)
0.82 V
- Reverse leakage current I(r)
5 µA
- Operating temperature (max.)
150 °C
- Mounting type
Through-hole mounting
- I(FSM) 50Hz
650 A
- Reverse recovery time T(rr)
200 ns
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2807768 Diotec Rectifier F1200A D8x7.5 50 V 5 A
User & Safety Instructions
User & Safety Instructions 2807768 Diotec Rectifier F1200A D8x7.5 50 V 5 A
