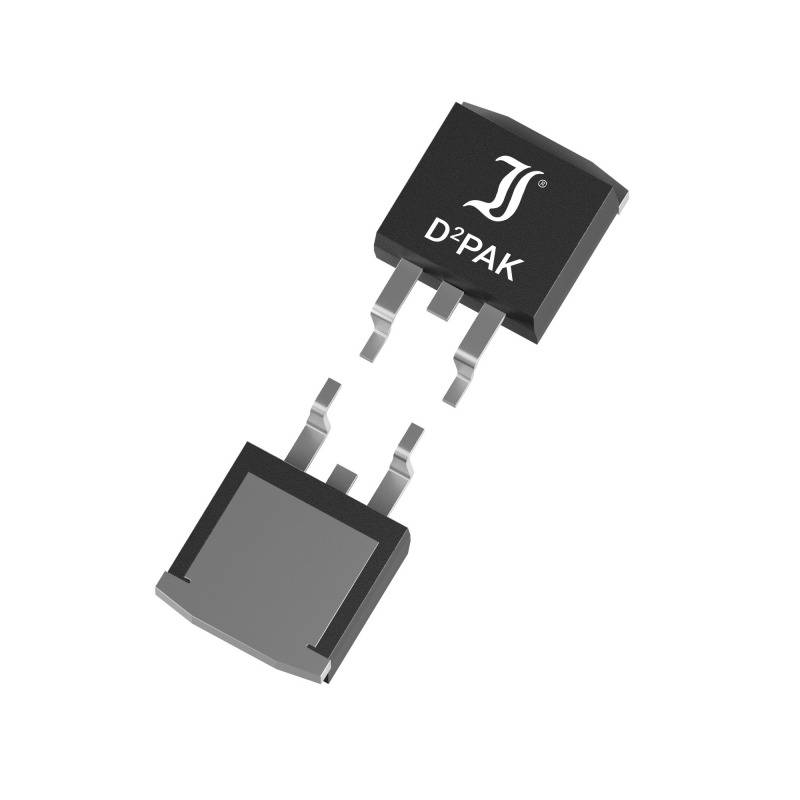

A D²PAK semiconductor package with three metal terminals, typically used for mounting electronic components on printed circuit boards.

A D²PAK semiconductor package with three metal terminals, typically used for mounting electronic components on printed circuit boards.

Image similar

Diotec

Product type

Rectifier

Enclosure

TO 263AB

Forward current I(F)

20 A

Reverse voltage U(R)

200 V

Forward voltage U(F)

0.96 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Wed 4 Nov

969 Piece(s) (Only while stocks last)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 0.52 / piece)

€ 0.52

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Rectifier

Our service for you

Technical specifications

Type SMDHOUSING: TO-263AB/D2PAKPeriodic Peak Reverse Voltage - VRRM 200 VContinuous current - IFAV 20.00 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 200 nsSurge current - IFSM 375.00 AForward voltage - VF 0.96 VIF 20.00 AReverse current - IR 5,000 µAVR 200 VLock layer capacity - CJ: PFVR V

Type: FR20DKD2

Product type: Rectifier

Enclosure: TO 263AB

Manufacturer: Diotec

Forward current I(F): 20 A

Reverse voltage U(R): 200 V

Forward voltage U(F): 0.96 V

Reverse leakage current I(r): 5 µA

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

I(FSM) 50Hz: 375 A

Reverse recovery time T(rr): 200 ns

RoHS-compliant: Yes

Documents & Downloads

Datasheet

Datasheet 2807791 Diotec Rectifier FR20DKD2 TO 263AB 200 V 20 A

User & Safety Instructions

User & Safety Instructions 2807791 Diotec Rectifier FR20DKD2 TO 263AB 200 V 20 A
