Name: Diotec Rectifier M7 DO 214AC 1000 V 1 A
Brand: Diotec
SKU: 2807869
Availability: InStock

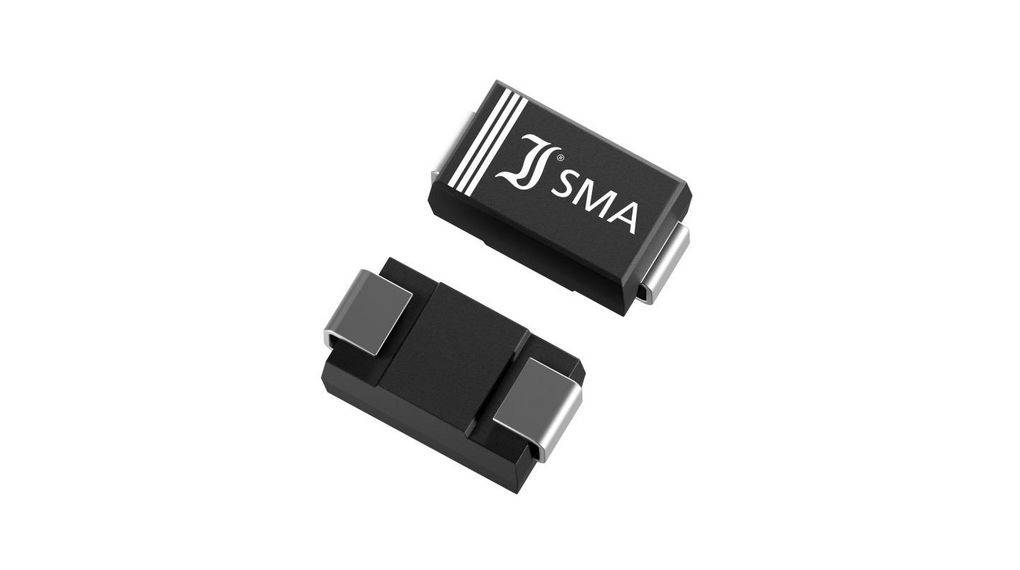

Two rectangular electronic components in black with metallic ends, one component bears the inscription 'SMA'.

Image similar

Product type

Rectifier

Enclosure

DO 214AC

Forward current I(F)

1 A

Reverse voltage U(R)

1000 V

Forward voltage U(F)

1.10 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

6389 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 150

Total (€ 0.02517 / piece)

€ 3.78

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type SMDHOUSING: DO-214AC/SMAPeriodic Peak Reverse Voltage - VRRM 1000 VContinuous current - IFAV 1.00 AJunction temperature - Tjmax 150 °CForward voltage - VF 1.10 VIF 1.00 ASurge current - IFSM 27.00 AReverse current - IR 5,000 µAVR 1000 VLock layer capacity - CJ: PFVR V

Type: M7

Product type: Rectifier

Enclosure: DO 214AC

Manufacturer: Diotec

Forward current I(F): 1 A

Reverse voltage U(R): 1000 V

Forward voltage U(F): 1.10 V

Reverse leakage current I(r): 5 µA

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

I(FSM) 50Hz: 27 A

RoHS-compliant: Yes

UKCA: yes
