Buy Diotec Rectifier PX1500M D8x7.5 1000 V 5 A | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

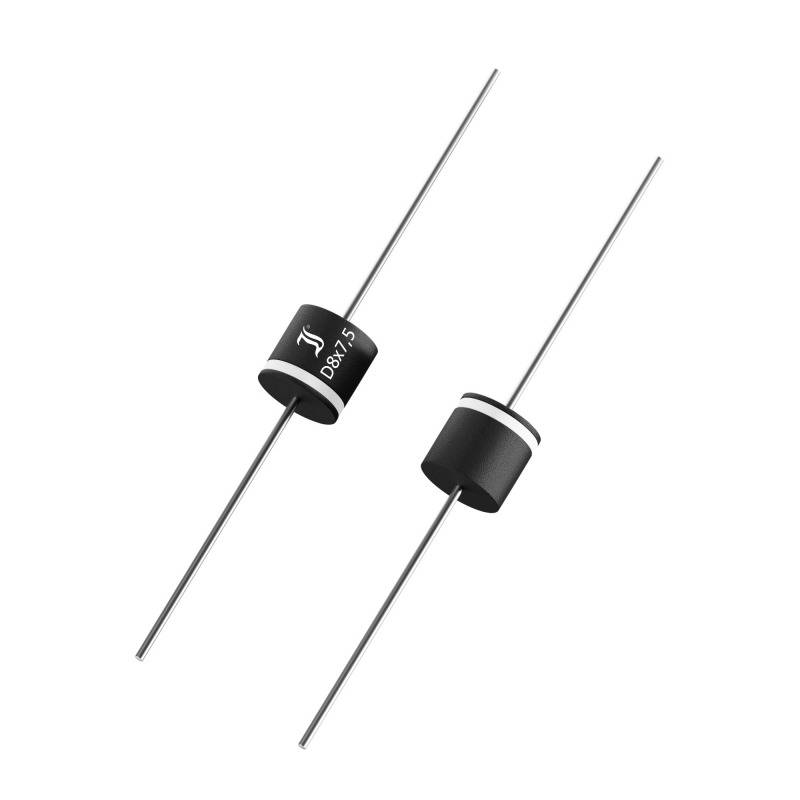

Two black diodes with white markings and silver connections on a white background, showing electronic components.

Two black diodes with white markings and silver connections on a white background, showing electronic components.

Image similar

Diotec

Product type

Rectifier

Enclosure

D8x7.5

Forward current I(F)

5 A

Reverse voltage U(R)

1000 V

Forward voltage U(F)

0.90 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Fri 30 Oct

200 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 40

Total (€ 0.66299 / piece)

€ 26.52

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type AxialHousing: D8x7.5Periodic Peak Reverse Voltage - VRRM 1000 VContinuous current - IFAV 15.00 AJunction temperature - Tjmax 175 °CForward voltage - VF 0.90 VIF 5.00 ASurge current - IFSM 400.00 AReverse current - IR 10,000 µAVR 1000 VLock layer capacity - CJ: PFVR V

Type: PX1500M

Product type: Rectifier

Enclosure: D8x7.5

Manufacturer: Diotec

Forward current I(F): 5 A

Reverse voltage U(R): 1000 V

Forward voltage U(F): 0.90 V

Reverse leakage current I(r): 10 µA

Operating temperature (max.): 175 °C

Mounting type: Through-hole mounting

I(FSM) 50Hz: 400 A

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2808688 Diotec Rectifier PX1500M D8x7.5 1000 V 5 A

User & Safety Instructions

User & Safety Instructions 2808688 Diotec Rectifier PX1500M D8x7.5 1000 V 5 A
