Name: Diotec Rectifier S15KYD2 TO 263AB 800 V 15 A
Brand: Diotec
SKU: 2808717
Availability: BackOrder

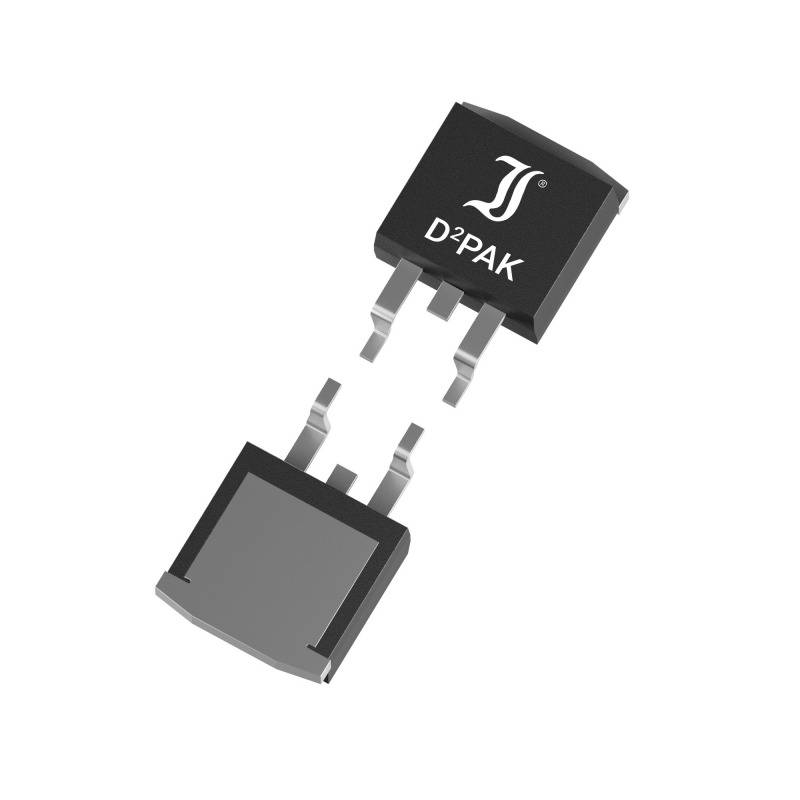

Electronic component D²PAK, a packaging housing for transistors, with connecting wires. Used in power electronics.

Image similar

Product type

Rectifier

Enclosure

TO 263AB

Forward current I(F)

15 A

Reverse voltage U(R)

800 V

Forward voltage U(F)

1.30 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu, 7 Jan 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 40

Total (€ 0.71705 / piece)

€ 0.72

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Rectifier

Our service for you

Technical specifications

Type SMDHOUSING: TO-263AB/D2PAKPeriodic Peak Reverse Voltage - VRRM 800 VContinuous current - IFAV 15.00 AJunction temperature - Tjmax 150 °CForward voltage - VF 1.30 VIF 15.00 ASurge current - IFSM 250.00 AReverse current - IR 10,000 µAVR 800 VLock layer capacity - CJ 120 pFVR 4 V

Type: S15KYD2

Product type: Rectifier

Enclosure: TO 263AB

Manufacturer: Diotec

Forward current I(F): 15 A

Reverse voltage U(R): 800 V

Forward voltage U(F): 1.30 V

Reverse leakage current I(r): 10 µA

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

I(FSM) 50Hz: 250 A

RoHS-compliant: Yes
