Name: Diotec Rectifier S8M-AQ DO 214AB 1000 V 8 A
Brand: Diotec
SKU: 2808777
Availability: InStock

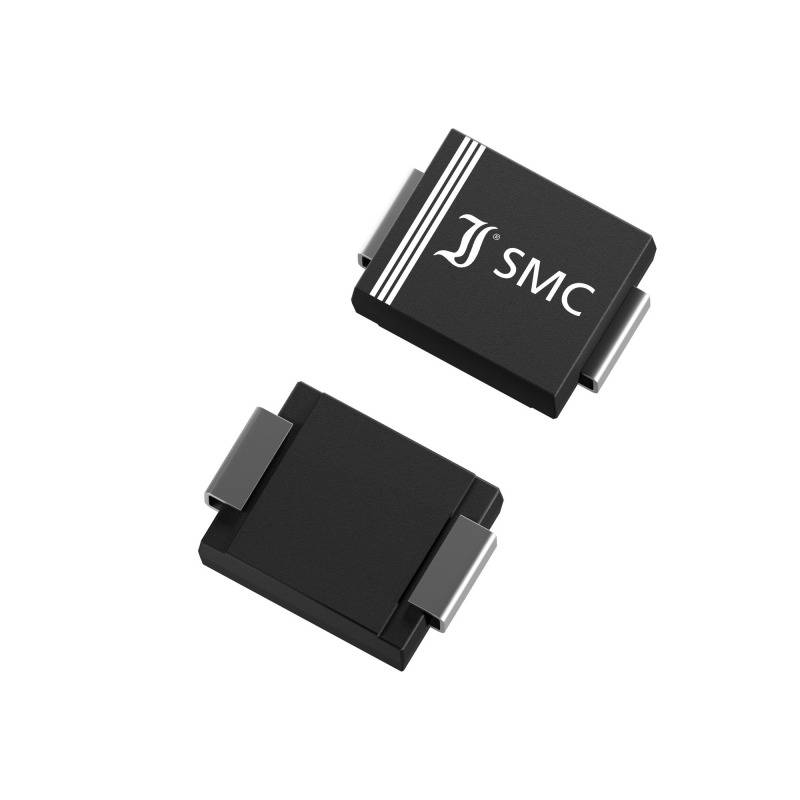

'Two black SMD rectifier diodes with silver connections, one of them marked with 'SMC'.'

Image similar

Product type

Rectifier

Enclosure

DO 214AB

Forward current I(F)

8 A

Reverse voltage U(R)

1000 V

Forward voltage U(F)

1.10 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Mon 2 Nov

2990 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 70

Total (€ 0.35222 / piece)

€ 24.66

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Rectifier

Our service for you

Technical specifications

Type: S8M-AQ

Product type: Rectifier

Enclosure: DO 214AB

Manufacturer: Diotec

Forward current I(F): 8 A

Reverse voltage U(R): 1000 V

Forward voltage U(F): 1.10 V

Reverse leakage current I(r): 10 µA

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

I(FSM) 50Hz: 360 A

RoHS-compliant: Yes
