Name: Diotec Si high voltage rectifier HV1.5 DO 41 1500 V 0.50 A
Brand: Diotec
SKU: 2807830
Availability: BackOrder

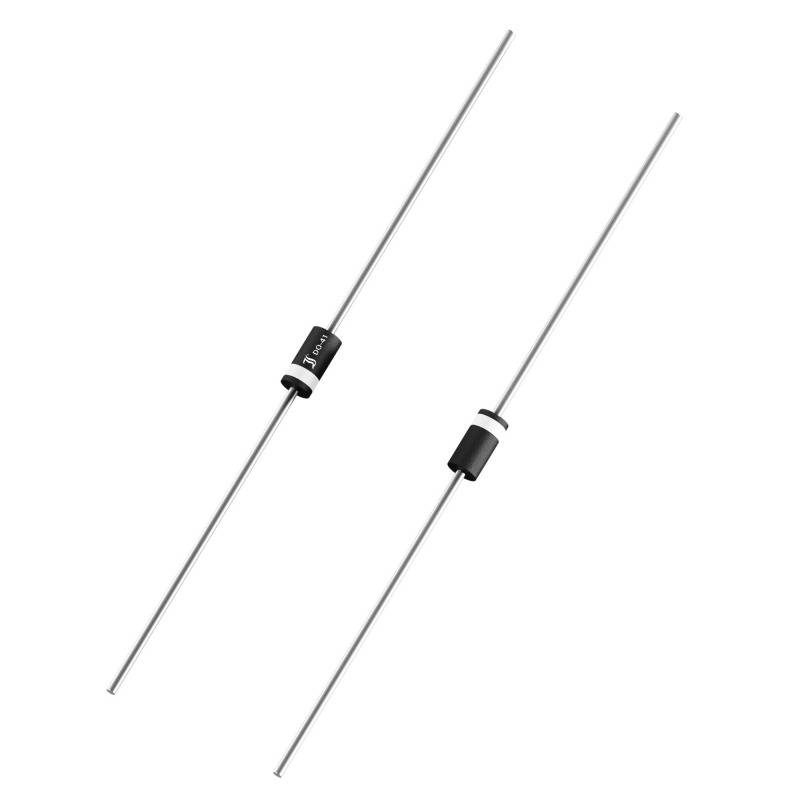

Two electronic diodes with black casings and silver terminals. They are arranged in parallel.

Image similar

Product type

Si high voltage rectifier

Enclosure

DO 41

Forward current I(F)

0.50 A

Reverse voltage U(R)

1500 V

Forward voltage U(F)

3 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri 18 Dec

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 250

Total (€ 0.09289 / piece)

€ 0.09

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Si high voltage rectifier

Our service for you

Technical specifications

Type AxialDO-41 housingPeriodic Peak Reverse Voltage - VRRM 1500 VContinuous current - IFAV 0.50 AReverse delay time - trr: 400 nsJunction temperature - Tjmax 150 °CSurge current - IFSM 27.00 AForward voltage - VF 3.00 VIF 0.50 AReverse current - IR 3,000 µAVR 1500 VLock layer capacity - CJ: PFVR V

Type: HV1.5

Product type: Si high voltage rectifier

Enclosure: DO 41

Manufacturer: Diotec

Forward current I(F): 0.50 A

Reverse voltage U(R): 1500 V

Forward voltage U(F): 3 V

Reverse leakage current I(r): 3 µA

Operating temperature (max.): 150 °C

Mounting type: Through-hole mounting

I(FSM) 50Hz: 27 A

Reverse recovery time T(rr): 400 ns

RoHS-compliant: Yes

Variants(All information include VAT, plus shipping costs)

Reverse voltage U(R)

Forward current I(F)

Forward voltage U(F)

Mounting type

Enclosure

Diotec Si high voltage rectifier HV1.5 DO 41 1500 V 0.50 A

Item no:2807830

Dispatches on Fri 18 Dec

Conrad Electronic

This article

1500 V

0.50 A

3 V

Through-hole mounting

DO 41

Piece(s)

Minimum order quantity: 250

Multiple: 1

€ 0.09289^*

Diotec Si high voltage rectifier BY4 D7.3x22 4000 V 1 A

Item no:2807347

Dispatches on Mon, 18 Jan 2027

Conrad Electronic

4000 V

1 A

4 V

Through-hole mounting

D7.3x22

Piece(s)

Minimum order quantity: 20

Multiple: 1

€ 1.39888^*

Diotec Si high voltage rectifier BY6 D7.3x22 6000 V 1 A

Item no:2807352

Dispatches on Mon, 18 Jan 2027

Conrad Electronic

6000 V

1 A

6 V

Through-hole mounting

D7.3x22

Piece(s)

Minimum order quantity: 20

Multiple: 1

€ 1.66243^*

Diotec Si high voltage rectifier BY8 D7.3x22 8000 V 0.50 A

Item no:2807354

Dispatches on Mon, 18 Jan 2027

Conrad Electronic

8000 V

0.50 A

8 V

Through-hole mounting

D7.3x22

Piece(s)

Minimum order quantity: 20

Multiple: 1

€ 1.78866^*

Diotec Si high voltage rectifier DD1000 D3x12 10000 V 1 A

Item no:2807618

Dispatches on Thu 5 Nov

2690 Piece(s)Conrad Electronic

10000 V

1 A

40 V

Through-hole mounting

D3x12

Piece(s)

Minimum order quantity: 50

Multiple: 1

€ 0.54487^*

Diotec Si high voltage rectifier DD1200 D3x12 12000 V 1 A

Item no:2807619

Dispatches on Mon, 18 Jan 2027

Conrad Electronic

12000 V

1 A

40 V

Through-hole mounting

D3x12

Piece(s)

Minimum order quantity: 40

Multiple: 1

€ 0.57413^*

Diotec Si high voltage rectifier DD1400 D3x12 14000 V 1 A

Item no:2807620

Dispatches on Mon, 18 Jan 2027

Conrad Electronic

14000 V

1 A

40 V

Through-hole mounting

D3x12

Piece(s)

Minimum order quantity: 40

Multiple: 1

€ 0.60494^*

Diotec Si high voltage rectifier DD1600 D3x12 16000 V 1 A

Item no:2807621

Dispatches on Mon, 18 Jan 2027

Conrad Electronic

16000 V

1 A

40 V

Through-hole mounting

D3x12

Piece(s)

Minimum order quantity: 40

Multiple: 1

€ 0.63066^*

Diotec Si high voltage rectifier DD1800 D3x12 18000 V 1 A

Item no:2807623

Fast track dispatch on Wed 4 Nov

3492 Piece(s)Conrad Electronic

18000 V

1 A

40 V

Through-hole mounting

D3x12

Piece(s)

Minimum order quantity: 10

Multiple: 1

€ 0.87166^*

Diotec Si high voltage rectifier DD300 D2.5x6.5 3000 V 1 A

Item no:2807624

Fast track dispatch on Wed 4 Nov

4759 Piece(s)Conrad Electronic

3000 V

1 A

40 V

Through-hole mounting

D2.5x6.5

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 0.19829^*

Documents & Downloads

Datasheet

Datasheet 2807830 Diotec Si high voltage rectifier HV1.5 DO 41 1500 V 0.50 A

User & Safety Instructions

User & Safety Instructions 2807830 Diotec Si high voltage rectifier HV1.5 DO 41 1500 V 0.50 A
