Buy Diotec Small-signal diode BAS316WS-AQ SOD 323 75 V 0.15 A | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

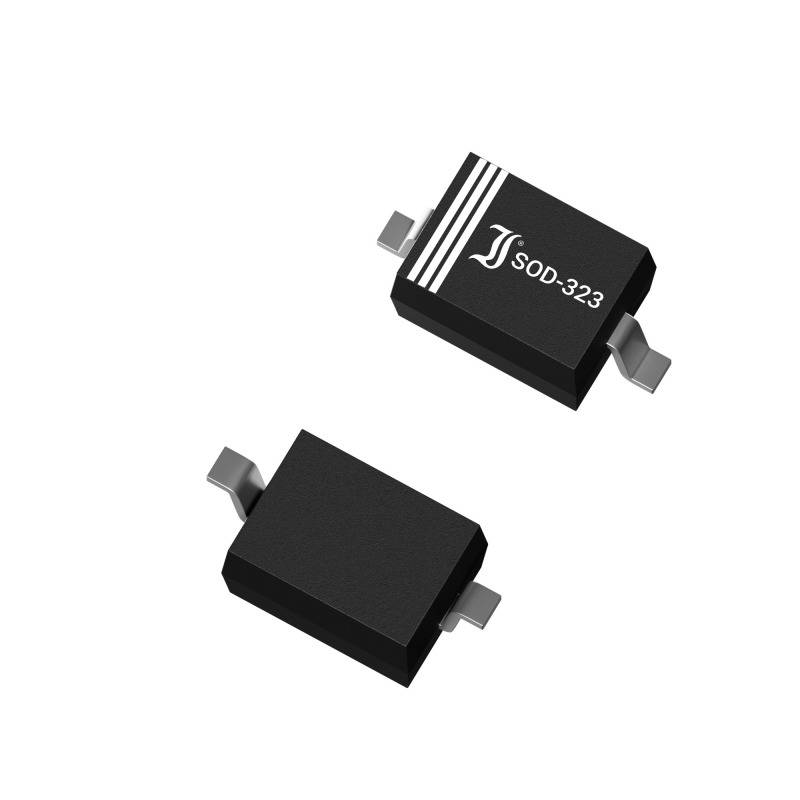

Two black, rectangular electronic components with metal connections at the top and bottom. Text 'SOD-323' on one component.

Two black, rectangular electronic components with metal connections at the top and bottom. Text 'SOD-323' on one component.

Image similar

Diotec

Product type

Small-signal diode

Enclosure

SOD 323

Forward current I(F)

0.15 A

Reverse voltage U(R)

75 V

Forward voltage U(F)

1.25 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Thu, 11 Feb 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 1000

Total (€ 0.02977 / piece)

€ 0.03

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type SMDSOD 323 housingPeriodic Peak Reverse Voltage - VRRM 100 VContinuous current - IFAV 0.25 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 4 nsSurge current - IFSM 2.00 AForward voltage - VF 1.25 VIF 0.15 AReverse current - IR 1,000 µAVR 75 VLock layer capacity - CJ 2 pFVR 0 V

Type: BAS316WS-AQ

Product type: Small-signal diode

Enclosure: SOD 323

Manufacturer: Diotec

Forward current I(F): 0.15 A

Reverse voltage U(R): 75 V

Forward voltage U(F): 1.25 V

Reverse leakage current I(r): 1 µA

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

I(FSM) 50Hz: 2 A

Reverse recovery time T(rr): 4 ns

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2807281 Diotec Small-signal diode BAS316WS-AQ SOD 323 75 V 0.15 A

User & Safety Instructions

User & Safety Instructions 2807281 Diotec Small-signal diode BAS316WS-AQ SOD 323 75 V 0.15 A
