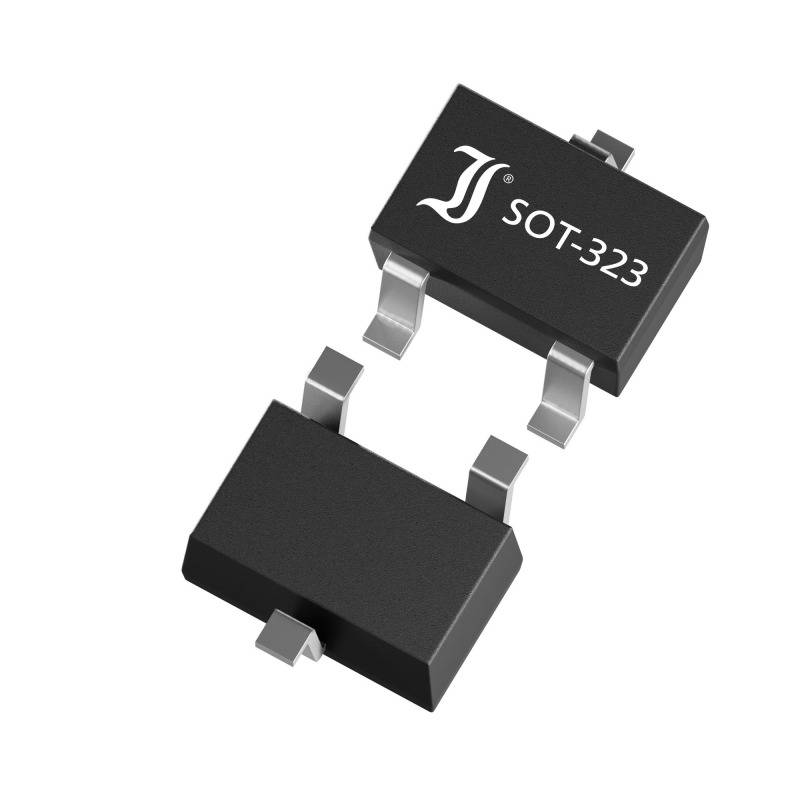

Two black SOT-23 semiconductor packages with three connections on a white background, components for electronic circuits.

Two black SOT-23 semiconductor packages with three connections on a white background, components for electronic circuits.

Image similar

Product type

Small-signal diode

Enclosure

SOT 23

Forward current I(F)

0.15 A

Reverse voltage U(R)

75 V

Forward voltage U(F)

1.25 V

Datasheet (PDF)

Diotec

Fast track dispatch on Wed 14 Oct

2987 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 100

Total (€ 0.04406 / piece)

€ 4.41

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type SMDSOT-23 housingPeriodic Peak Reverse Voltage - VRRM 85 VContinuous current - IFAV 0.14 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 3000 nsSurge current - IFSM 2.00 AForward voltage - VF 1.25 VIF 0.15 AReverse current - IR 0,005 µAVR 75 VLock layer capacity - CJ 2 pFVR 0 V

Type: BAV199

Product type: Small-signal diode

Enclosure: SOT 23

Manufacturer: Diotec

Forward current I(F): 0.15 A

Reverse voltage U(R): 75 V

Forward voltage U(F): 1.25 V

Reverse leakage current I(r): 05 µA

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

I(FSM) 50Hz: 2 A

Reverse recovery time T(rr): 3000 ns

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2807292 Diotec Small-signal diode BAV199 SOT 23 75 V 0.15 A

User & Safety Instructions

User & Safety Instructions 2807292 Diotec Small-signal diode BAV199 SOT 23 75 V 0.15 A
