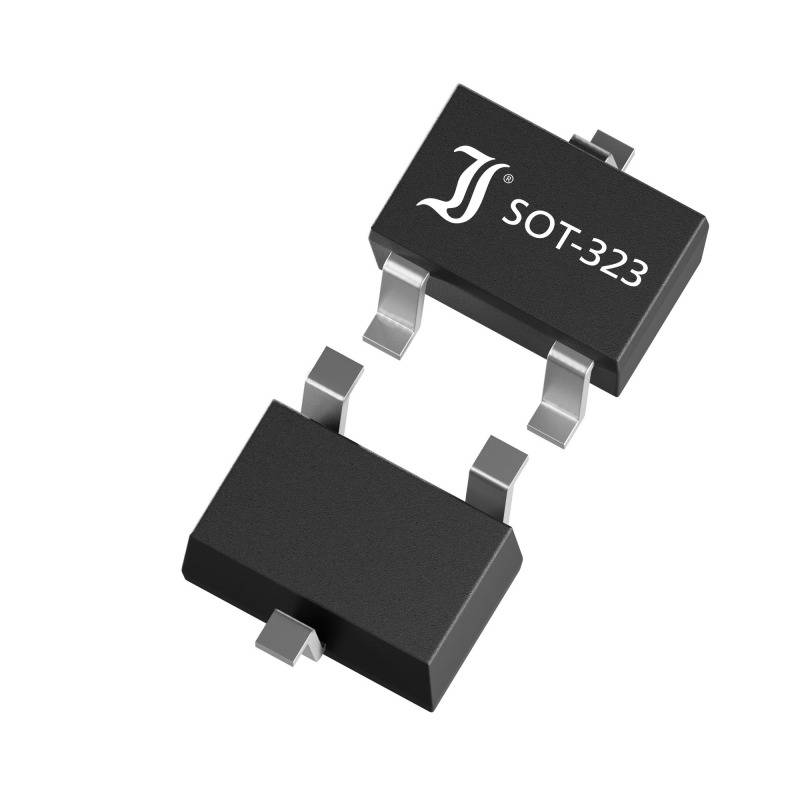

Image similar
Diotec Small-signal diode BAV70W SOT 323 75 V 0.15 A
Product type
Small-signal diode
Enclosure
SOT 323
Forward current I(F)
0.15 A
Reverse voltage U(R)
75 V
Forward voltage U(F)
1.25 V
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 750
Total (€ 0.04174 / piece)
€ 0.04
incl. VAT
14-day return policy included
Technical specifications
- Type SMDSOT-323 housingPeriodic Peak Reverse Voltage - VRRM 100 VContinuous current - IFAV 0.17 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 4 nsSurge current - IFSM 0.50 AForward voltage - VF 1.25 VIF 0.15 AReverse current - IR 2,500 µAVR 75 VLock layer capacity - CJ: PFVR V
- Type
BAV70W
- Product type
Small-signal diode
- Enclosure
SOT 323
- Manufacturer
Diotec
- Forward current I(F)
0.15 A
- Reverse voltage U(R)
75 V
- Forward voltage U(F)
1.25 V
- Reverse leakage current I(r)
2.500 µA
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- I(FSM) 50Hz
0.50 A
- Reverse recovery time T(rr)
4 ns
- RoHS-compliant
Yes
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2807314 Diotec Small-signal diode BAV70W SOT 323 75 V 0.15 A
User & Safety Instructions
User & Safety Instructions 2807314 Diotec Small-signal diode BAV70W SOT 323 75 V 0.15 A
