Buy Diotec Small-signal diode BAV756DW SOT 363 80 V 5 A | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

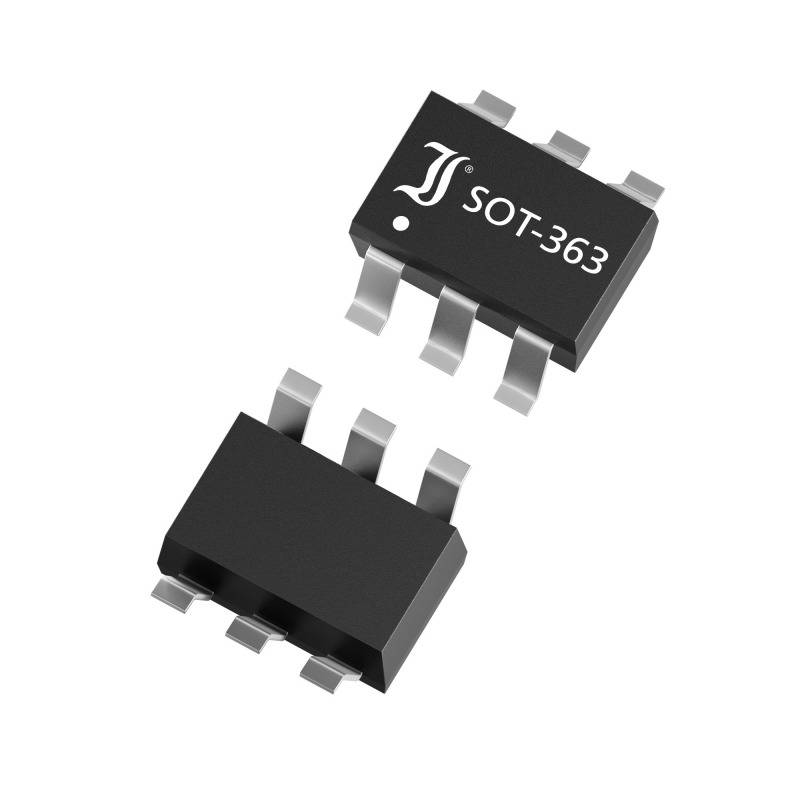

Two black, rectangular electronic components with the marking 'SOT-363' and six metal legs each for mounting.

Two black, rectangular electronic components with the marking 'SOT-363' and six metal legs each for mounting.

Image similar

Diotec

Product type

Small-signal diode

Enclosure

SOT 363

Forward current I(F)

5 A

Reverse voltage U(R)

80 V

Forward voltage U(F)

1 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Fri, 15 Jan 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 300

Total (€ 0.08348 / piece)

€ 0.08

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type SMDSOT-363 housingPeriodic Peak Reverse Voltage - VRRM 90 VContinuous current - IFAV 0.20 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 4 nsSurge current - IFSM 0.50 AForward voltage - VF 1.00 VIF 0.05 AReverse current - IR 0,500 µAVR 80 VLock layer capacity - CJ 2 pFVR 0 V

Type: BAV756DW

Product type: Small-signal diode

Enclosure: SOT 363

Manufacturer: Diotec

Forward current I(F): 5 A

Reverse voltage U(R): 80 V

Forward voltage U(F): 1 V

Reverse leakage current I(r): 0.500 µA

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

I(FSM) 50Hz: 0.50 A

Reverse recovery time T(rr): 4 ns

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2807316 Diotec Small-signal diode BAV756DW SOT 363 80 V 5 A

User & Safety Instructions

User & Safety Instructions 2807316 Diotec Small-signal diode BAV756DW SOT 363 80 V 5 A
