Buy Diotec Small-signal diode BAW56W SOT 323 75 V 12 A | Conrad Electronic | Conrad Electronic » All parts of success

All things technology
Delivery within Europe
Right to Cancel applies
Specialist retailer since 1923

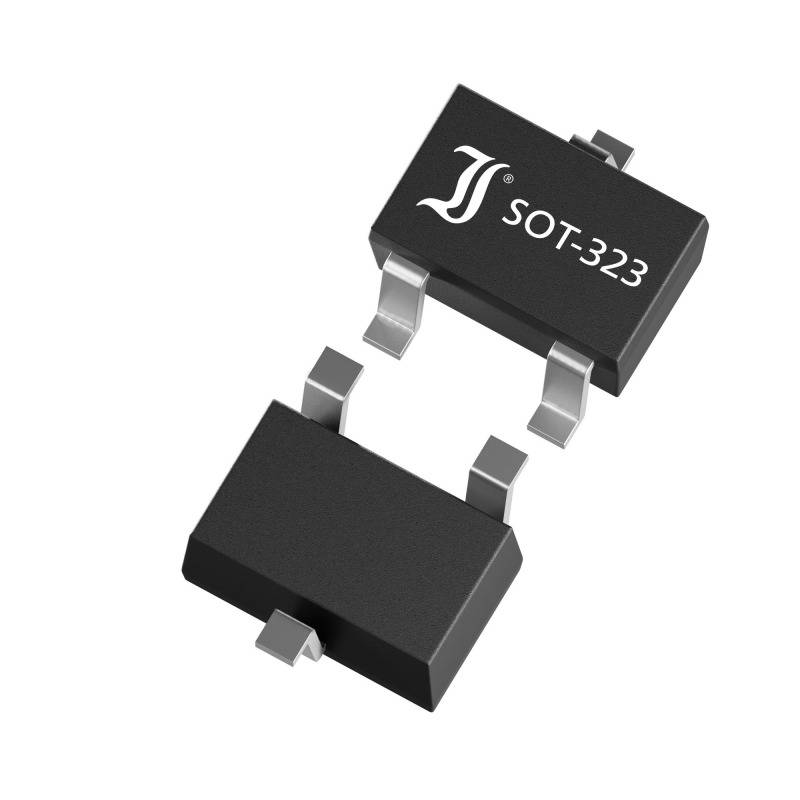

'Two black microchip components with metal connections, labelled as SOT-323.'

'Two black microchip components with metal connections, labelled as SOT-323.'

Image similar

Diotec

Product type

Small-signal diode

Enclosure

SOT 323

Forward current I(F)

12 A

Reverse voltage U(R)

75 V

Forward voltage U(F)

0.71 V

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue, 12 Jan 2027

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 750

Total (€ 0.03486 / piece)

€ 26.15

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Type SMDSOT-323 housingPeriodic Peak Reverse Voltage - VRRM 85 VContinuous current - IFAV 0.15 AJunction temperature - Tjmax 150 °CReverse delay time - trr: 4 nsSurge current - IFSM 2.00 AForward voltage - VF 0.71 VIF 0.00 AReverse current - IR 1,000 µAVR 75 VLock layer capacity - CJ 2 pFVR 0 V

Type: BAW56W

Product type: Small-signal diode

Enclosure: SOT 323

Manufacturer: Diotec

Forward current I(F): 12 A

Reverse voltage U(R): 75 V

Forward voltage U(F): 0.71 V

Reverse leakage current I(r): 1 µA

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

I(FSM) 50Hz: 2 A

Reverse recovery time T(rr): 4 ns

RoHS-compliant: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2807329 Diotec Small-signal diode BAW56W SOT 323 75 V 12 A

User & Safety Instructions

User & Safety Instructions 2807329 Diotec Small-signal diode BAW56W SOT 323 75 V 12 A
