Name: Eaton 187180 AFDD 2-pin 13 A 0.03 A 230 V AC 1 pc(s)
Brand: Eaton
SKU: 1514866
Availability: BackOrder

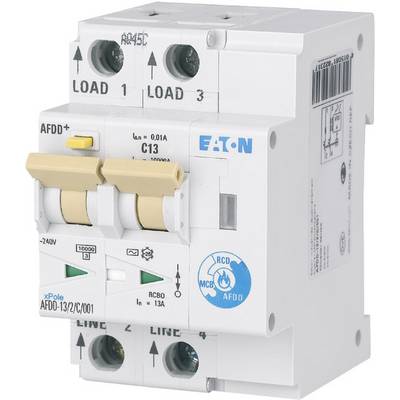

A two-pole circuit breaker with AFDD function, Model AFDD+ by Eaton. It provides protection against overcurrent and arc faults.

Image similar

Product type

AFDD

Number of pins

Release characteristics

Nominal current - rounded value

13 A

Differential current rating

0.03 A

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Tue 10 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 179.99 / piece)

€ 179.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Rated breaking capacity according to EN 61009: 10 kA
Operating ambient temperature: -25 °C to +40 °C
Width in division units: 3
Installation width: 54 (3TE) mm
Mounting depth: 67 mm
Sensitivity: Pulse current sensitive
Energy limitation class: 3
Error current type: A
Frequency: 50 Hz
Device base measurement: 80 mm
Operating voltage limit values: 170 - 264 V AC
Basic function: Fault light arc detection device
Cap installation dimension: 45 mm
terminals above and below: Foot-and-mouth/lift terminals
Terminal protection: Touch protection according to VBG4, EVE-EN 6
contact position display: Red / green
Life: ≧ 20000
material thickness rail: 0.8 - 2 mm
Mounting: Tristable slide lock allows the extension from an existing combination.
Protection class: IP20 switch, IP40 in housing
Surge current strength: Conditioned surge current resistant 250 A
Type: Type A
Overvoltage category: 3
Power loss of the equipment, current-dependant [PVID]: 6 W
Pollution degree: 2
permissible storage or transport temperature: -35 °C to +60 °C
Permissible ambient temperature range: -25 °C to +40 °C.

Product type: AFDD

Differential current rating: 0.03 A

Number of pins: 2

Release characteristics: B

Dim: (W x H x D) 55 x 86 x 75 mm

Content: 1 pc(s)

Nominal current: 13 A

Nominal current - rounded value: 13 A

Nominal voltage: 230 V AC

Width: 55 mm

Height: 86 mm

Depth: 75 mm

Compatible with (details): Circuit breaker switch

Weight: 0

: 50 Hz

: 67 mm

: 13 A

: 230 V

: B

: 2

: 0.03 A

: A

: 3

: 3

: 2

: 3

: IP20

: FALSE

: 0 kA

: 0 A

: 230 V

: AC

: Fire protection switch

: 10 kA

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1514866 Eaton 187180 AFDD 2-pin 13 A 0.03 A 230 V AC 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1514866 Eaton 187180 AFDD 2-pin 13 A 0.03 A 230 V AC 1 pc(s)

Description

The fire protection switch from Eaton is the only proven technology for protection against fires by serial fault arc can be triggered. In addition to circuit breakers or FI/LS-SWITCHES detect fire protection switch parallel and serial fault arc by permanently of the high-frequency noise of voltage and current on their intensity, duration and the intervening gap measure. Integrated filter with intelligent software values these signals and arrange for abnormalities in a fraction of a second to switch off the connected circuit. The use of the fire protection switch is particularly in residential houses, public buildings, libraries, museums and fire-hazardous operation areas is recommended.
