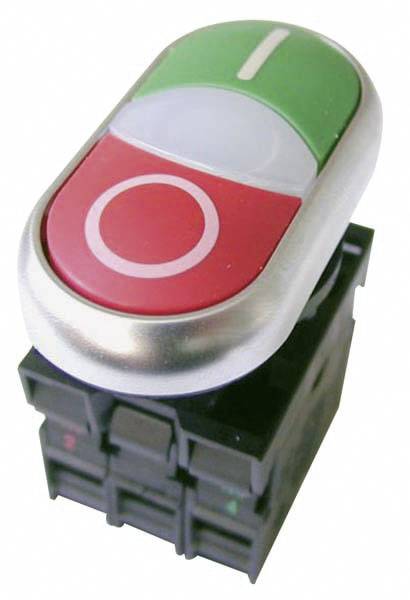

A two-colour switch with a green 'I' and a red 'O', symbolising turning on and off.

A two-colour switch with a green 'I' and a red 'O', symbolising turning on and off.

Image similar

Packaging type

Piece

Product type

Double head pushbutton

Lighting type

Backlit icons

Switch position

1 x Off/(On)

Contact type

1 breaker

1 maker

Datasheet (PDF)

Eaton

Fast track dispatch on Fri 16 Oct

16 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 74.62 / piece)

€ 74.62

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Number of command points: 2
Design of the lens: Round
Color front ring: Chrome
Supply voltage of the lamp: 230 V.

Packaging type: Piece

Product type: Double head pushbutton

Switch/button features: illuminable
Front ring (PVC)

Casing/button colour: Red
Green

Functions: momentary

Lighting type: Backlit icons

Colour: White

Bulb type: LED (monochrome)

Switch position: 1 x Off/(On)

Print motif: ON/OFF

Contact type: 1 breaker
1 maker

Material: Plastic

Connection: Screws

Shape: flat

Width: 29.7 mm

Height: 54.7 mm

Recess diameter: 22 mm

Front panel cut-out: 22.5 mm mm

: IP66

Actuating force: 15 N

Content: 1 pc(s)

Dim: (W x H) 29.7 mm x 54.7 mm

RoHS-compliant: Yes

Type: M22-DDL-GR-X1/X0/K11/230-W

Factory colour: Multicolour

Weight: 0.0500 kg

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2306911 Eaton 216509 M22-DDL-GR-X1/X0/K11/230-W Double head pushbutton 1 x Off/(On) momentary White (W x H) 29.7 mm x 54.7 mm IP

User & Safety Instructions

User & Safety Instructions 2306911 Eaton 216509 M22-DDL-GR-X1/X0/K11/230-W Double head pushbutton 1 x Off/(On) momentary White (W x H) 29.7 mm x 54.7 mm IP

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation

Description

Hints

Re switch position: content in parentheses describes the n/o and n/c contact constellation
