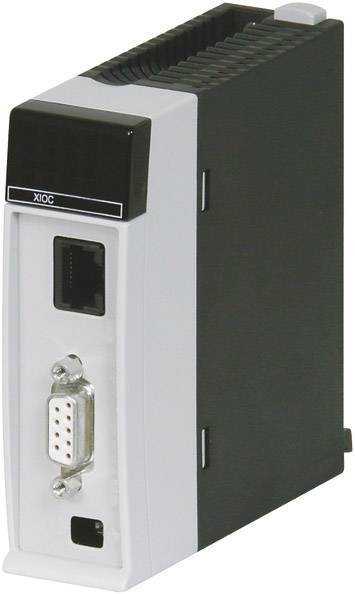

Eaton 286419 XIOC-NET-DP-S PLC communication module 24 V DC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 533.61 / piece)
€ 533.61
plus VAT.
Technical specifications
- Weight: 0.2 kg
- Static power loss, independant of current [Pvs]: 7.2 W.
- Number of hardware interfaces Industrial Ethernet: 0
- Number of HW interfaces other: 0
- Storage [ϑ]: -20 - +70 °C.
- Ripple: ≦ 5%
- Product type
PLC communication module
- Manufacturer part #
286419
- Type
XIOC-NET-DP-S
- Min. operating voltage
12 V DC
- Operating voltage
12 - 24 V DC
- Max. operating voltage
24 V DC
- Operating voltage
24 V DC
- Height
100 mm
- Length
95 mm
- Width
30 mm
IP20
- Dim
(L x W x H) 95 x 30 x 100 mm
- Max. ambient temperature
+55 °C
- Min. ambient temperature
0 °C
- Weight
0.2 kg
Documents & Downloads
Datasheet
Datasheet 1973224 Eaton 286419 XIOC-NET-DP-S PLC communication module 24 V DC
User & Safety Instructions
User & Safety Instructions 1973224 Eaton 286419 XIOC-NET-DP-S PLC communication module 24 V DC
Description
Modular XC100 and XC200 controllers are characterised by their within wide limits scalable design. Different CPU performance classes and a variety of expansion modules (XIOC modules) are available. The compact controls XC 152 enable cost-effective solutions for automation tasks by means of their computing power, the SmartWire-DT connection as well as a lot of other interfaces. A special feature is the integration of the products in modern communication concepts. The data exchange via the Ethernet interface to OPC clients or the integrated web-server allows innovative solutions.
This text is machine translated.
This text is machine translated.
