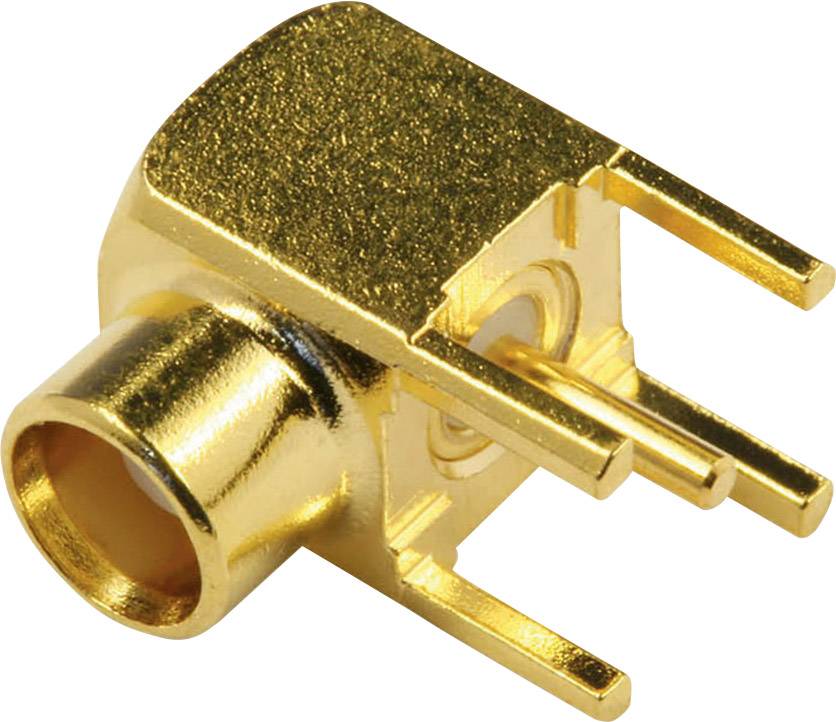

econ connect MCX6F MCX6F MCX connector Socket, right angle 50 Ω 1 pc(s)
EAN:
Part number:
Item no:
Product type
MCX connector
Connector type
Socket, right angle
Impedance
50 Ω
Connection
Solder pins
Content
1 pc(s)
Datasheet (PDF)
Highlights & Details
MCX connector
- The plug socket - name, according to the shape of the inner conductor defined.
Our service for you
Technical specifications
- Product type
MCX connector
- Connector type
Socket, right angle
- Impedance
50 Ω
- Connection
Solder pins
- Content
1 pc(s)
- Case material
Brass gold plated
- Manufacturer part #
MCX6F
- Insulation resistance
5000 MOHM
- Insulation material
PTFE
- Contact material
Brass gold plated
- RoHS-compliant
Yes
- Type
MCX6F
- Seal type
Push-Pull
Documents & Downloads
Datasheet
Datasheet 1311376 econ connect MCX6F MCX6F MCX connector Socket, right angle 50 Ω 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1311376 econ connect MCX6F MCX6F MCX connector Socket, right angle 50 Ω 1 pc(s)
Description
MCX-Plug connectors are small coaxial Plug connectors with Snap closure for Frequencies up to 6 GHz. Areas of Application: GPS Systems, WLAN, Fixed line and mobile Communications.
