econ connect MSH4GB MSH4GB Shorting jumper Contact spacing: 2.54 mm Pins per row:4 Content: 1 pc(s) Bulk

A black plastic plug with multiple metal contacts, likely for electronic connections or cable interfaces.
Technical drawing of a connector with dimensions. Top view and cross-sectional view show details such as spacing and positions.

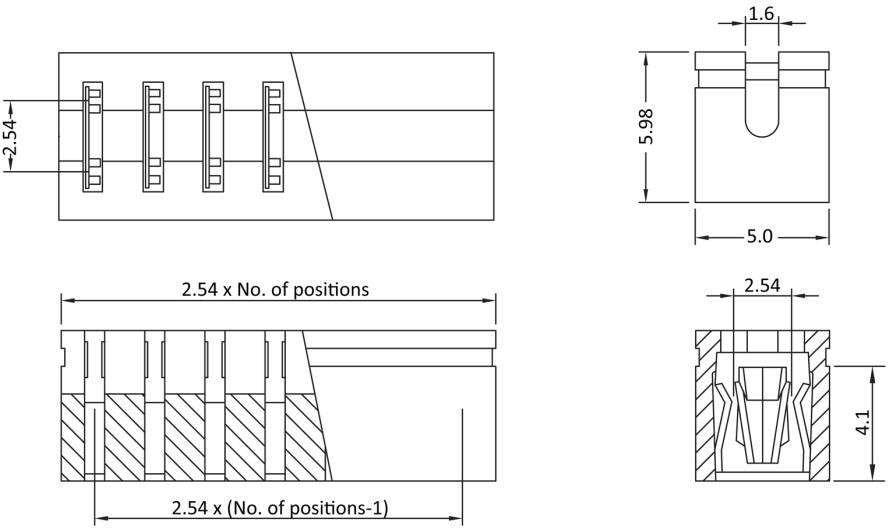

Technical drawing of a connector with dimensions: 2.54 mm pitch, 5.98 mm height, 5 mm width. Side view and cross-section shown.
1/3
Image similar
Packaging type
Bulk
Product type
Shorting jumper
CS
2.54 mm
Pins
4
Connection
Jack connector
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
105 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 30
Total (€ 0.10 / piece)
€ 3.00
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

  • Content 1 pc(s)

Technical specifications

Packaging type

Bulk

Product type

Shorting jumper

Pins

4

CS

2.54 mm

Connection

Jack connector

Manufacturer part #

MSH4GB

Content

1 pc(s)

Insulation material

PBT

Contact material

Brass

Contact surface

Brass

Nominal current

3 A

Pins per row

4

Connector orientation

Perpendicular (to the PCB)

Type

MSH4GB

Documents & Downloads

Datasheet

Datasheet 2521068 econ connect MSH4GB MSH4GB Shorting jumper Contact spacing: 2.54 mm Pins per row:4 Content: 1 pc(s) Bulk

User & Safety Instructions

User & Safety Instructions 2521068 econ connect MSH4GB MSH4GB Shorting jumper Contact spacing: 2.54 mm Pins per row:4 Content: 1 pc(s) Bulk
