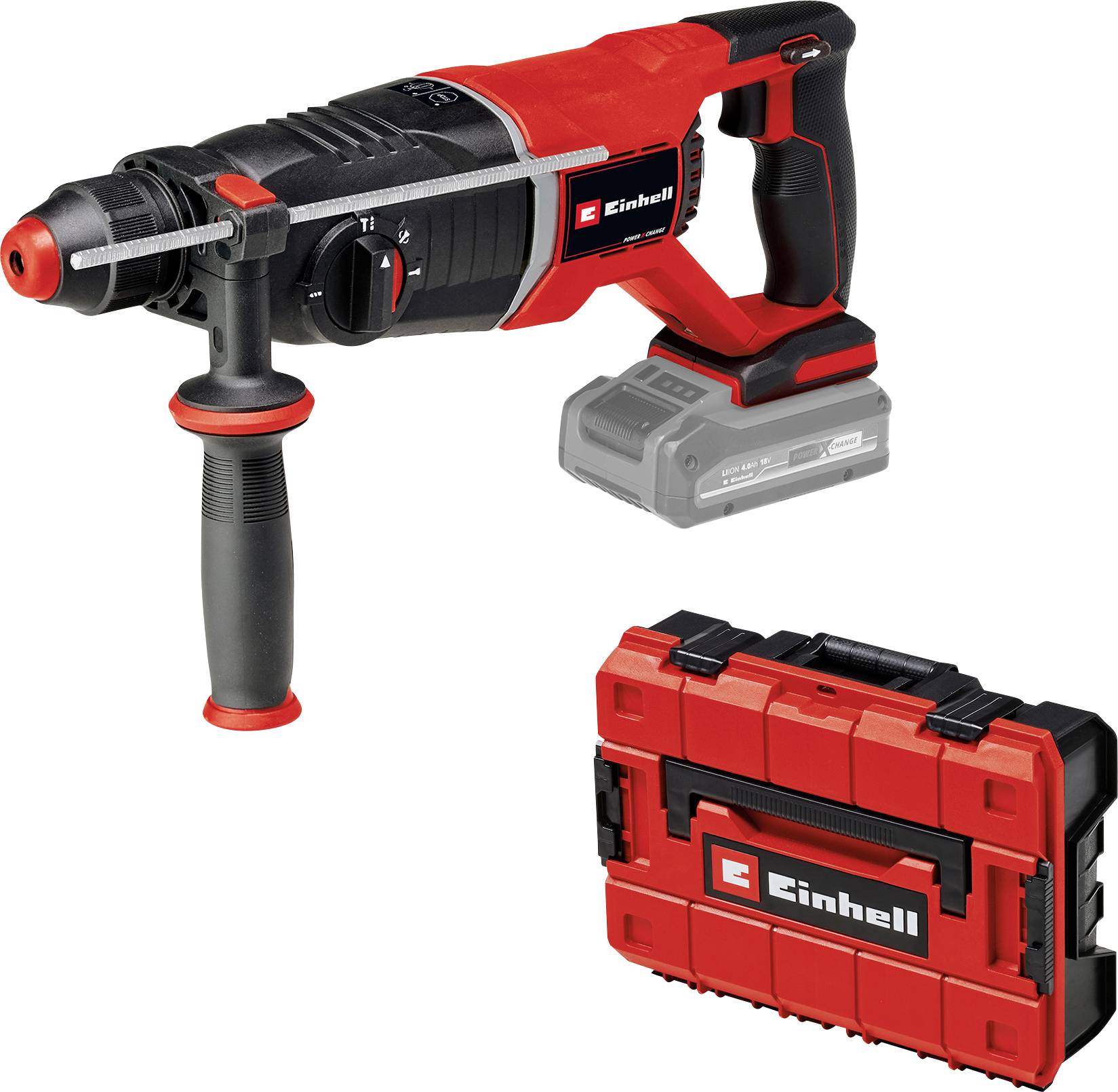

Einhell Professional TP-HD 18/26 D Li BL SDS-Plus-Cordless hammer drill 18 V Li-ion brushless, w/o battery, w/o charger

1/10
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 12 Nov

9 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions

Number
Total (€ 199.99 / piece)
€ 199.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 9 Piece(s) available
14-day return policy included

Highlights & Details

Einhell Professional TP-HD 18/26 D Li BL SDS-Plus-Cordless hammer drill 18 V Li-ion brushless, w/o battery, w/o charger

  • 18 V
  • Impact (max.) 2.6 J
  • Max. drill bit Ø 26 mm

Technical specifications

  • Max. Drilling performance concrete 26 mm
  • Max. Drilling performance wood: 40 mm
  • Max. Drilling performance metal: 13 mm
  • Min PXC 3.0 Ah battery recommended
  • Number of gears: 1
Product type

Cordless hammer drill

Voltage

18 V

Technology

Li-ion

No. of power packs included

0

Operating voltage

18 V

Rotational speed range

1150 U/min

Blow count (max.)

5100 /min

Impact (max.)

2.6 J

Max. drill diameter

26 mm

Tool holder

SDS-Plus

Features

brushless

w/o battery

w/o charger

Functions

Stepless speed control

Transmission type

4-speed

Weight

2.79 kg

Length

410 mm

Width

210 mm

Height

100 mm

Dim

(L x W x H) 410 x 210 x 100 mm

UKCA

yes

Documents & Downloads

Datasheet

Datasheet 3053828 Einhell Professional TP-HD 18/26 D Li BL SDS-Plus-Cordless hammer drill 18 V Li-ion brushless, w/o battery, w/o charger

User & Safety Instructions

User & Safety Instructions 3053828 Einhell Professional TP-HD 18/26 D Li BL SDS-Plus-Cordless hammer drill 18 V Li-ion brushless, w/o battery, w/o charger

Warranty Terms

Warranty Terms 3053828 Einhell Professional TP-HD 18/26 D Li BL SDS-Plus-Cordless hammer drill 18 V Li-ion brushless, w/o battery, w/o charger

Description

The Einhell professional battery-operated drill hammer TP-HD 18/26 D Li BL-Solo is a real all-round talent. It combines four functions in one device: Drilling, hammer drilling and chiseling with and without fixing. The respective function can be set using the central position switch. The device is driven by the powerful Einhell Purepower brushless motor. This brushless motor offers more power and a longer operating time than the conventional carbon brush motors. After online registration, 10 years warranty applies on the brushless motor. The battery-operated hammer drill is part of the Einhell Power X-Change family, in which all batteries, devices and chargers can be combined flexibly. The pneumatic impact mechanism works with a stroke force of 2.6 joules. Thanks to its high drilling capacity, the device produces drill holes in concrete with a diameter of up to 26 mm. The specially designed D-handle simplifies vertical drilling and chiseling, for example, into the floor. In this way the hammer drill can be guided safely and exert optimum pressure. The universal SDS-plus tool holder with semi-automatic mechanism provides for an easy and quick tool change. The speed can be dosed accurately depending upon the application. Thanks to the ergonomic grip with soft grip, the device is pleasant and fatigue-free. The robust drilling depth stop for precise drilling holes is infinitely adjustable. The TP-HD 18/26 D Li BL battery-operated drill hammer has an LED light for optimum illumination of the work area. Supplied in a practical Einhell system case E-Case S-F. The batteries and charger are not included in the delivery. These are available separately. A 3.0 Ah battery or higher is recommended for optimum working.

This text is machine translated.

Features

  • Member of the Power X-Change family, 1x 18V battery is required
  • Brushless motor - more Power and longer running time
  • PurePower Brushless – 10 years engine guarantee after registration
  • 4 functions: Drilling/hammer drilling/chiseling with and without fixing
  • Easy to use: 1 position switches for 4 functions
  • Universal SDS-plus tool mount with semi-automatic mechanism
  • Left-/right operation for screwing in and out screws
  • Finely dosed speed electronics for a pleasant working

Scope of delivery

  • Battery-operated hammer drill
  • E-CASE S-F
  • User manual.

System requirements

  • Einhell Power X-change
