Elmeko LED light LMX-360-B, 100-240V AC, 11 W Black 11 W 1400 lm (L x W x H) 55 x 402 x 77 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
LED light
Power
11 W
Colour temperature type
5000 K
Luminous flux (Φ)
1400 lm
IP rating
IP20
Datasheet (PDF)
Number
Total (€ 138.65 / piece)
€ 138.65
plus VAT.
Highlights & Details

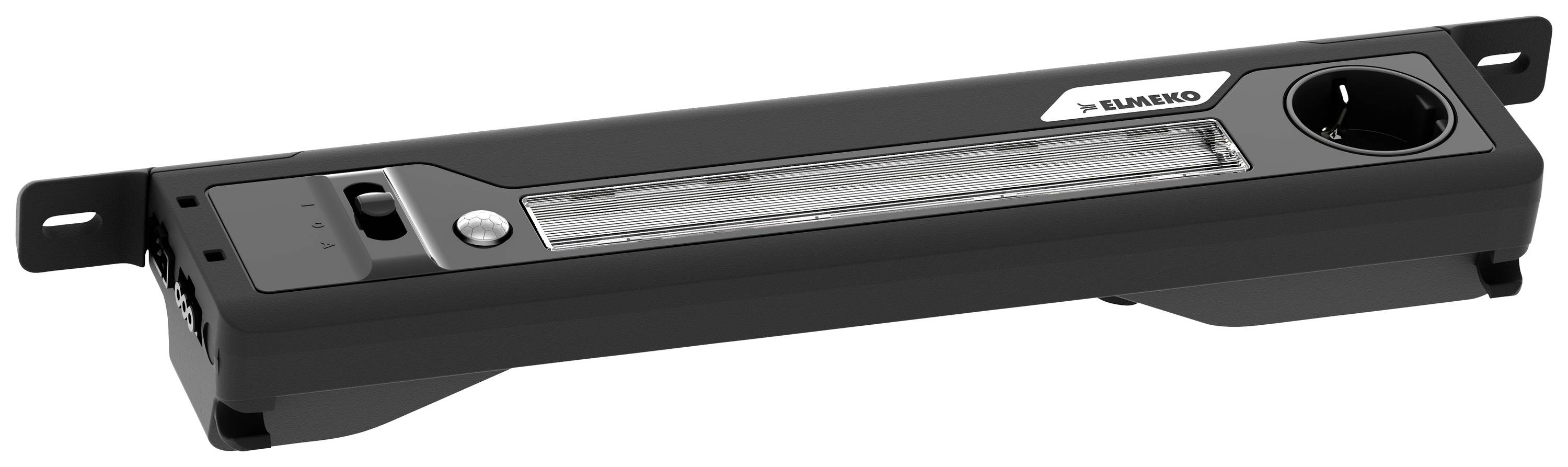

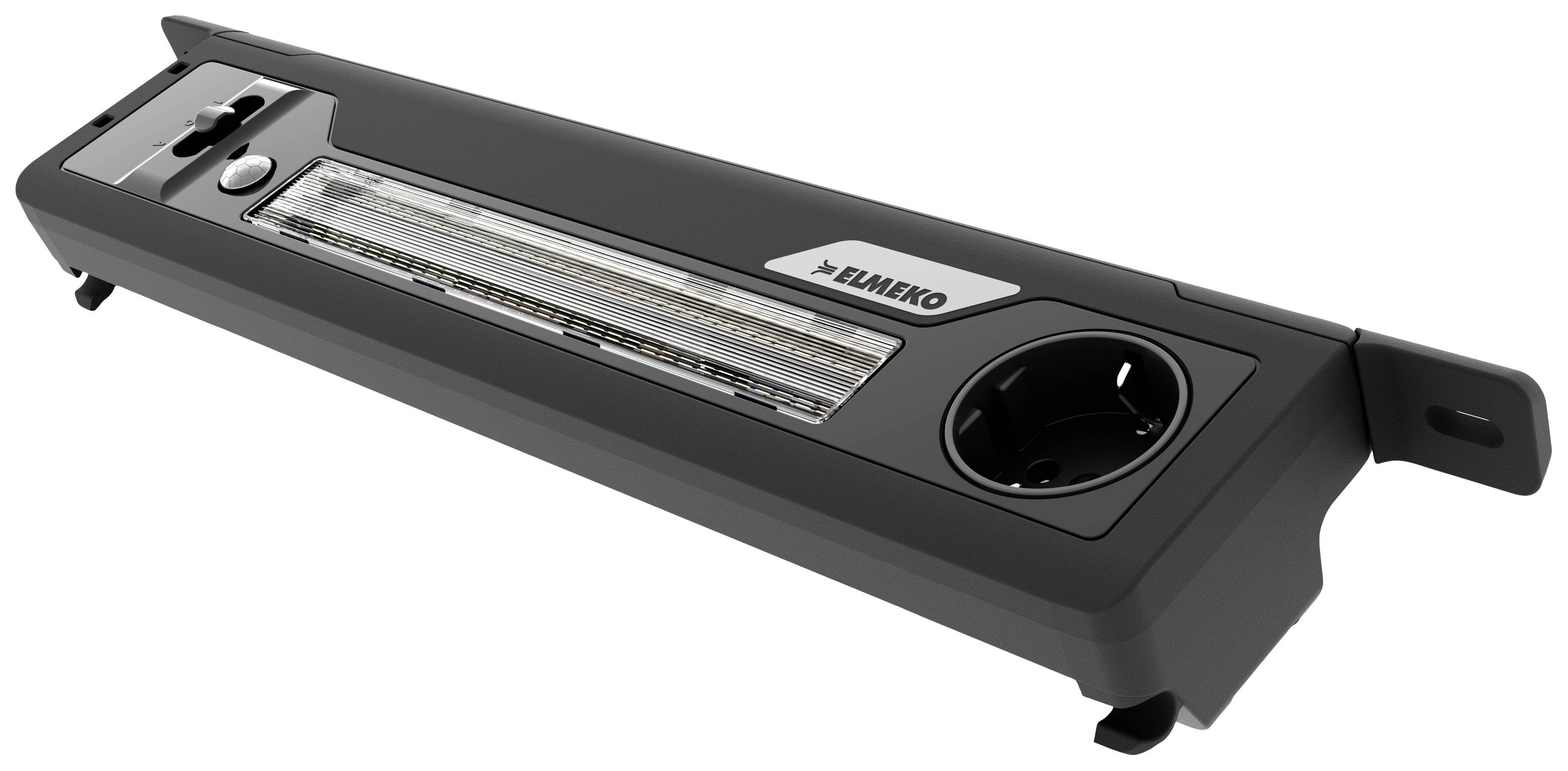

LED SWITCHING CABINET LAMP LMX-360-B, 100-240V AC, 11 W
- LED-switch cabinet lamp
- LMX-360-B, 100-240V AC, 11 W
- Light output 1400 lm
- Protection class: IP20
- with Motion Sensor
- With socket + switch
- Selector switch (On-Off/Automatic)
- Wide-range voltage input 100 – 240 V AC
- Variable snap-in and screw fastening
- Optional magnetic attachment
- Perfect illumination with integrated optics
- Non-glare light
- GST plug connection
- Schuko socket (16A load)
- Long life and low power consumption
- Series connection of up to 4 lamps
- Integrated cable holder
Technical specifications
- Product type
LED light
- Type
LMX-360-B, 100-240V AC, 11 W
- Features
incl. switch (ON/OFF/AUTO)
- Min. operating voltage
110 V AC
- Max. operating voltage
240 V AC
- Operating voltage
110 - 240 V AC
11 W
- Factory colour
Black
- Colour temperature type
5000 K
- Luminous flux (Φ)
1400 lm
- Connection
Jack connector
- Material
ABS-PC
IP20
- Protection class
II
- Min. temperature
-20 °C
- Max. temperature
55 °C
- Length
55 mm
- Width
402 mm
- Height
77 mm
- Dim
(L x W x H) 55 x 402 x 77 mm
n.rel.
Documents & Downloads
Datasheet
Datasheet 2603777 Elmeko LED light LMX-360-B, 100-240V AC, 11 W Black 11 W 1400 lm (L x W x H) 55 x 402 x 77 mm 1 pc(s)
Description
The lamp can be mounted in 2 positions as required, using fixing elements for the
Screw or snap-in attachment. Moreover, the mounting is also included in the accessories
Available magnets.
This text is machine translated.
Screw or snap-in attachment. Moreover, the mounting is also included in the accessories
Available magnets.
This text is machine translated.
