Name: Elmeko PK 75.2, 24 V DC, 75 W Cooler 24 V DC 87 W (W x H x D) 202 x 156 x 250 mm 1 pc(s)
Brand: Elmeko
SKU: 3849498
Availability: BackOrder

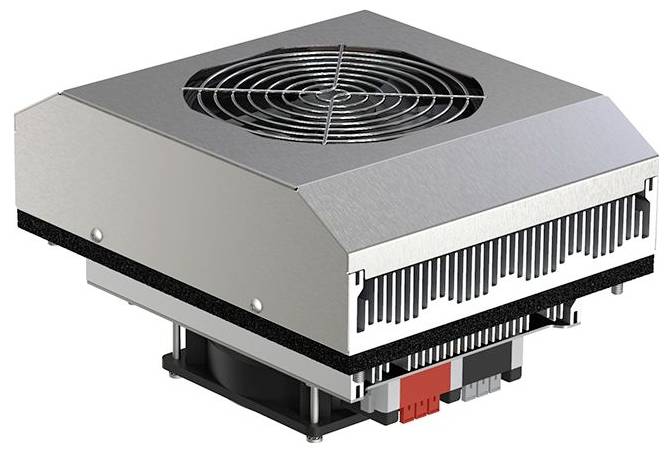

A compact electronic cooling unit or heat sink with a top-mounted fan and layered metal fins, shown on a white background.

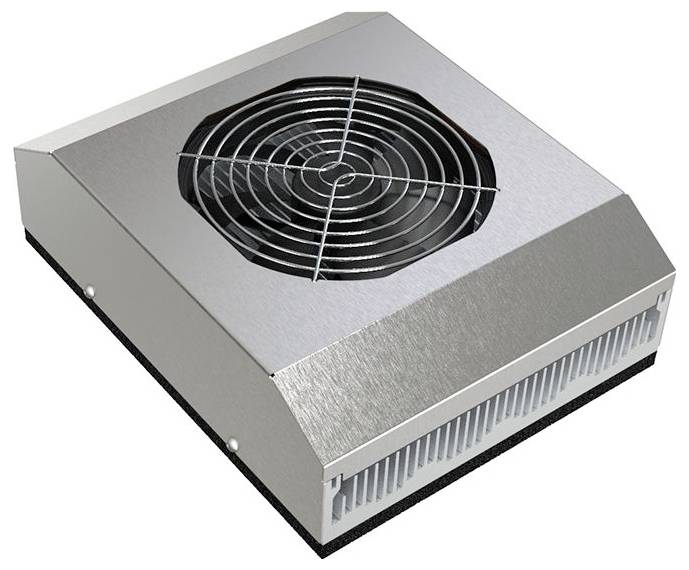

Silver box-shaped electronic cooling unit with a large circular fan grille on top and vented side panel.

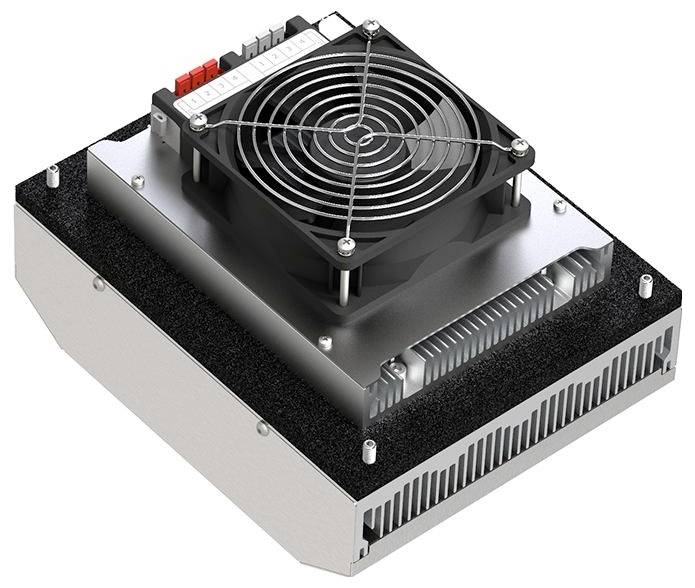

Cooling module with fan and heatsink for an electronic device, shown in a compact metal housing with power connector.

1/3

Product type

Cooler

Operating voltage

24 V DC

Power

87 W

Noise emission (max.)

58 dB

Width

202 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 959.00 / piece)

€ 959.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

ELMEKO Peltier cooling device PK 75.2, 24 V DC, 75 W

Thermoelectric cooling without refrigerant
Suitable for mobile applications
Cooling and heating operation possible in connection with optional controller
Durable stainless steel design, Ideal for outdoor applications
High protection class for safe continuous operation in adverse ambient conditions
Robust outer heatsink with matched rib structure for good flow through and low contamination sensitivity
Compact design allows installation in almost any position
Recommended solutions for condensate drainage and pressure compensation are available as accessories

Our service for you

Technical specifications

Design: Cooling and heating
Housing material: Stainless steel V4A (1.4571)
Heatsink material EN AW-6060 aluminum
Sound pressure level 58 dB(A) @1m
Service life 60,000 h
Current consumption: 3.6 A
Starting current 5.5 A
Fuse 6 A (T)
Connection (rigid and flexible conductors): Push-in (0.5 - 2.5 mm²)
Connection (with wire-end sleeves): Push-in (0.5 - 1.5 mm²)
EFFECTIVE COOLING CAPACITY L35/L35: 75 W
100 W heating power
Internal loop air volume flow: 110 m³/h.
Air volume flow external circuit: 195 m³/h.
Operating temperature -40 °C - +70 °C
Storage temperature: -40 °C to +75 °C.

Product type: Cooler

Type: PK 75.2, 24 V DC, 75 W

Operating voltage: 24 V DC

Min. operating voltage: 18 V DC

Max. operating voltage: 26 V DC

Operating voltage: 18 - 26 V DC

: 87 W

Noise emission (max.): 58 dB

Air flow rate: 195 m³/h

Factory colour: Stainless steel

Min. temperature: -40 °C

Max. temperature: 70 °C

: IP67

Connection: Push-in connector

Width: 202 mm

Height: 156 mm

Depth: 250 mm

Dim: (W x H x D) 202 x 156 x 250 mm

Weight: 5.5 kg

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3849498 Elmeko PK 75.2, 24 V DC, 75 W Cooler 24 V DC 87 W (W x H x D) 202 x 156 x 250 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3849498 Elmeko PK 75.2, 24 V DC, 75 W Cooler 24 V DC 87 W (W x H x D) 202 x 156 x 250 mm 1 pc(s)

Description

The proven PK series is available with cooling powers from 30 to 280 W – designed for air-conditioning of switch cabinets and casings for many applications. Most PK series devices are UL approved.
