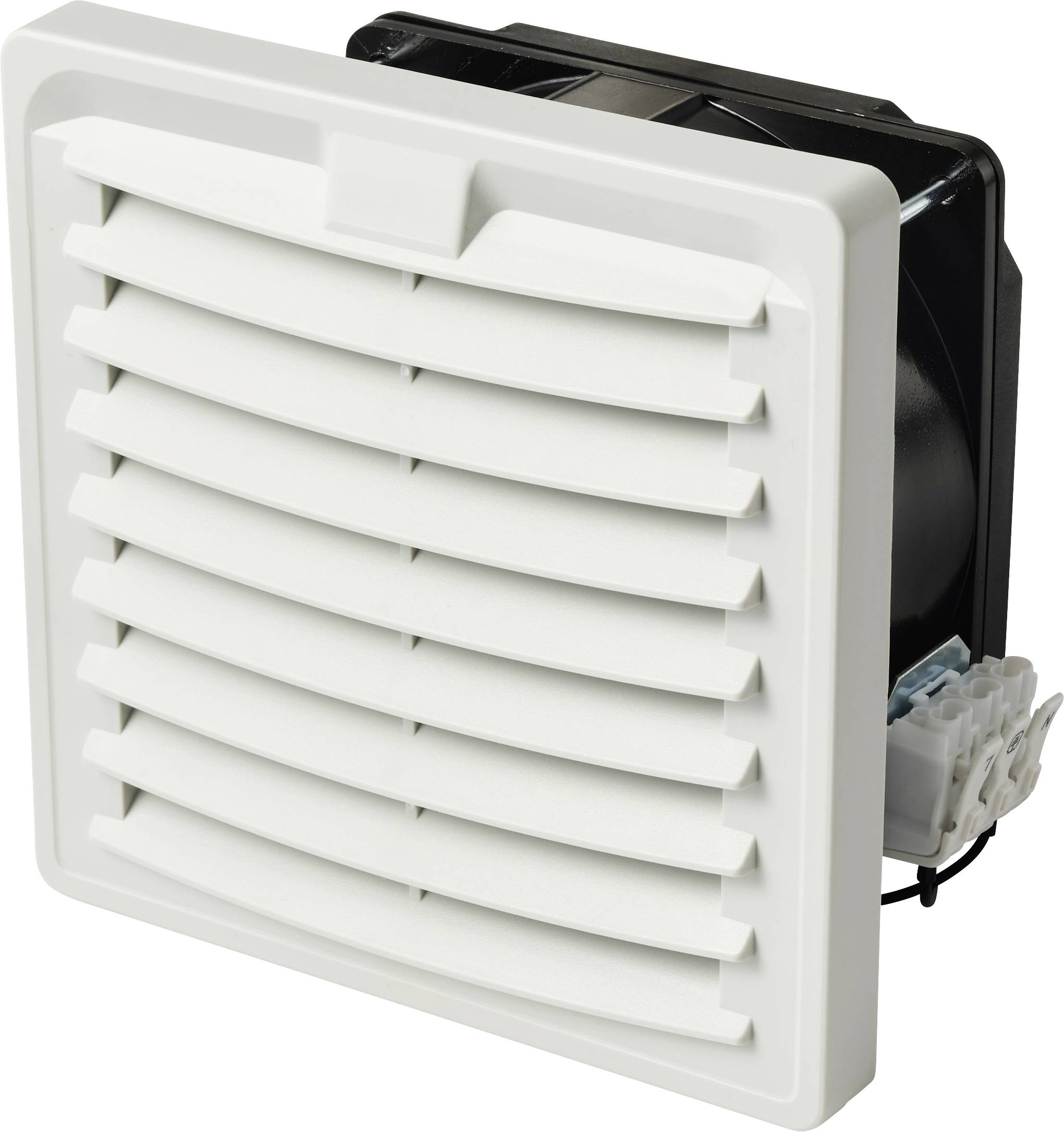

TRU COMPONENTS TC-SFFC106-230B-EMC-FC Fan and filter 230 V AC 14 W (W x H x D) 120 x 120 x 42.1 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Fan and filter
Operating voltage
230 V AC
Power
14 W
Noise emission (max.)
30 dB
Width
120 mm
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 14.28
3
6% = € 0.79
€ 13.49
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 14.28 / piece)
€ 14.28
plus VAT.
Highlights & Details
Control cabinet fan EMC-compliant 120x120mm, ball bearing, 230V, 48m³/h
- Slide guard for filter mat replacement
- EMC compliant
- Operating voltage: 230 V/AC
- Dimensions: (W x H x D) 120 x 120 x 42.1 mm
Our service for you
Technical specifications
- EMC compliant
- Enclosure cut-out: 92 x 92 mm
- Connection: 2 wires, 300 mm
- Fan size: 80 x 80 x 38 mm
- Axial fan, ball bearing
- Protection class: I (earthed)
- Product type
Fan and filter
- Type
TC-SFFC106-230B-EMC-FC
- Features
EMC
- Operating voltage
230 V AC
- Max. current consumption
0.09 A
14 W
- Noise emission (max.)
30 dB
- Air flow rate
48 m³/h
- Min. temperature
-25 °C
- Max. temperature
60 °C
- Connection
Wire
- Cable length
300 mm
- Width
120 mm
- Height
120 mm
- Depth
42.1 mm
- Dim
(W x H x D) 120 x 120 x 42.1 mm
- Content
1 pc(s)
- Plastic free packaging
Plastic-free packaging
