Buy TRU COMPONENTS TC-NTL200-15W 24VDC Enclosure heating 24 V DC (max) 15 W (L x W x H) 103 x 83.5 x 34.09 mm 1 pc(s)

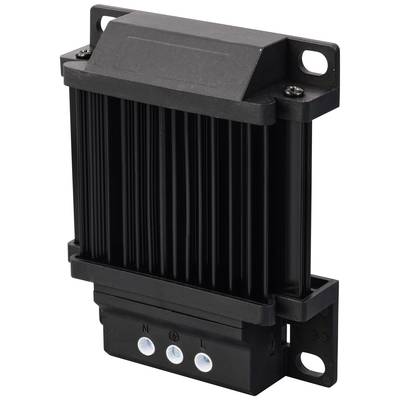

A black electronic radiator with vertical fins. Three terminal connectors at the bottom for electrical connections.

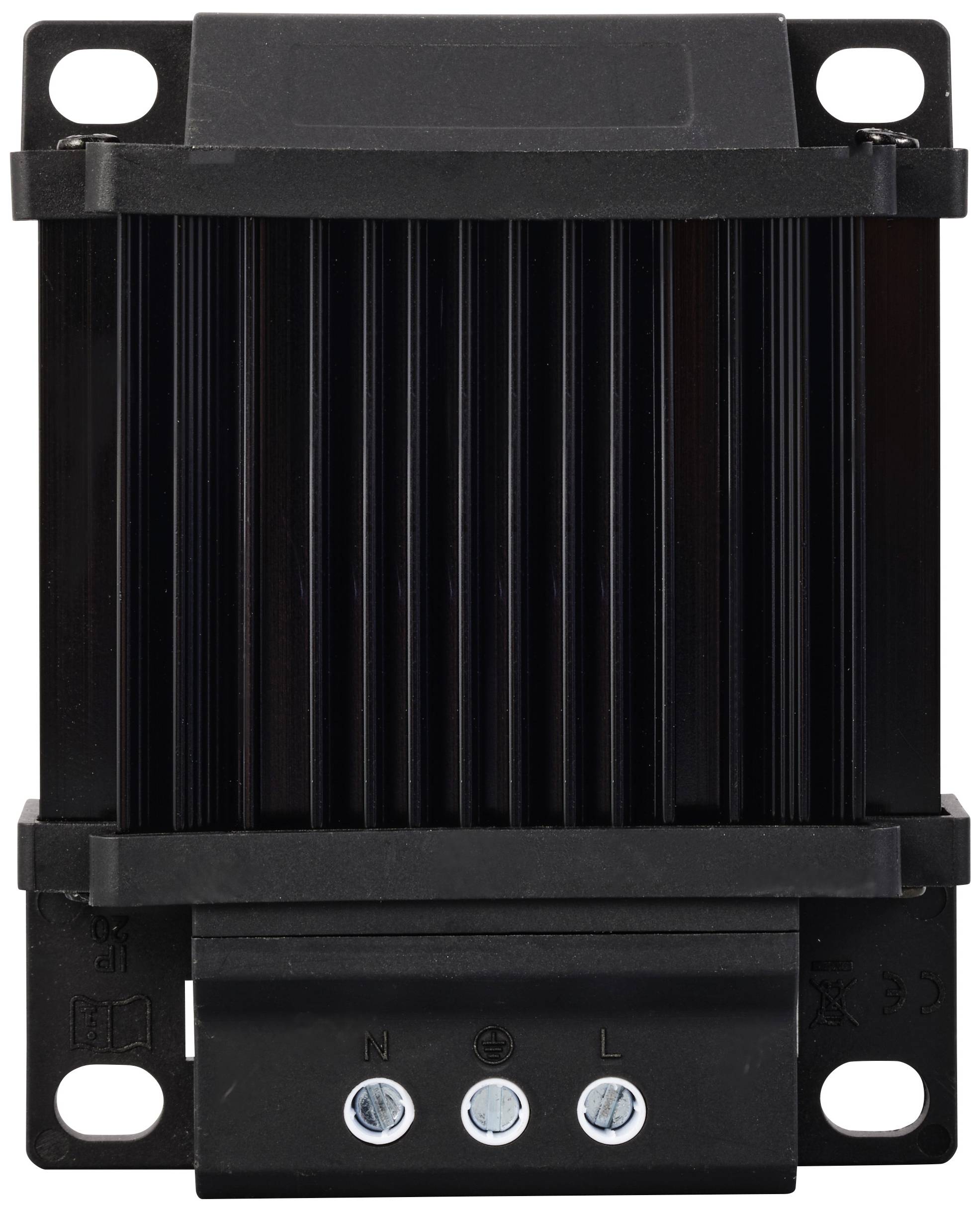

A black electronic component with heat sinks and three terminals at the bottom, marked with 'N', 'L', and an earth symbol.

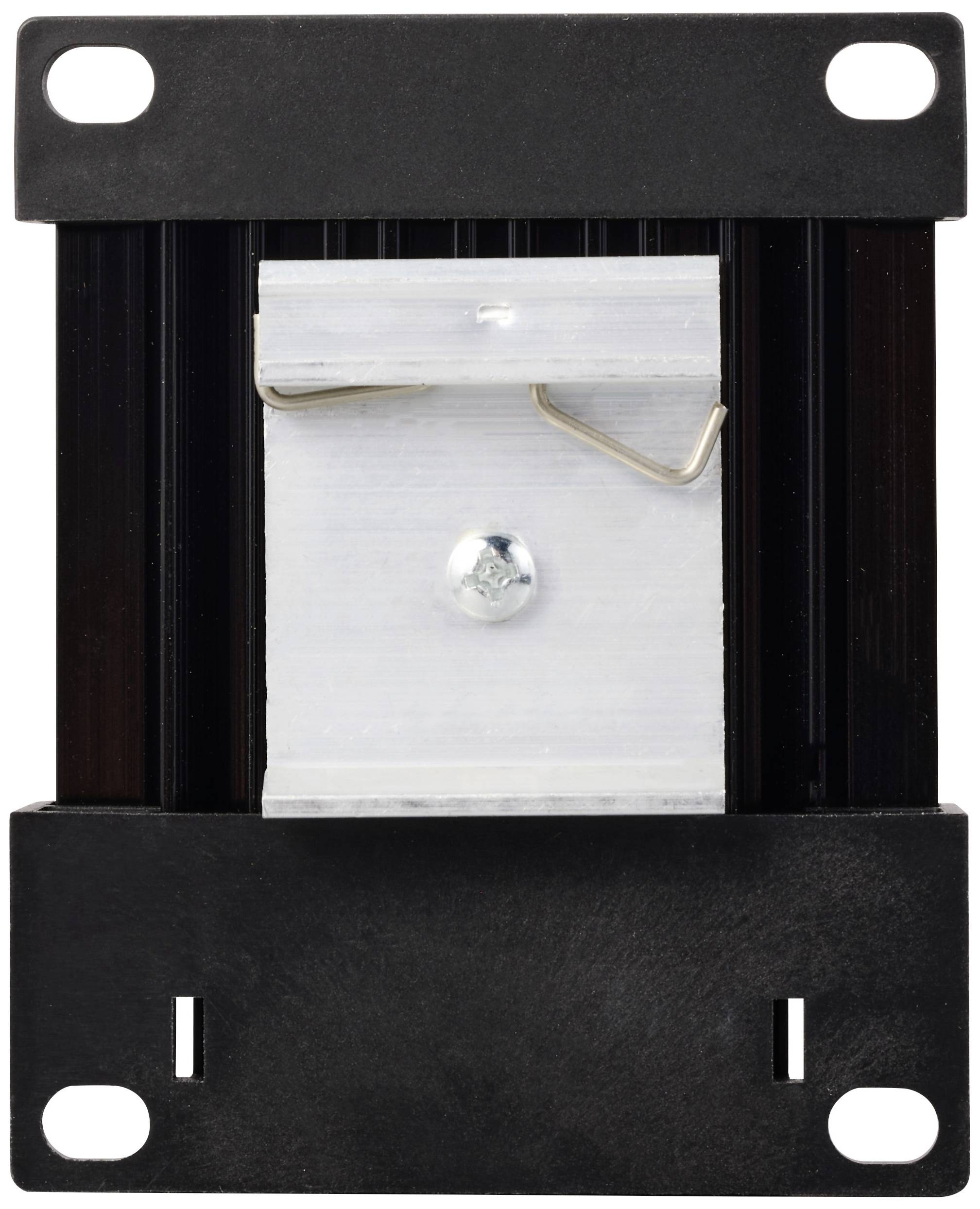

A rectangular electronic component with a black plastic frame and a metal component in the centre; rear view of a heatsink.

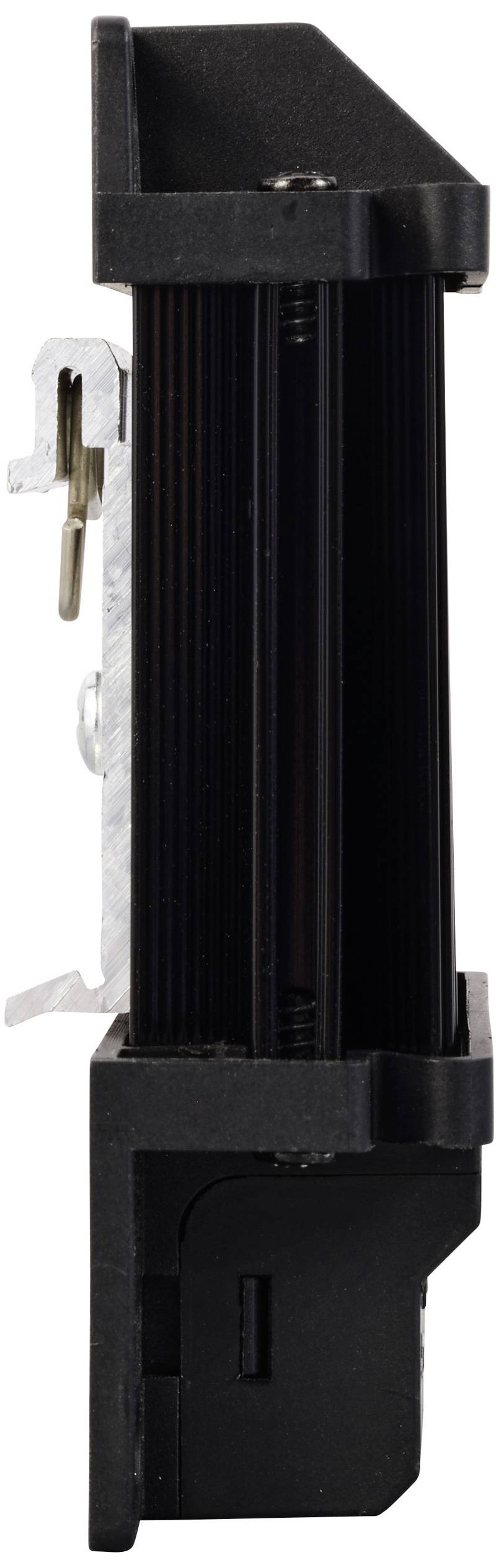

Slim, vertically positioned black object with metal components and screws, possibly a technical component.

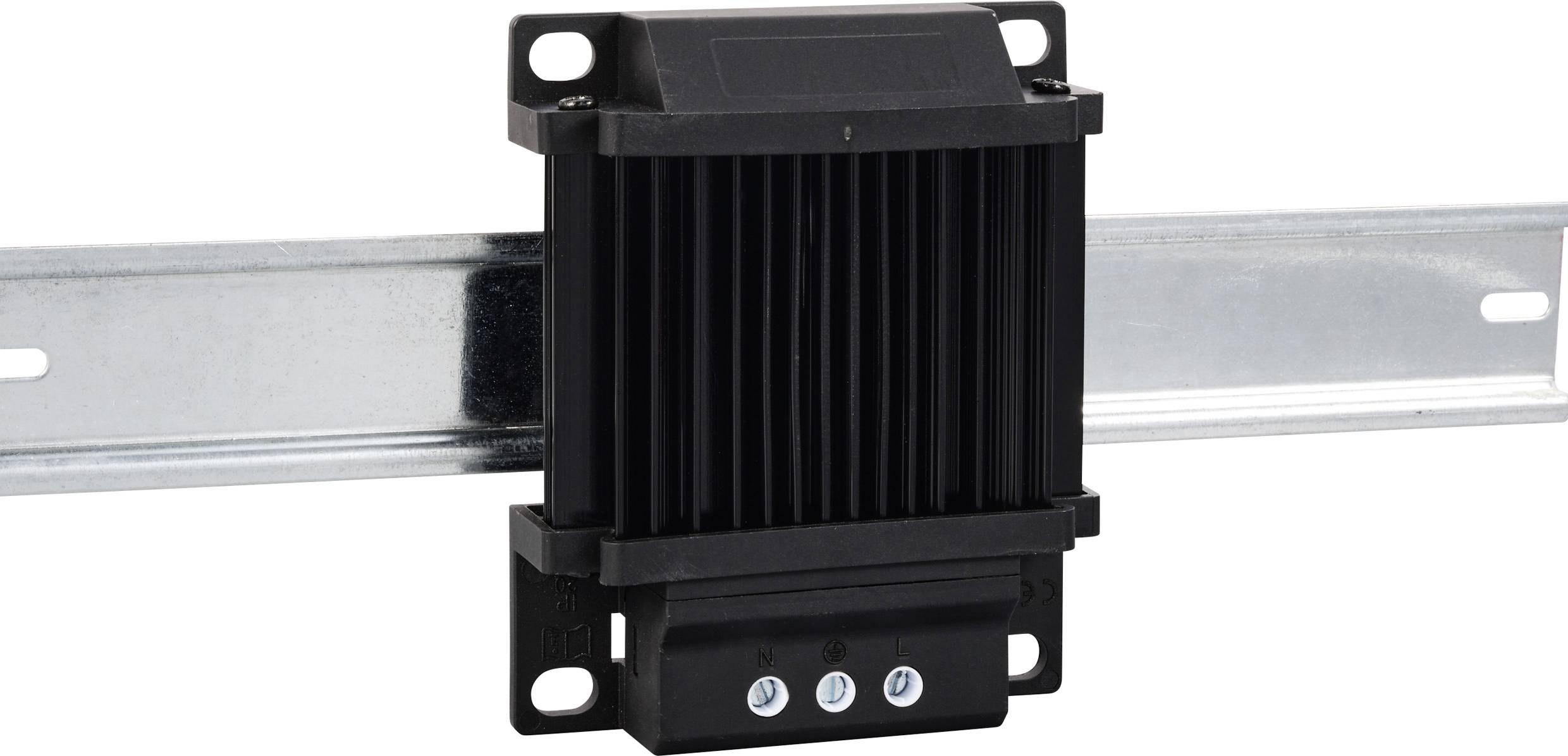

A black heatsink with a mounting bracket on a metal rail, potentially for heat dissipation in electronic components.

1/5

Product type

Enclosure heating

Max. operating voltage

24 V DC

Type

TC-NTL200-15W 24VDC

Operating voltage

24 V DC (max)

Power

15 W

Fast track dispatch on Fri, 11 Sep

274 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 12.60 / piece)

€ 12.60

plus VAT.

Report legal concerns

Highlights & Details

Switch cabinet heater 15 W, 24 V DC

Operating voltage: 24 V DC
Power: 15 W
Mounting type: DIN rail / Screw fixing
PTC heater

Our service for you

Technical specifications

Product type: Enclosure heating

Type: TC-NTL200-15W 24VDC

Max. operating voltage: 24 V DC

Operating voltage: 24 V DC (max)

: 15 W

Mounting type: DIN rail
Screw fastening

Length: 103 mm

Width: 83.5 mm

Height: 34.09 mm

Dim: (L x W x H) 103 x 83.5 x 34.09 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3192509 TRU COMPONENTS TC-NTL200-15W 24VDC Enclosure heating 24 V DC (max) 15 W (L x W x H) 103 x 83.5 x 34.09 mm 1 pc(s)

Description

These heaters are used in housings where damage from condensation must be avoided or where the temperature must not fall below a minimum value. The design of the radiator made of aluminum profiles has a chimney effect and distributes the heat evenly. The heating elements are designed for continuous operation. Pressure-clamp connectors save time and simplify the installation.

This text is machine translated.

Features

Heating element: PTC resistor - temperature limit
Radiator: Extruded aluminum profile, anodized
Connection: Screw terminal connection, for stranded wire 0.5-1.5mm² (with wire-end sleeve) and rigid wire 0.5-2.5mm²
Plastic according to UL94 V-0 connection case, black
Mounting: Clip for 35 mm DIN-rail and screw fixing
Mounting position: Vertical air flow (top air outlet, bottom connection)
Operating/storage temperature: -45 to +70℃ (-49 to +158℉)
Humidity during operation/storage: Max. 90% RH (non-condensing)
Protection class/protection IP20/ I (grounded)
