TRU COMPONENTS TC-NTL201S-F-15W 120-250V Enclosure heating 120 - 250 V 15 W (L x W x H) 109 x 69.7 x 50 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure heating
Max. operating voltage
250 V
Type
TC-NTL201S-F-15W 120-250V
Min. operating voltage
120 V
Operating voltage
120 - 250 V
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
Highlights & Details
TRU COMPONENTS DIN-rail mounting 120 - 250 V;15 W
- Pressure spring connection for the wiring, fast and secure wiring
- Dynamic heating
- Voltage range: 120 - 250 V
- Heating cable: 15 W
- Energy-saving
- With quick mounting part, easy to fix on DIN-rail and easy to remove
Our service for you
Technical specifications
- Product type
Enclosure heating
- Type
TC-NTL201S-F-15W 120-250V
- Min. operating voltage
120 V
- Max. operating voltage
250 V
- Operating voltage
120 - 250 V
15 W
- Mounting type
DIN rail
- Length
109 mm
- Width
69.7 mm
- Height
50 mm
- Dim
(L x W x H) 109 x 69.7 x 50 mm
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3192511 TRU COMPONENTS TC-NTL201S-F-15W 120-250V Enclosure heating 120 - 250 V 15 W (L x W x H) 109 x 69.7 x 50 mm 1 pc(s)
Description
These heaters are used in housings where damage from condensation must be avoided or where the temperature must not fall below a minimum value. The design of the radiator made of aluminum profiles has a chimney effect and distributes the heat evenly. The heating elements are designed for continuous operation. Pressure-clamp connectors save time and simplify the installation.
This text is machine translated.
This text is machine translated.
Features
- Heating element: PTC resistor - temperature limit
- Radiator: Extruded aluminum profile, anodized

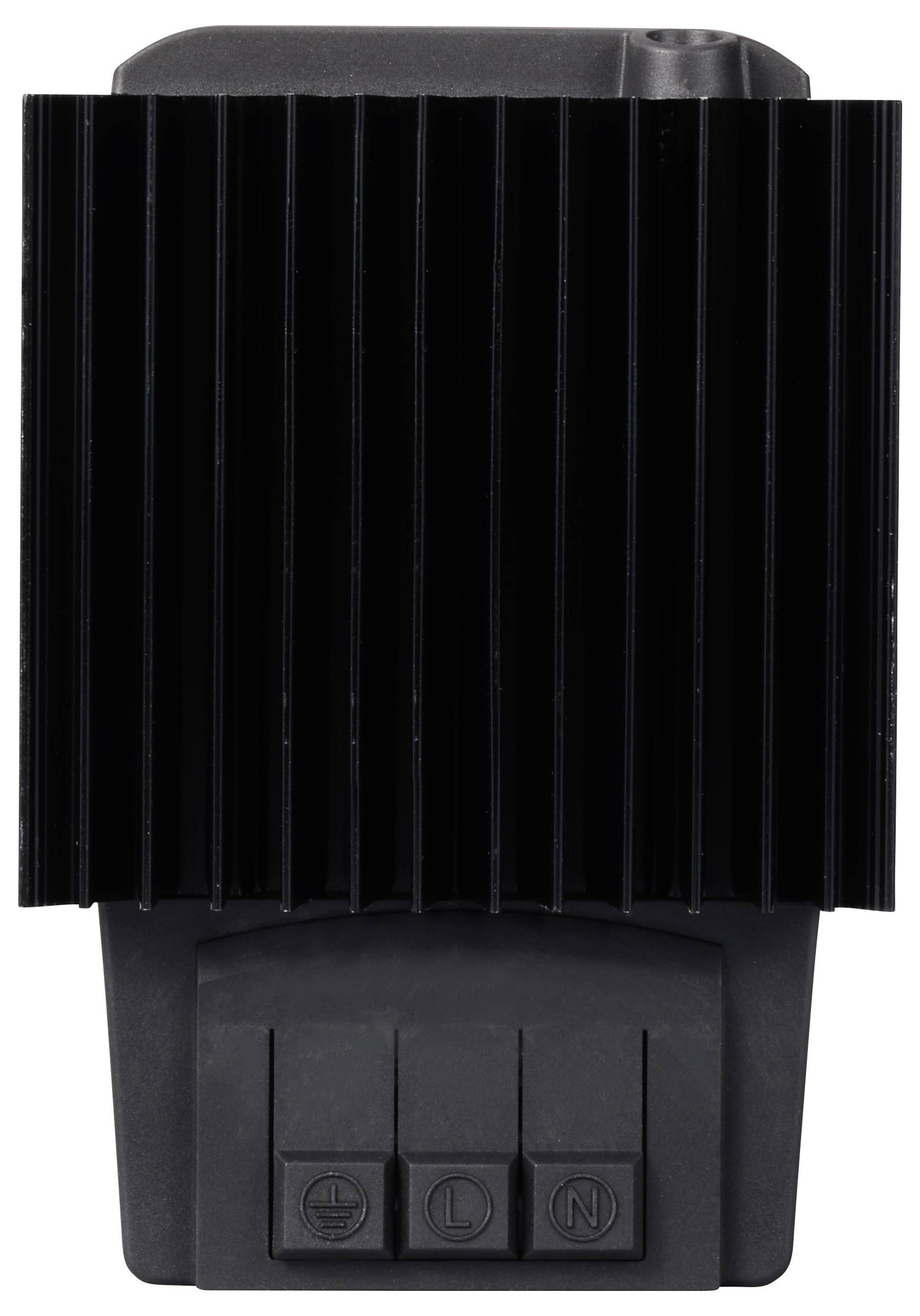

- Connection: Screw terminal connection, for stranded wire 0.5-1.5mm² (with wire-end sleeve) and rigid wire 0.5-2.5mm²
- Plastic according to UL94 V-0 connection case, black

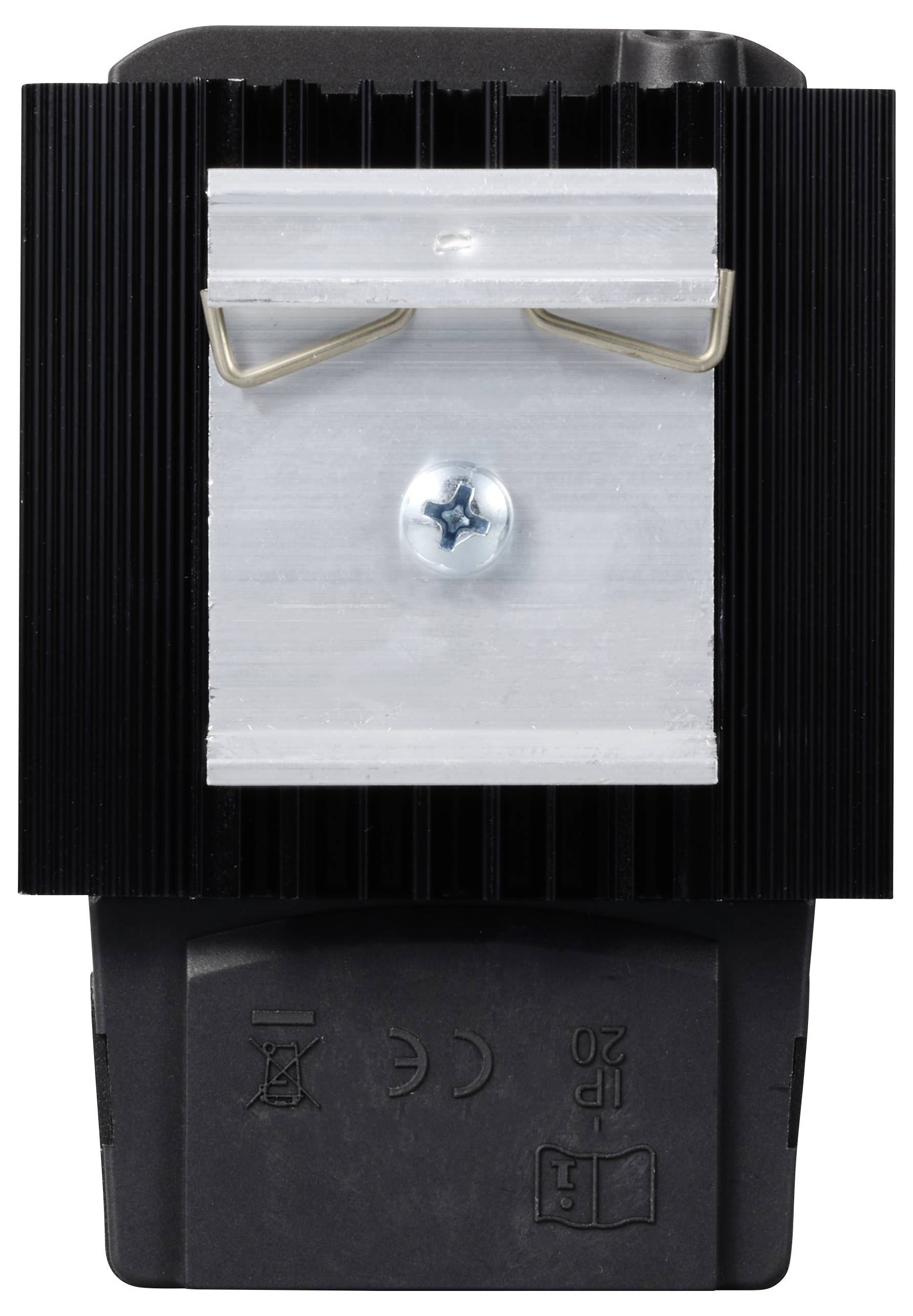

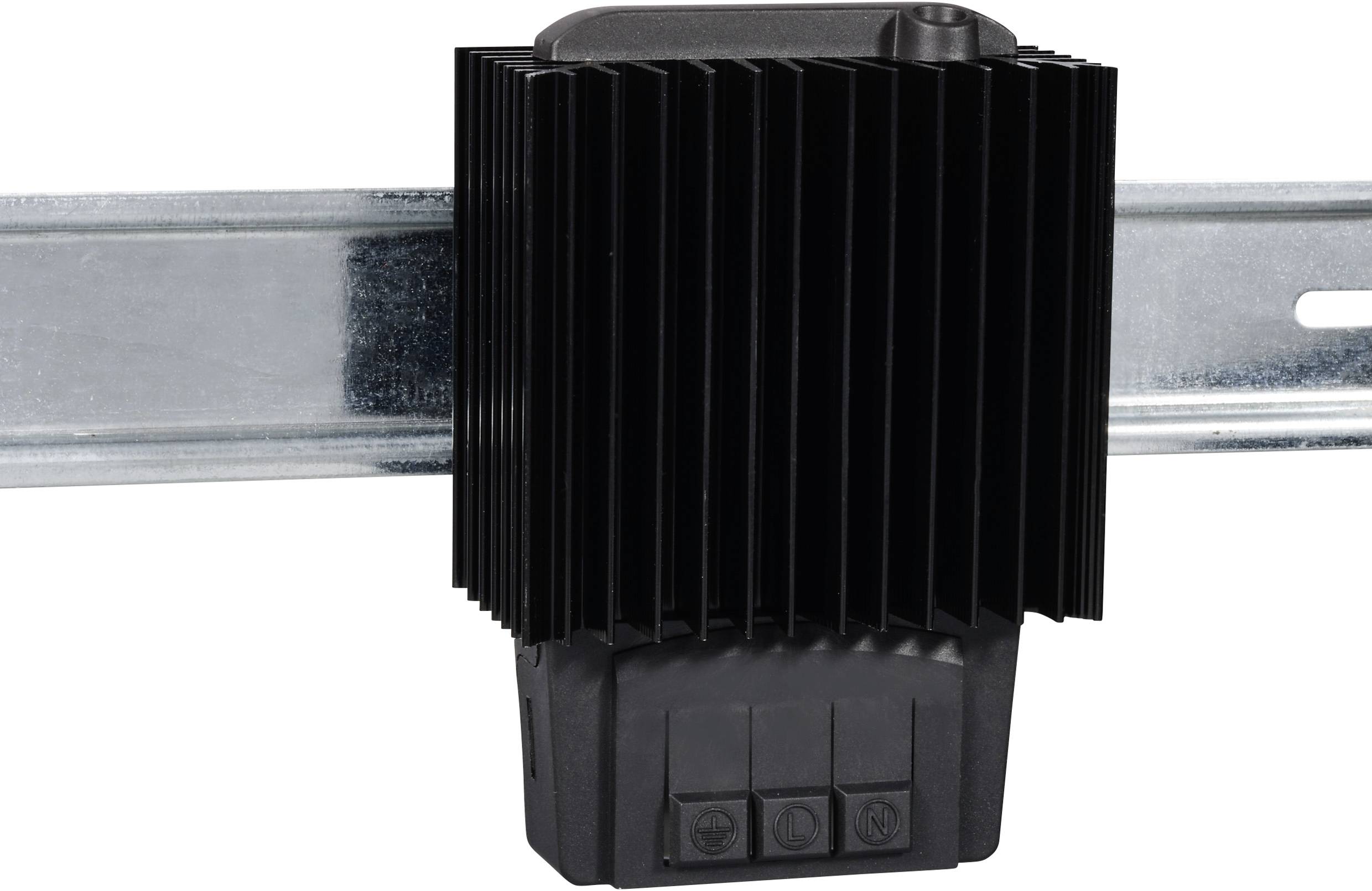

- Mounting clip for 35 mm DIN-rail, EN 60715
- Mounting position: Vertical air flow (top air outlet, bottom connection)
- Operating/storage temperature: -45 to +70℃ (-49 to +158℉)
- Humidity during operation/storage: Max. 90% RH (non-condensing)
- Protection class/protection IP20/ I (grounded)
