Buy TRU COMPONENTS TC-NTL200-50W 24VDC Enclosure heating 24 V DC (max) 50 W (L x W x H) 143 x 83.5 x 34.09 mm 1 pc(s)

A black radiator with vertical fins; compact rectangular shape, mounting holes at the corners, connections at the bottom.

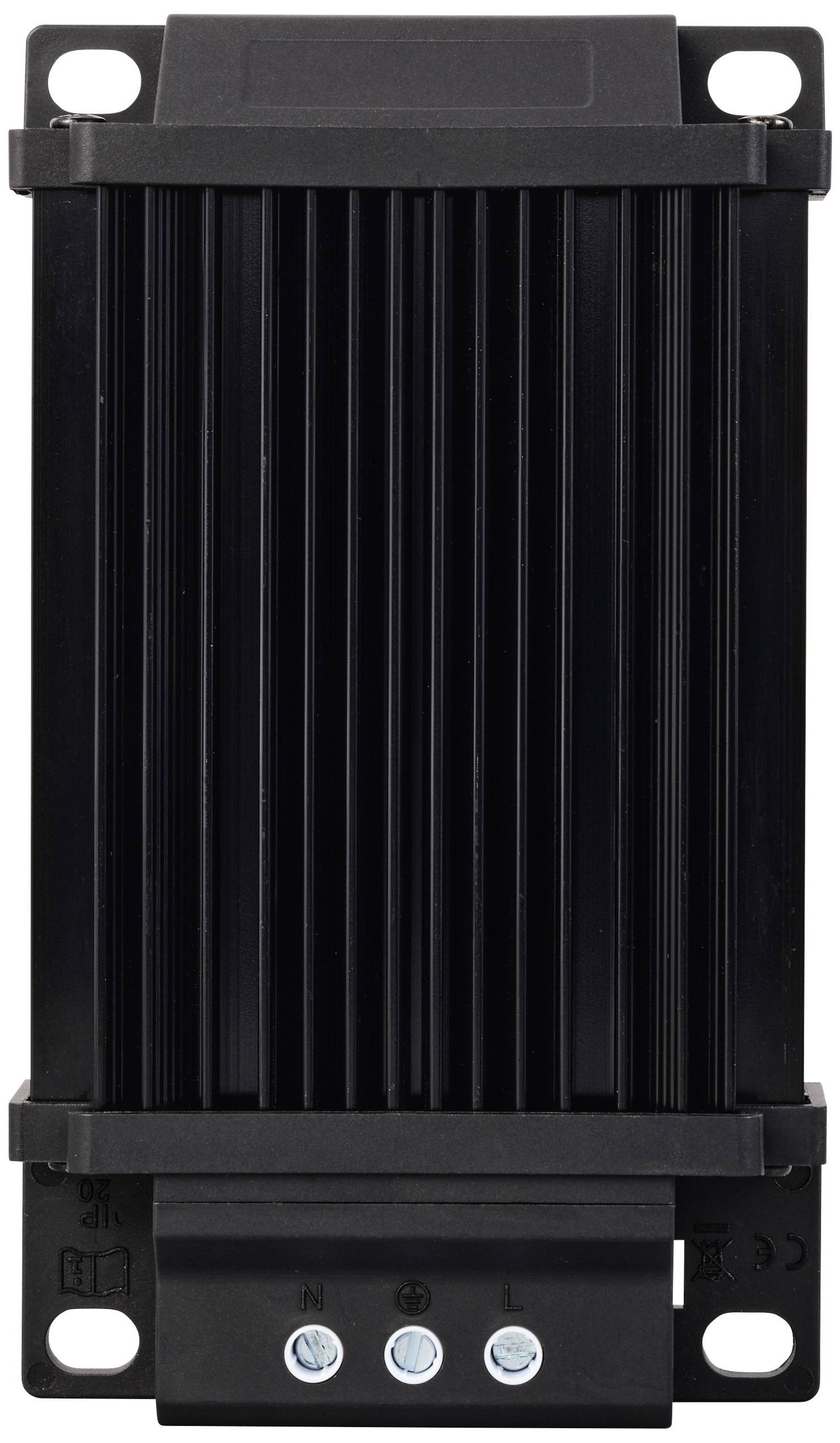

Black electronic device with heat sinks and three terminal connectors at the bottom, used for controlling or powering electrical systems.

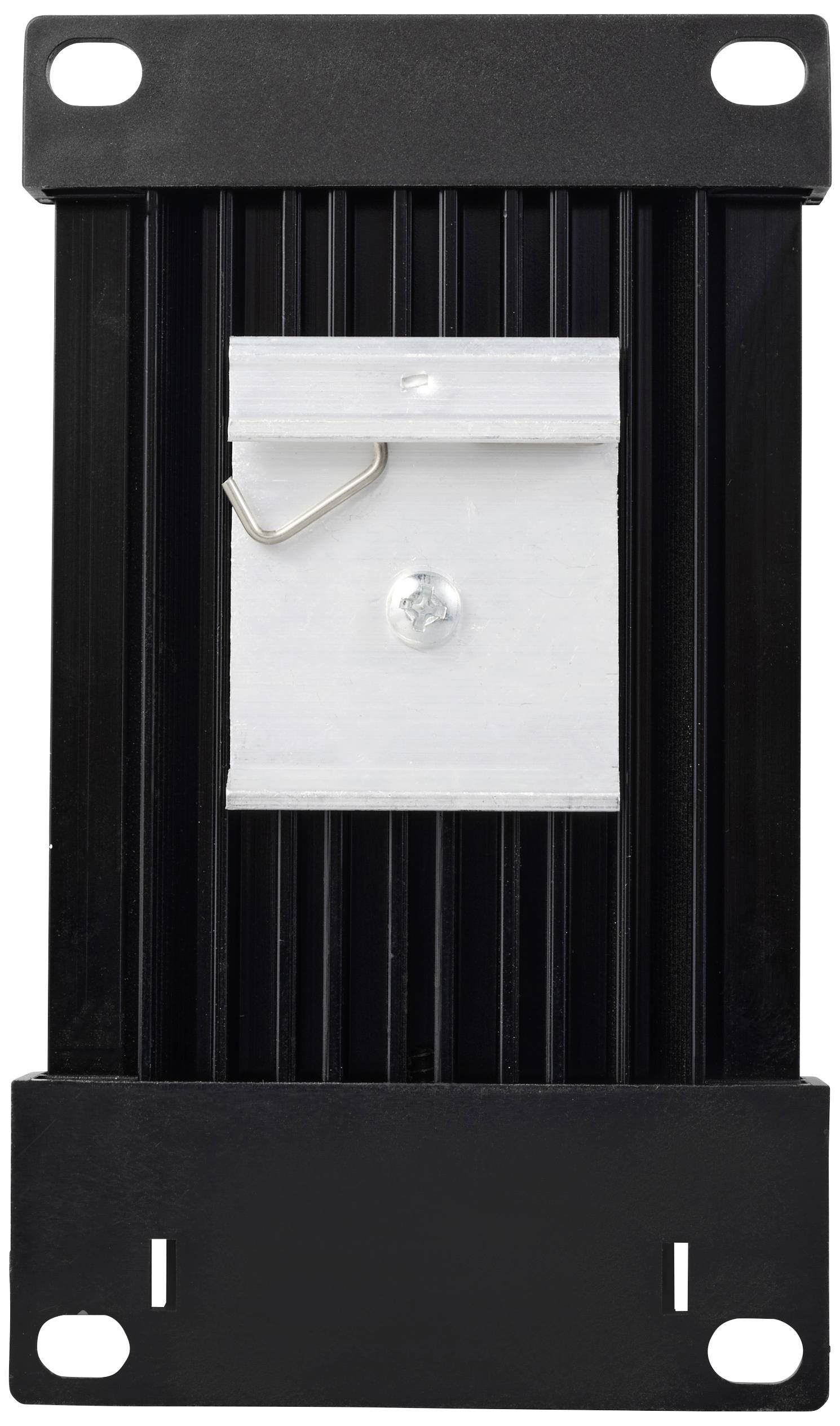

Black, rectangular electronic component with vertical fins and a silver metal plate in the centre.

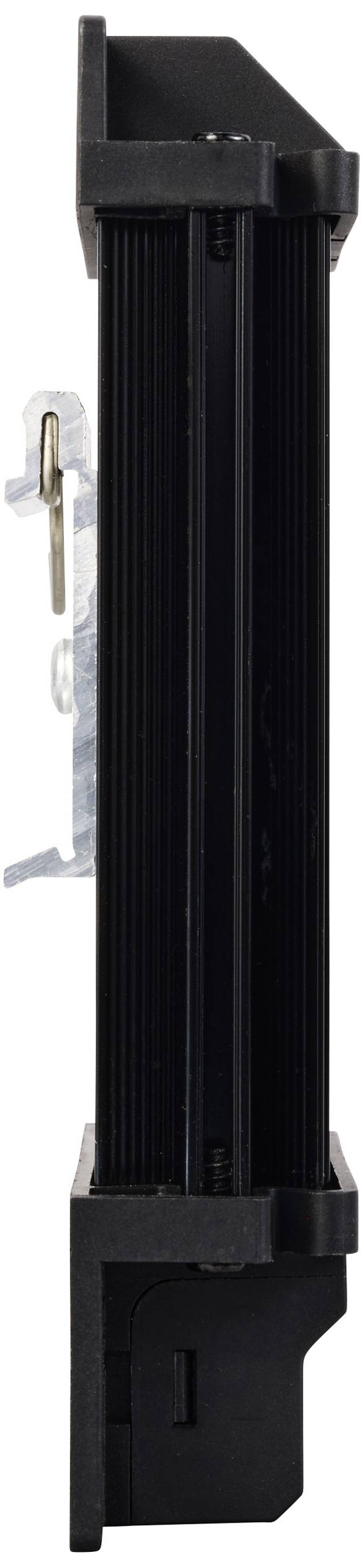

Black, vertical electronic component with metal mounting bracket attached to the side.

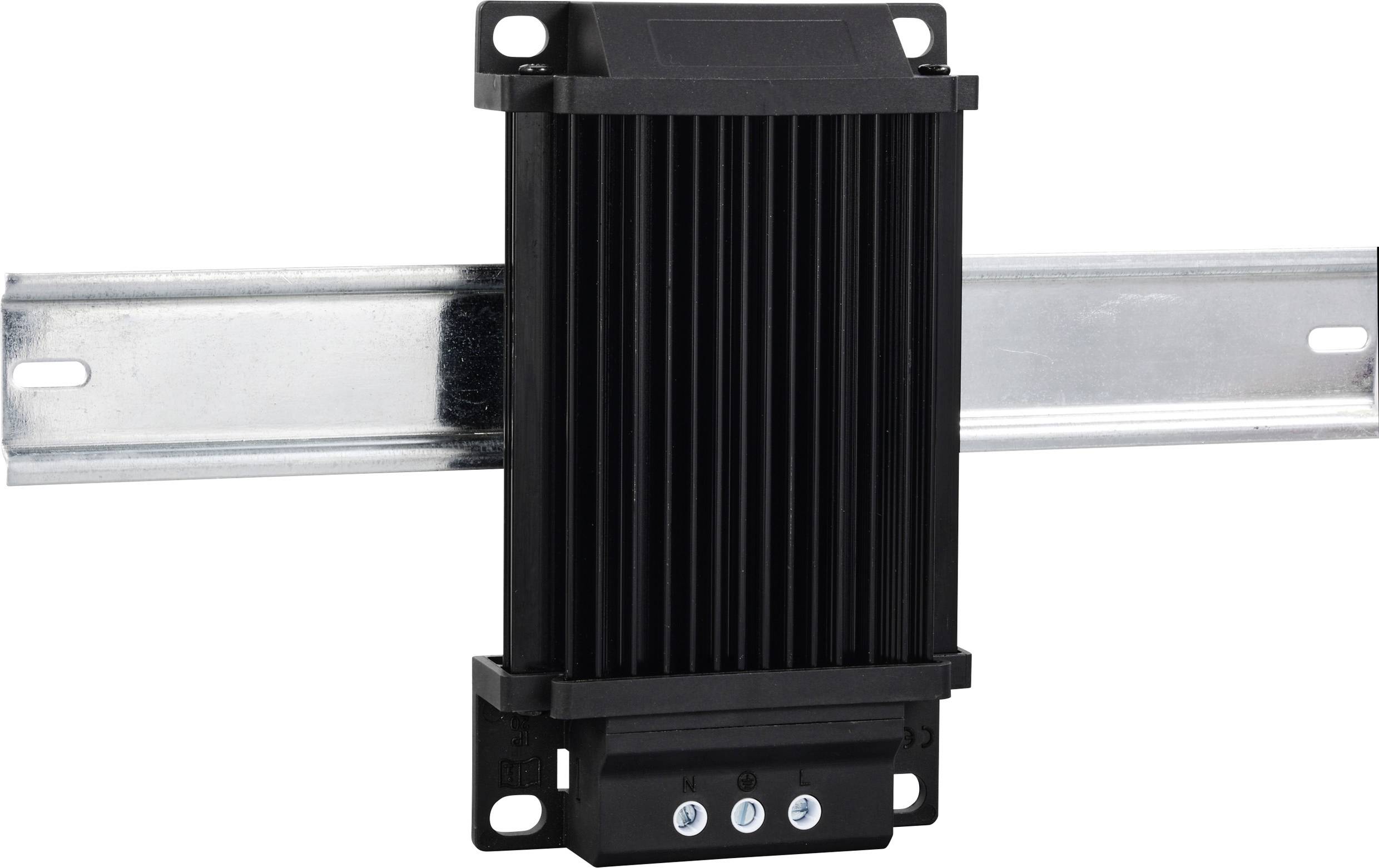

A black, ribbed housing is mounted on a metal rod. No additional details or functions are discernible.

1/5

Product type

Enclosure heating

Max. operating voltage

24 V DC

Type

TC-NTL200-50W 24VDC

Operating voltage

24 V DC (max)

Power

50 W

Fast track dispatch on Mon, 14 Sep

190 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 12.60 / piece)

€ 12.60

plus VAT.

Report legal concerns

Highlights & Details

Switch cabinet heater 50 W, 24 V DC

Operating voltage: 24 V DC
Power: 50 W
Mounting type: DIN rail / Screw fixing
PTC heater

Our service for you

Technical specifications

Product type: Enclosure heating

Type: TC-NTL200-50W 24VDC

Max. operating voltage: 24 V DC

Operating voltage: 24 V DC (max)

: 50 W

Mounting type: DIN rail
Screw fastening

Length: 143 mm

Width: 83.5 mm

Height: 34.09 mm

Dim: (L x W x H) 143 x 83.5 x 34.09 mm

Plastic free packaging: Plastic-free packaging

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3192510 TRU COMPONENTS TC-NTL200-50W 24VDC Enclosure heating 24 V DC (max) 50 W (L x W x H) 143 x 83.5 x 34.09 mm 1 pc(s)

Description

These heaters are used in housings where damage from condensation must be avoided or where the temperature must not fall below a minimum value. The design of the radiator made of aluminum profiles has a chimney effect and distributes the heat evenly. The heating elements are designed for continuous operation. Pressure-clamp connectors save time and simplify the installation.

This text is machine translated.

Features

Heating element: PTC resistor - temperature limit
Radiator: Extruded aluminum profile, anodized
Connection: Screw terminal connection, for stranded wire 0.5-1.5mm² (with wire-end sleeve) and rigid wire 0.5-2.5mm²
Plastic according to UL94 V-0 connection case, black
Mounting: Clip for 35 mm DIN-rail and screw fixing
Mounting position: Vertical air flow (top air outlet, bottom connection)
Operating/storage temperature: -45 to +70℃ (-49 to +158℉)
Humidity during operation/storage: Max. 90% RH (non-condensing)
Protection class/protection IP20/ I (grounded)
