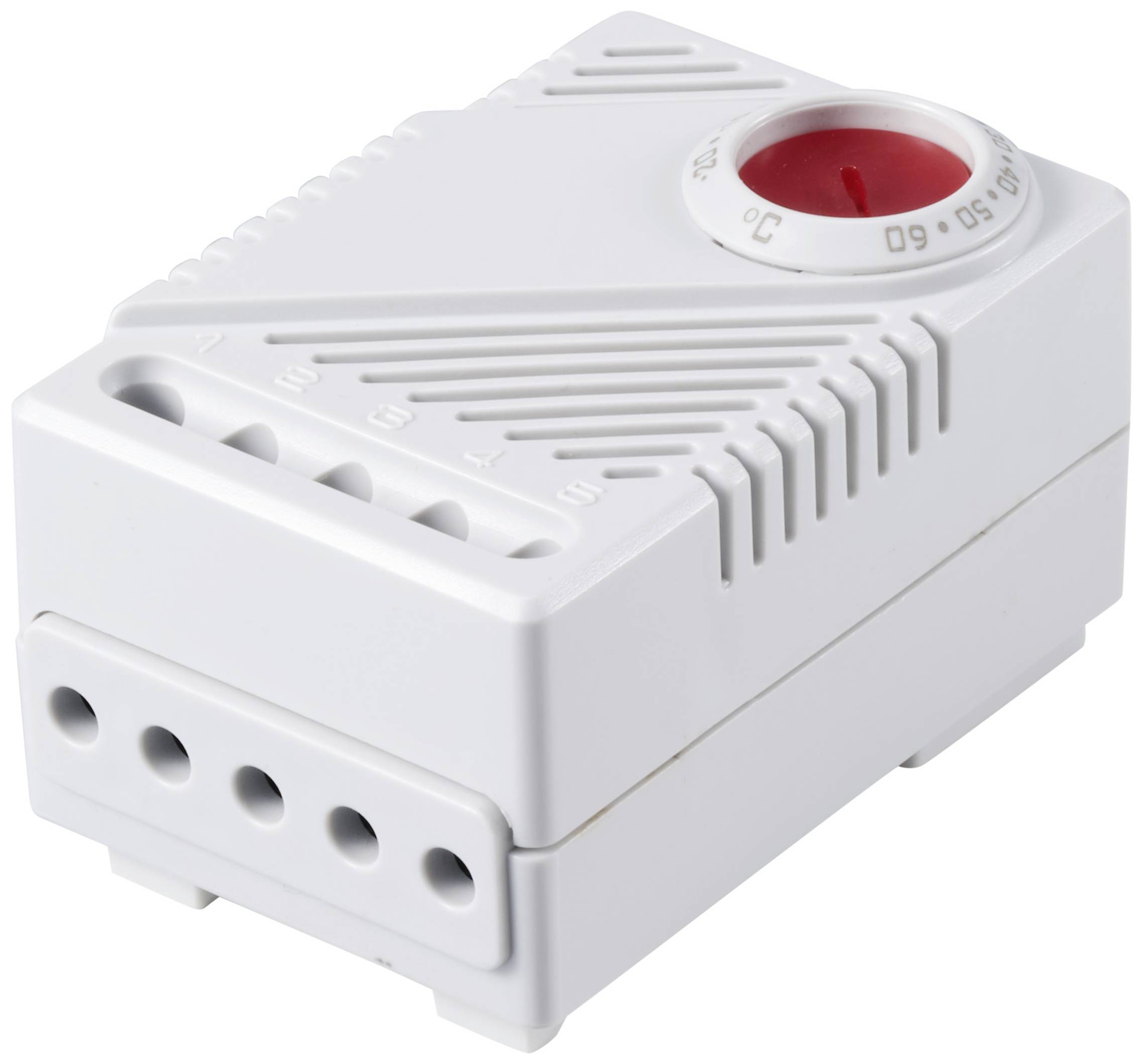

TRU COMPONENTS Enclosure thermostat TC-NTL76-M01 (L x W x H) 64.5 x 42.5 x 38 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure thermostat
Type
TC-NTL76-M01
Adjustment range (max.) (moisture)
90 RH
Operating temperature (min.)
-40 °C
Operating temperature (max.)
85 °C
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 19.32
3
5% = € 0.96
€ 18.36
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 19.32 / piece)
€ 19.32
plus VAT.
14-day return policy included
Highlights & Details
TRU COMPONENTS TC-NTL76-M01 switching cabinet heater thermostat
- Small hysteresis
- Status indicator (LED)
- Changeover contact
- Clip switch
Our service for you
Technical specifications
- Temperature difference between switches: 4K (± 1K tolerance) at +20°C (+68°F)¹
- Sensor element NTC
- Reaction time: Approx. 5 sec.
- Contact type: Changeover contact (relays)
- Lifetime: > 50,000 cycles
- Max. Switching capacity (relay output): 240VAC / 120VAC, 8 (1.6) A.
- Max. Switch-on current: AC 16A for 10 sec.
- Optical LED display

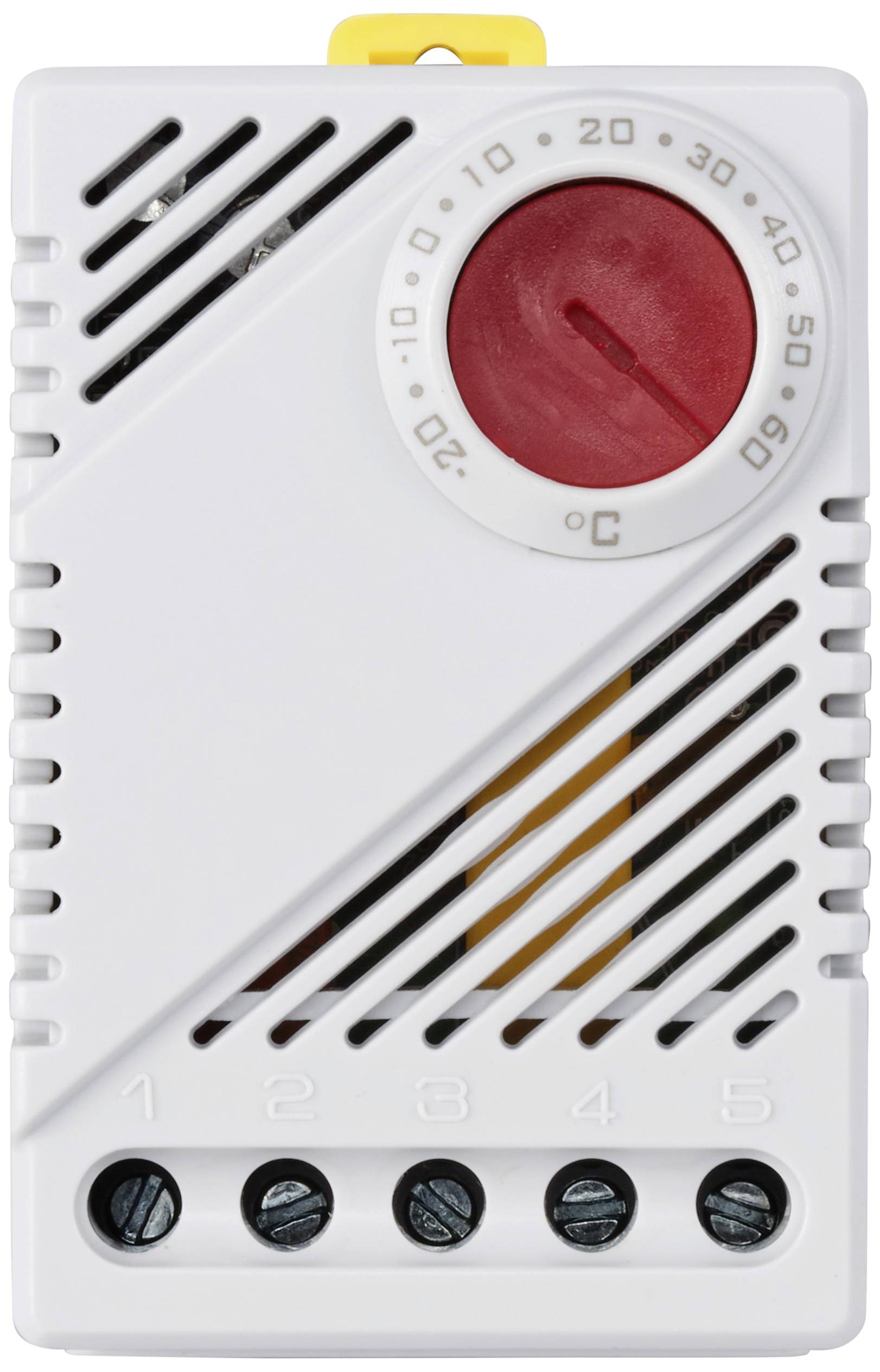

- Connection: 5-pole terminal, tightening torque max. 0.5Nm: Rigid wire/wire 2.5mm² (AWG 14)

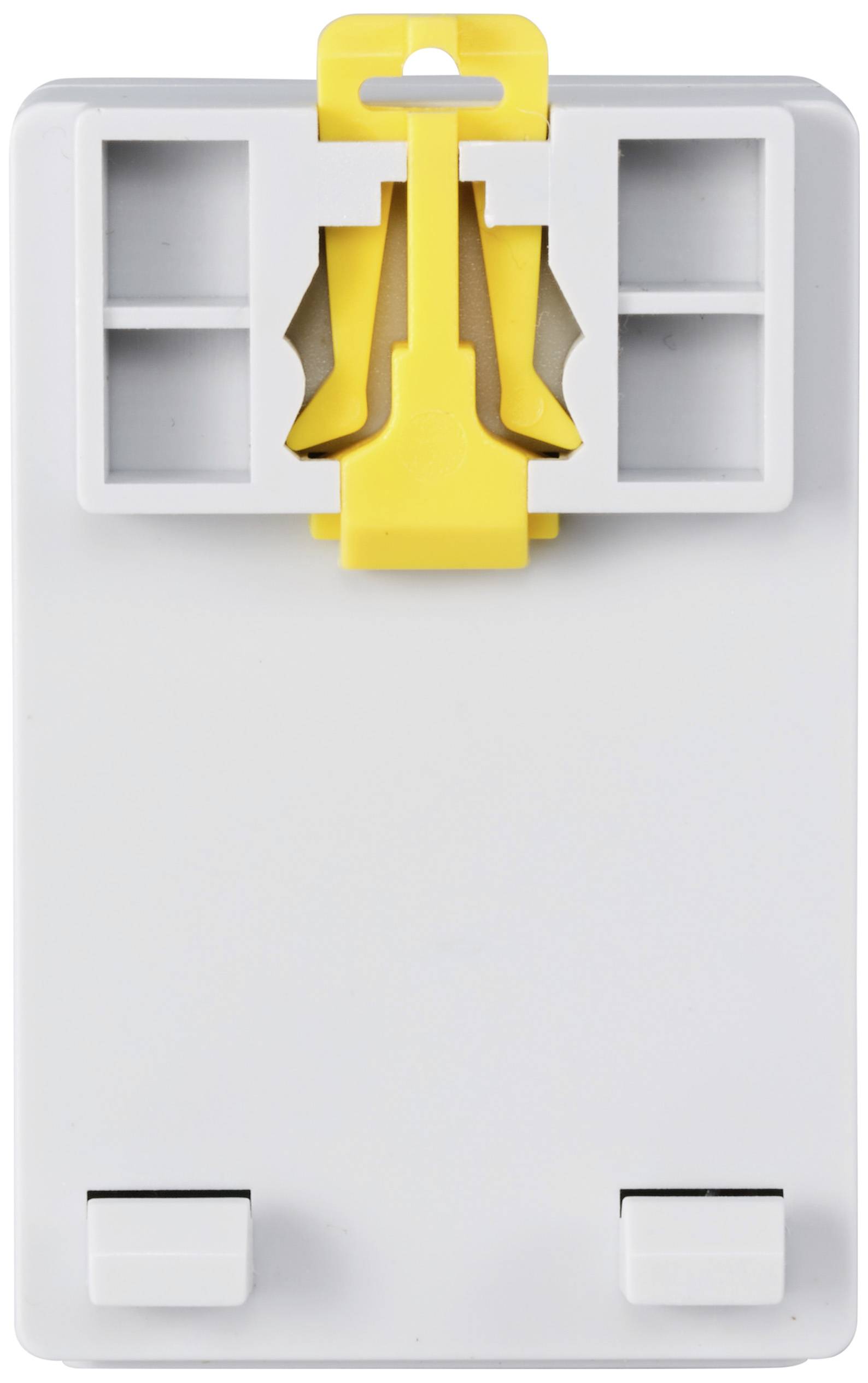

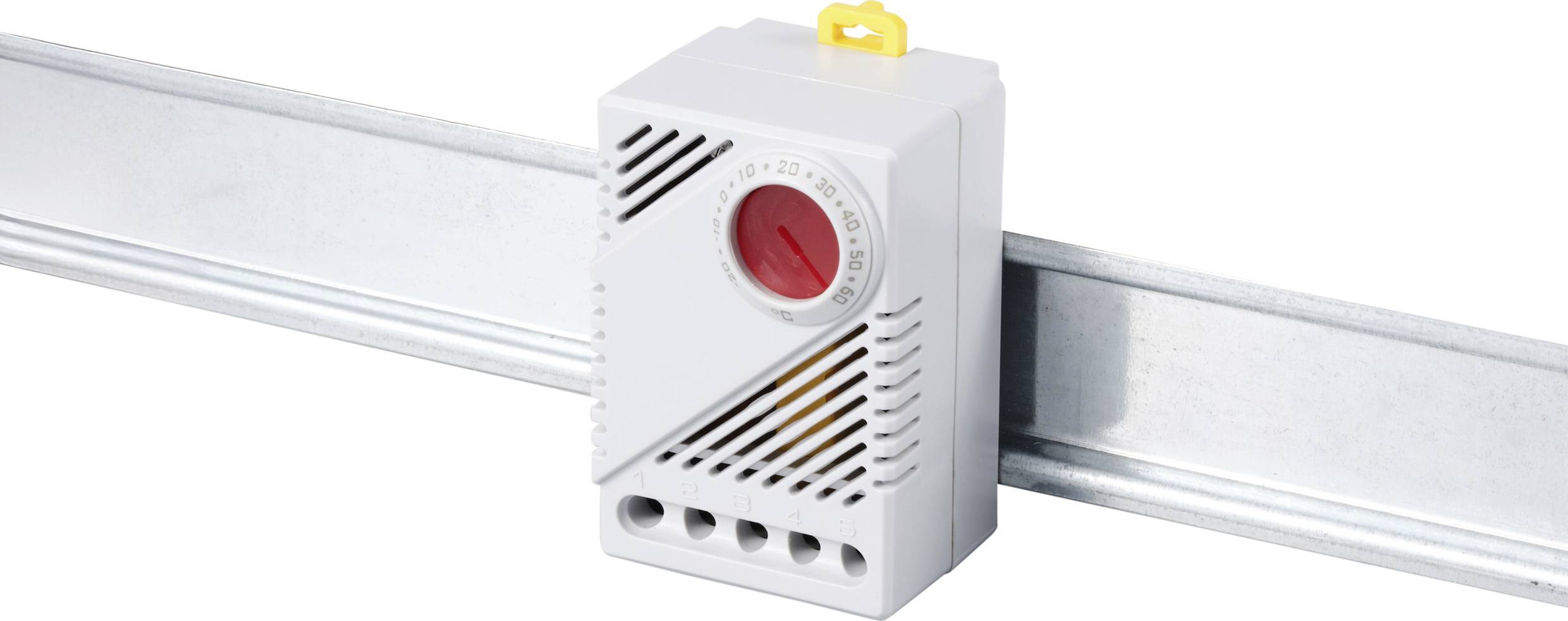

- Attachment: Clip for 35 mm DIN-rail, EN 60715
- Housing: Plastic according to UL 94V-0, light gray
- Dimensions 64.5 x 42.5 x 38 mm
- Weight approx. 70g
- Installation position: Variable
- Operating/storage temperature -40 to +85°C (-40 to +185°F)
- Humidity during operation/storage: Max. 90% RH (non-condensing)
- Product type
Enclosure thermostat
- Type
TC-NTL76-M01
- Adjustment range (max.) (moisture)
90 RH
- Operating temperature (min.)
-40 °C
- Operating temperature (max.)
85 °C
- Length
64.5 mm
- Width
42.5 mm
- Height
38 mm
- Dim
(L x W x H) 64.5 x 42.5 x 38 mm
IP20
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3192517 TRU COMPONENTS Enclosure thermostat TC-NTL76-M01 (L x W x H) 64.5 x 42.5 x 38 mm 1 pc(s)
Description
The electronic thermostat is used to control heating and cooling devices, filter fans or signal devices. The thermostat detects the ambient air and can switch inductive as well as ohmic loads using a relay with changeover contact. The LED integrated in the adjustment knob lights up when the opener is closed. (E.g. when a connected heater is in operation).
