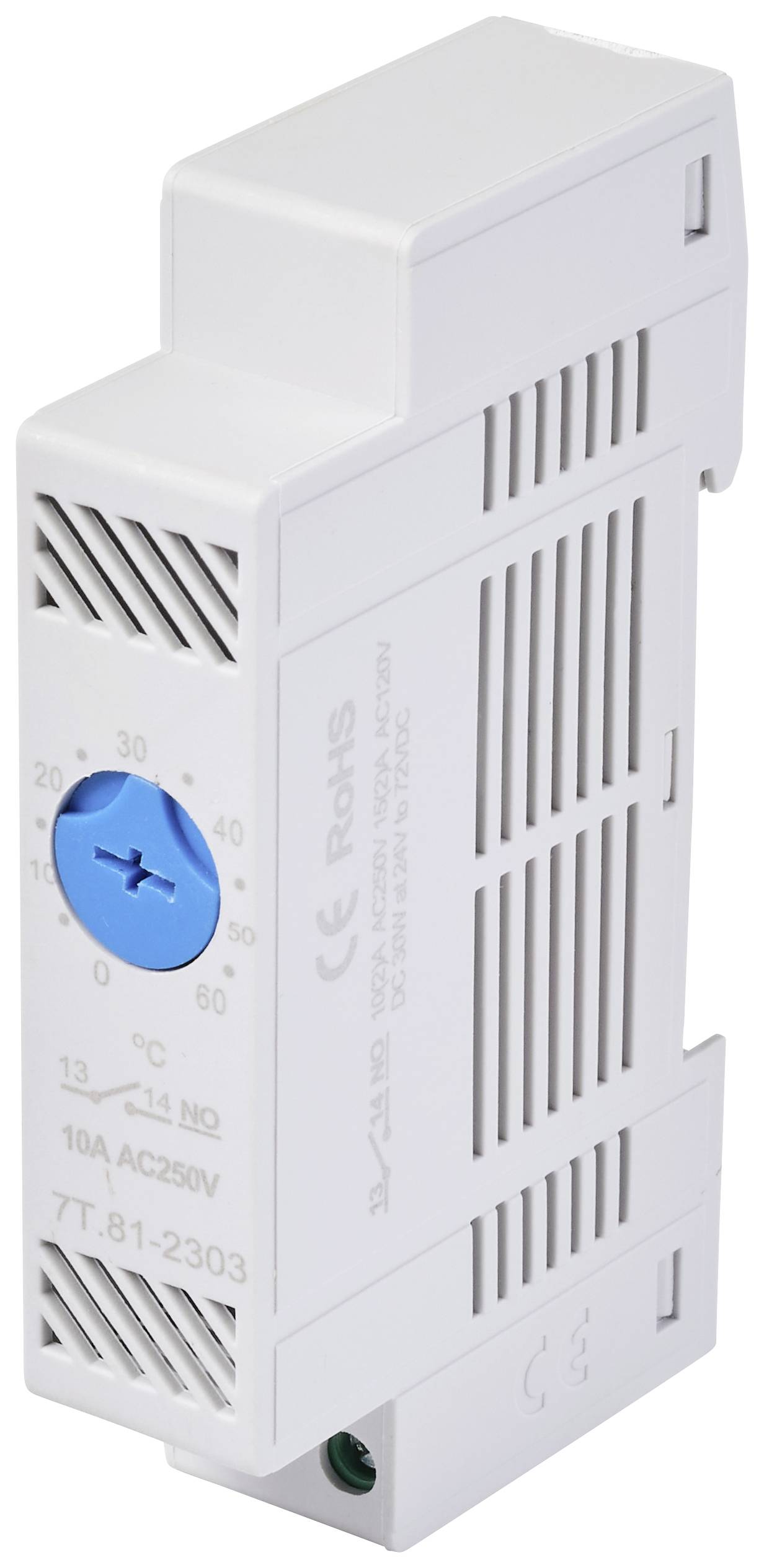

TRU COMPONENTS Thermostat TC-7T.81-230NO 1 maker (L x W x H) 88.8 x 47.8 x 17.5 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Thermostat
Connection
Screw terminal
Contact type
1 maker
Switching voltage (max.)
240 V AC
Switching current (max.)
10 A
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 12.60
3
6% = € 0.70
€ 11.90
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 12.60 / piece)
€ 12.60
plus VAT.
14-day return policy included
Technical specifications
- Product type
Thermostat
- Type
TC-7T.81-230NO
- Connection
Screw terminal
- Adjustment range (min.) (temperature)
0 °C
- Temperature adjustment range (max.)
60 °C
- Mounting type
DIN rail
- Contact type
1 maker
- Switching voltage (max.)
240 V AC
- Switching current (max.)
10 A
- Operating temperature (min.)
-45 °C
- Operating temperature (max.)
80 °C
- Length
88.8 mm
- Width
47.8 mm
- Height
17.5 mm
- Dim
(L x W x H) 88.8 x 47.8 x 17.5 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2632502 TRU COMPONENTS Thermostat TC-7T.81-230NO 1 maker (L x W x H) 88.8 x 47.8 x 17.5 mm 1 pc(s)
Description
Control cabinet thermostat has an adjustable range from 0 °C to +60 °C. The switching voltage is max. 250 V/AC.
