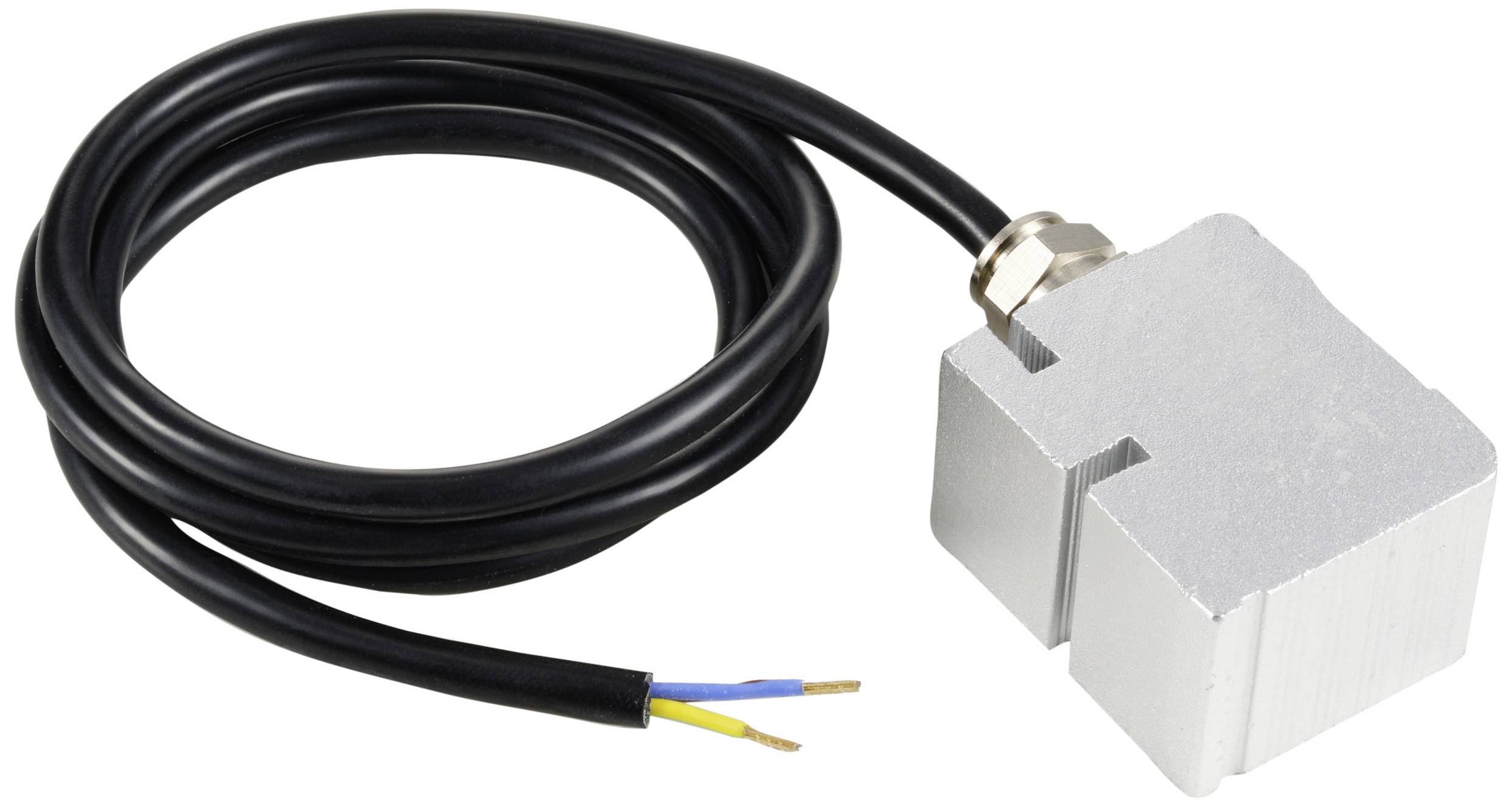

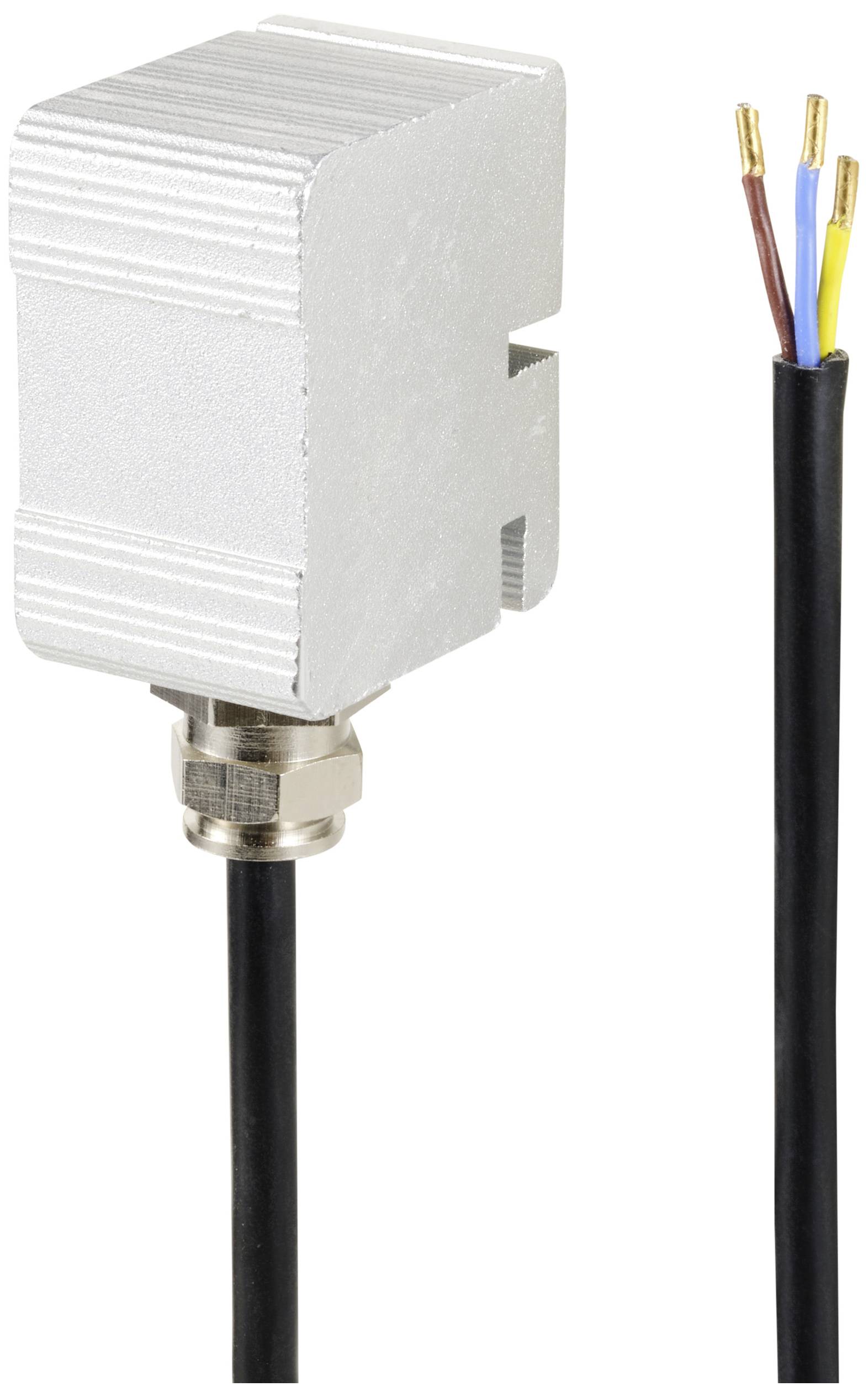

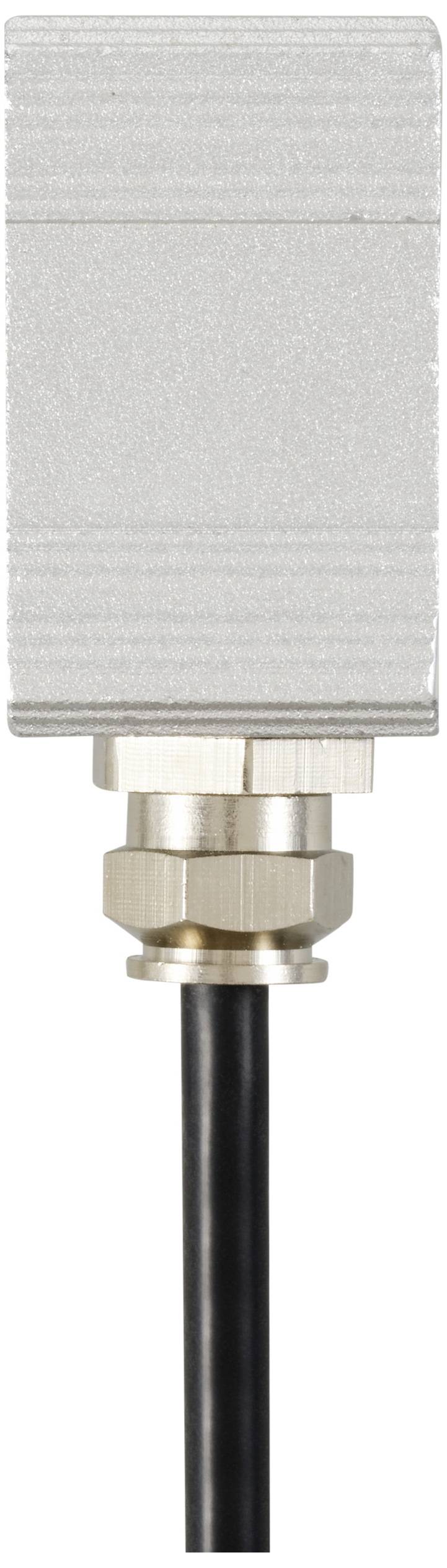

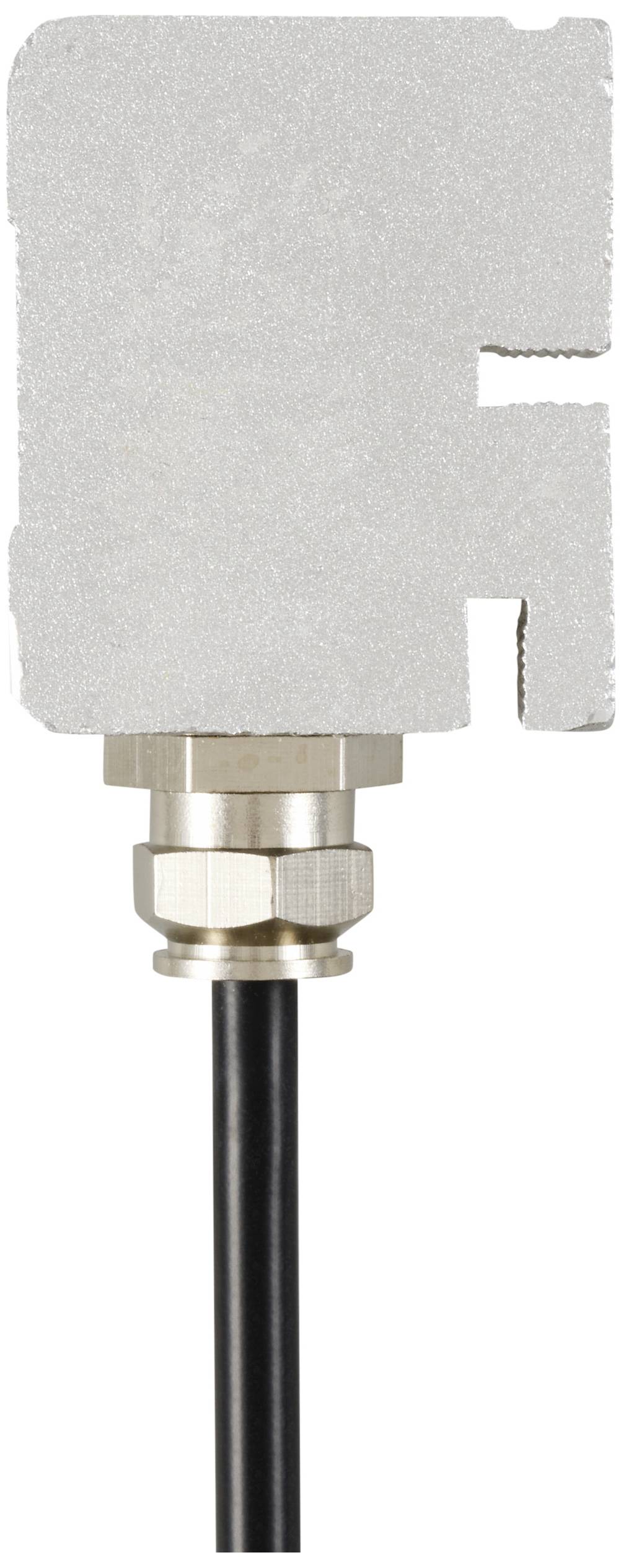

TRU COMPONENTS Enclosure thermostat TC-NTL-ExT6 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure thermostat
Switching voltage (max.)
250 V AC
Type
TC-NTL-ExT6
Mounting type
DIN rail
Operating temperature (min.)
0 °C
Number
Total (€ 52.09 / piece)
€ 52.09
plus VAT.
14-day return policy included
Highlights & Details
TRU COMPONENTS TC-NTL-ExT6
- Compact dimensions
- Set temperature
- High switching power
Our service for you
Technical specifications
- Switching temperature: 15 °C
- Temperature difference between switches: 4K (±1K tolerance)
- Sensor element: Thermostatic bimeta
- Contact type (1-pin): Opens when the temperature increases
- Lifetime: > 100 000 cycles
- Max. Switching capacity 250VAC, 1.3 (0.65) A.
- Max. Switch-on current: AC 4A for 12 sec.
- Connection: Si HF - JZ 3×0.5mm², length 1m
- Mounting: Mounting bracket with nut M8 (see figure)
- Housing: Aluminium, black anodized
- Dimensions: Length 110mm
- Weight: approx 0.2kg
- Installation position: Variable
- Storage temperature: -45 to +70°C (-49 to +158°F)
- Humidity during operation/storage: Max. 90% RH (non-condensing)
- Protection class/protection class IP65/I (grounded)
- Product type
Enclosure thermostat
- Type
TC-NTL-ExT6
- Mounting type
DIN rail
- Switching voltage (max.)
250 V AC
- Operating temperature (min.)
0 °C
- Operating temperature (max.)
60 °C
IP65
- Plastic free packaging
Plastic-free packaging
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3192521 TRU COMPONENTS Enclosure thermostat TC-NTL-ExT6 1 pc(s)
Description
Compact mechanical mini thermostat for temperature control and monitoring of heating, e.g. in control cabinets, control panels and measuring devices, which are used in hazardous areas. The special switch design enables a high response accuracy, small switching temperature difference and a very long service life. The high switching capacity enables direct control of the heaters.
