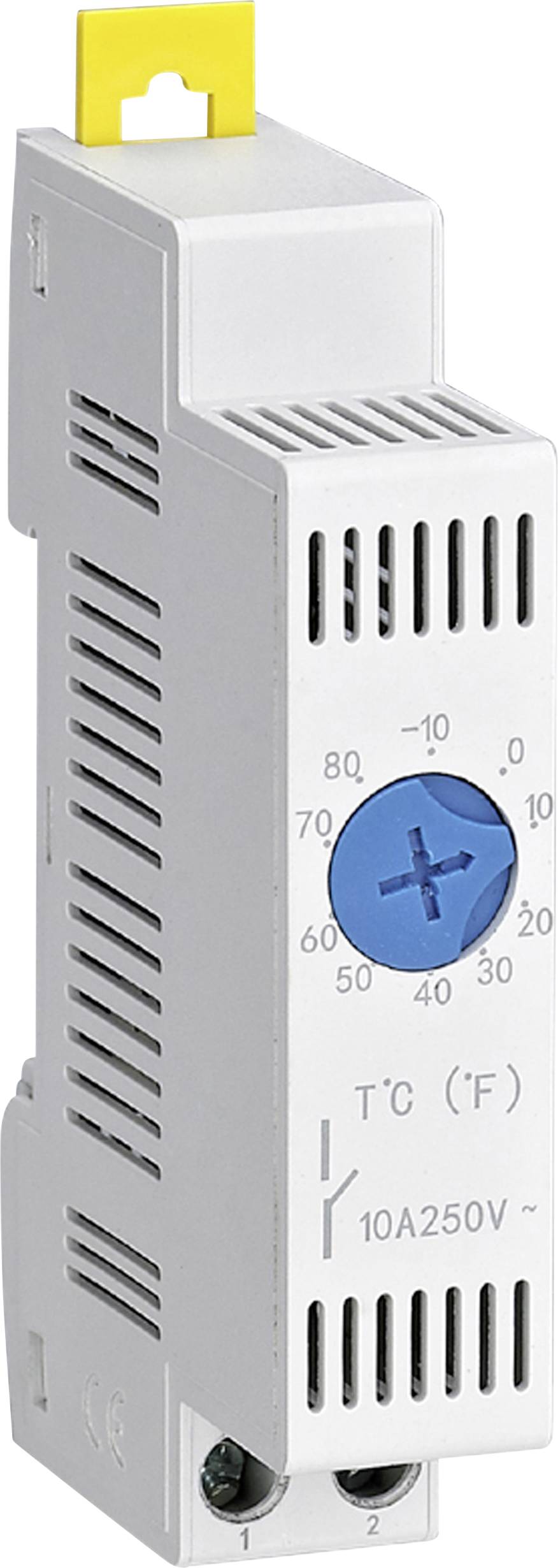

TRU COMPONENTS Enclosure thermostat TC-NTL42-F01-NO 1 maker (L x W x H) 83 x 48 x 17 mm 1 pc(s)
EAN:
Part number:
Item no:
Product type
Enclosure thermostat
Connection
Screw terminal
Contact type
1 maker
Type
TC-NTL42-F01-NO
Adjustment range (min.) (temperature)
-10 °C
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 5.45
5
6% = € 0.32
€ 5.13
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 5.45 / piece)
€ 5.45
plus VAT.
14-day return policy included
Highlights & Details

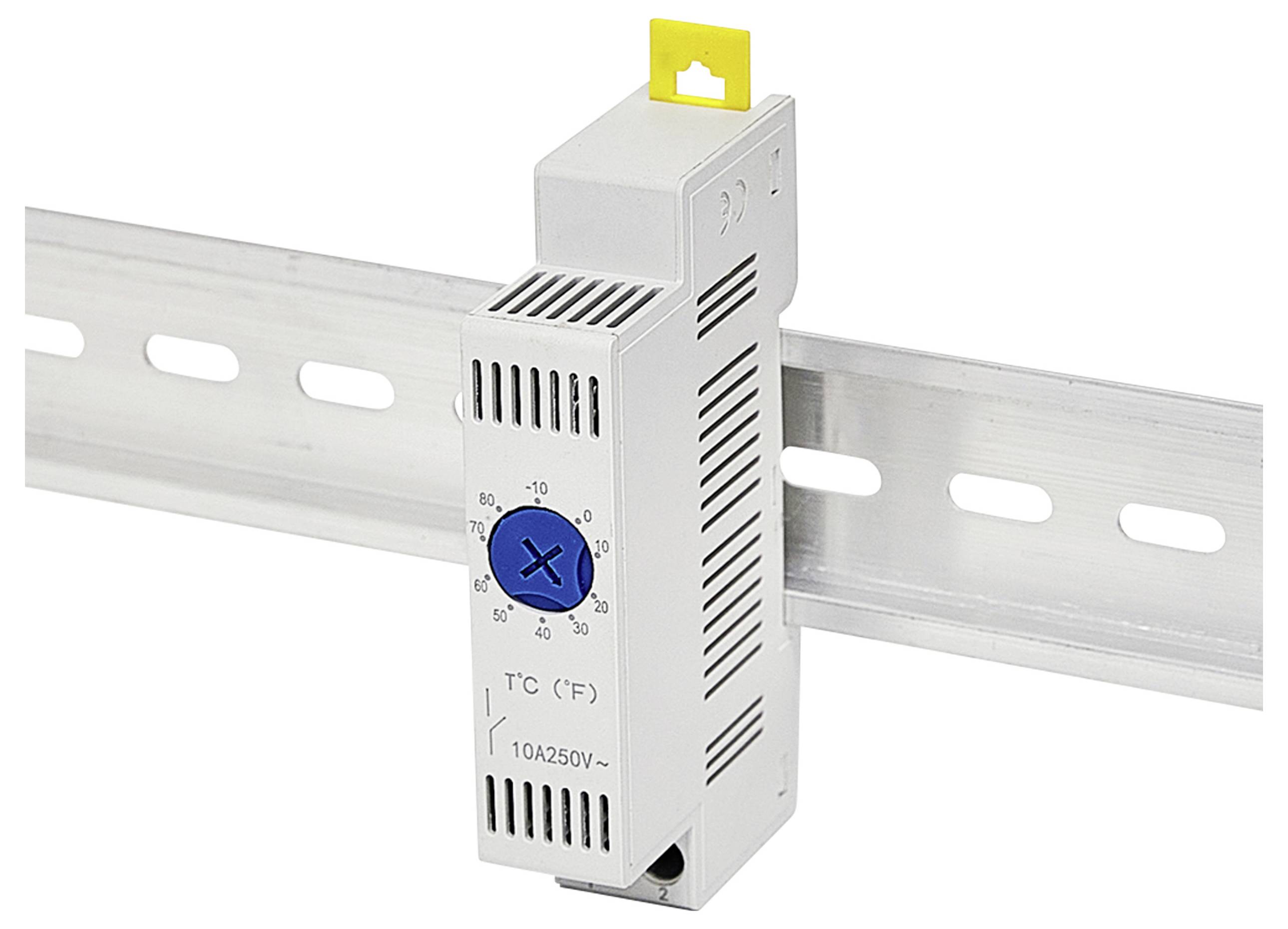

Temperature controller (mechanical) NO cooling, DIN rail mounting, -10 to +80 °C
- Temperature range: -10 to 80 °C
- Contact: 1NO
Our service for you
Technical specifications
- Switch temperature difference: +/- 5 °C
- Sensor element: Thermostatic bimetal
- Contact type: Snap-action contact
- Max. switching capacity: 120 - 250 VAC, 10 A / DC 30 W at 24 VDC - 72 VDC
- Max. inrush current: AC 16 A for 10 sec.
- Connection: 2-pole terminal, clamping torque 0.5 Nm Max.
- Wire: Rigid wire 2.5 mm² (AWG 14), Stranded wire 1.5 mm² (AWG 16)

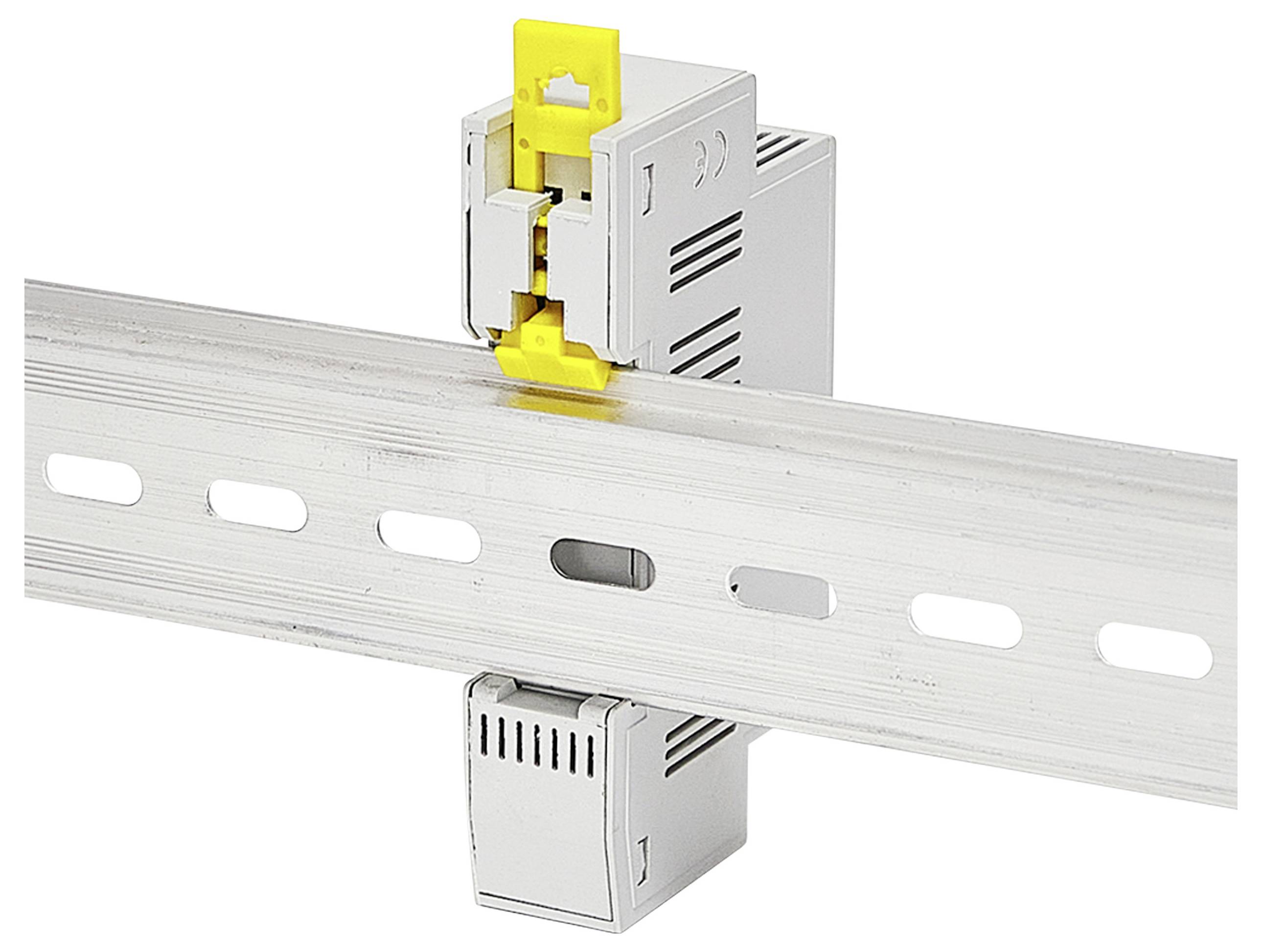

- Mounting Clip for 35 mm DIN rail, EN 60715
- Casing: Plastic according to UL94 V-0, light grey
- Operating / Storage temperature range: -45 - 80 °C
- Operating / Storage humidity: Max. 90% RH (non-condensing)
- Product type
Enclosure thermostat
- Type
TC-NTL42-F01-NO
- Connection
Screw terminal
- Adjustment range (min.) (temperature)
-10 °C
- Temperature adjustment range (max.)
+80 °C
- Sensor type
Bi-metallic
- Mounting type
DIN rail
- Contact type
1 maker
- Operating temperature (min.)
-45 °C
- Operating temperature (max.)
+80 °C
- Length
83 mm
- Width
48 mm
- Height
17 mm
- Dim
(L x W x H) 83 x 48 x 17 mm
IP20
- Plastic free packaging
Plastic-free packaging
