Name: Elmeko PK 75.2 + AG, 24 V DC, 75 W Cooler 24 V DC 87 W (W x H x D) 207 x 157 x 360 mm 1 pc(s)
Brand: Elmeko
SKU: 3849499
Availability: BackOrder

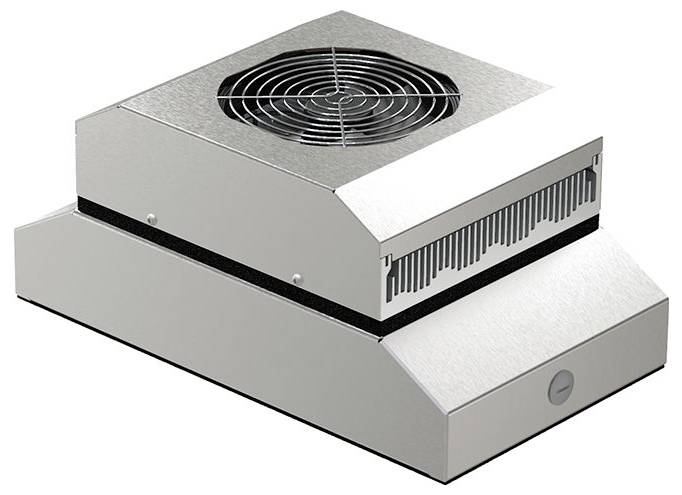

Silver metal electronic cooling unit with top fan grille and vented side panel, shown on a plain white background.

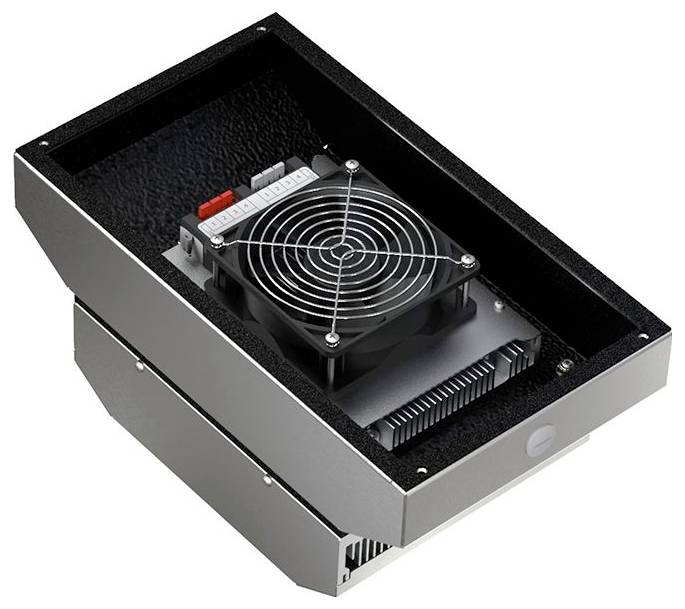

Open metal electronics enclosure containing a fan-cooled power module with wiring terminals and heatsink.

1/2

Product type

Cooler

Operating voltage

24 V DC

Power

87 W

Noise emission (max.)

58 dB

Width

207 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,185.00 / piece)

€ 1,185.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

ELMEKO PELTIER COOLER PK 75.2 + AG, 24 V DC, 75 W

Thermoelectric cooling without refrigerant
Suitable for mobile applications
Cooling and heating operation possible in connection with optional controller
Durable stainless steel design, Ideal for outdoor applications
High protection class for safe continuous operation in adverse ambient conditions
Robust outer heatsink with matched rib structure for good flow through and low contamination sensitivity
Compact design allows installation in almost any position
Recommended solutions for condensate drainage and pressure compensation are available as accessories

Our service for you

Technical specifications

Design: Cooling and heating, surface mounting housing
Housing material: Stainless steel V2A (1.4301)
Heatsink material EN AW-6060 aluminum
Sound pressure level 58 dB(A) @1m
Service life 60,000 h
Current consumption: 3.6 A
Starting current 5.5 A
Fuse 6 A (T)
Connection (rigid and flexible conductors): Push-in (0.5 - 2.5 mm²)
Connection (with wire-end sleeves): Push-in (0.5 - 1.5 mm²)
EFFECTIVE COOLING CAPACITY L35/L35: 75 W
100 W heating power
Internal loop air volume flow: 110 m³/h.
Air volume flow external circuit: 195 m³/h.
Operating temperature -40 °C - +70 °C
Storage temperature: -40 °C to +75 °C.

Product type: Cooler

Type: PK 75.2 + AG, 24 V DC, 75 W

Operating voltage: 24 V DC

Min. operating voltage: 18 V DC

Max. operating voltage: 26 V DC

Operating voltage: 18 - 26 V DC

: 87 W

Noise emission (max.): 58 dB

Air flow rate: 195 m³/h

Factory colour: Stainless steel

Min. temperature: -40 °C

Max. temperature: 70 °C

: IP65

Connection: Push-in connector

Width: 207 mm

Height: 157 mm

Depth: 360 mm

Dim: (W x H x D) 207 x 157 x 360 mm

Weight: 7 kg

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3849499 Elmeko PK 75.2 + AG, 24 V DC, 75 W Cooler 24 V DC 87 W (W x H x D) 207 x 157 x 360 mm 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3849499 Elmeko PK 75.2 + AG, 24 V DC, 75 W Cooler 24 V DC 87 W (W x H x D) 207 x 157 x 360 mm 1 pc(s)

Description

The proven PK series is available with cooling powers from 30 to 280 W – designed for air-conditioning of switch cabinets and casings for many applications. Most PK series devices are UL approved.
