Name: Enda SSR EPAA1-225Z 25 A Switching voltage (max.): 320 V AC Zero crossing 1 pc(s)
Brand: Enda
SKU: 3527732
Availability: InStock

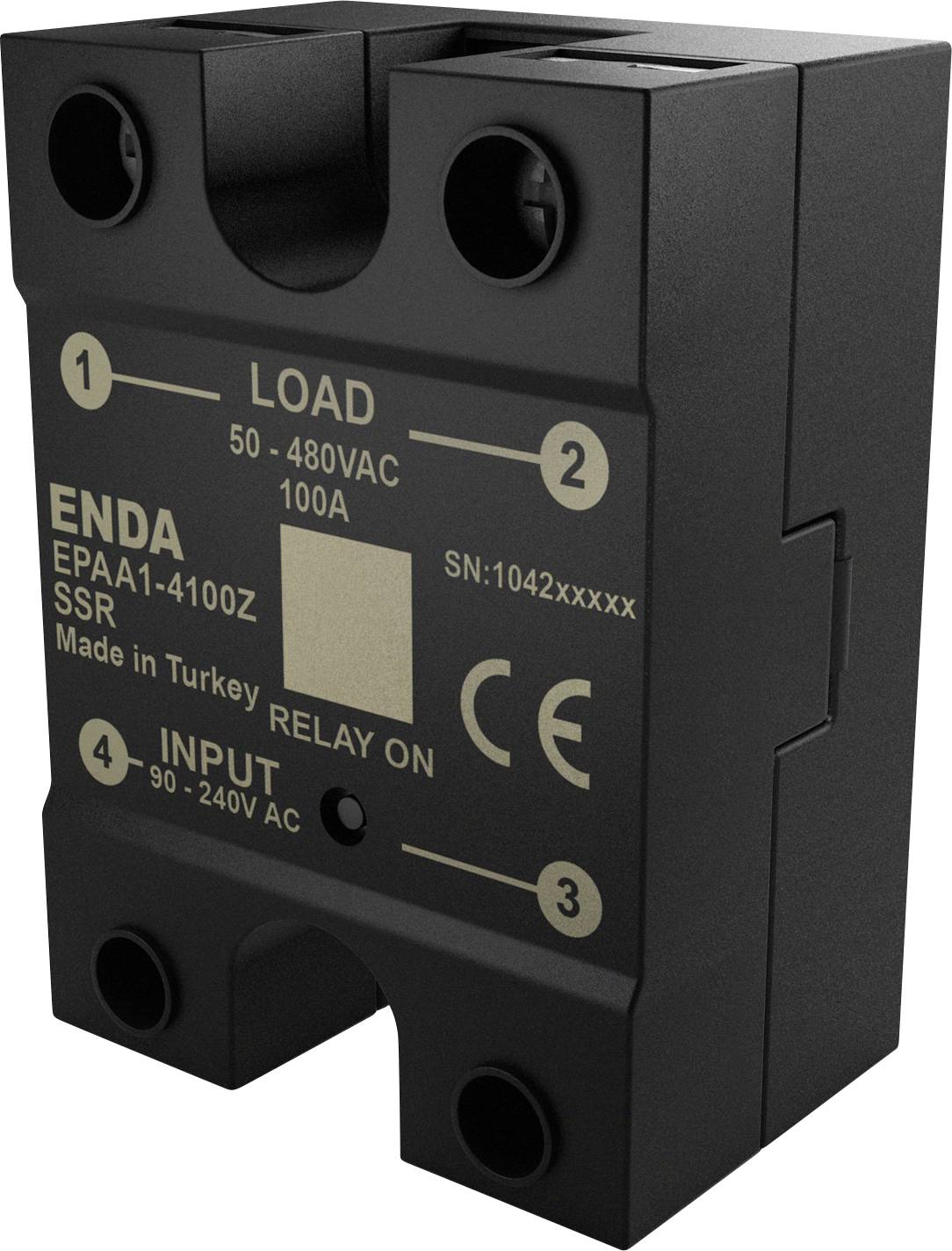

Solid state relay labeled 'ENDA EPAA1-4100Z', rated for 50-480VAC, 100A, inputs of 90-240VAC. Black casing, made in Turkey.

Packaging type

Piece

Product type

SSR

Control voltage (min.)

75 V AC

Control voltage (max.)

240 V AC

Switching voltage (max.)

320 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 26.99 / piece)

€ 26.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Enda SSR EPAA1-225Z

LED status display for input voltage
Zero-cross or random-cross for AC input voltages.
Applicable for three-phase loads.
Built-in varistor protection.
CE marking according to European standards
This text is machine translated.

Technical specifications

Packaging type: Piece

Product type: SSR

Type: EPAA1-225Z

Switching type: Zero crossing

Connection: Screw terminal

Control voltage (min.): 75 V AC

Control voltage (max.): 240 V AC

Control voltage range: 75 - 240 V AC

Control current (max.): 8 mA

Surge current (max.): 240 A

Switching voltage (min.): 24 V AC

Switching voltage (max.): 320 V AC

Current load (max.): 25 A

Max. switching capacity: 8000 VA

Output voltage (min.): 24 V

Output voltage (max.): 320 V

Max. output current: 25 A

Min. temperature: -20 °C

Max. temperature: 60 °C

: IP20

Width: 45 mm

Height: 62 mm

Depth: 31 mm

Length: 62 mm

Weight: 95 g

Industrial packaging: Yes

Electrical lifespan: Solid state relay (no mechanical contacts), therefore very high.

Permanent current (max.): 25 A

Content: 1 pc(s)

Nominal control voltage: 90 V AC
240 V AC

Documents & Downloads

Datasheet

Datasheet 3527732 Enda SSR EPAA1-225Z 25 A Switching voltage (max.): 320 V AC Zero crossing 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3527732 Enda SSR EPAA1-225Z 25 A Switching voltage (max.): 320 V AC Zero crossing 1 pc(s)

Features

Load voltage (range): 24−320 VAC.
Input voltage (range): 90−240 VAC.
Switch-off voltage (control): 6 Vac.
Switch on time: Max. 1 period.
Switch-off time: Max. 2 periods.
LED indicator: LED lights up when the input voltage is AC/DC 75V.
Mains frequency: 50/-60 Hz.
Built-in protection: Varistor protection.
Insulation voltage 2500 Vrms between I/O connections for 1 min.
Tightening torque: Max. 2.2 Nm for load connection, max. 1.2 Nm for signal lines.
Product standard: EN 60947−4−3.
Applicability: Reference for single-phase and three-phase loads.

Description

Features

Load voltage (range): 24−320 VAC.
Input voltage (range): 90−240 VAC.
Switch-off voltage (control): 6 Vac.
Switch on time: Max. 1 period.
Switch-off time: Max. 2 periods.
LED indicator: LED lights up when the input voltage is AC/DC 75V.
Mains frequency: 50/-60 Hz.
Built-in protection: Varistor protection.
Insulation voltage 2500 Vrms between I/O connections for 1 min.
Tightening torque: Max. 2.2 Nm for load connection, max. 1.2 Nm for signal lines.
Product standard: EN 60947−4−3.
Applicability: Reference for single-phase and three-phase loads.
