Name: Enda SSR EPAA1-240Z 40 A Switching voltage (max.): 320 V AC Zero crossing 1 pc(s)
Brand: Enda
SKU: 3527734
Availability: InStock

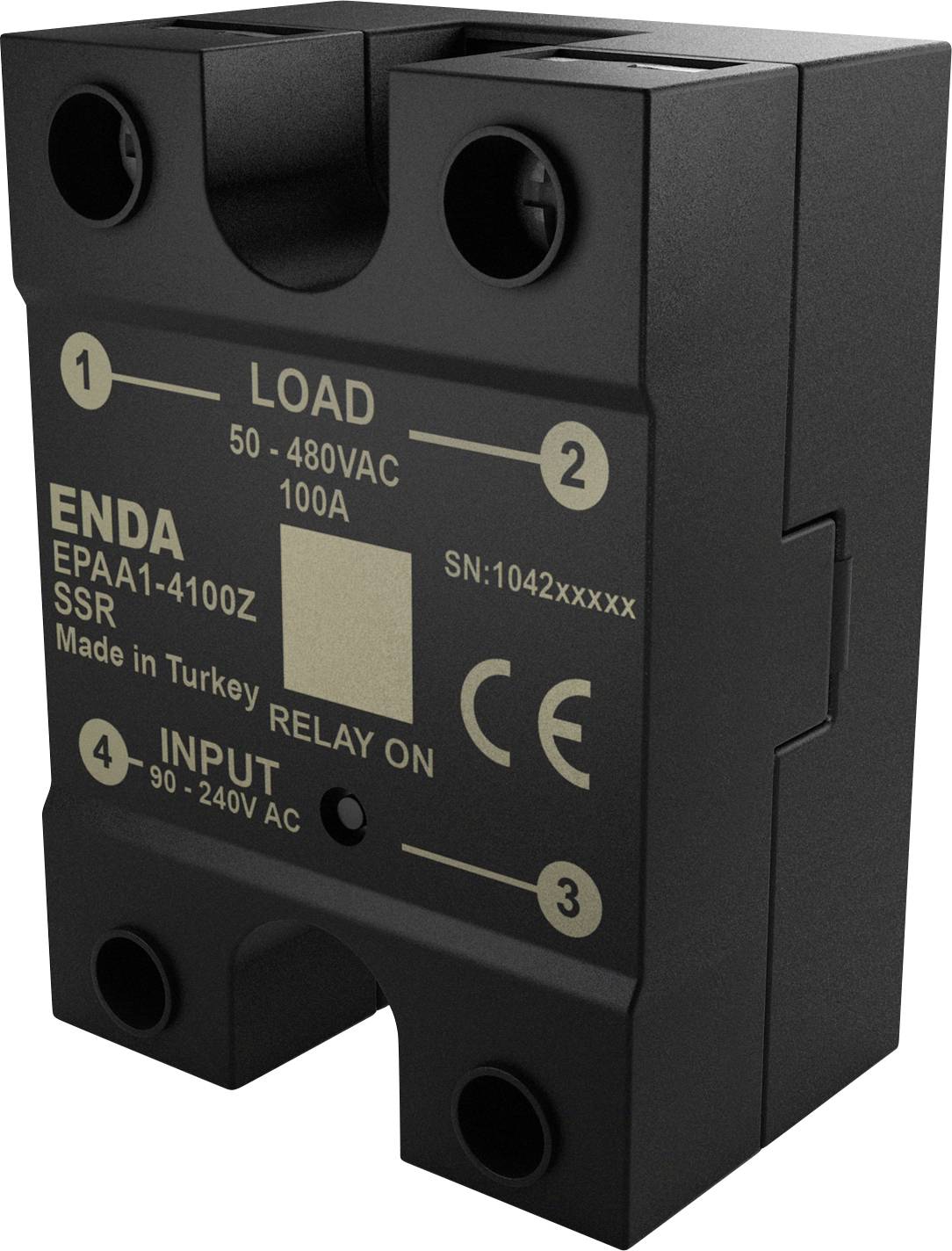

Solid state relay, model ENDA EPAA1-4100Z, for 50-480VAC load, 90-240VAC input. Marked 'Made in Turkey', with CE certification.

Packaging type

Piece

Product type

SSR

Control voltage (min.)

90 V AC

Control voltage (max.)

240 V AC

Switching voltage (max.)

320 V AC

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 32.99 / piece)

€ 32.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

EPAA1-240Z 40A 320VAC SSR (SSR) Enda

12A-25A-40A-50A-70A-100A-120A AC LOAD CURRENT
320 V AC or 480 V AC load voltage
90–240 VAC input voltage
LED display for input voltage
Switches at zero-crossing/random continuity of the alternating voltage
Applicable for three-phase loads
Varistor protection for peak voltages
CE-labeled according to EN standards
This text is machine translated.

Technical specifications

Frequency 50−60 Hz
Switch-on time Max. 1 period
Max. Switch-off time 2 periods
LED display Status display for input voltage
Insulation voltage 2500 Vrms between input/output (1 min.)

Packaging type: Piece

Product type: SSR

Type: EPAA1-240Z

Switching type: Zero crossing

Connection: Screw terminal

Control voltage (min.): 90 V AC

Control voltage (max.): 240 V AC

Control voltage range: 90 - 240 V AC

Control current (max.): 8 mA

Surge current (max.): 400 A

Switching voltage (min.): 24 V AC

Switching voltage (max.): 320 V AC

Current load (max.): 40 A

Output voltage (min.): 24 V AC

Output voltage (max.): 320 V AC

Max. output current: 40 A

Min. temperature: -25 °C

Max. temperature: 60 °C

: IP20

Width: 45 mm

Height: 62 mm

Depth: 31 mm

Weight: 95 g

Industrial packaging: Yes

Permanent current (max.): 40 A

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3527734 Enda SSR EPAA1-240Z 40 A Switching voltage (max.): 320 V AC Zero crossing 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3527734 Enda SSR EPAA1-240Z 40 A Switching voltage (max.): 320 V AC Zero crossing 1 pc(s)

Features

Solid State Relay (SSR)
Single-pole
Panel-fit (EP type)
Self-extinguishing plastic
Connection (components) - screw terminals: Load max. 16 mm² (with cable shoe 25 mm³), signal max. 4 mm²

Description

Features

Solid State Relay (SSR)
Single-pole
Panel-fit (EP type)
Self-extinguishing plastic
Connection (components) - screw terminals: Load max. 16 mm² (with cable shoe 25 mm³), signal max. 4 mm²
