Endress+Hauser Level sensor Capacitive FTC260 FTC260-BB4J1 Relay
Product type
Level sensor
Max. operating voltage
55 V DC
253 V AC
Outputs
Relay
Model
Capacitive
Connector
Cable gland (M20)
EAN:
Part number:
Item no:
Number
Total (€ 459.00 / piece)
€ 459.00
incl. VAT
14-day return policy included
Highlights & Details
Capacitive limit switch Minicap FTC260/262 FTC260-BB4J1 relay 20-253VAC/20-55VDC thread ANSI NPT1, PPS ATEX II 1/2D
- ATEX II 1/2D APPROVAL
- Process connection: ANSI NPT1 thread, PPS
- Switching output relay 20-253VAC/20-55VDC
- Housing; Cable entry: F34 aluminum IP66; screw connection M20 NEMA type 4 ENCL.
- Additional equipment: Basic version
Technical specifications
- Product type
Level sensor
- Type
FTC260
- Min. operating voltage
20 V DC
20 V AC
- Max. operating voltage
55 V DC
253 V AC
- Operating voltage
20, 20 - 55, 253 V DC, V AC
- Outputs
Relay
- Enclosure material
Aluminium
- Model
Capacitive
- Connector
Cable gland (M20)
- Min. temperature
-40 °C
- Max. temperature
60 °C
IP66
- Length
140 mm
- Content
1 pc(s)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2988414 Endress+Hauser Level sensor Capacitive FTC260 FTC260-BB4J1 Relay
Description

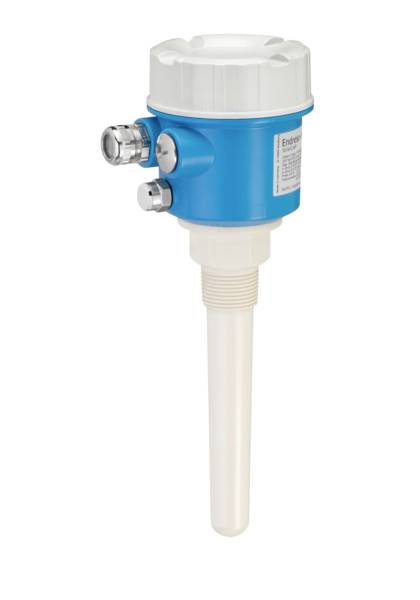

The FTC260 Minicap is a rod probe for boundary layer detection in bulk materials such as cereal products, milk powder or cement. The device can be used without calibration and is particularly suitable for applications with aggressive media and strong adhesion.
This text is machine translated.
This text is machine translated.
Features
- Suitable for applications with aggressive media and strong adhesion
- Mechanically robust: No wearing parts, long service life, no maintenance
